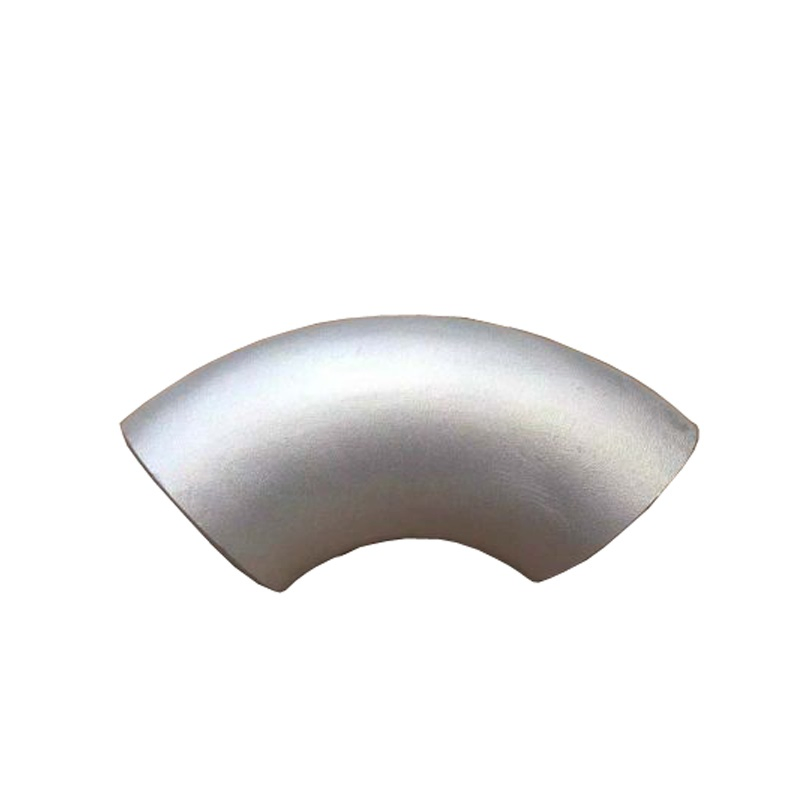

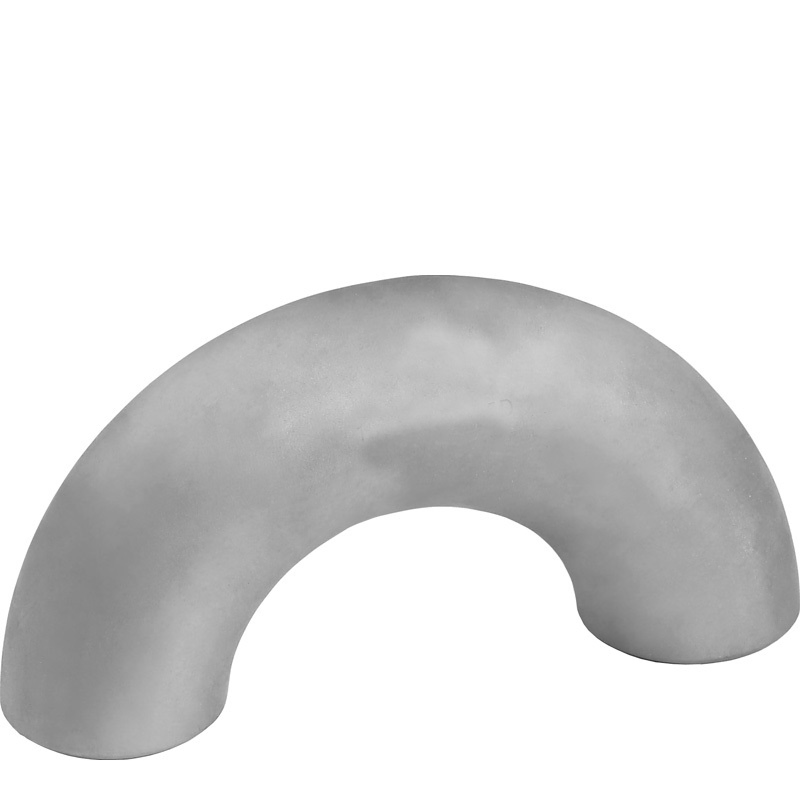

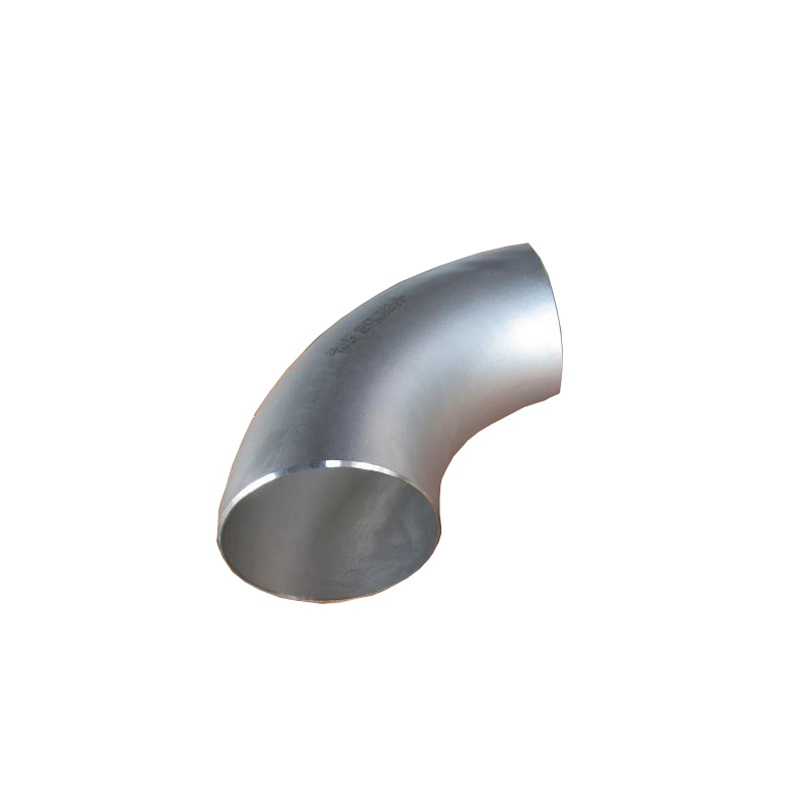

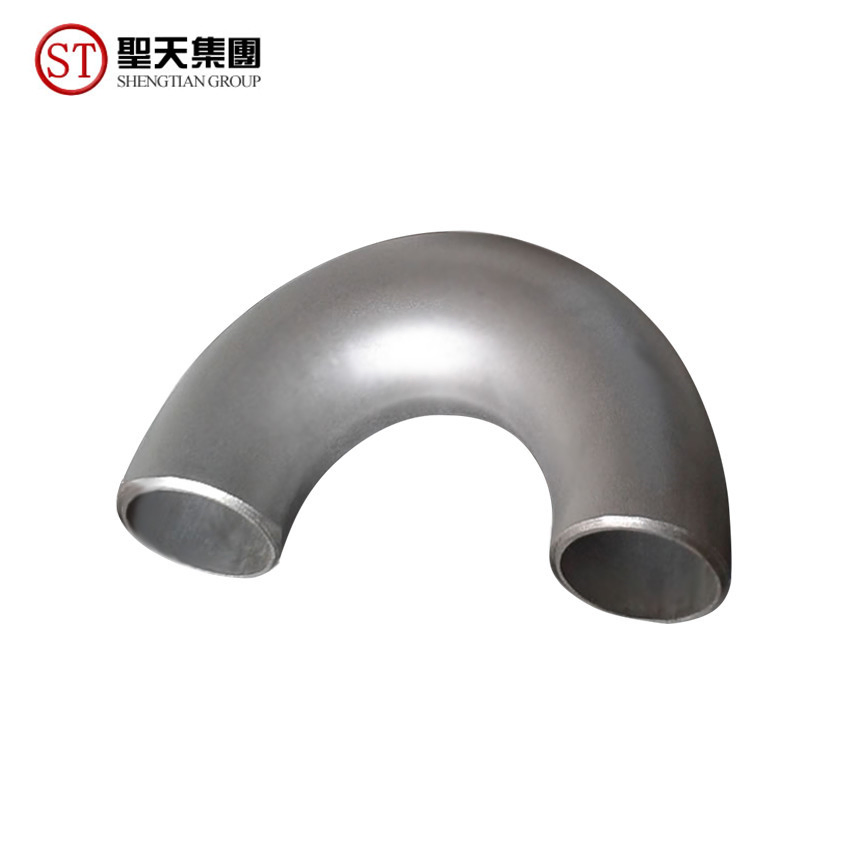

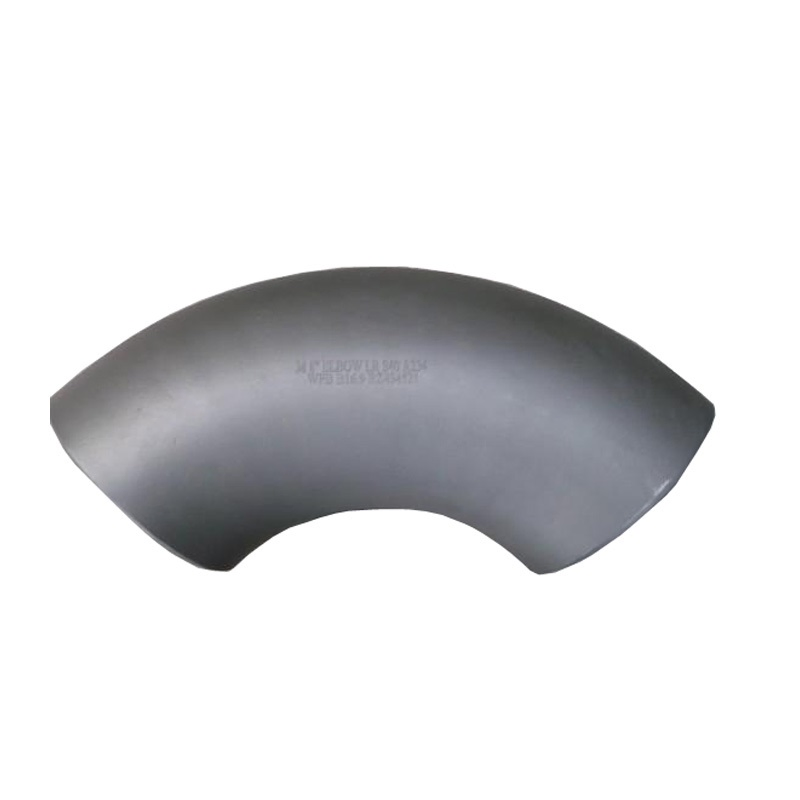

Carbon-Steel A234-Wpb A420-Wpl6 Alloy-Steel A234-Wp11/Wp22/Wp91 Stainless-Steel 304/316 Elbow/Tee/Reducer/Cap/Cross/Bend B16.9 Butt-Weld Pipe Fitting

1 / 5

Carbon-Steel A234-Wpb A420-Wpl6 Alloy-Steel A234-Wp11/Wp22/Wp91 Stainless-Steel 304/316 Elbow/Tee/Reducer/Cap/Cross/Bend B16.9 Butt-Weld Pipe Fitting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview - Basic Information

Connection

Welding

Shape

Equal

Head Code

Round

Angle

45 Degree

Wall Thickness

Sch10

Material

Carbon Steel / Stainless / Alloy

Technics

Forged

Certification

ASME, ISO, API

Size

1/2"-72" or More

Production

30,000 Ton/Year

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Gross Weight

1.000kg

Delivery Time

5-60 days

Logistics

By Sea or By Air

Product Description

Available Fittings: Carbon-Steel A234-Wpb, A420-Wpl6; Alloy-Steel A234-Wp11/Wp22/Wp91; Stainless-Steel 304/316 Elbow, Tee, Reducer, Cap, Cross, Bend B16.9 Butt-Weld Pipe Fitting.

1) ANSI B16.5, ASME B16.47 FLANGE

Size range: 1/2" to 80" (DN15 to DN2000)

Design: Welding neck, slip on, blind, socket welding, threaded, lap-joint

Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#

Wall thickness for WN flange: STD, SCH40, SCH80, SCH160, SCHXXS

2) EN1092-1 FLANGE

Design: Type 01 Plate, Type 02 Loose, Type 05 Blind, Type 11 Welding Necking, Type 12 Slip-on, Type 13 Threaded

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100

3) DIN FLANGE

Design: Slip on (DIN2573, 2576), Welding Neck (DIN2631-2635), Blind (DIN 2527), Threaded, Loose

Material: Carbon steel ST37.2, Stainless steel 1.4301, 1.4404

4) JIS FLANGE

Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K

Material: SS400, SUS304, SUS316

Standard	Standard Code	Pressure Rate	Type	Size
American	ANSI B16.5 / B16.47	Class 150-2500	WN, SW, SO, BL, TH	1/2"-60"
British	BS4504	PN6-PN40	WN, SO, PL, BL	DN10-DN2000
European	EN1092	PN2.5-PN400	WN, SO, PL, BL	DN10-DN4000
Japanese	JIS B2210	5K-30K	SOP, SOH, WN	10A-1500A
Germany	DIN	PN2.5-PN160	SO, BL, PL, WN	DN10-DN4000

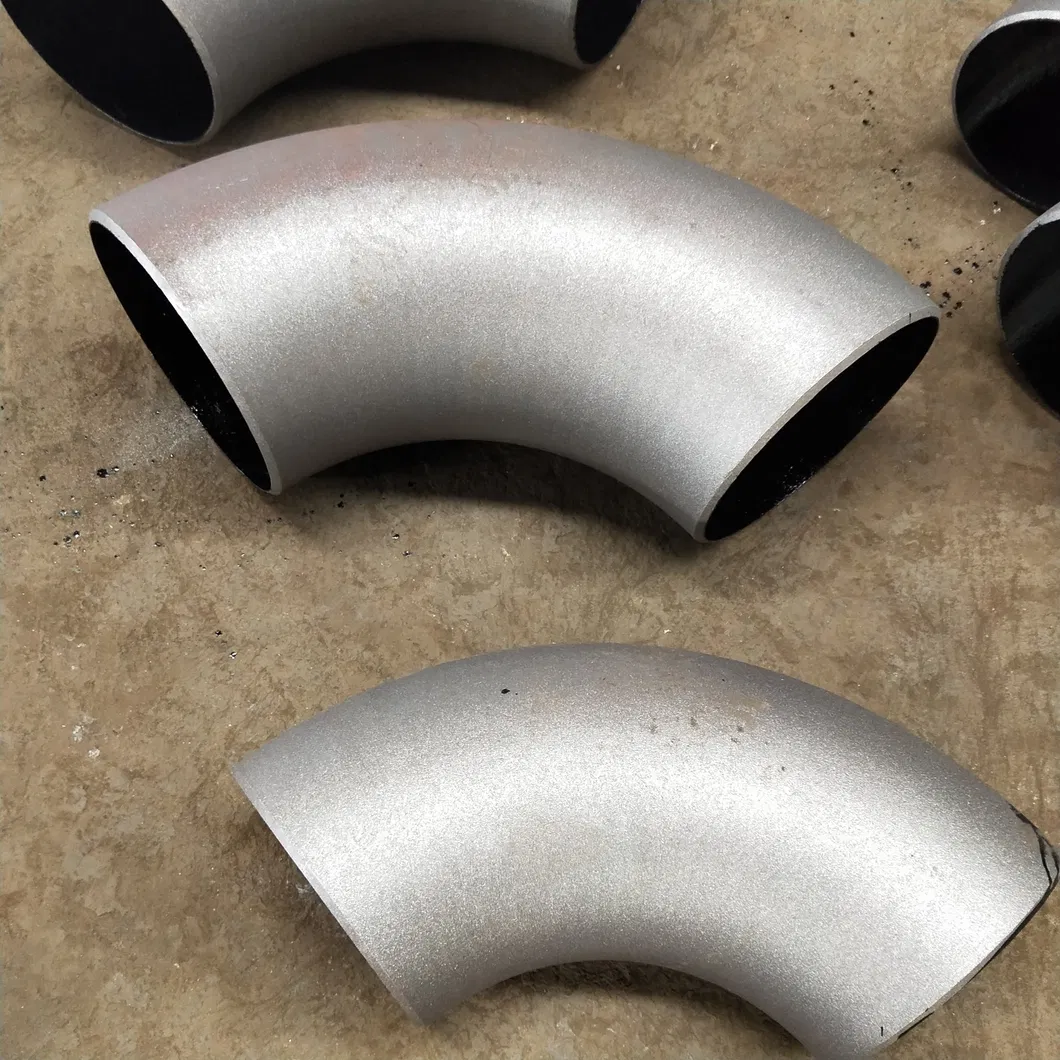

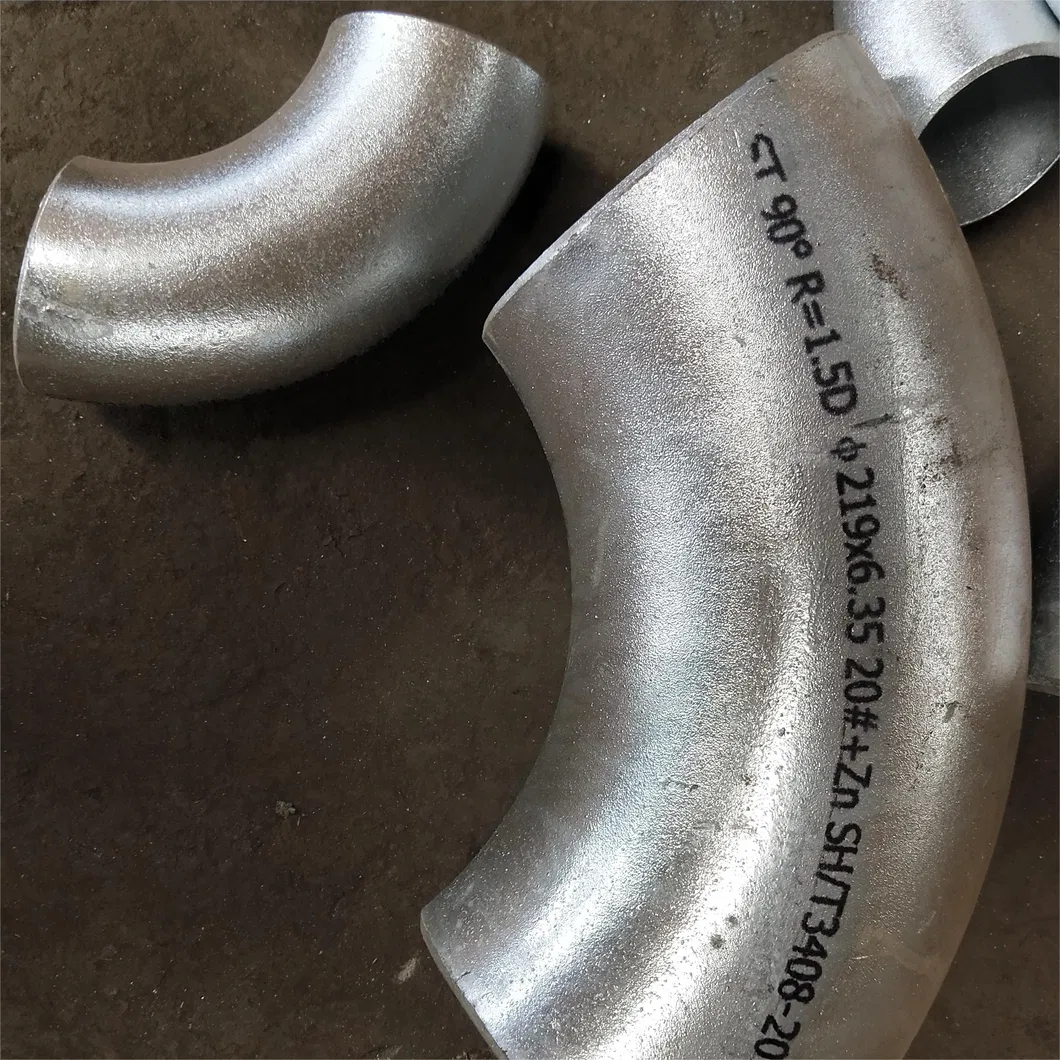

Detailed Photos

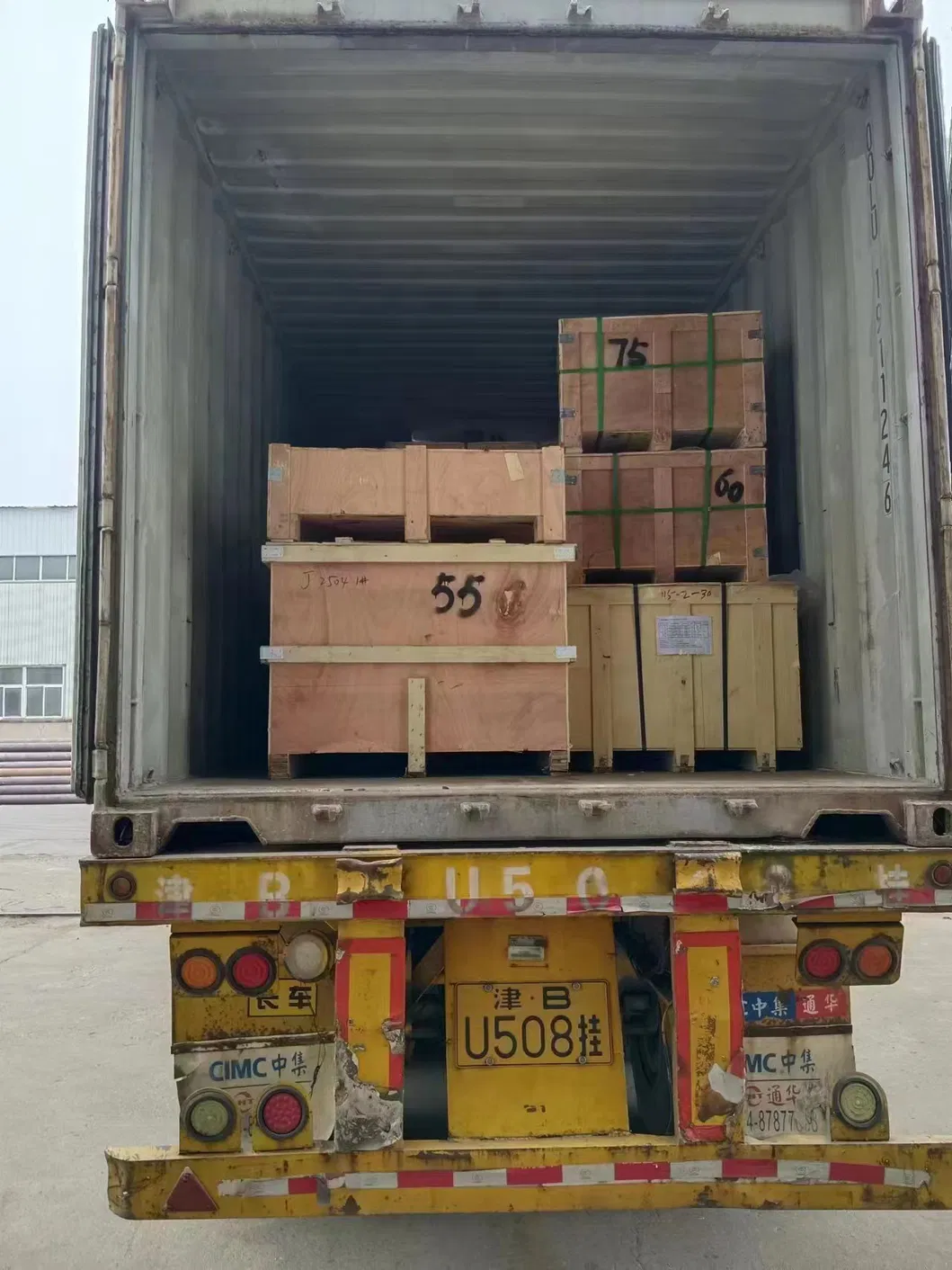

Packaging & Shipping

Certifications

Frequently Asked Questions

1. What materials are available for the pipe fittings?

We provide fittings in Carbon Steel (ASTM A105, A350 LF2), Stainless Steel (ASTM A182 F304/304L, F316/316L), and Alloy Steel (ASTM A182 F11, F22, F91, etc.).

2. Which international standards do your products comply with?

Our products meet major global standards including ANSI/ASME (American), EN1092 (European), DIN (German), JIS (Japanese), and GOST (Russian).

3. What is the size range for your flanges and elbows?

We offer a wide size range from 1/2" up to 80" (DN15 to DN2000) for various pressure ratings.

4. What type of surface coating is applied to the fittings?

Depending on requirements, we offer black paint, yellow transparent paint, rust-proof oil, and cold or hot-dip galvanization.

5. How are the products packaged for international shipping?

All products are packed in seaworthy plywood cases or on wooden pallets to ensure safety during sea or air transport.

6. What certifications do your products hold?

Our production processes are certified by SGS, BV, ISO9001, and API to ensure the highest quality standards.

Product Detail

Carbon-Steel A234-Wpb A420-Wpl6 Alloy-Steel A234-Wp11/Wp22/Wp91 Stainless-Steel 304/316 Elbow/Tee/Reducer/Cap/Cross/Bend B16.9 Butt-Weld Pipe Fitting
