Material: ASTM A106
Threads: ASME B1.20.1, ISO 7/1

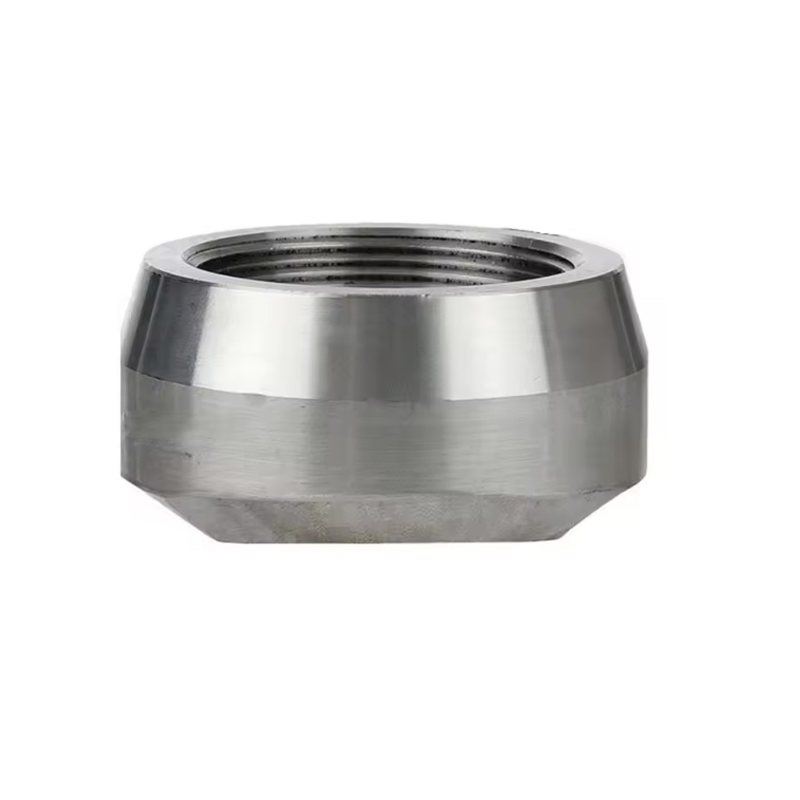

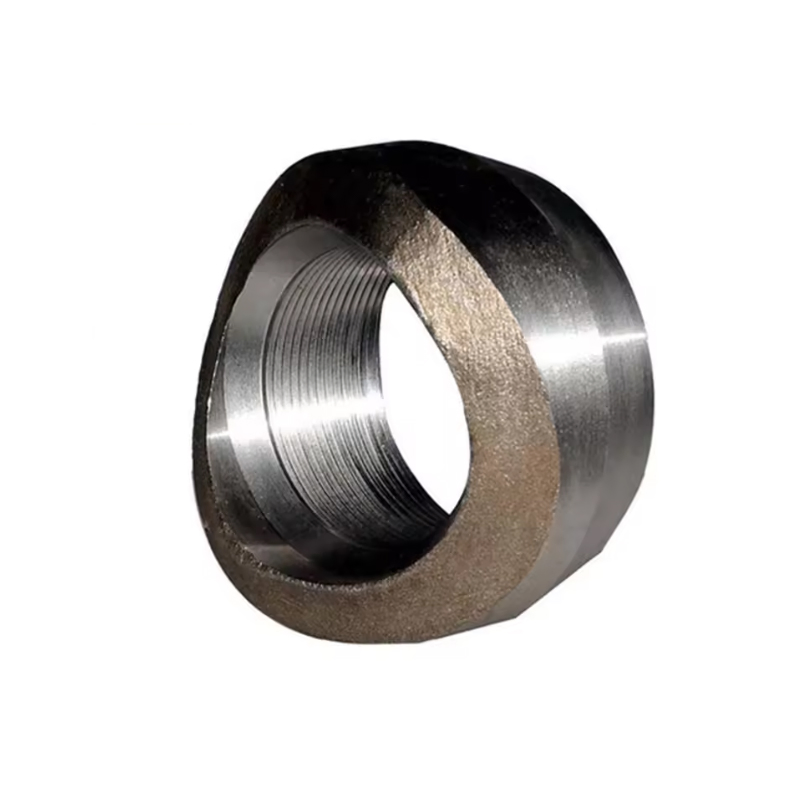

A threadolet is used for low-pressure 90-degree pipe branches. It features a female threaded connection where the branched pipe is screwed onto the fitting. This creates a 90-degree branch as a full-size or reduced straight pipe. A full-size threadolet offers the same diameter branch as the run pipe.

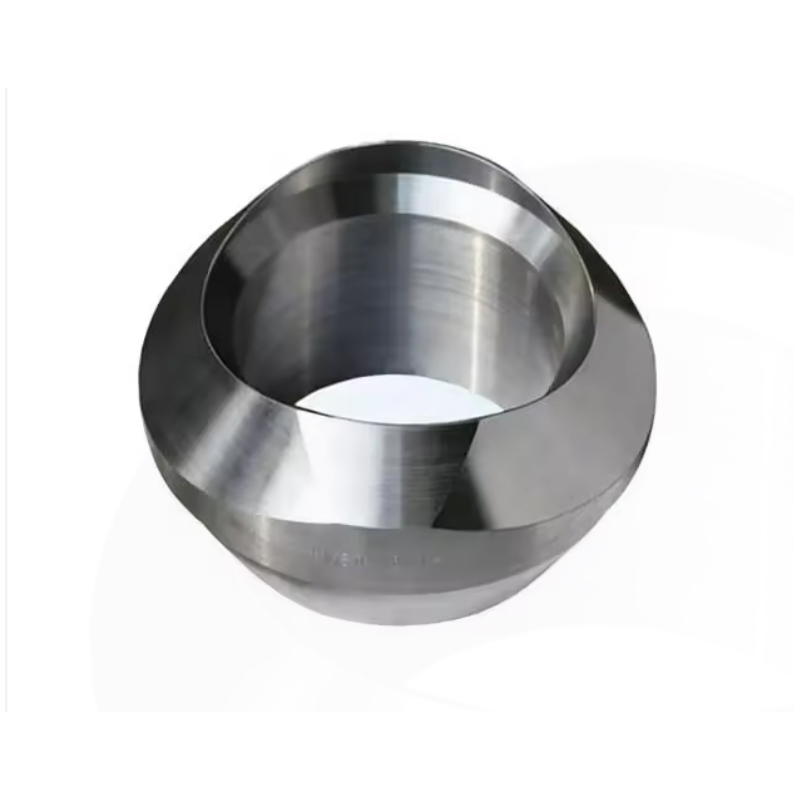

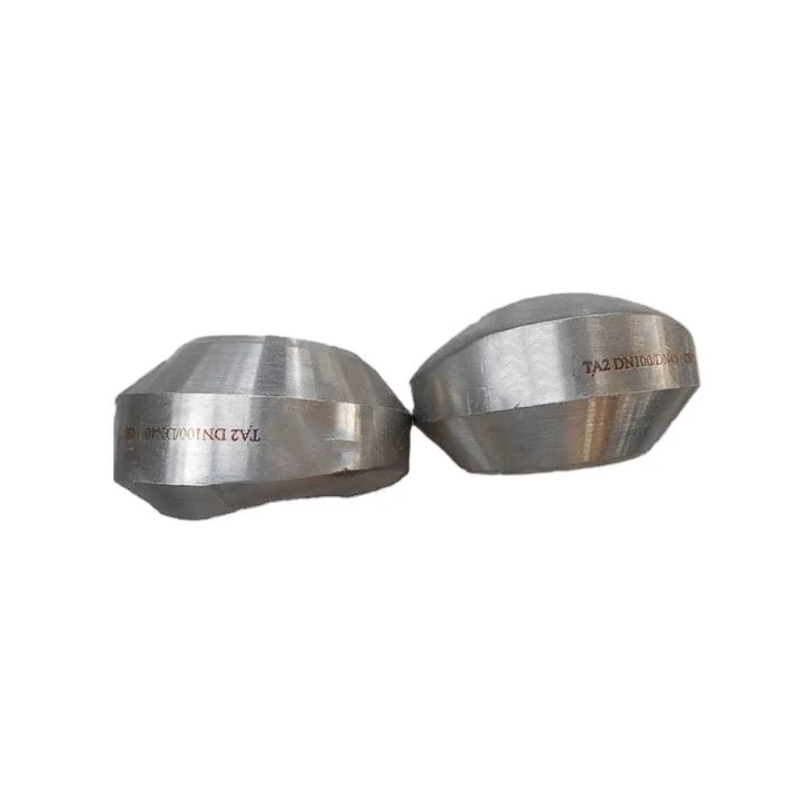

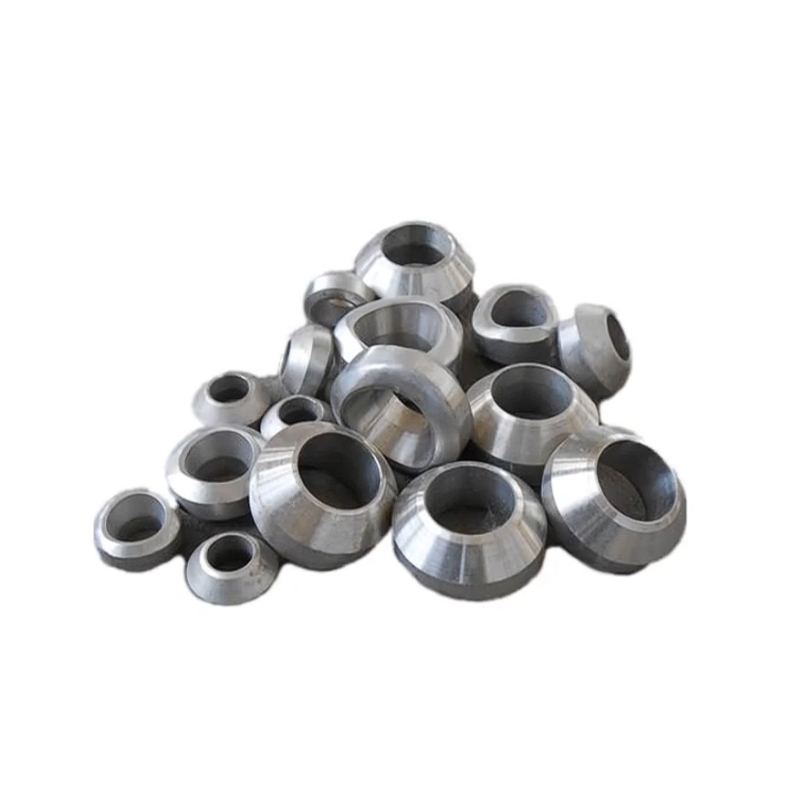

Weldolets are the most popular type of branch fittings, belonging to the buttweld fittings family. They feature beveled ends and are welded onto the run pipe on one side and the branch pipe on the other. Their unique shape ensures minimal stress concentration, providing integral reinforcement for 90-degree pipe branches.
| Size (In) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|
| Pipe Run Size (In) | 1 to 4 | 1 to 4 | 1 1/4 to 6 | 1 1/2 to 6 | 2 to 6 | 3 to 6 | 3 to 8 | 4 to 8 | 6 to 8 |
| A (In) | 1.083 | 1.331 | 1.555 | 1.870 | 2.165 | 2.724 | 3.209 | 3.957 | 4.961 |
| C (In) | 1.063 | 1.126 | 1.248 | 1.374 | 1.626 | 1.752 | 2.217 | 2.500 | 3.000 |
We are a professional manufacturer of pipe fittings. All products are designed, manufactured, and tested in strict accordance with DIN, BS, ISO, ANSI, API, and JIS standards.
Our main inventory includes steel pipe joints, sockets (black or galvanized, seamless or welded), and stainless steel fittings such as unions, elbows, reducers, and couplings. We also provide custom services including pipe cutting, bending, and threading to meet specific project requirements.
Our products are widely utilized in fire protection systems, water distribution, HVAC, plumbing, gas systems, and irrigation. They have been successfully implemented in numerous high-profile infrastructure projects and landmark buildings globally.
