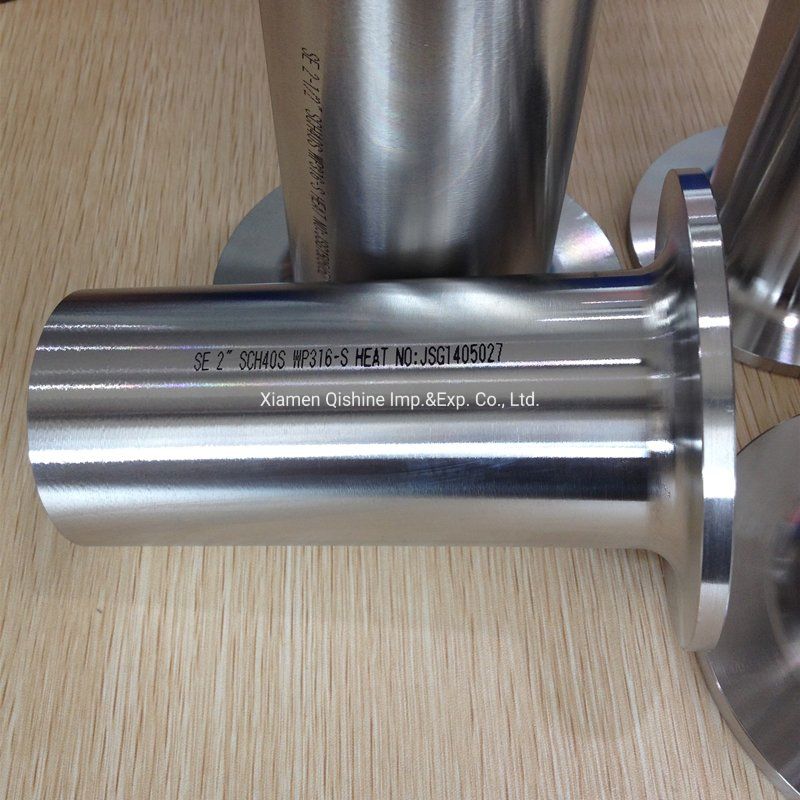

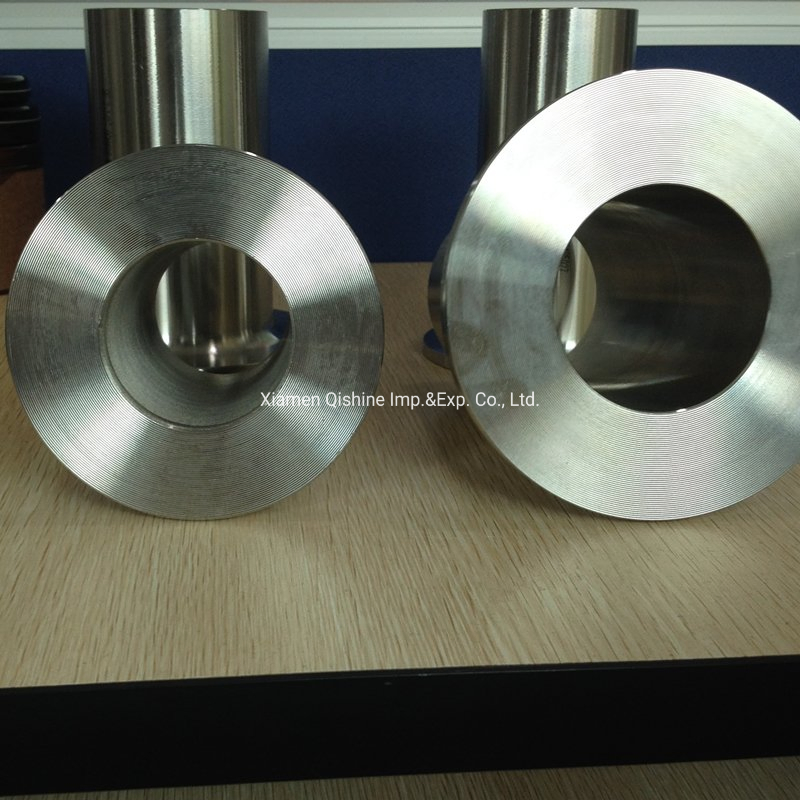

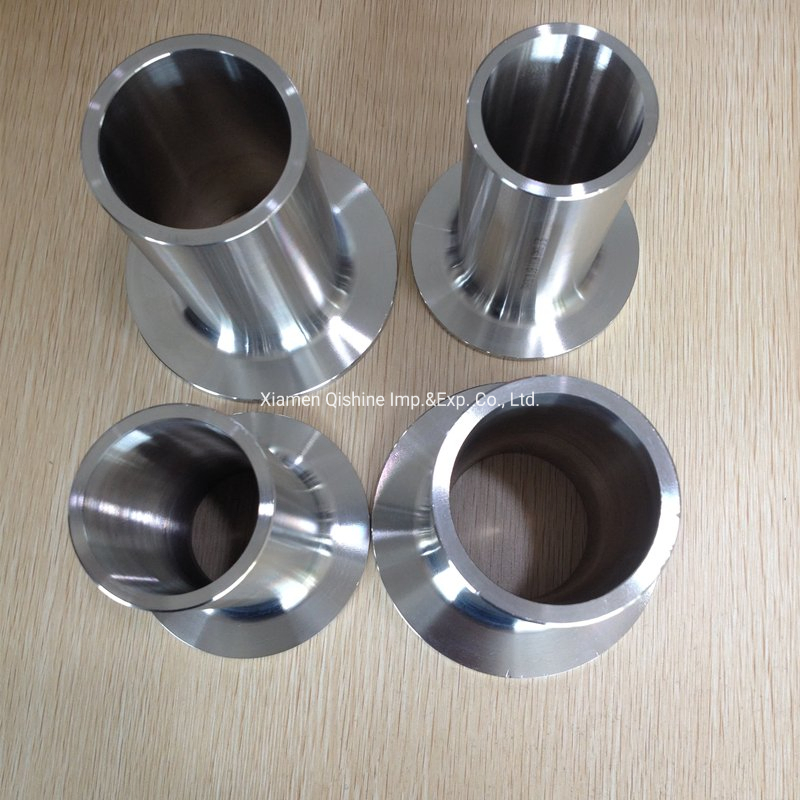

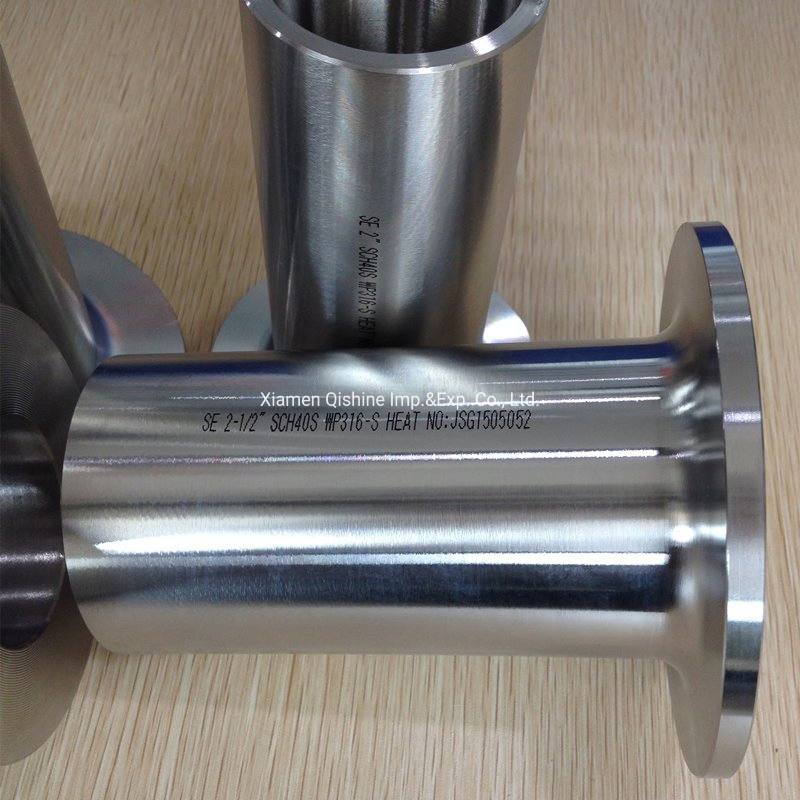

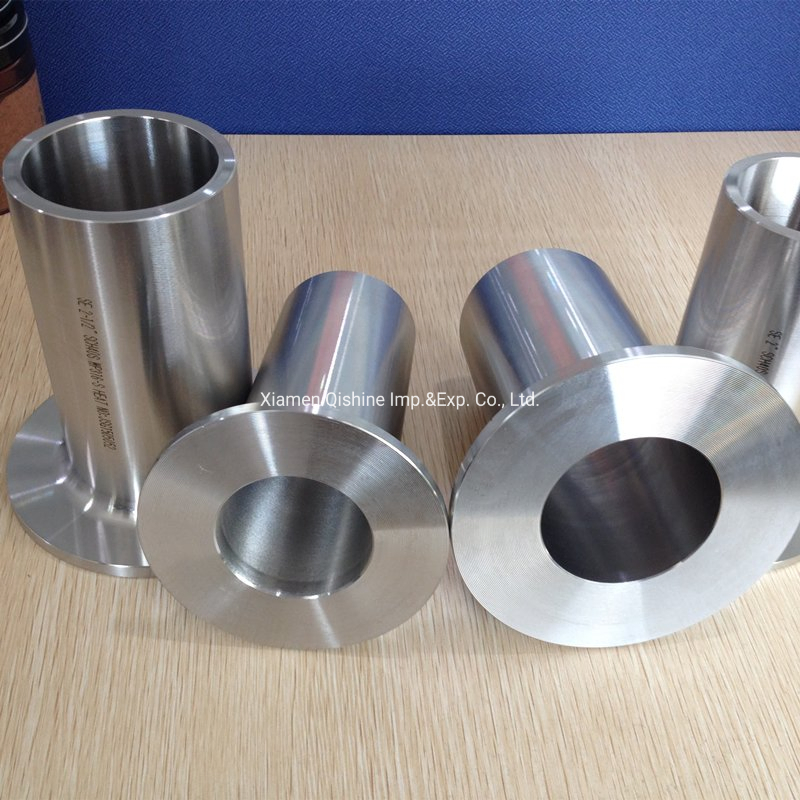

Lap Joint Stud End Mss Sp43 A403 Wp304L Butt Weld Pipe Fitting

Basic Specifications

Model NO.

Fittings-027

Connection

Welding

Shape

Equal

Head Code

Round

Angle

180 Degree

Material

Stainless Steel

Technics

Pushing

Standard

Mss Sp 43

Ends

Bevel Ends

Delivery

2-4 Weeks

Company Profile

Established in 2013, we are a leading fabrication services provider in industries such as Oil & Gas, Petroleum, Marine, Oilfield, Mining, and Heavy Industry, specifically for pipeline construction and maintenance.

Our company specializes in supplying a range of products including Fasteners, Flanges, Gaskets, Fittings, Valves, Pipes and Piping Spare Parts. Our products are CE, TUV and ISO certified. Products are widely used on oil rigs, new nuclear power plant, Chemical and Heavy Industry.

We pride ourselves as being a premium product supplier who works closely with our clients to achieve the best possible results. We have an experienced team, skilled labor force, and advanced facilities to ensure safe and efficient project completion, meeting deadlines and budget requirements.

Product Details

Stub End Specifications

Size: 1/2" - 56"
Schedule: SCH5 - SCH160/XXS
Standard: MSS SP 43/ ANSI B16.9
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

A Stub End always will be used with a Lap Joint flange, as a backing flange. This flange connections are applied in low-pressure and non-critical applications, serving as a cost-effective flanging method. For instance, in stainless steel pipe systems, carbon steel flanges can be used as they do not contact the medium.

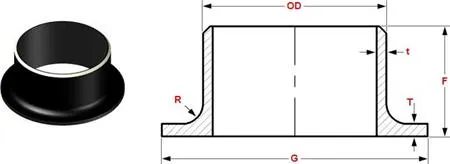

Dimensions: Stub Ends Schedule 10S MSS SP-43 Type A

NPS	OD	T	G	F	R	kg
1/2	21.3	2.11	34.9	50.8	3.18	0.07
3/4	26.7	2.11	42.9	50.8	3.18	0.10
1	33.4	2.77	50.8	50.8	3.18	0.16
1.1/2	48.3	2.77	73	50.8	6.35	0.25
2	60.3	2.77	92.1	63.5	7.94	0.43
3	88.9	3.05	127	63.5	9.53	0.73

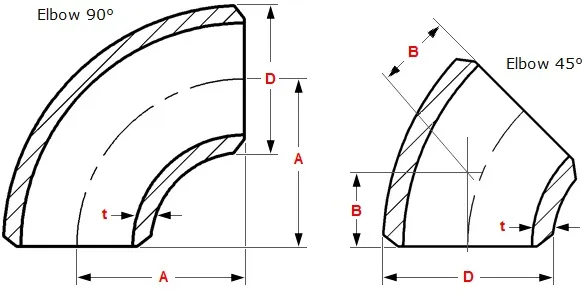

45 & 90 Degree Butt Weld Elbows (ASME B16.9)

Standard: ANSI B16.9, MSS SP 75
Range: Long Radius and 3D Center to End dimensions.

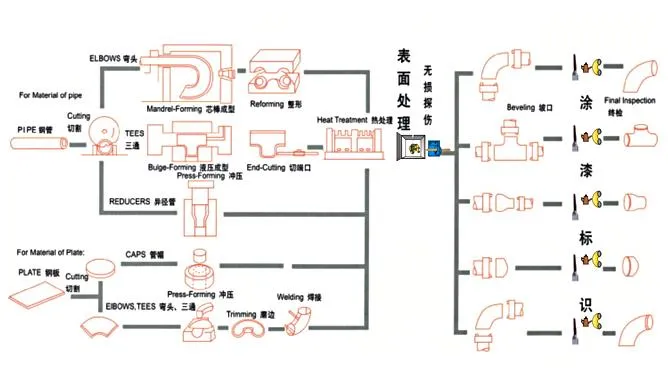

Manufacturing Process & Packaging

Frequently Asked Questions

1. What is the primary use of a Stub End?

A Stub End is primarily used in conjunction with a Lap Joint flange (backing flange) to create a flanged connection in piping systems, often used in low-pressure or non-critical applications.

2. Which standards do your pipe fittings comply with?

Our fittings comply with major international standards including ASME B16.9, MSS SP-43, ANSI, DIN, JIS, and BS.

3. What materials are available for your butt weld fittings?

We offer fittings in Carbon Steel, Stainless Steel (e.g., WP304L), Alloy Steel, and Duplex Steel to suit various industrial requirements.

4. What is the typical delivery timeframe?

The standard delivery time for our products is typically between 2 to 4 weeks, depending on the order size and specifications.

5. Are your products certified for heavy industrial use?

Yes, our products are CE, TUV, and ISO certified, making them suitable for demanding environments like oil rigs, nuclear power plants, and chemical industries.

6. How are the pipe fittings packaged for transport?

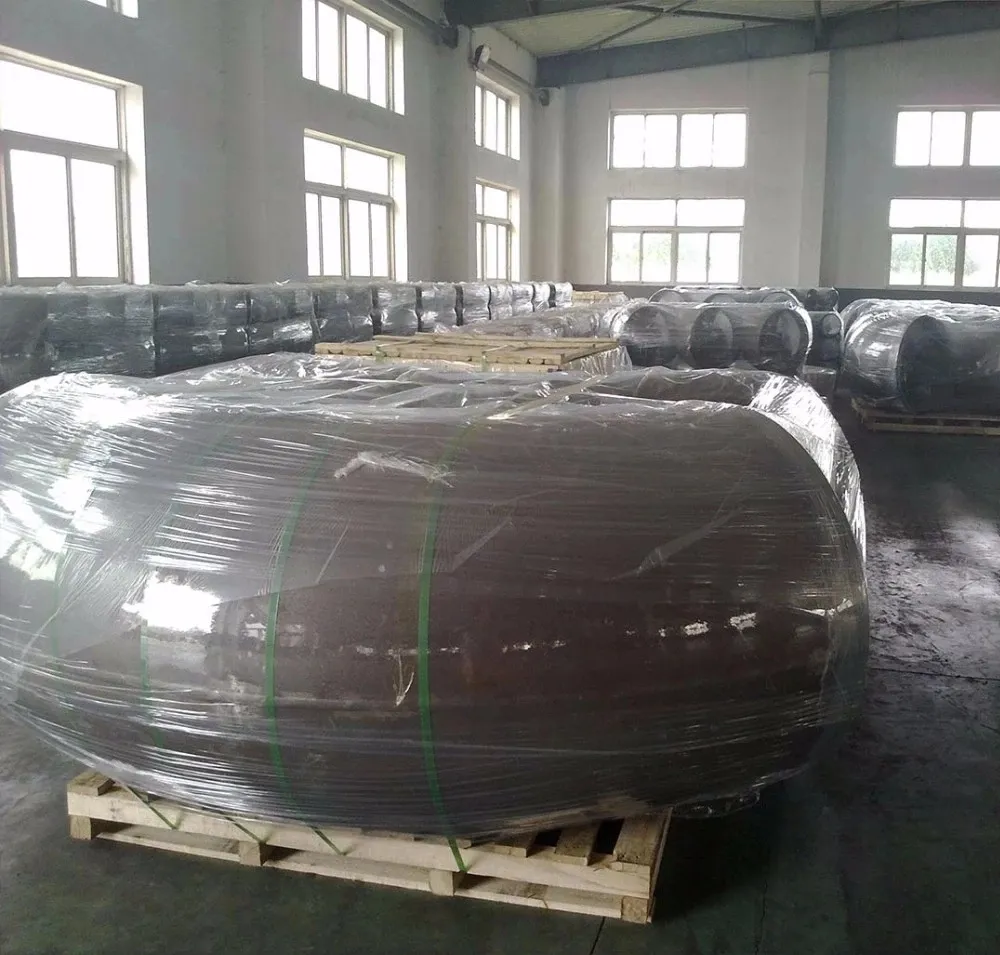

All fittings are securely packed for sea shipping to ensure they reach the destination without damage, using standardized export packaging.
