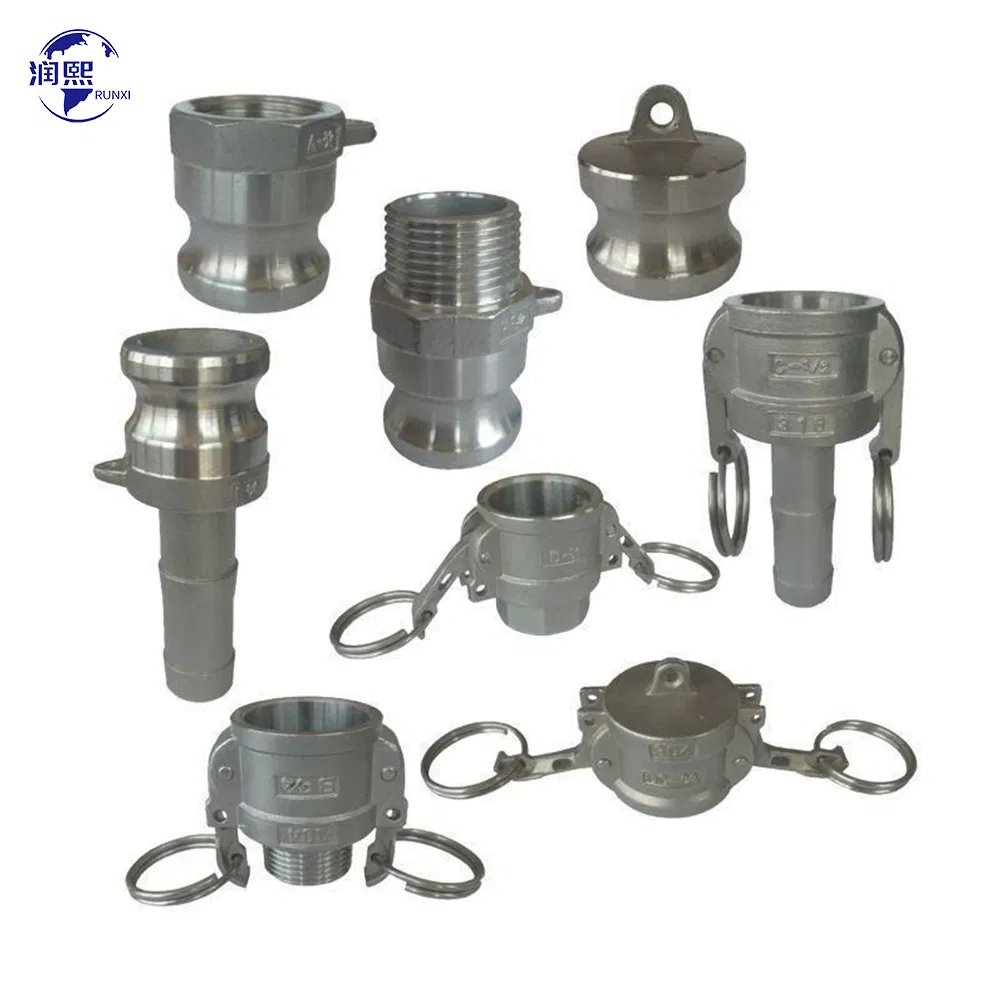

| Type A Camlock Coupling Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Item | Thread | DN | ØA | ØB | H1 | H | SW |
| EG--A1/2" | 1/2" | 15 | 32 | 21.2 | 28 | 38 | 33 |
| EQ--A3/4" | 3/4" | 20 | 32 | 21.2 | 28 | 38 | 33 |
| EQ--A1" | 1" | 25 | 36.7 | 23.8 | 33.5 | 46.5 | 41 |
| EQ--A1 1/4" | 1 1/4" | 32 | 45.5 | 28.6 | 40 | 55 | 48 |
| EQ-A1 1/2" | 1 1/2" | 40 | 53.4 | 36 | 42.5 | 58.5 | 56 |
| EQ--A2" | 2" | 50 | 63 | 45.5 | 47.5 | 62.3 | 67.5 |
These couplings and hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
