📋 Overview & Basic Info
Model NO.NBQXHY
MaterialPlastic, PVC, UPVC, CPVC
ConnectionGlue, Thread, Flange
FeatureUV Protection
Quality100% New Material
ApplicationWater Supply, Industry Use
OriginChina
Capacity10,000,000 Pcs/Month
📍 Product Description

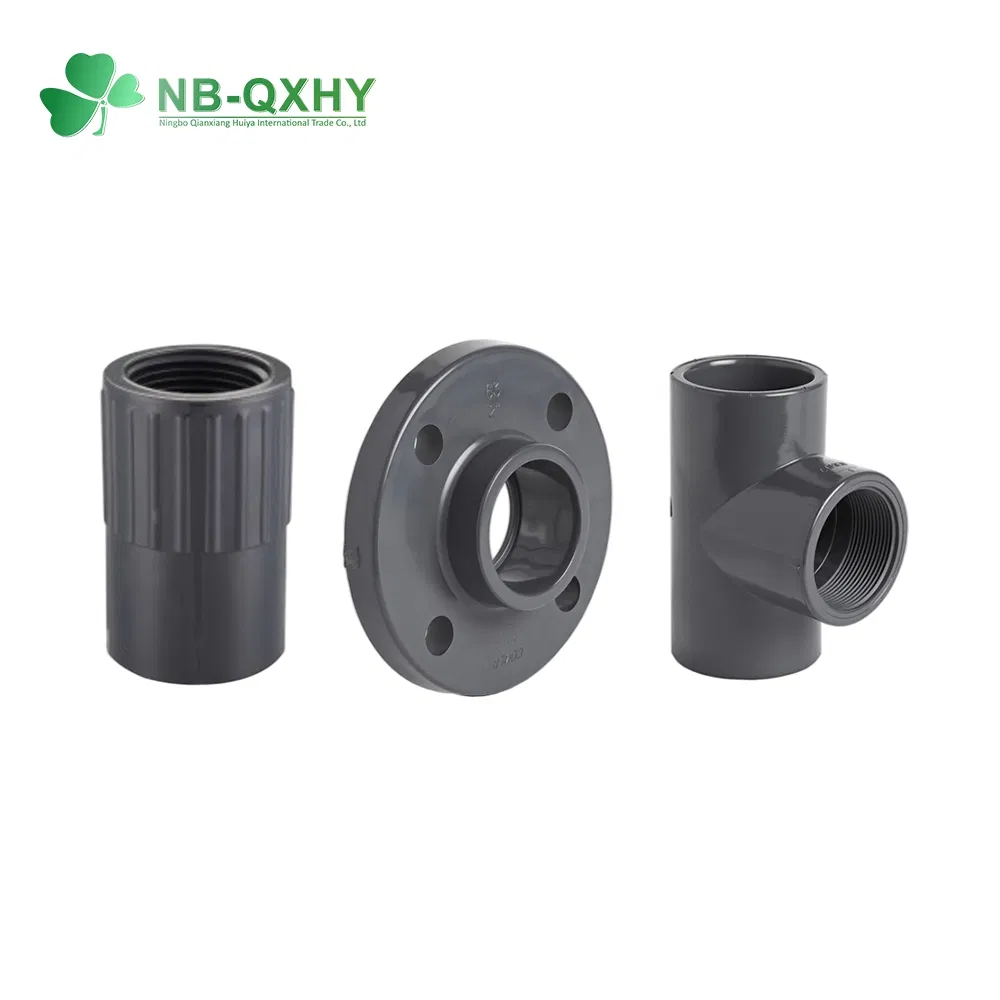

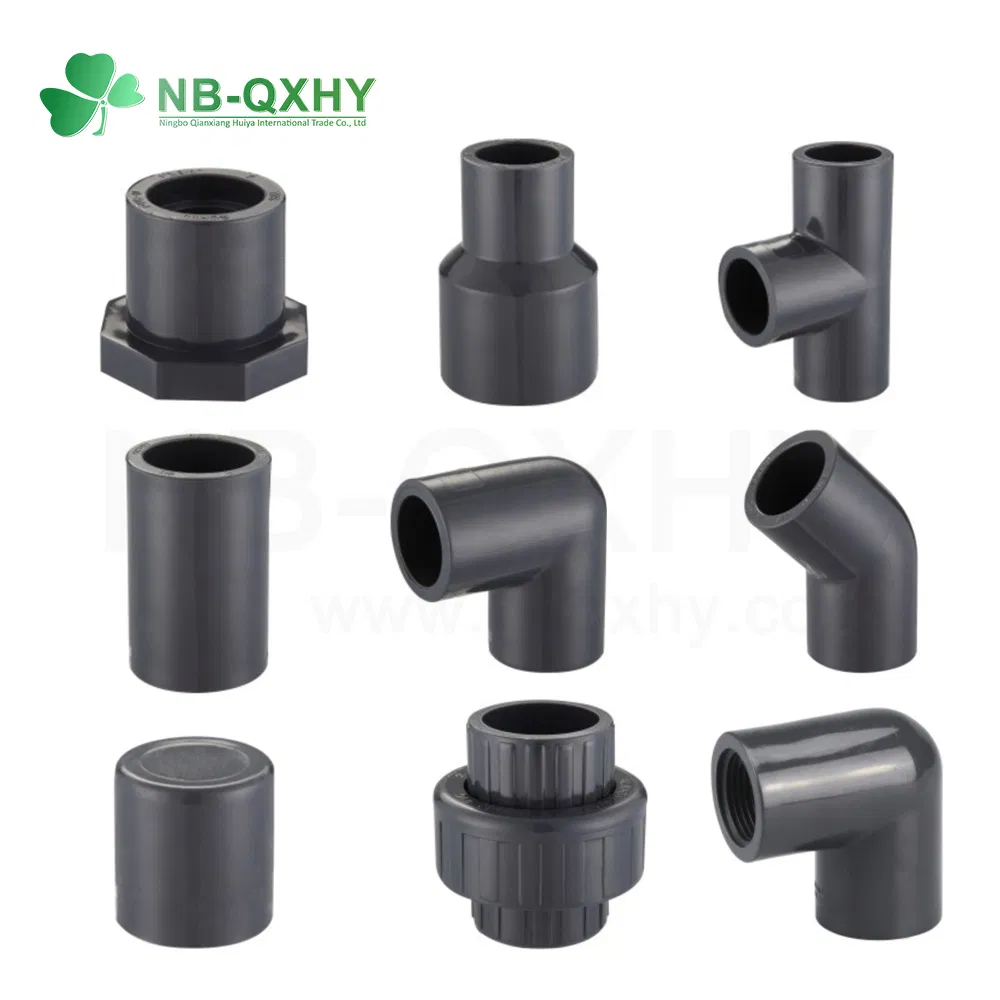

High Pressure Water Supply Plastic ANSI SCH80 PN16 Male Female Thread Union Coupling Tee Cap Connector
✔ Thicker walls for superior pressure resistance and impact strength.
✔ Low noise operation (40% reduction compared to galvanized steel).
✔ Excellent design suitable for both exposed and hidden installations.
✔ Long service life and chemical corrosion resistance.
📊 Technical Parameters (SCH80 Standard)
| Item Name |
Standard |
Material |
Size Range |
Color |
Pressure |
| SCH80 PVC Fitting |
ASTM |
PVC / UPVC |
1/2'' - 4'' |
Dark Grey / Black |
Normal Pressure |
| Fitting Type |
Size (inch) |
Weight (g/pc) |
PCS/CTN |
Packing Size (m) |

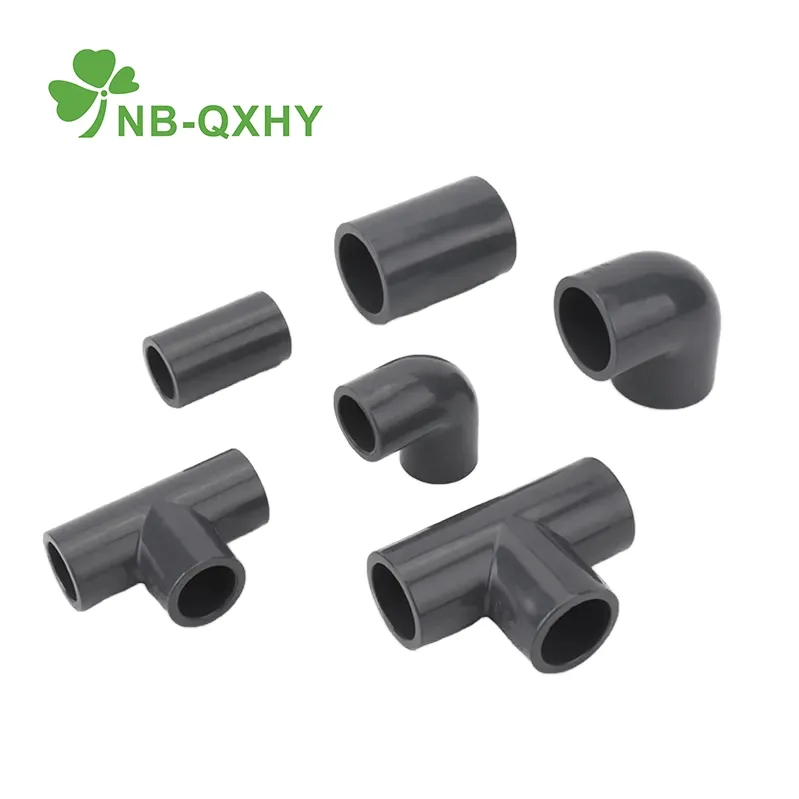

| COUPLING | 1/2" - 6" | 23 - 1400 | 6 - 600 | 0.5 x 0.3 x 0.27 |
| 90 DEG ELBOW | 1/2" - 6" | 31 - 2865 | 4 - 500 | 0.5 x 0.3 x 0.27 |

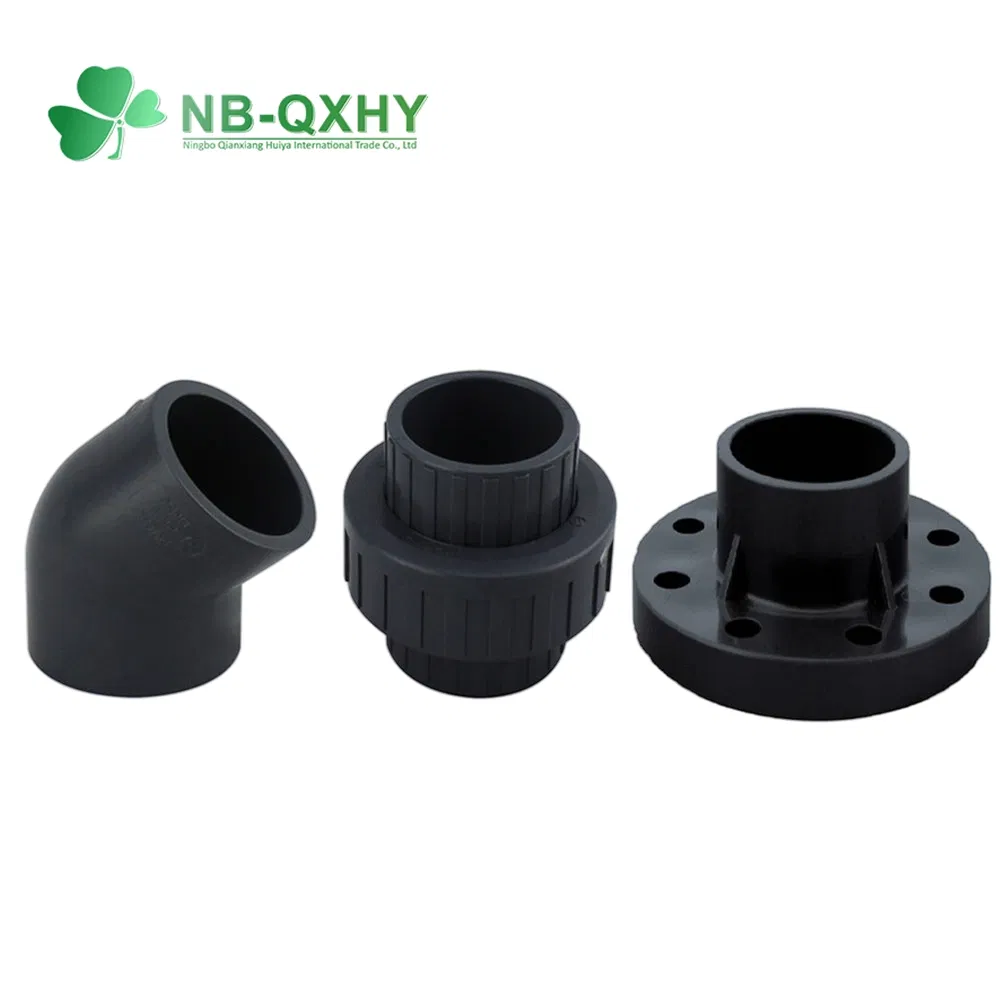

| 45 DEG ELBOW | 1/2" - 6" | 29 - 2136 | 6 - 500 | 0.5 x 0.3 x 0.27 |

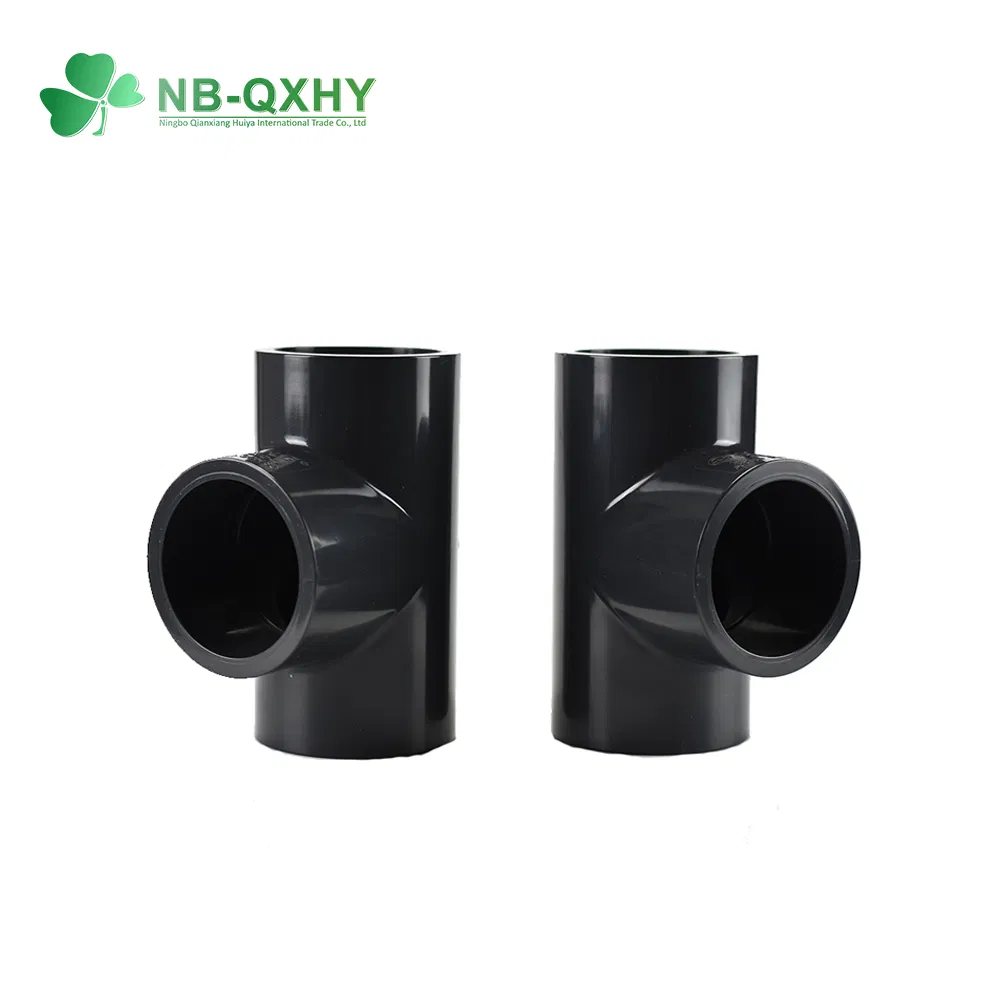

| TEE | 1/2" - 6" | 41 - 3595 | 4 - 300 | 0.5 x 0.3 x 0.27 |

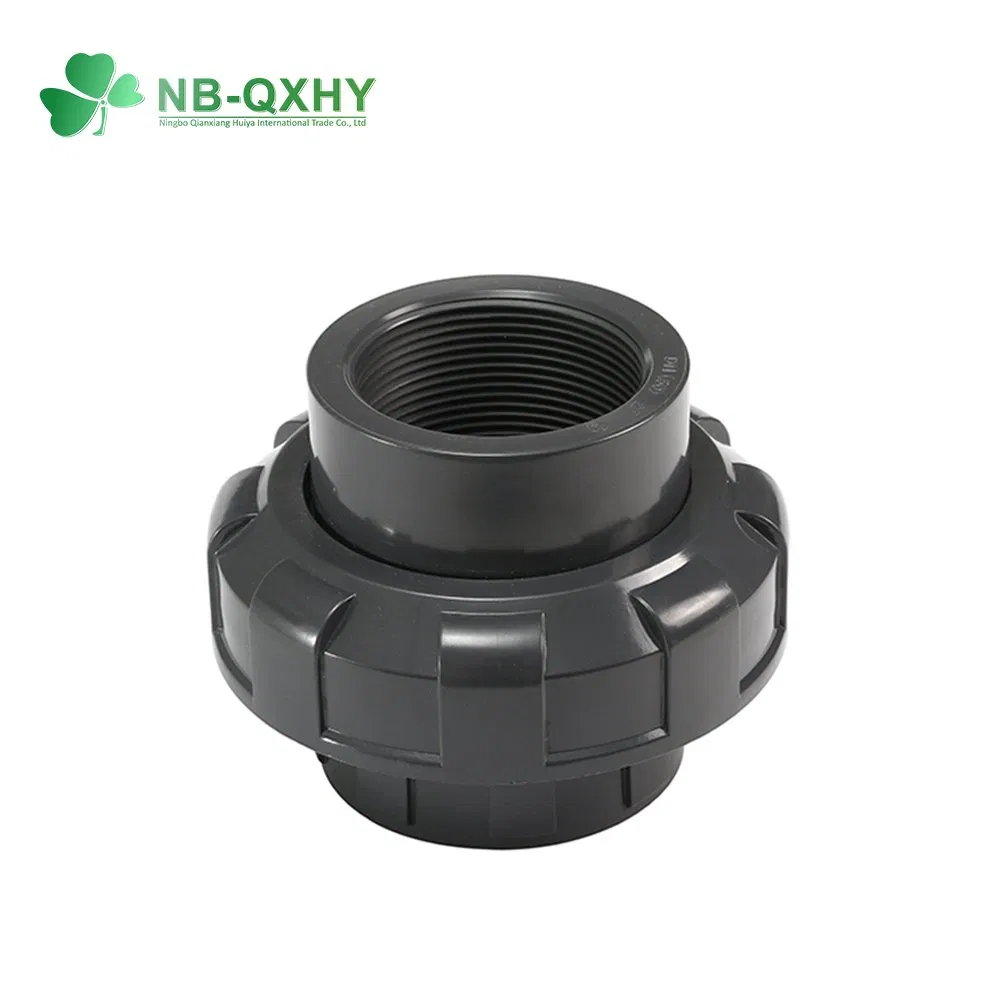

| UNION | 1/2" - 2" | 50 - 455 | 36 - 300 | 0.5 x 0.3 x 0.27 |

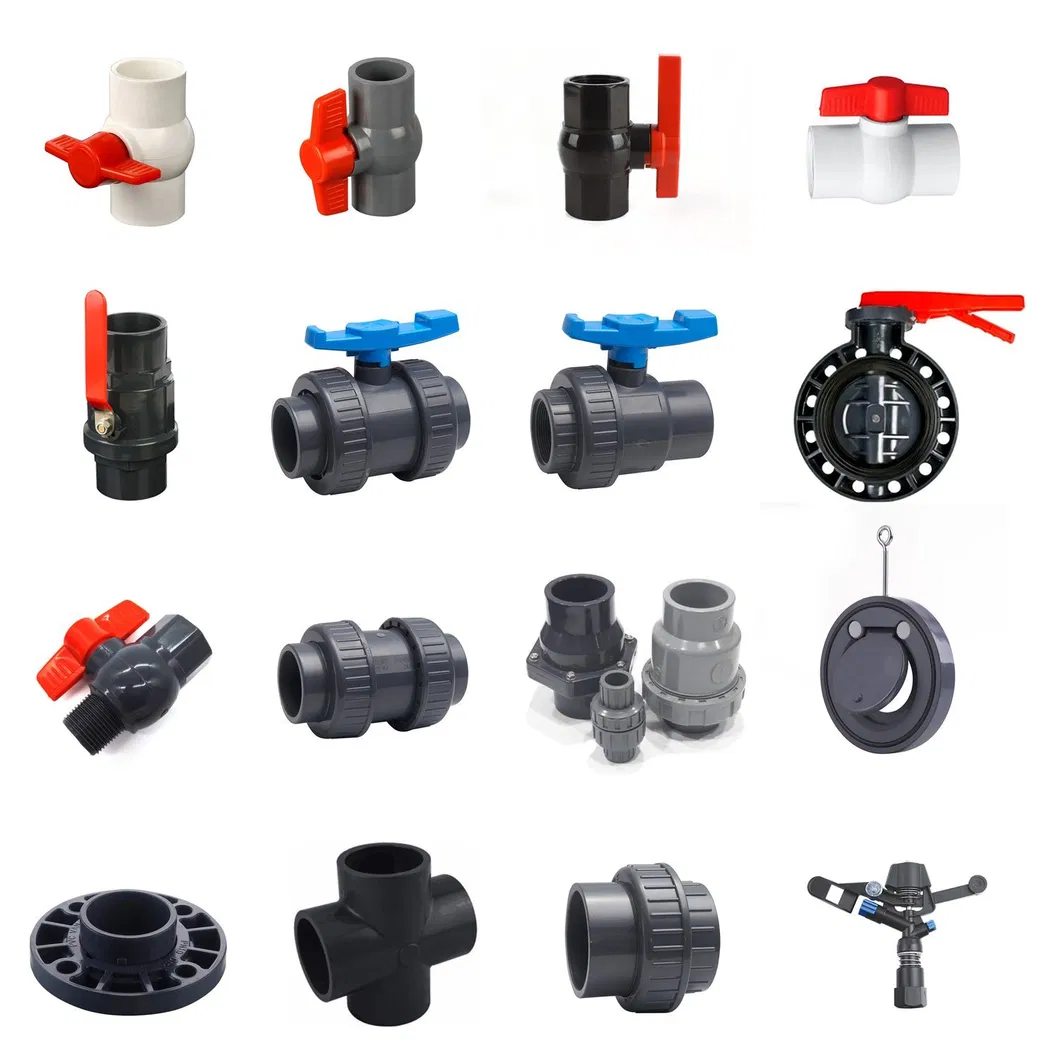

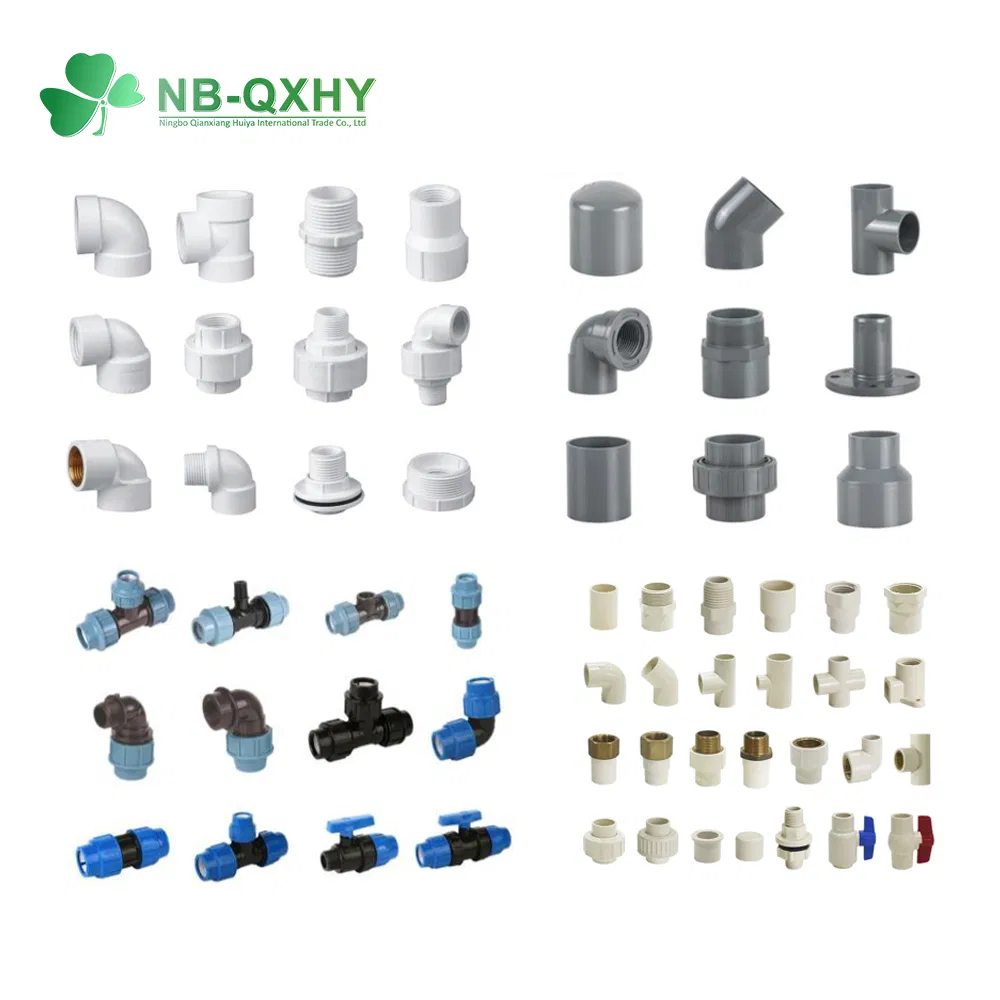

📦 Other Products & Certifications
🏭 Production & Application

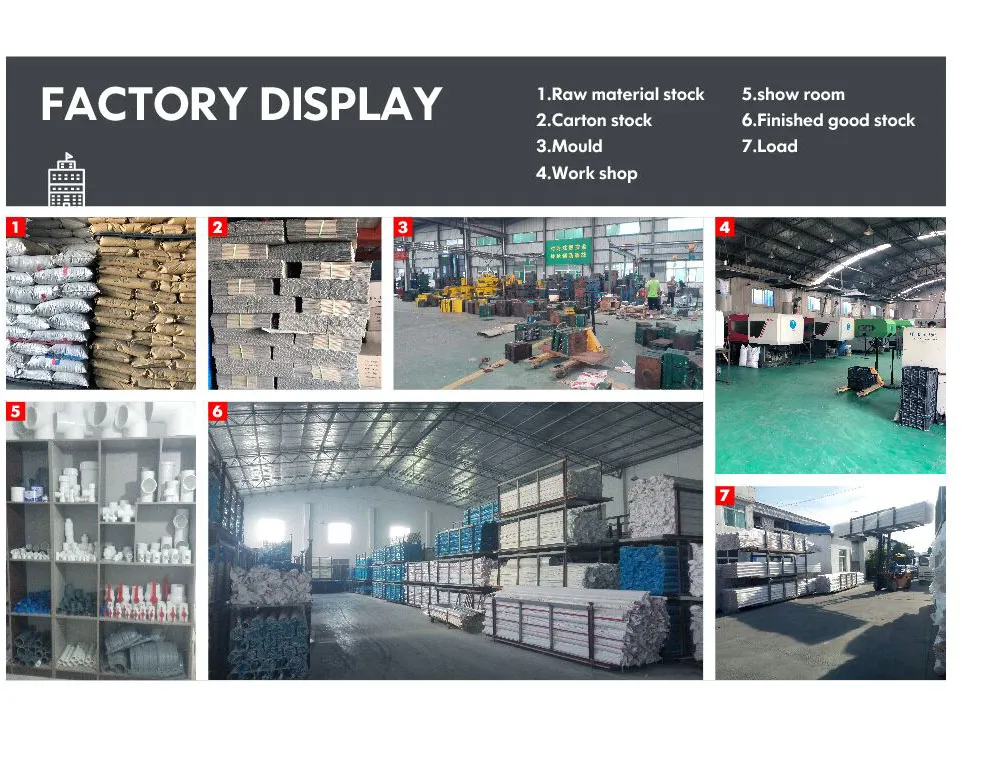

The facility covers 20,000 square meters with advanced mold departments, piping system departments, and 50 injection molding machines, reaching an annual capacity of 8,000 tons.

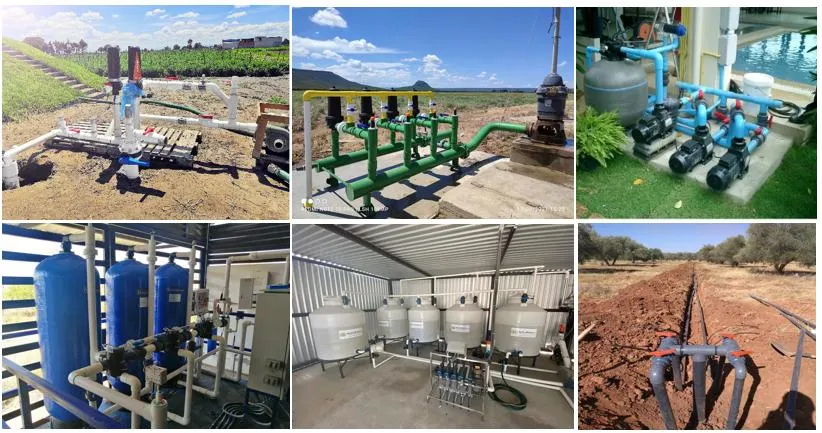

Main Applications:
(1) Agricultural irrigation
(2) Swimming pools
(3) Sewage treatment
(4) Water treatment
(5) Piping systems
(6) Water recycling projects
🌟 Our Advantages
🚀 High pressure stand: PN10, PN16, PN35, PN40 (up to 235psi).
🚀 Strict quality control: within 1% leakage rate.
🚀 Environmentally friendly, non-toxic, and UV resistant.
🚀 Lightweight for easy transport and fast installation.
🚀 10+ years of professional experience in high-quality plastic products.
❓ FAQ
What materials are used for these pipe fittings?
Our fittings are made from 100% new high-quality Plastic, PVC, UPVC, and CPVC materials to ensure durability and safety.
What standards do your products follow?
We follow the ANSI SCH80 and ASTM standards, ensuring compatibility with international plumbing and irrigation systems.
Can these fittings handle high-pressure water supply?
Yes, our products are designed for high pressure, standing ratings such as PN10, PN16, and up to 235psi depending on the specific model.
Are the products resistant to outdoor environmental factors?
Absolutely. Our fittings feature UV protection and chemical corrosion resistance, making them ideal for both exposed and hidden installations.
What sizes are available for the SCH80 fittings?
We offer a wide range of sizes from 1/2" up to 4" for most connectors, and up to 6" for specific couplings and elbows.
Do you offer OEM services?
Yes, we provide OEM services and can submit various styles and the latest designs based on regional market needs.
