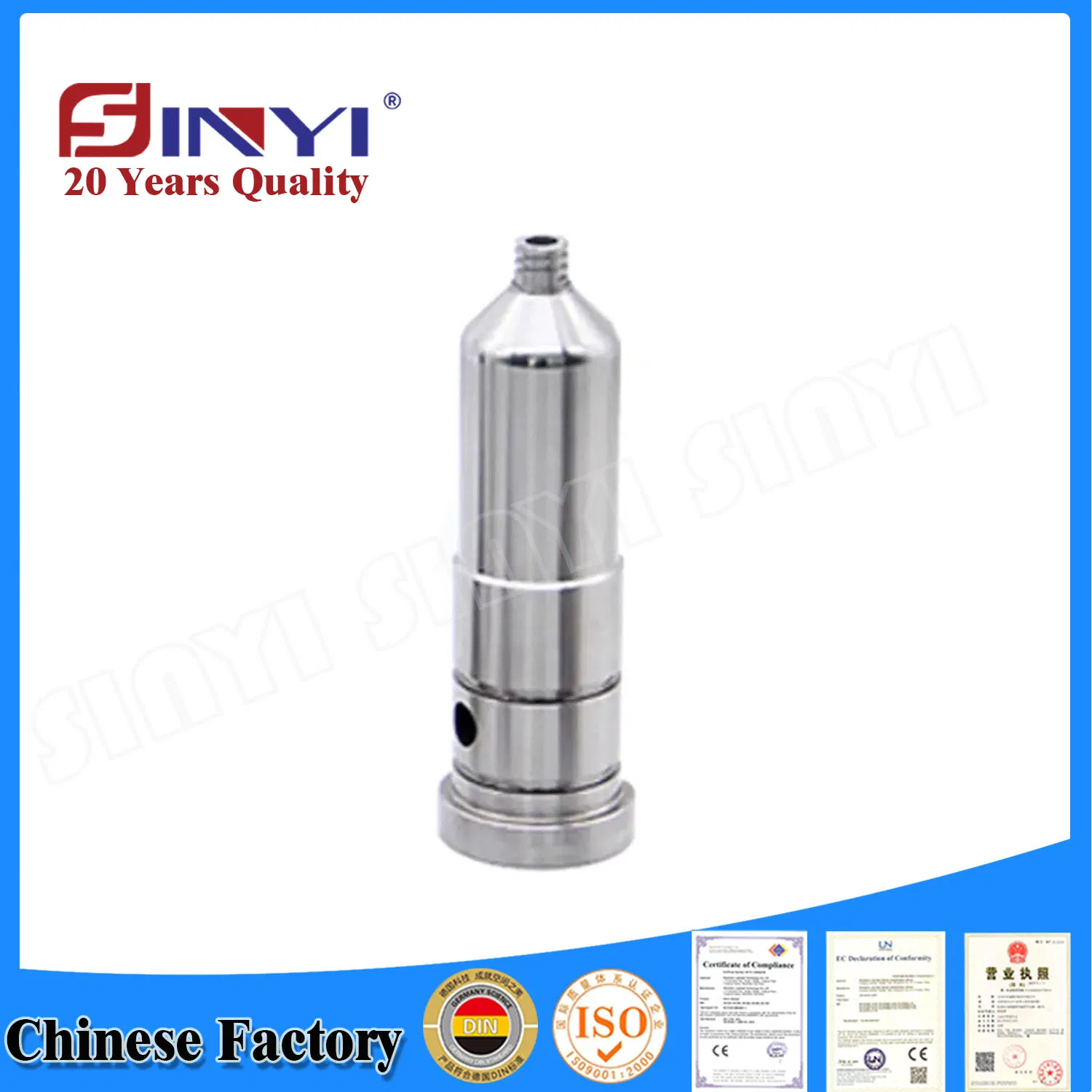

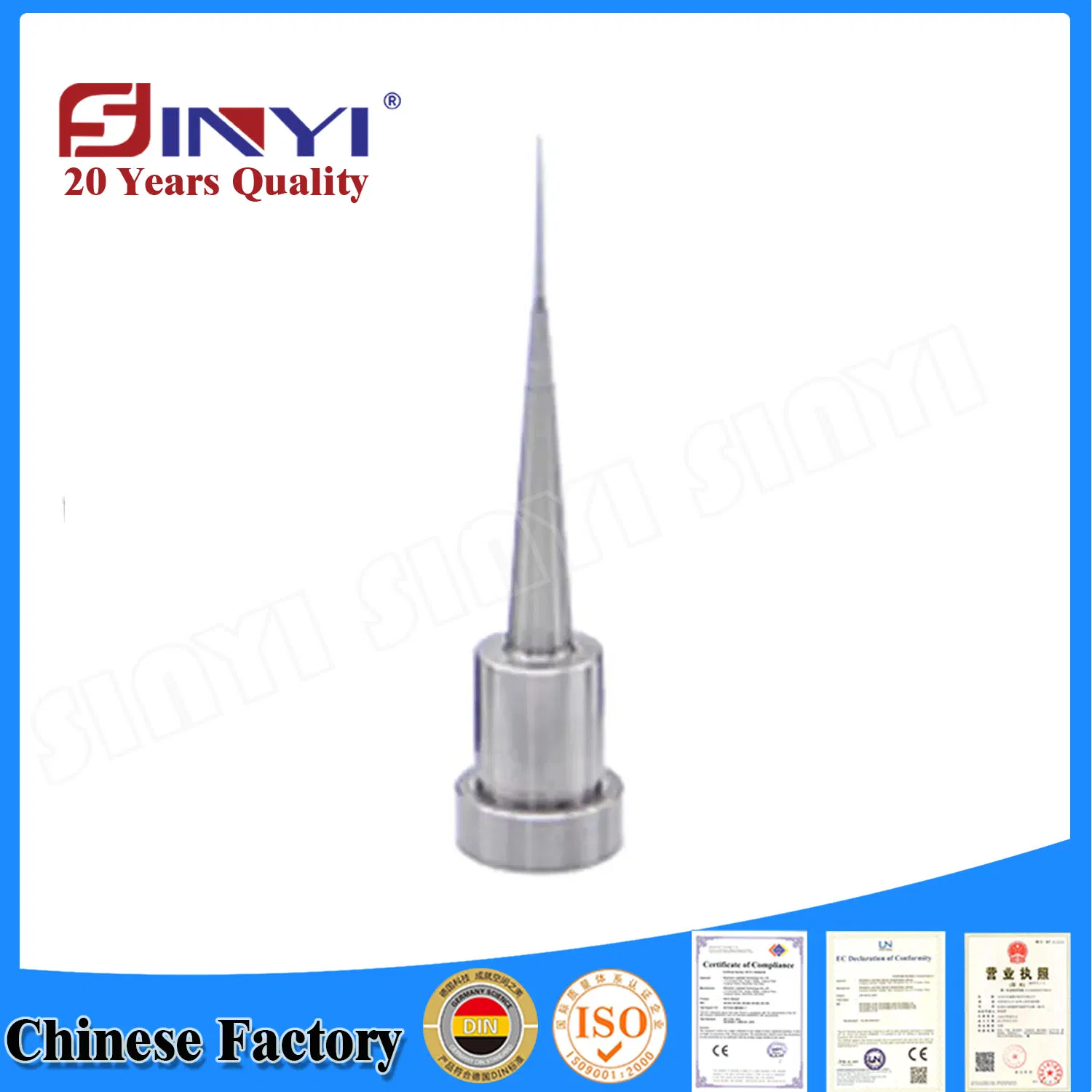

| Parts Name | Precision Mould Standard Punch Pin Gauge |
|---|---|
| Material | SKH51, M2, 1.3343, HSS, SKD61, equivalent |
| Mounting Method | Plastic injection mold |
| Polishing | Standard R0.8 (Close to Ra 0.4 available) |
| Service | OEM available, standard ejector pins in stock, customization available |
| Hardness | SKH51/M2/1.3343 (HRC 60-62), SKD61 (HRC 58-62) |
| Closest Tolerance | Shaft: 0mm to -0.01mm, Head: 0mm to -0.05mm |
| Standards | MISUMI / DIN / AISI / DANLY / DME / HASCO / TOHATSU / FIBRO / AGATHON / STRACK / PEDROTTI / RAYMOND / FUTABA / SANKYO / PROGRESSIVE / RABOURDIN etc. |
| Surface Coating | Definition & Benefits | Features | Note |
|---|---|---|---|
| TiN (Titanium Nitride) | Economical and commonly used PVD wear resistant coating. | 1. Excellent wear resistance 2. Superb lubrication 3. Thermal stability 4. Hardness up to 2,300 Vickers |
Recommended with lubricants; not for stainless steel/nickel/copper. |
| TiCN (Titanium Carbon Nitride) | Widely applied to stainless steel, nickel, and copper metals. | 1. Higher hardness than TiN 2. Lower friction coefficient 3. Hardness up to 3,000 Vickers |
Suitable for stainless steel, nickel, and copper applications. |
| TiAlN (Titanium Aluminum Nitride) | Ideal for high-heat applications; provides aluminum oxide protection. | 1. High thermal stability 2. Extremely high hardness up to 3,400 Vickers |
Provides extra protection against shear stress. |
Soft foam protection, small cardboard boxes inside larger hard cardboard boxes. Product codes used instead of company logos to ensure confidentiality and smooth customs clearance.
International Express (UPS, TNT, DHL), Port transportation, or custom delivery based on buyer requirements with destination confirmation.
Reasonable calculations to support your market competition.
Experienced staff and thorough QC inspection ensure 100% high quality.
Efficient processing with typical 5-day delivery times.
Custom parts available beyond standard DAYTON, MISUMI, and DIN specifications.
