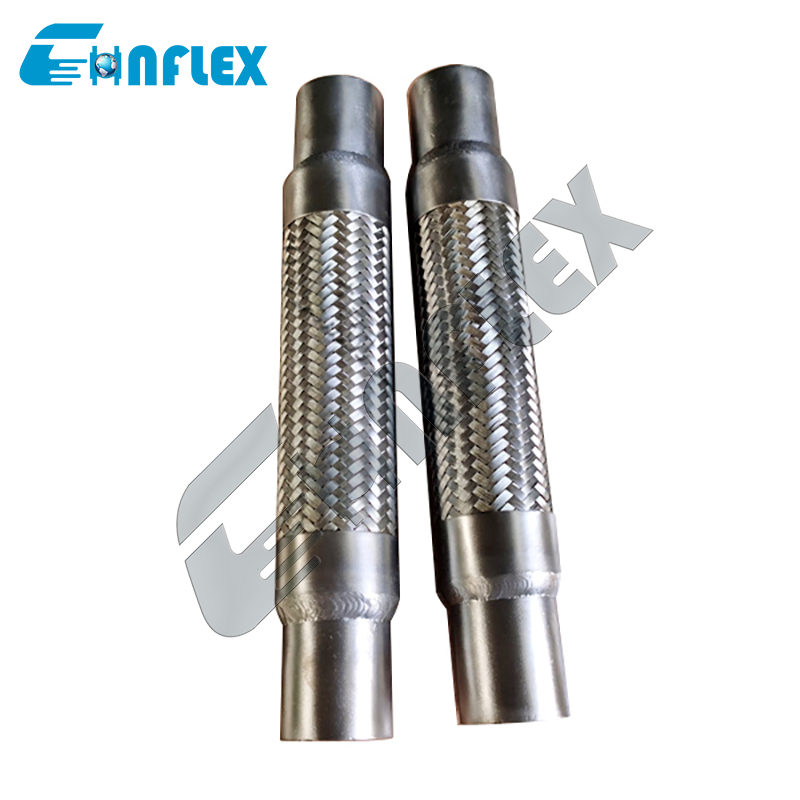

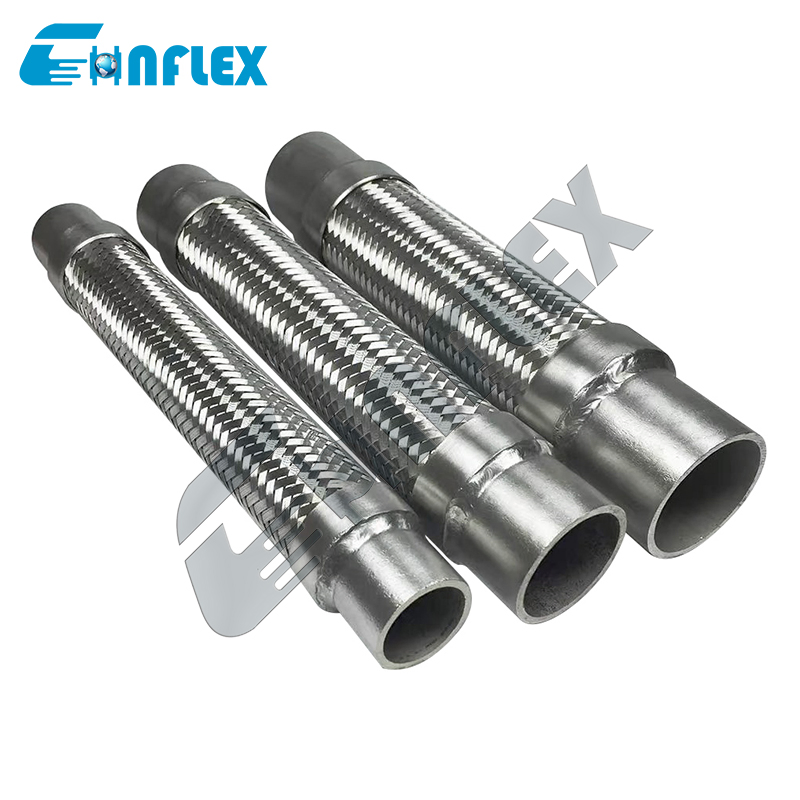

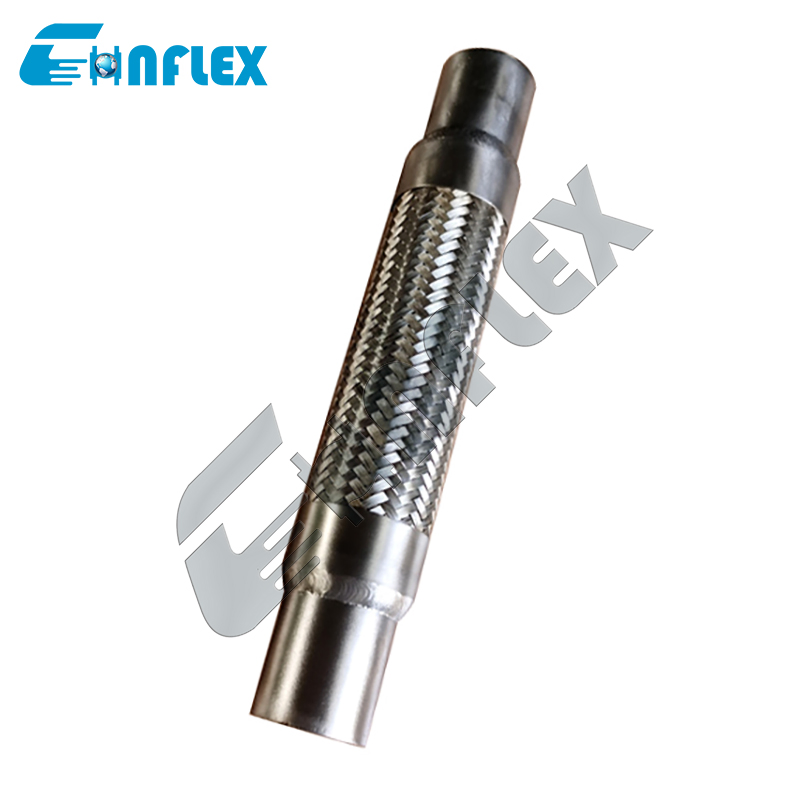

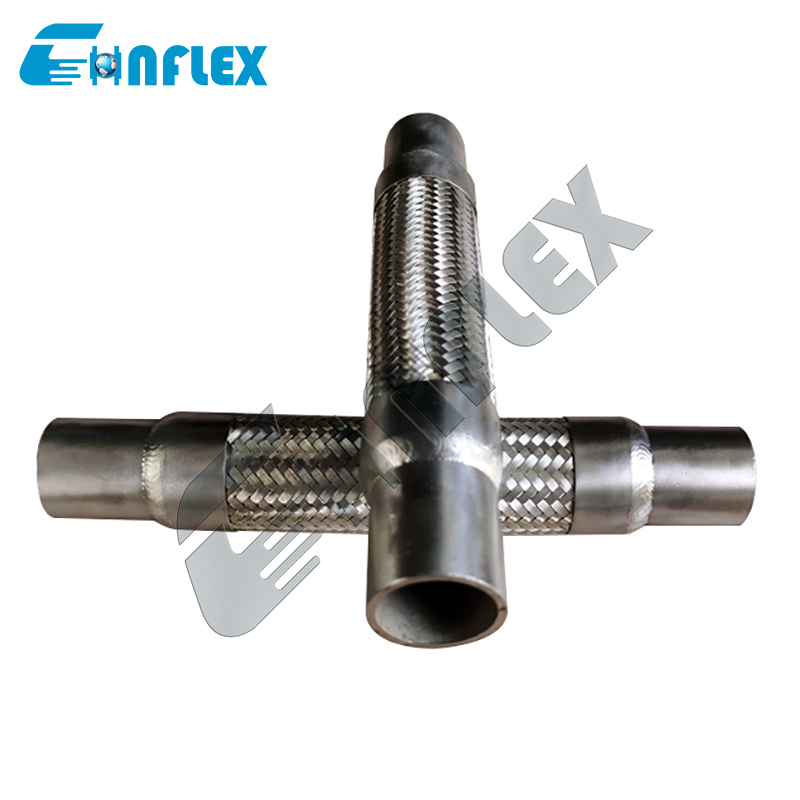

Premium Welded Metal Braided Pipe Connector for Industrial Use

ℹ️

Basic Information

Model NO.

Welded Metal Braided Connector

Hose Diameter

1/2 inch

Hose Length

25 feet

Material

Stainless Steel

Working Pressure

-0.2~4.5MPa

Working Temperature

-30~400℃

Bellows Material

SS304, SS316

MOQ

1PC

Origin

China

Capacity

50000PCS/Year

📝

Product Description

Welded metal braided pipe connectors typically consist of two main parts: a metal jacket and an inner tube. The jacket is usually made of carbon steel or stainless steel material, which has high temperature resistance, corrosion resistance, and compression resistance. The inner tube is woven from stainless steel mesh; the higher the density, the better the bending flexibility and vibration reduction effect, thereby extending the service life.

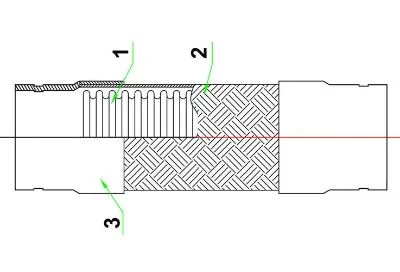

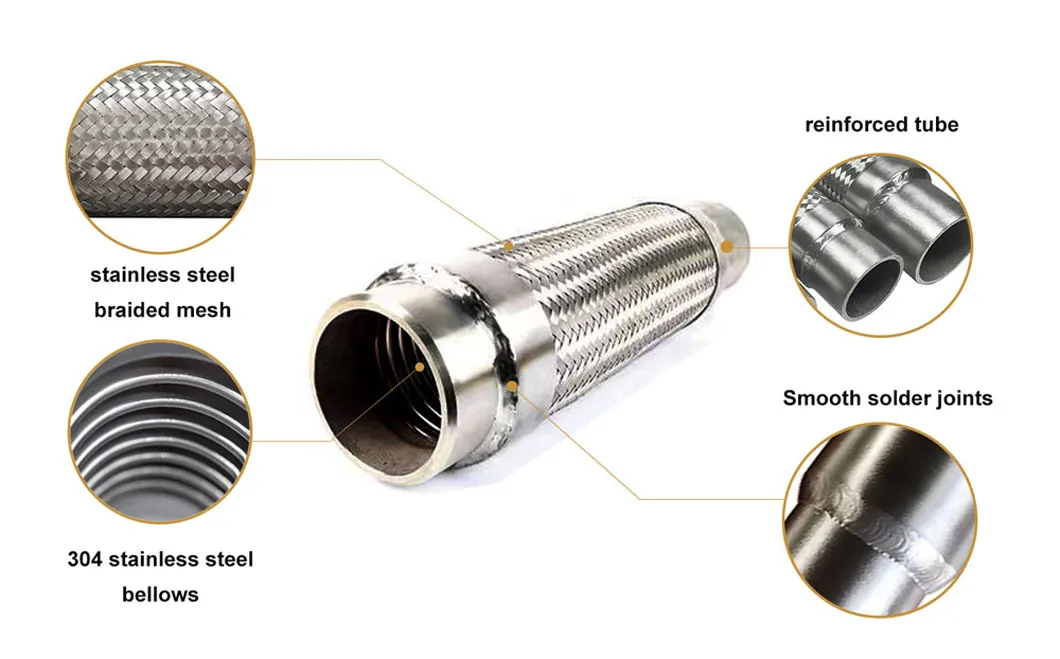

NO	Name	Material
1	Bellows	Stainless steel
2	Metal mesh	Stainless steel
3	Welded pipe	Stainless steel
Design Temp: -20ºC~+400ºC

Key Characteristics:

Strong corrosion resistance
Strong flexibility and stretchability
Strong anti-vibration ability
High pressure bearing capacity
Various connection methods (Threaded, Flange, Welded)

📊

Product Specification

DN (mm)	Inner Dia (mm)	Outer Dia (Network)	Static Radius	Dynamic Radius	Working Pressure
8	8.8	14.4	50	110	15-20 Bar
15	13.5	21.1	80	180	15-20 Bar
25	27	36.1	160	360	10-63 Bar
50	49.7	63.6	280	640	30-50 Bar
100	101.2	121.2	610	1340	25-40 Bar
200	176	243.2	1000	2000	25-40 Bar

Note: Customization available for specific media (oil, acid, alkaline) or temperature requirements.

🔍

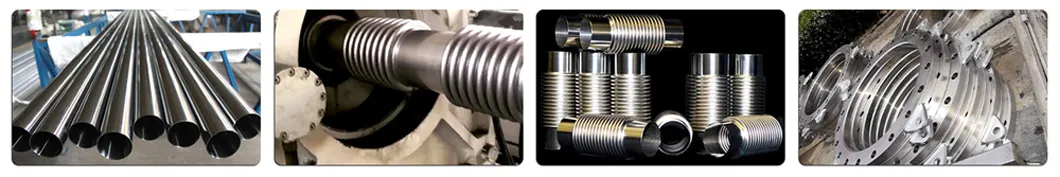

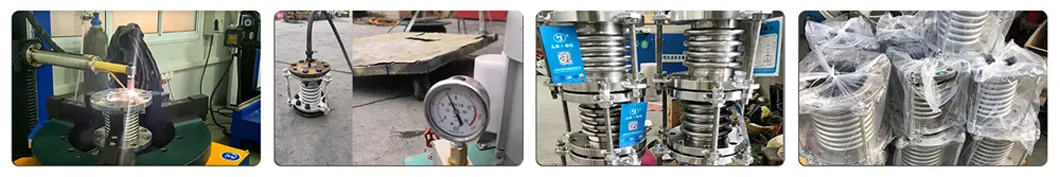

Product Details & Production Flow

🏭

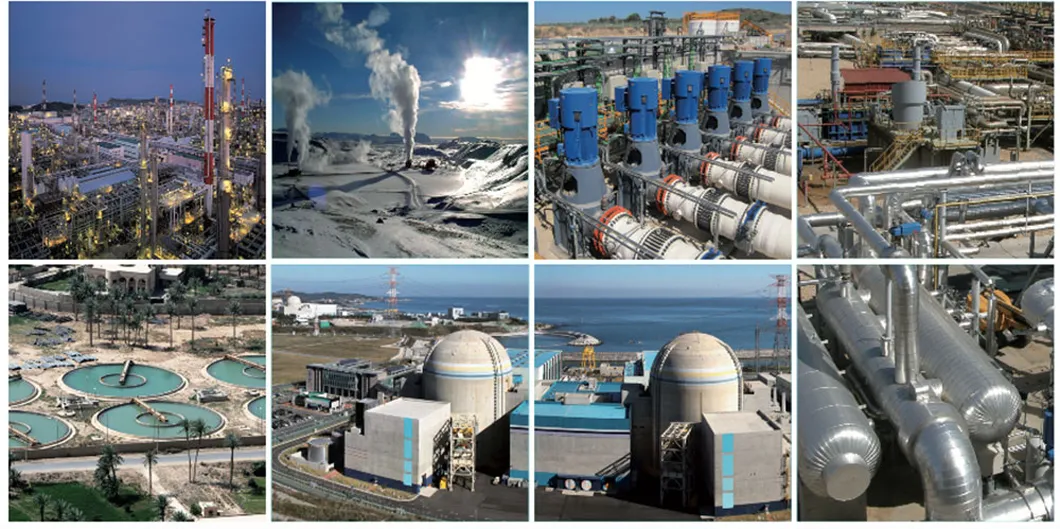

Industry Application

Welded metal braided pipe connectors are widely used in food, medical, and pharmaceutical industries. Their application also covers construction, environmental protection, and energy sectors due to high mechanical strength.

🛠️

Our Services

24-hour online technical support
Free samples provided for quality check
Support for OEM/ODM customization
Professional technical drawings provided
Factory inspection (Material, Pressure, Packaging)
Long warranty period and suitable transport packaging

📜

Certifications & Customers

❓

Frequently Asked Questions

Q1: What is the material of the Welded metal braided pipe connector? A1: The material can be SS304, SS316, or carbon steel, depending on specific working conditions.

Q2: How is the product packaged for delivery? A2: We use standard carton boxes and strong plywood cases suitable for international transport.

Q3: What certifications are available for these connectors? A3: We provide CE and ISO certificates to ensure compliance with international quality standards.

Q4: Can you provide technical drawings before ordering? A4: Yes, we provide detailed technical drawings upon request to ensure the product meets your specifications.

Q5: What is the Minimum Order Quantity (MOQ)? A5: Our standard MOQ is 1 piece, supporting both small trial orders and large-scale production.

Q6: What are the available connection methods? A6: Besides standard welded connections, we offer threaded and flange connections as required by your equipment.
