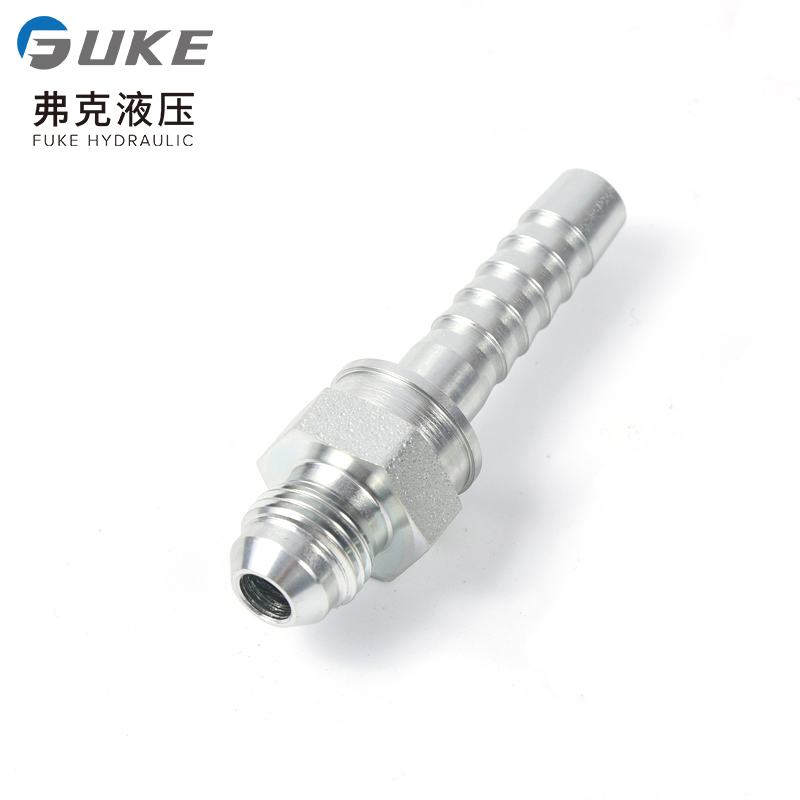

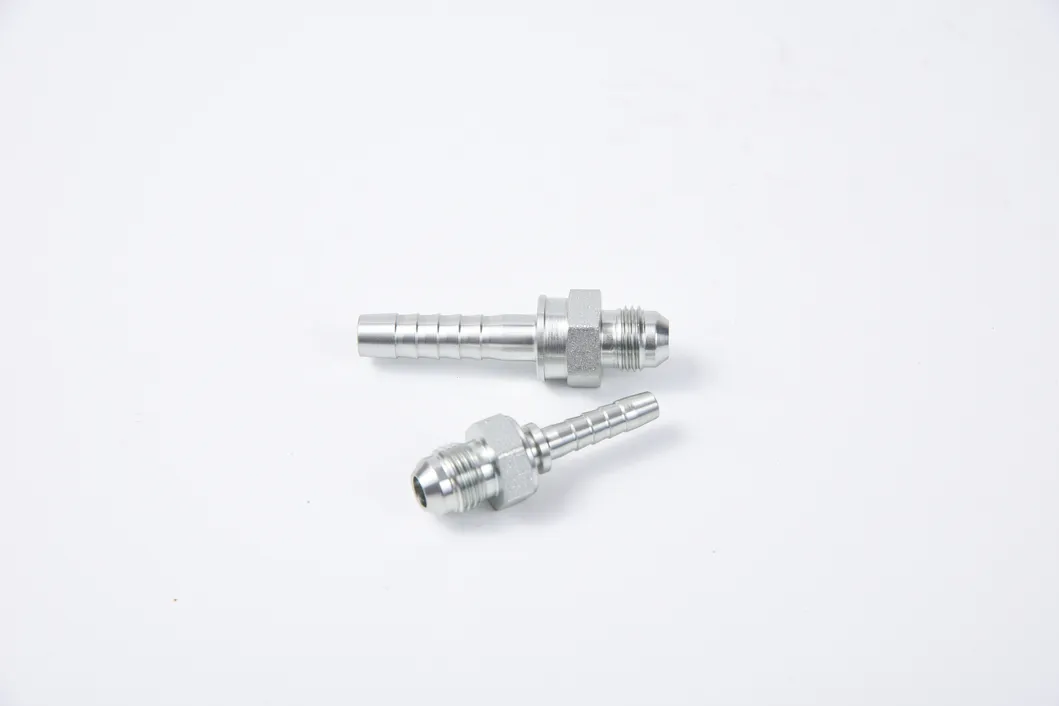

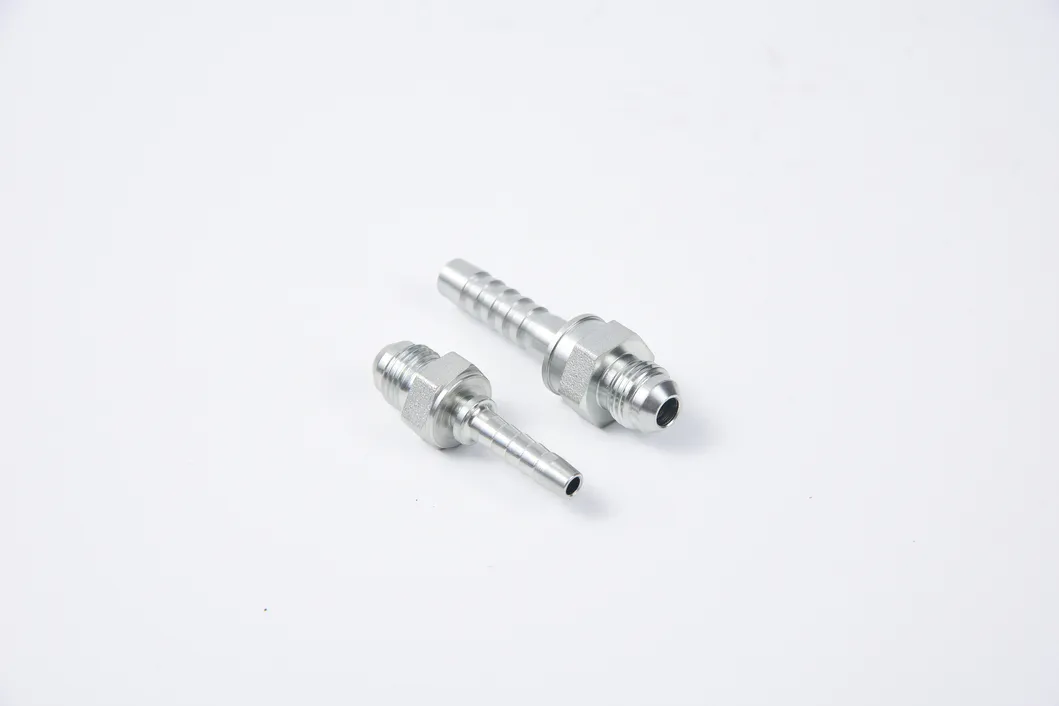

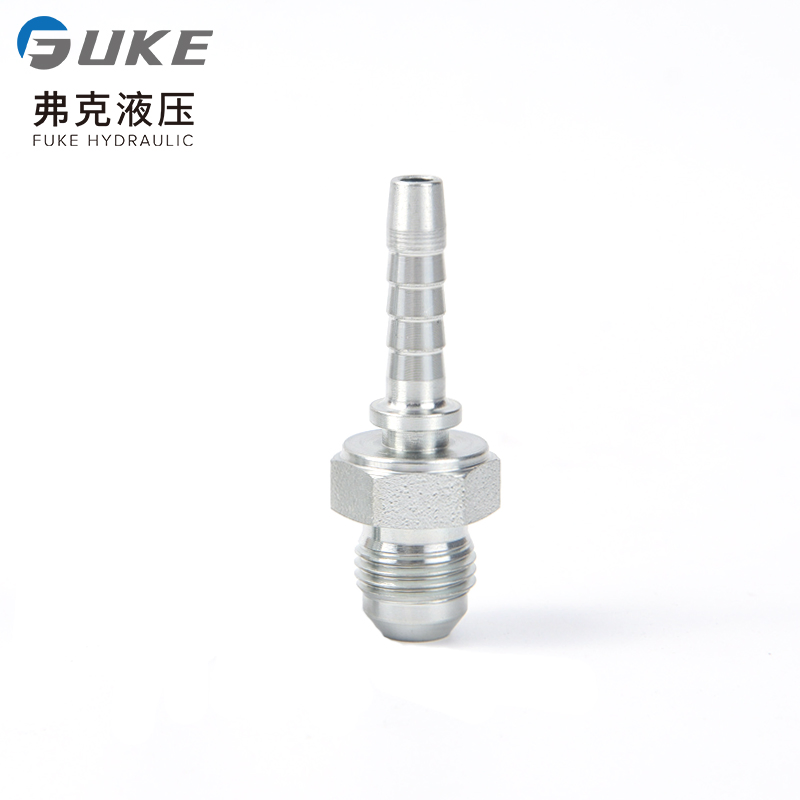

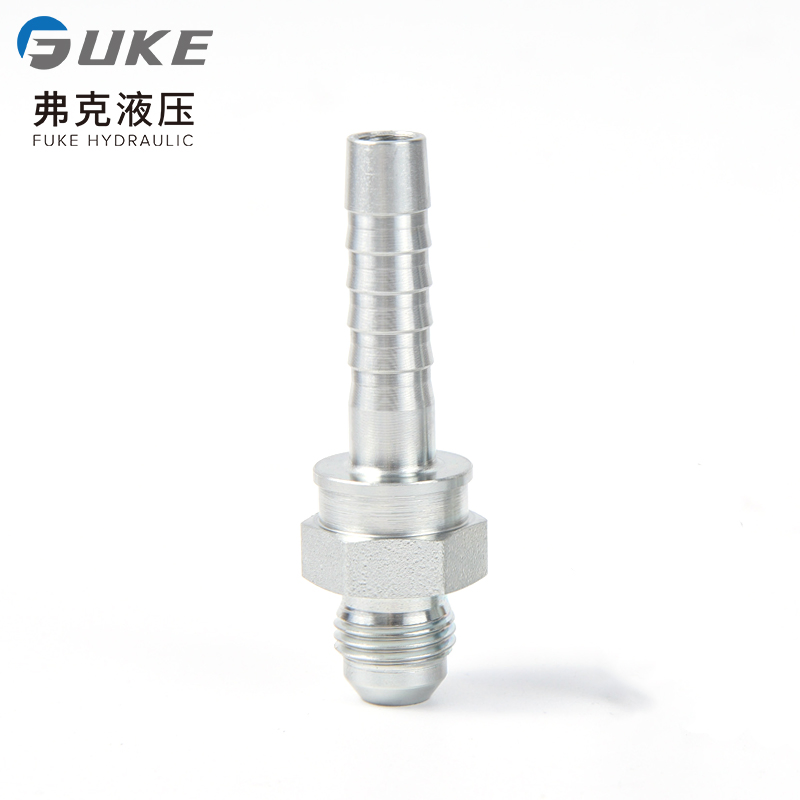

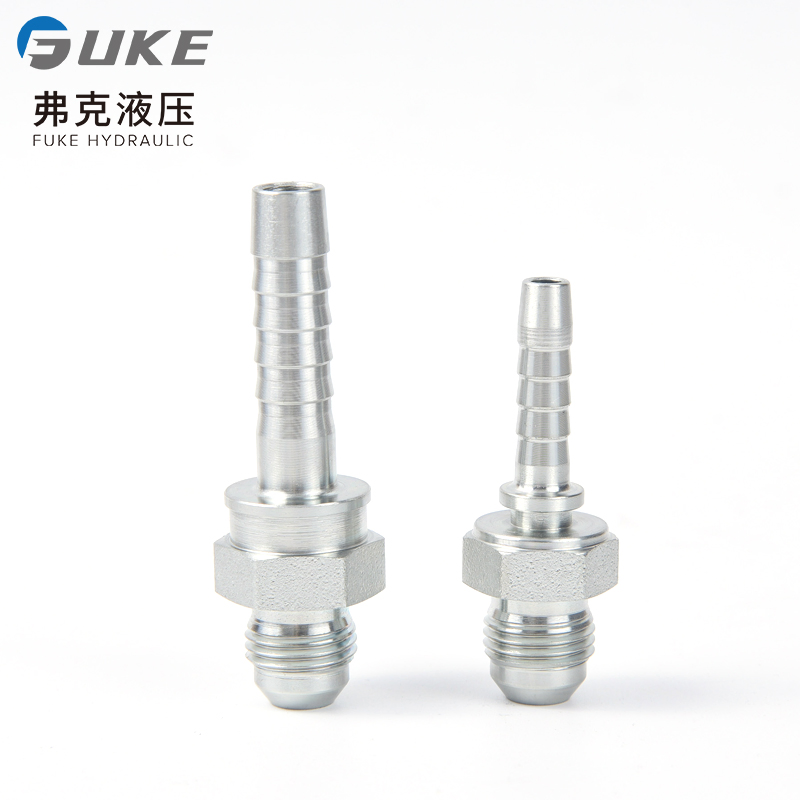

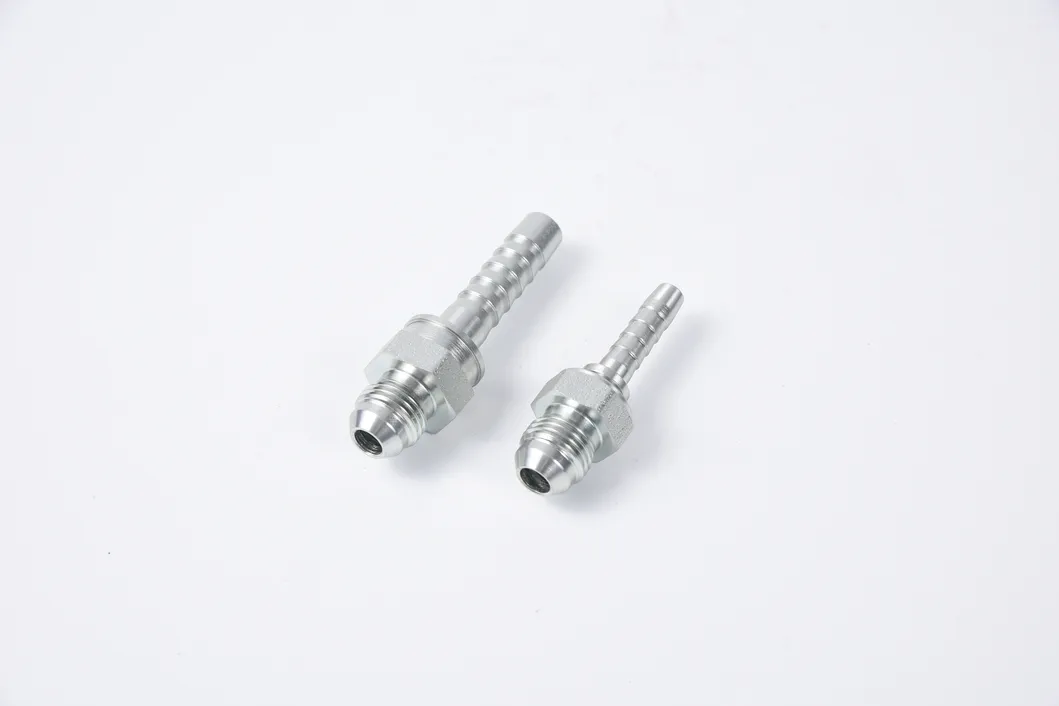

16711 74° hose coupling features a 74° tapered seal on one end with external male thread and one end for connection to standard hoses such as SAE 100 EN853.
| Product Standards | SAE 100 EN853 |
|---|---|
| Product Materials | Carbon steel / Stainless steel |
| Surface Finish | White zinc / Zinc-nickel alloy |
| Applications | Hydraulic systems suitable for construction, agricultural, mining, painting machinery, and steam, oil, or gas media. |

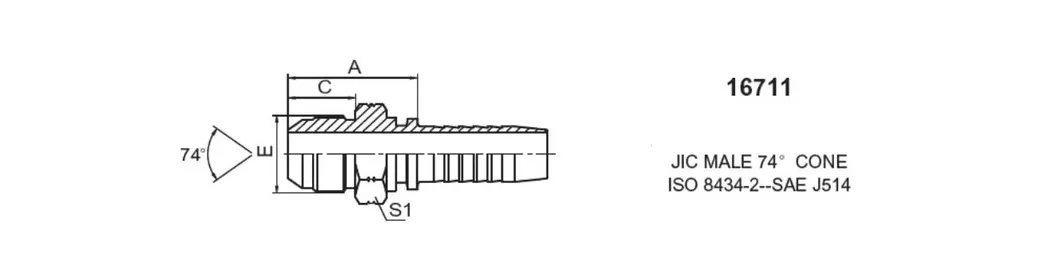

| PART NO | THREAD | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | ||
| 16711-04-03 | 7/16"X20 | 5 | 3 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"X20 | 6 | 4 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"X20 | 6 | 4 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"X20 | 8 | 5 | 26.5 | 14 | 14 |
| 16711-06-06 | 9/16"X18 | 10 | 6 | 26.5 | 14.1 | 17 |
| 16711-08-08 | 3/4"X16 | 12 | 8 | 32 | 16.7 | 22 |
| 16711-12-12 | 1.1/16"X12 | 20 | 12 | 40 | 21.9 | 30 |
| 16711-16-16 | 1.5/16"X12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-20 | 1.5/8"X12 | 32 | 20 | 47.5 | 24.3 | 46 |

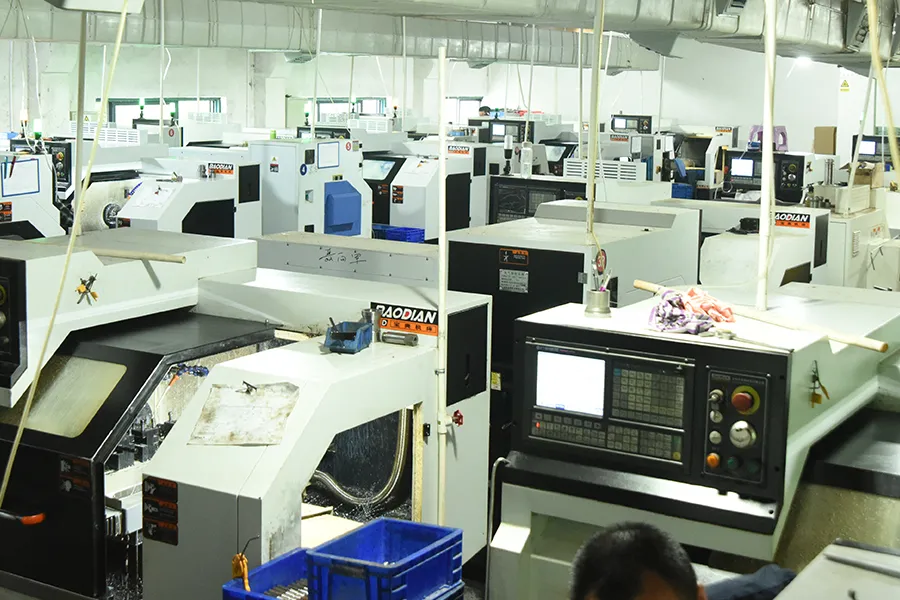

Our specialized company is dedicated to the production and research and development of hydraulic fluid connectors and control valves. We primarily provide hydraulic fittings, high-precision hydraulic valve blocks, high-pressure ball valves, and check valves that meet ISO, DIN, and SAE standards.

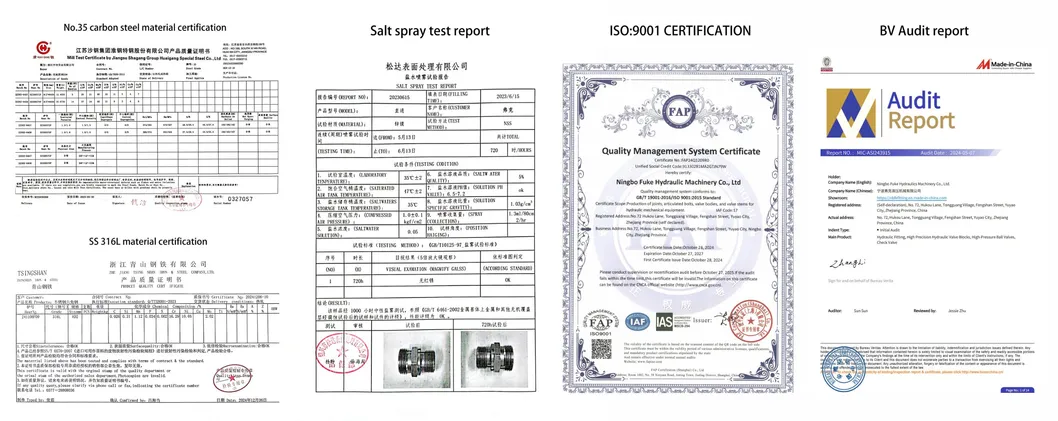

With experienced hydraulic system designers, we offer comprehensive technical support and hydraulic accessory solutions to improve procurement efficiency. We strictly implement the ISO9001:2000 quality system across our production lines.
