Features:
Certificate: ISO
Standard: ASME B16.11
Forged SS ASTM A182, F304 / F316L
Thread: NPT / BSPT
W. pressure: Class 2000PSI/3000PSI/6000PSI/9000PSI
Surface: Oiled

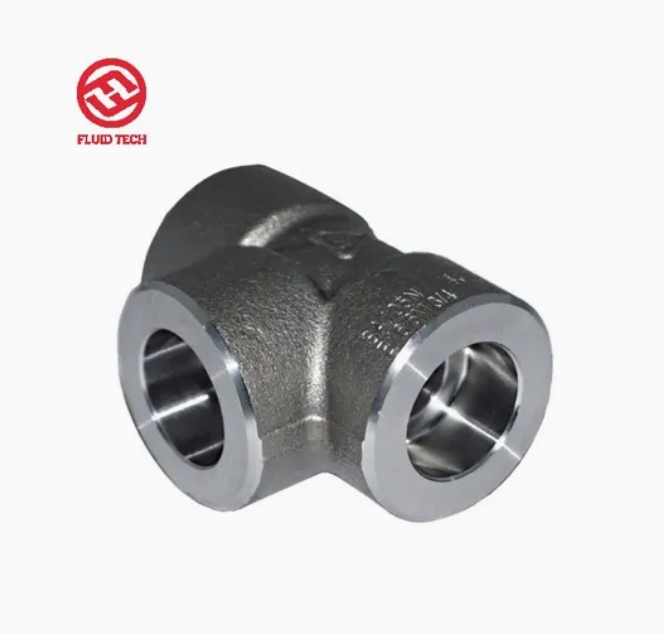

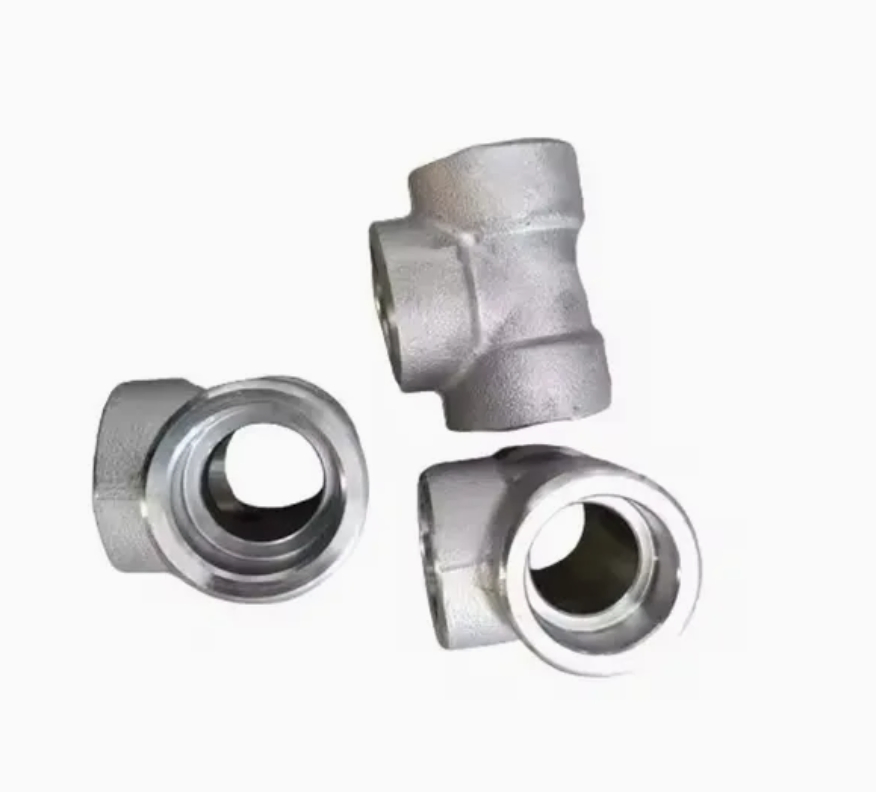

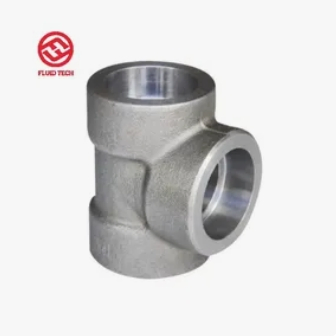

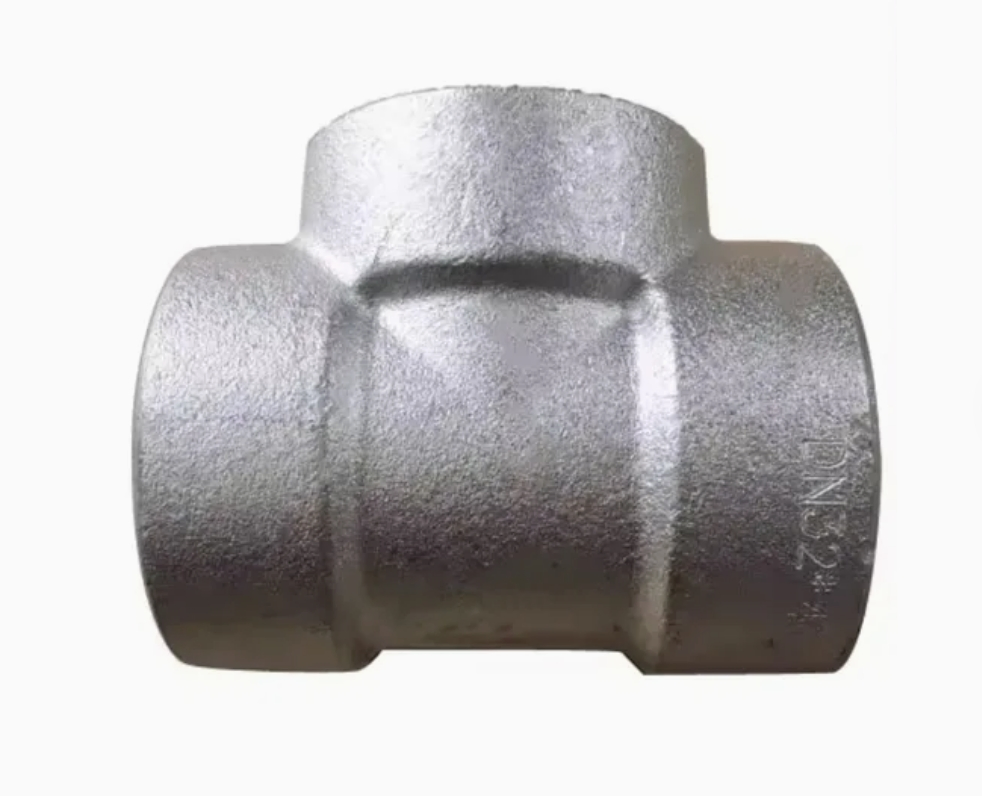

American threaded tee has a T shape to get its name with threaded connection. The branch outlet is the same size as the main outlets, and it is used to create a branch pipeline to 90-degree direction. Forged tee have equal forged tee, forged tee reducing. This forged tee can work in high pressure piping system.

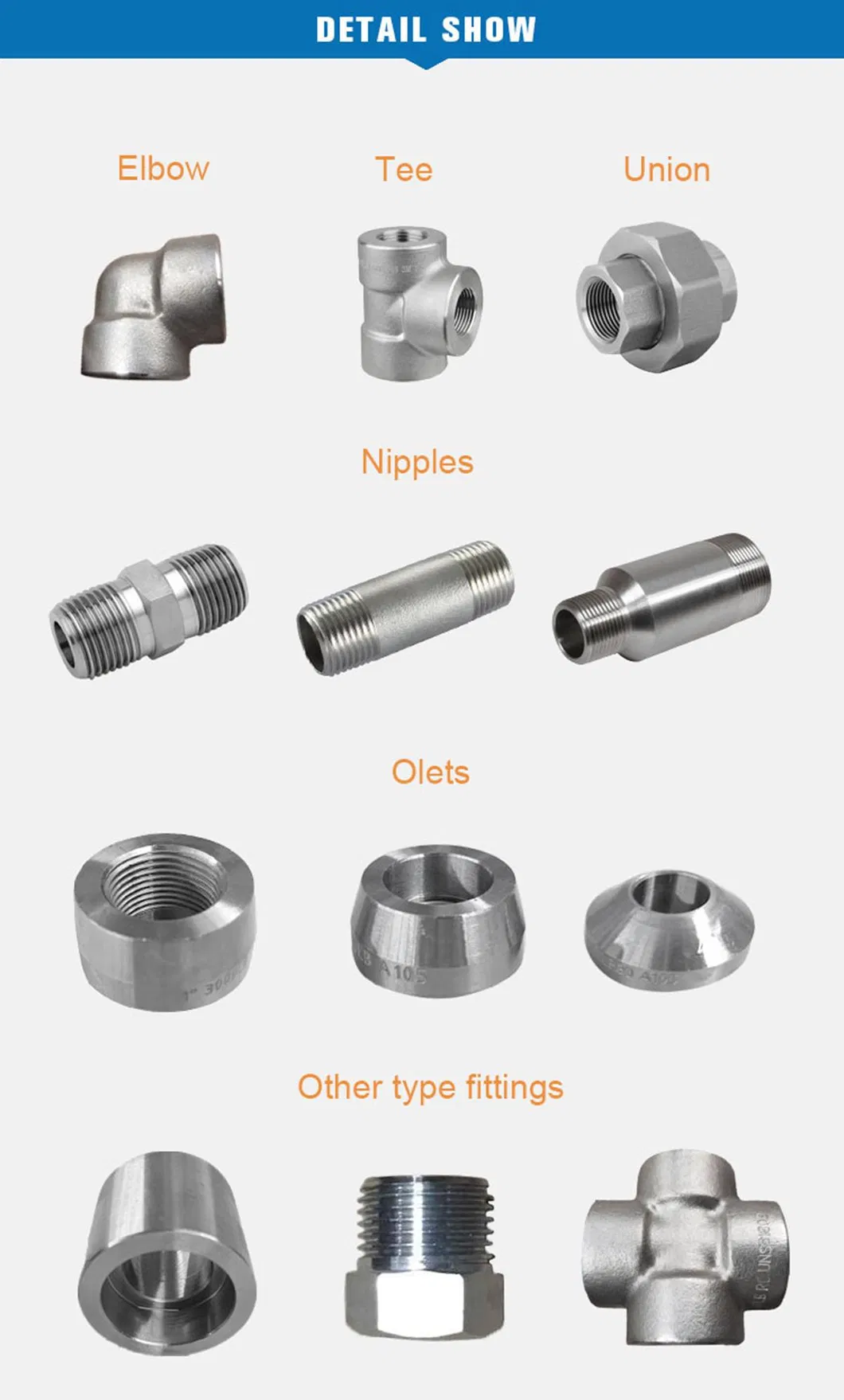

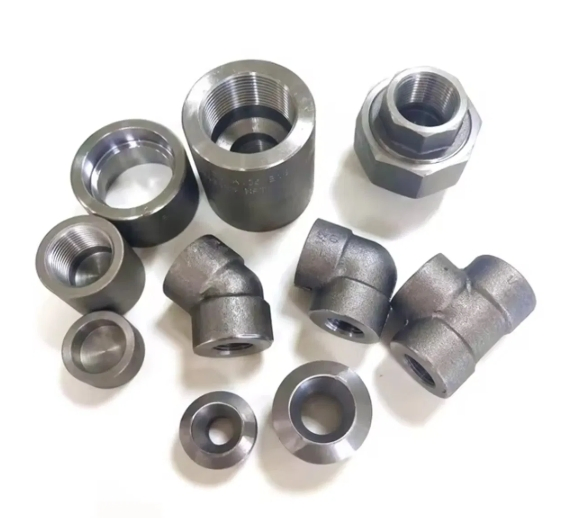

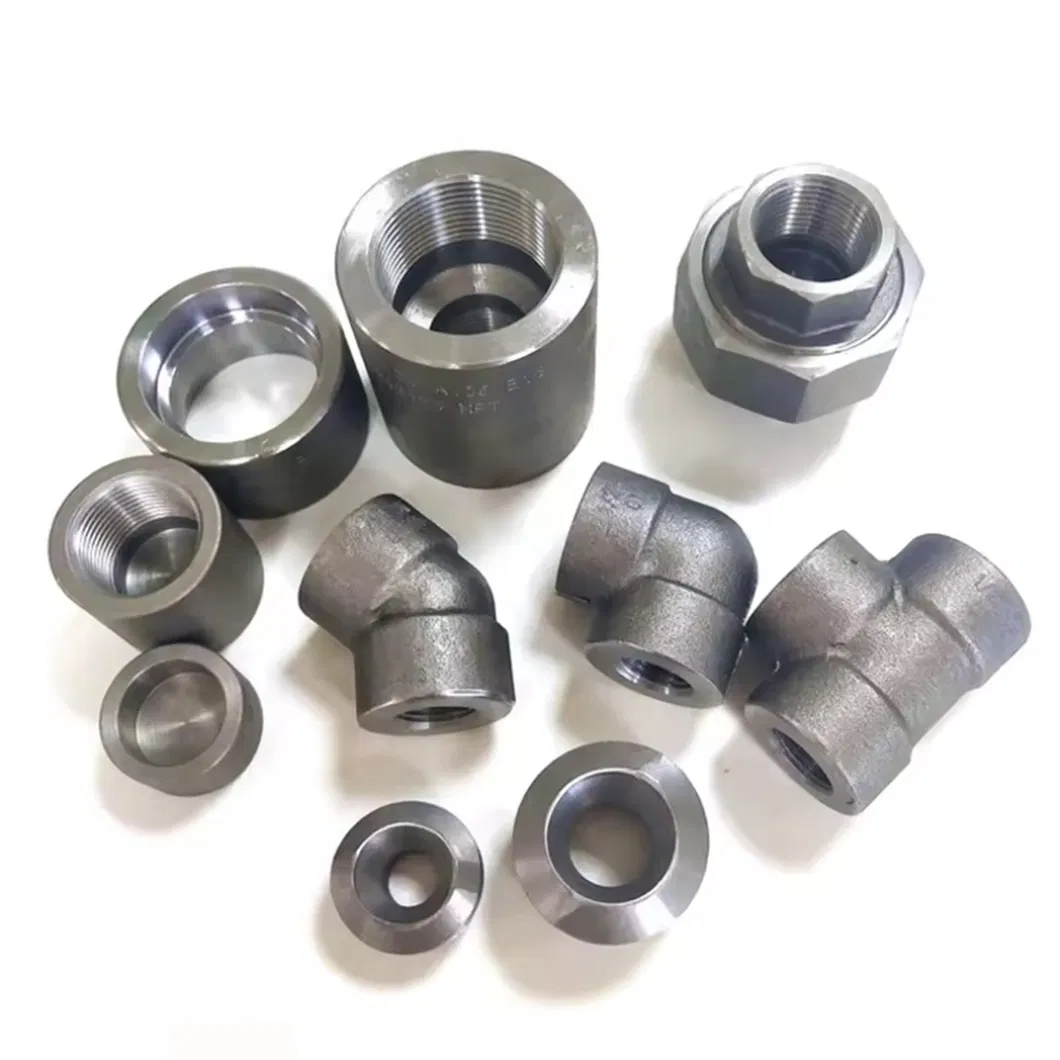

Forged fittings type include: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap.

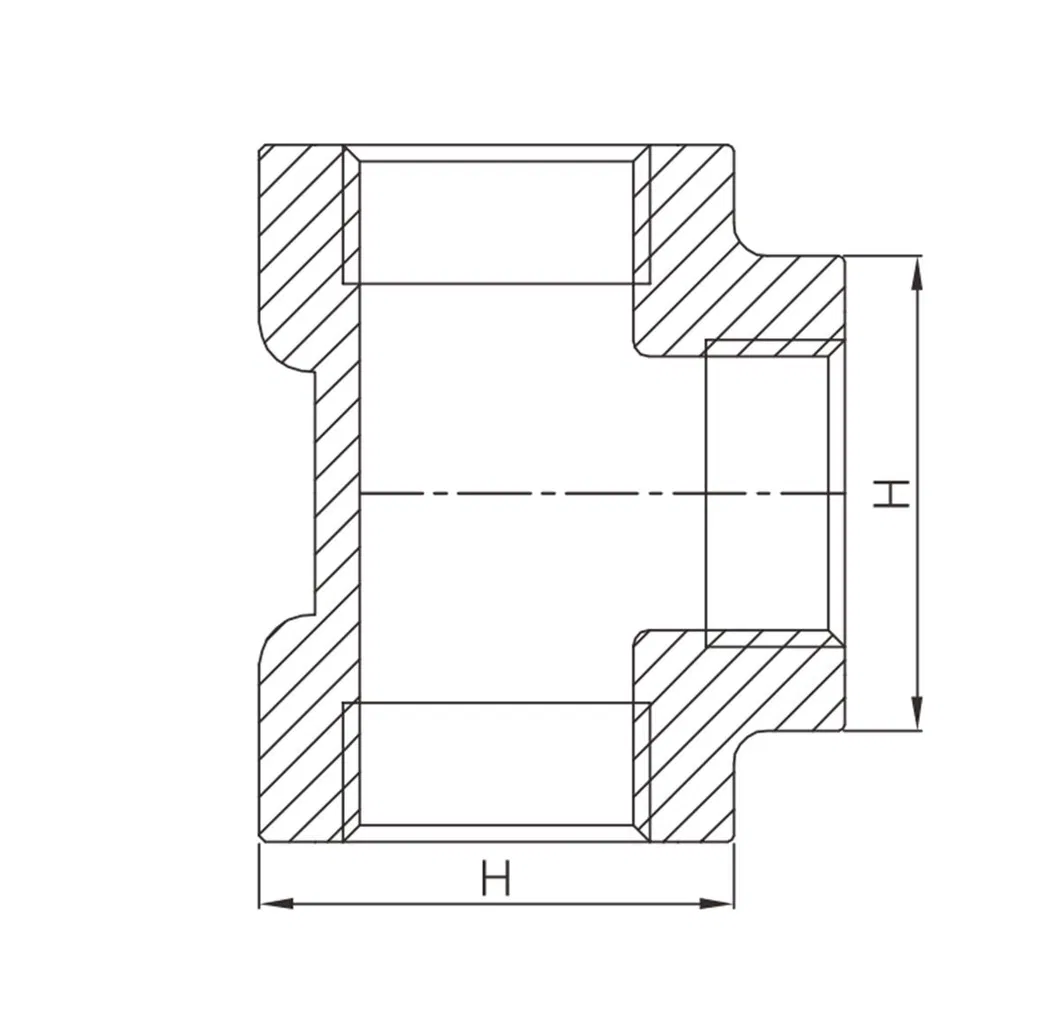

| Size | Outside dia. of band H (mm) | Ref. No. |
|---|---|---|
| 1/2″ / DN15 / 21.3mm | 33 / 38 / 46 | N3301 |
| 3/4″ / DN20 / 26.7mm | 38 / 46 / 56 | N3302 |
| 1″ / DN25 / 33.4mm | 46 / 56 / 62 | N3303 |
| 1-1/4″ / DN32 / 42.2mm | 56 / 62 / 75 | N3304 |
| 1-1/2″ / DN40 / 48.3mm | 62 / 75 / 84 | N3305 |
| 2″ / DN50 / 60.3mm | 75 / 84 / 102 | N3306 |
| 2-1/2″ / DN65 / 73.0mm | 92 / 102 / 121 | N3307 |
| 3″ / DN80 / 88.9mm | 109 / 121 / 146 | N3308 |
| 4″ / DN100 / 114.3mm | 146 / 152 / 152 | N3309 |
We are a professional manufacturer of pipe fittings in China. All products are designed, manufactured and tested in strict accordance with DIN, BS, ISO, ANSI, API and JIS standards.
The main products include steel pipe joints, steel sockets: black or galvanized, seamless or welded; stainless steel pipe fittings, King Nipple: unions, elbows, reducers, bushings, couplings, caps, nuts, soft pipe joints, etc.; butt welding pipe fittings. We also offer pipe cutting, bending, threading and end finishing to meet custom services.

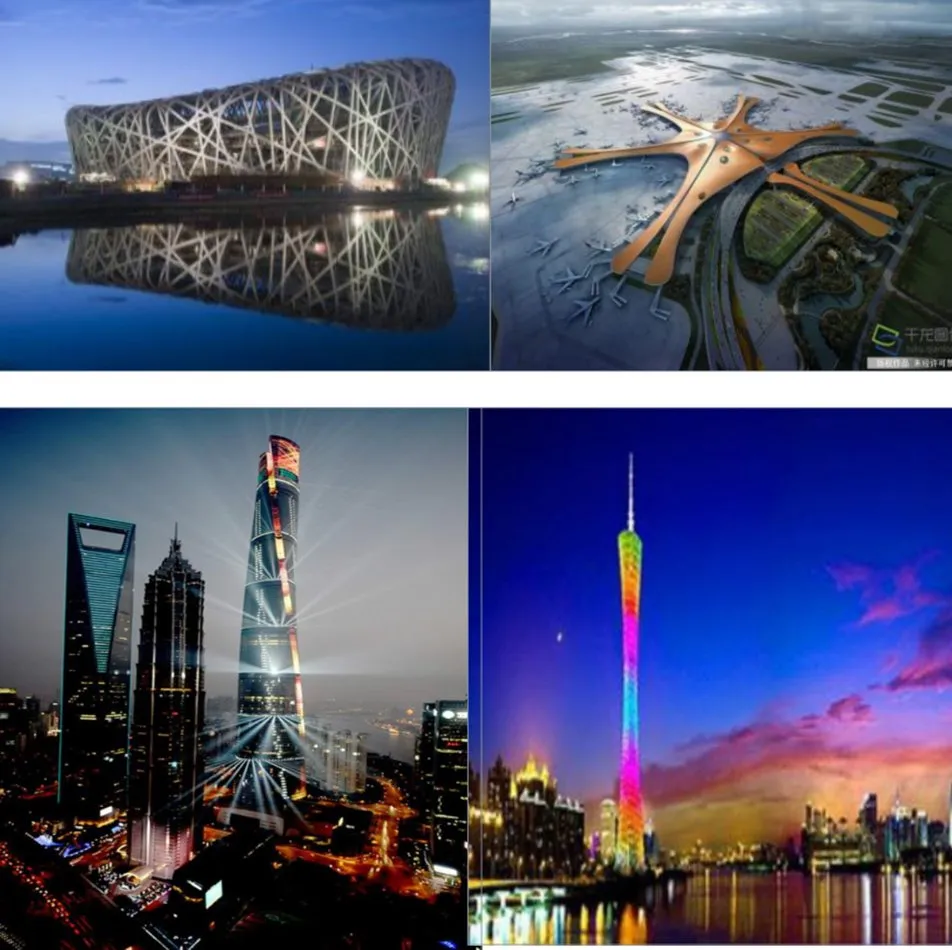

Products are used in fire protection systems, water systems, HVAC systems, plumbing, gas systems, irrigation systems, etc. These products are used in many landmark projects such as Beijing Airport, Shanghai World Trade Center, and Canton Tower.
