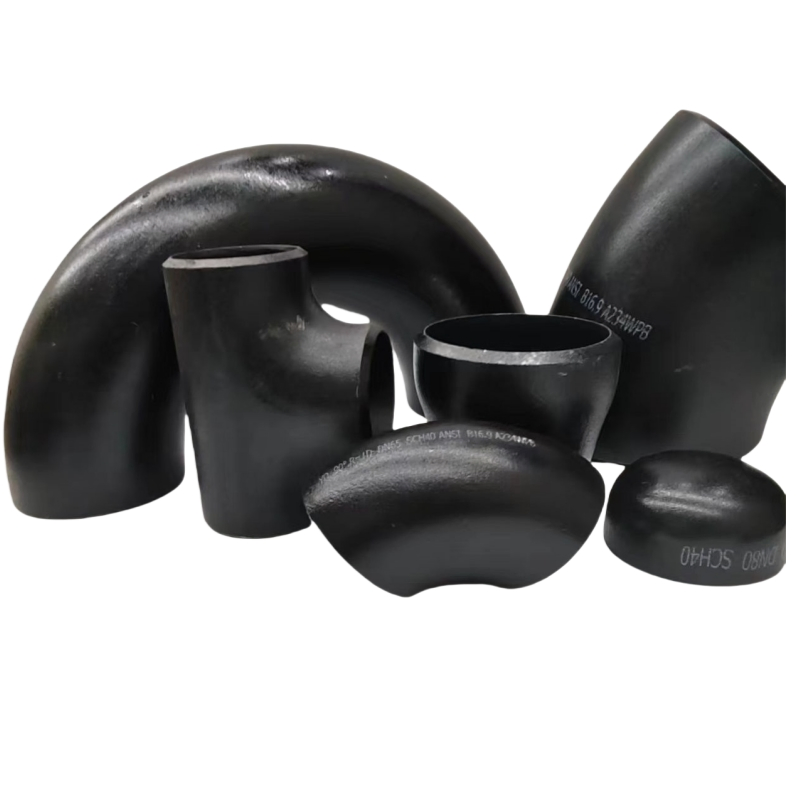

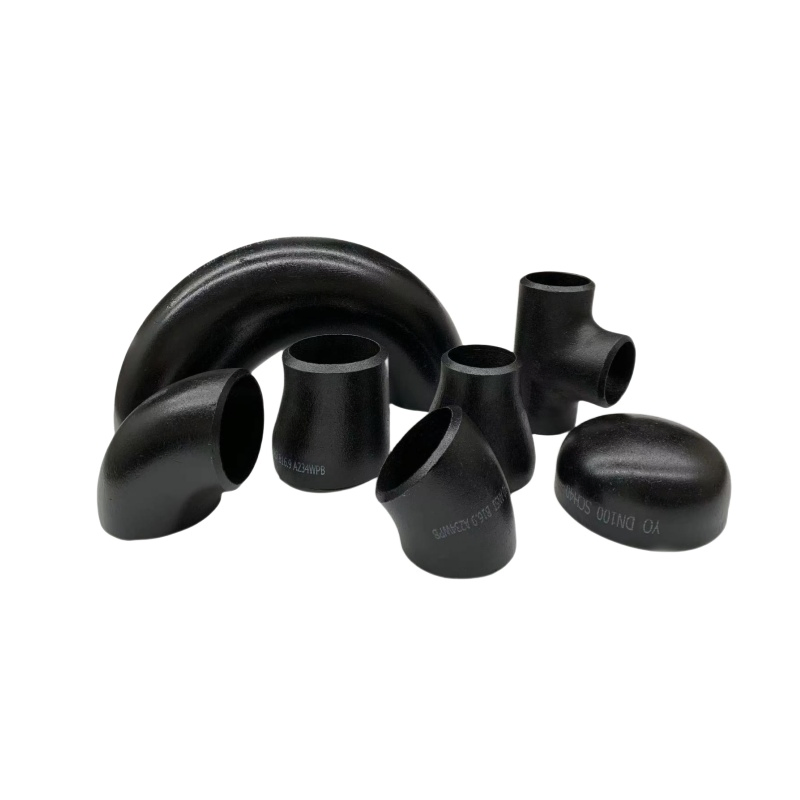

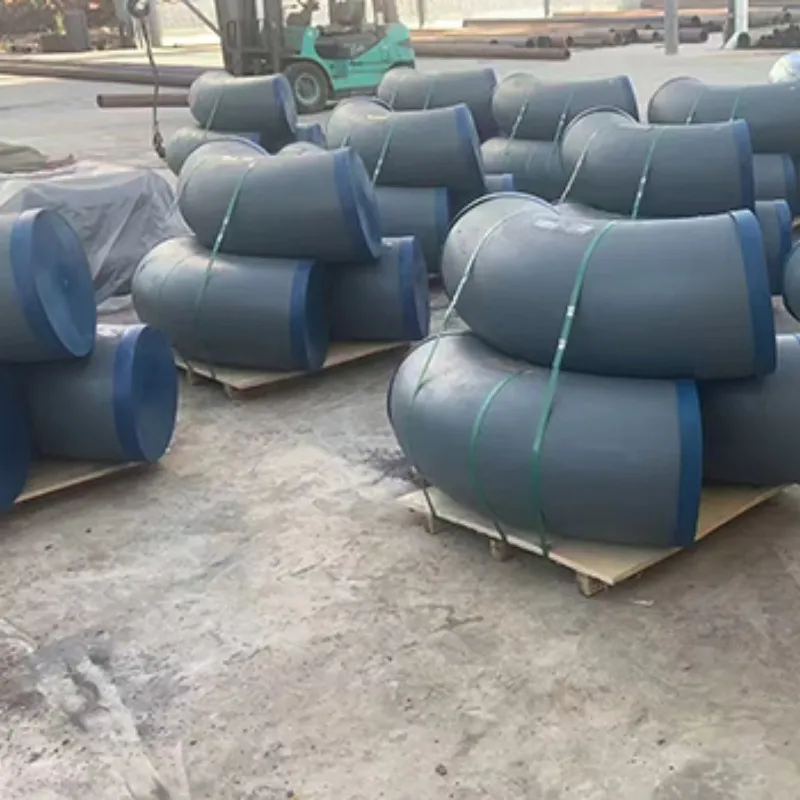

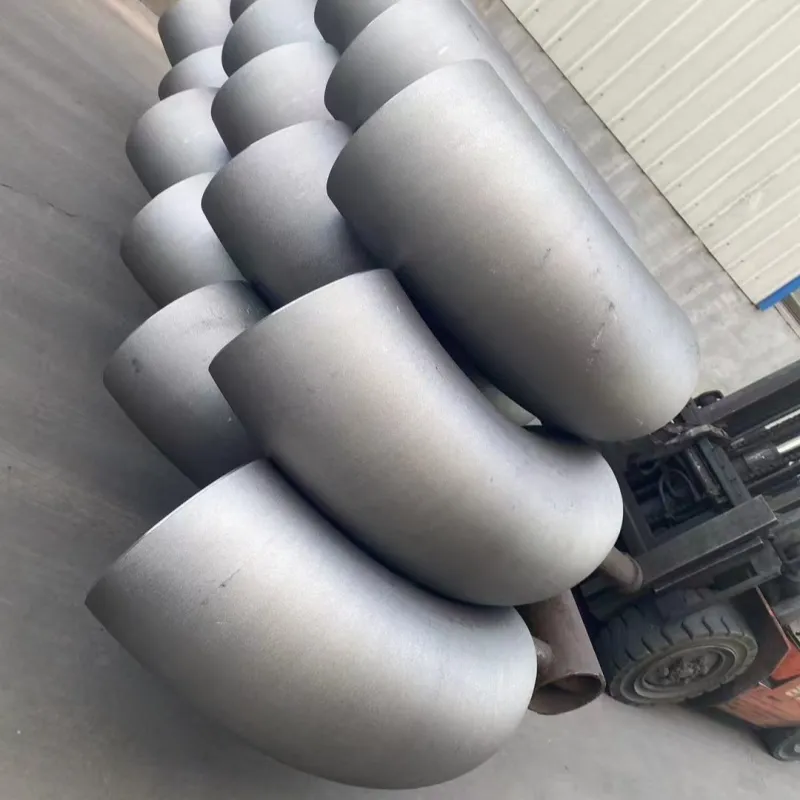

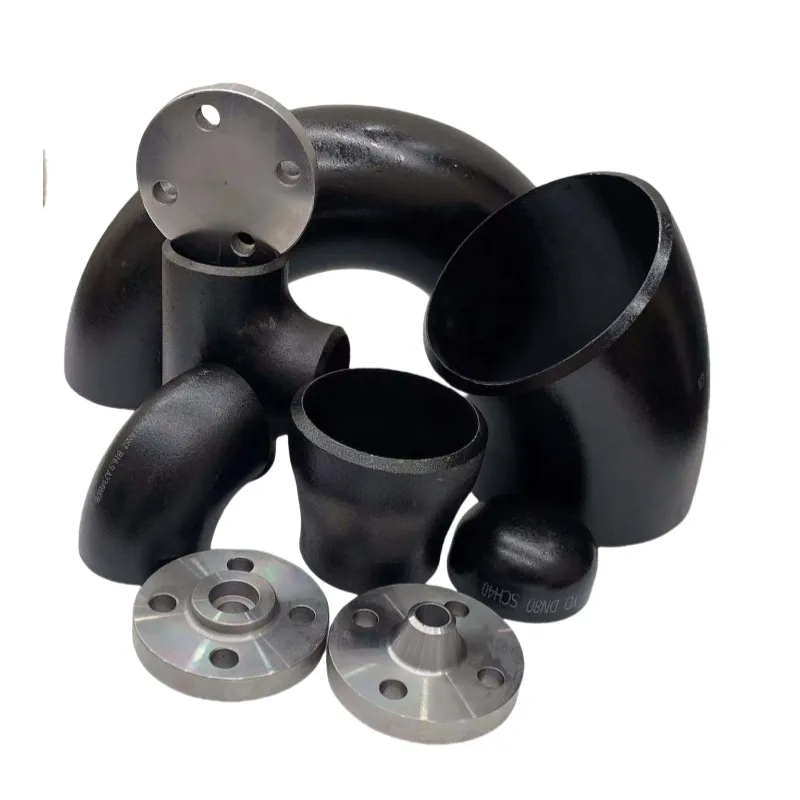

Pipe Elbow: A pipe fitting that changes the direction of the pipe. Available angles: 30°, 45°, 60°, 90°, and 180°. Radius options: LR (1.5 D) & SR (1 D).

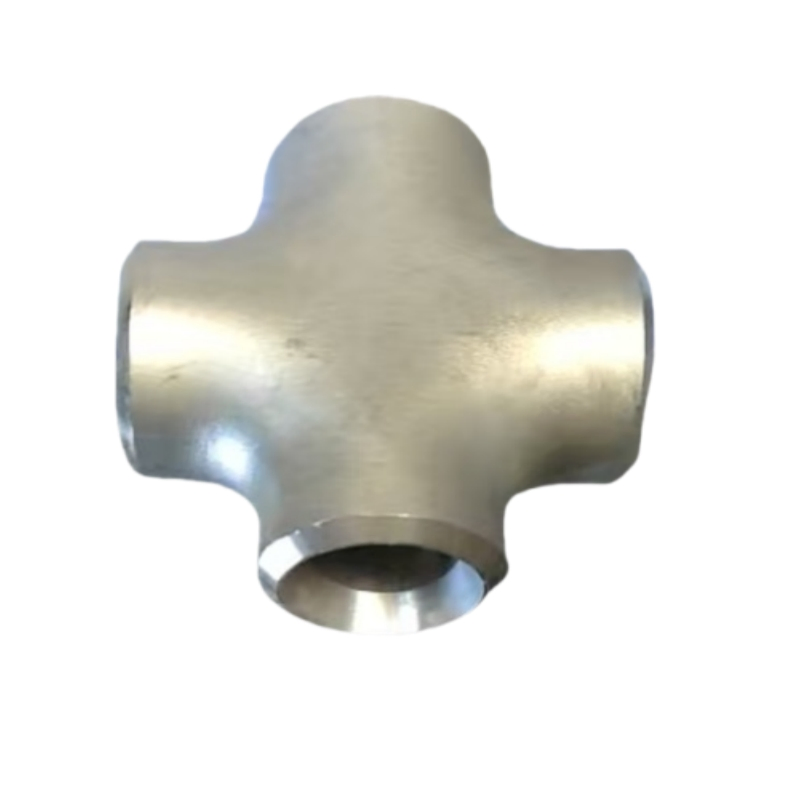

Pipe Tee: Used for flow splitting, merging, or diameter changing. Features a "T" shape with three nozzles. Structure includes Straight/Equal Tee, Reducing Tee, and Lateral Tee.
Pipe Reducer: Used to reduce fluid velocity, match equipment interfaces, or achieve energy conservation. Available in Concentric and Eccentric shapes.

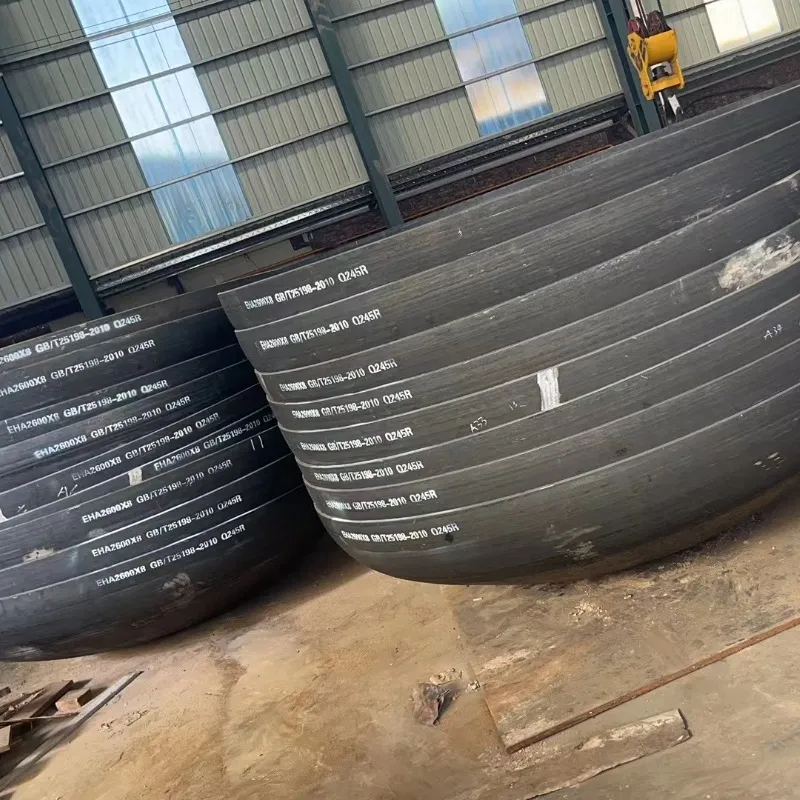

Pipe Cap: Designed to permanently or temporarily seal pipe ends, preventing contamination and media leakage.
Technical Range: Sizes from DN15 to DN1200 with wall thickness ranging from SCH5 to SCH160.
| Parameter | Specification Details |
|---|---|
| Product Name | Butt Welded Steel Pipe Fitting |

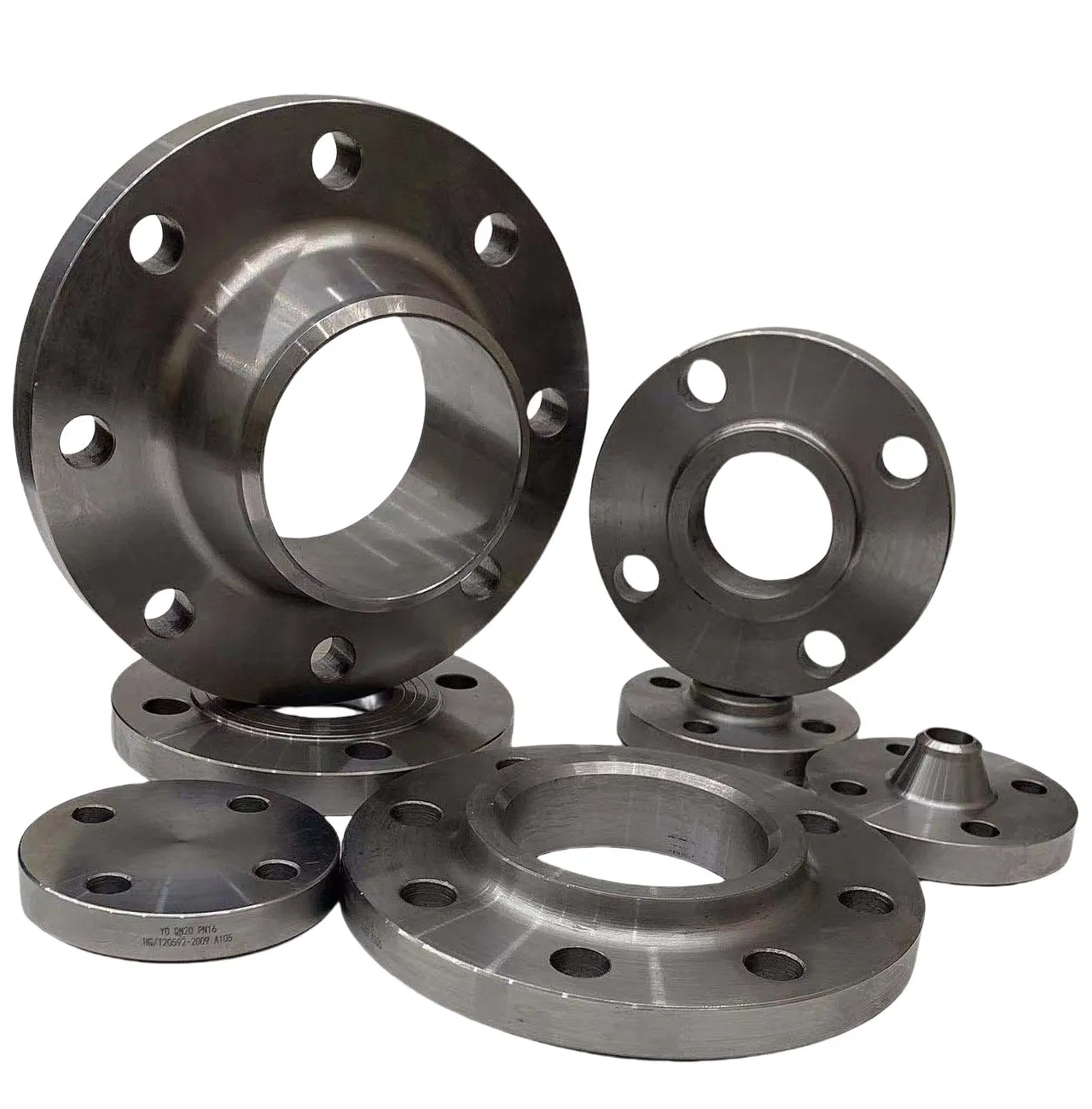

| Category | Elbow, Flange, Tee, Reducer, Cap |
| Standard | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, etc. |
| Wall Thickness | STD, XS, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, etc. |
| Types | 30°/45°/60°/90°/180° Elbow, Equal/Reducing Tee, Eccentric/Concentric Reducer, etc. |
| Size | 1/2" - 48" |
| Surface | Nature color, Varnished, Black painting, Anti-rust oil, etc. |
| Carbon Steel | A234WPB, A420 WPL6 St37, St45, E24, Q345, P235GH, P265GH, etc. |
| Alloy Steel | A234 WP11, WP22, WP5, WP9, WP91, 10CrMo9-10, 16Mo3, etc. |
We supply high-quality pipe fittings suitable for a wide range of demanding environments:

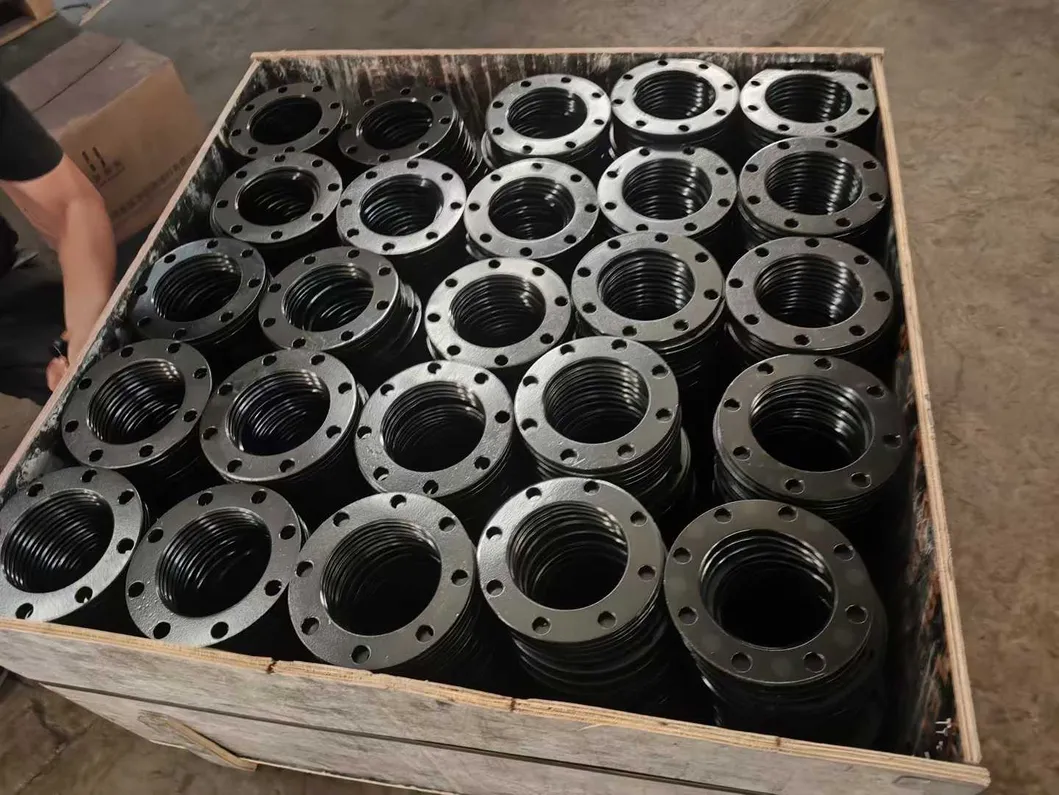

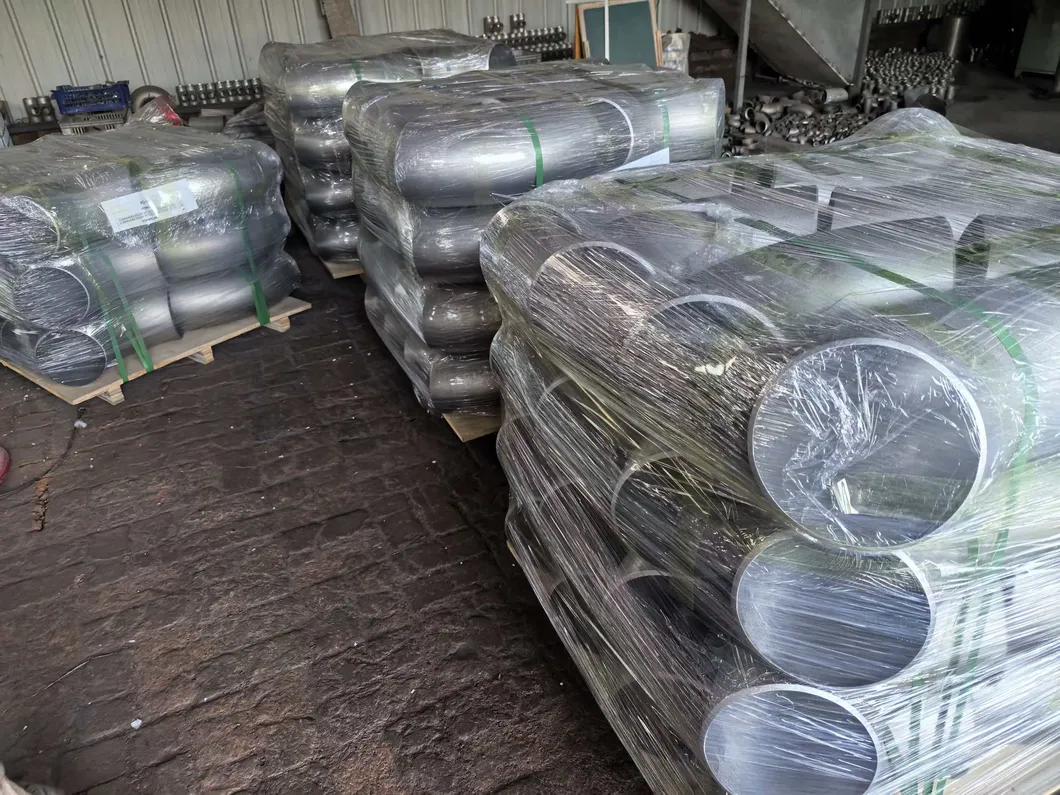

Our products are secured using international shipping standards to ensure safety during transit:
Our facility specializes in a comprehensive range of carbon steel pipe fittings including Butt Weld (BW), Socket Weld (SW), and Threaded (THD) fittings. We offer a full catalog of standard industrial fittings such as 45° to 180° elbows, straight/reducing tees, and specialized items like lap joint stub ends manufactured under global standards.
