ElvisCast Precision
1 / 5
| Model NO. | HY-FTNV1 |

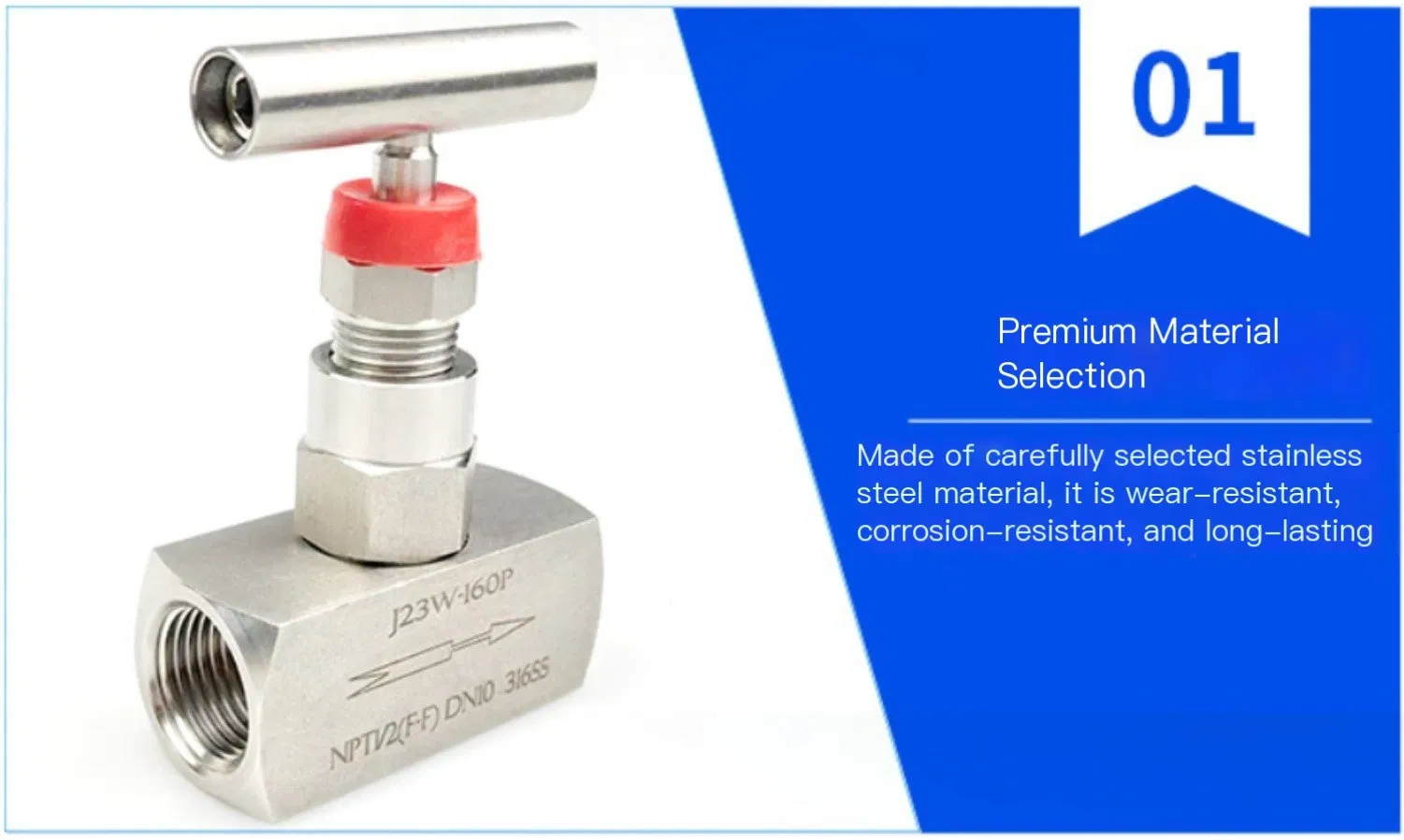

| Material | SS304, SS316, Carbon Steel A105 |
| Pressure Range | 1000 Psi to 10000 Psi (High Pressure) |
| Media | Oil, Gas, Water, Acid Liquid |
| Thread Standards | NPT, BSPT, BSPP (GB/T 12716-1991, ISO228-1, BS En 10226-1) |
| Manufacturing Standard | ASME B16.34, JIS, DIN, GOST, GB |
| Temperature | -40 ºC to +540 ºC |

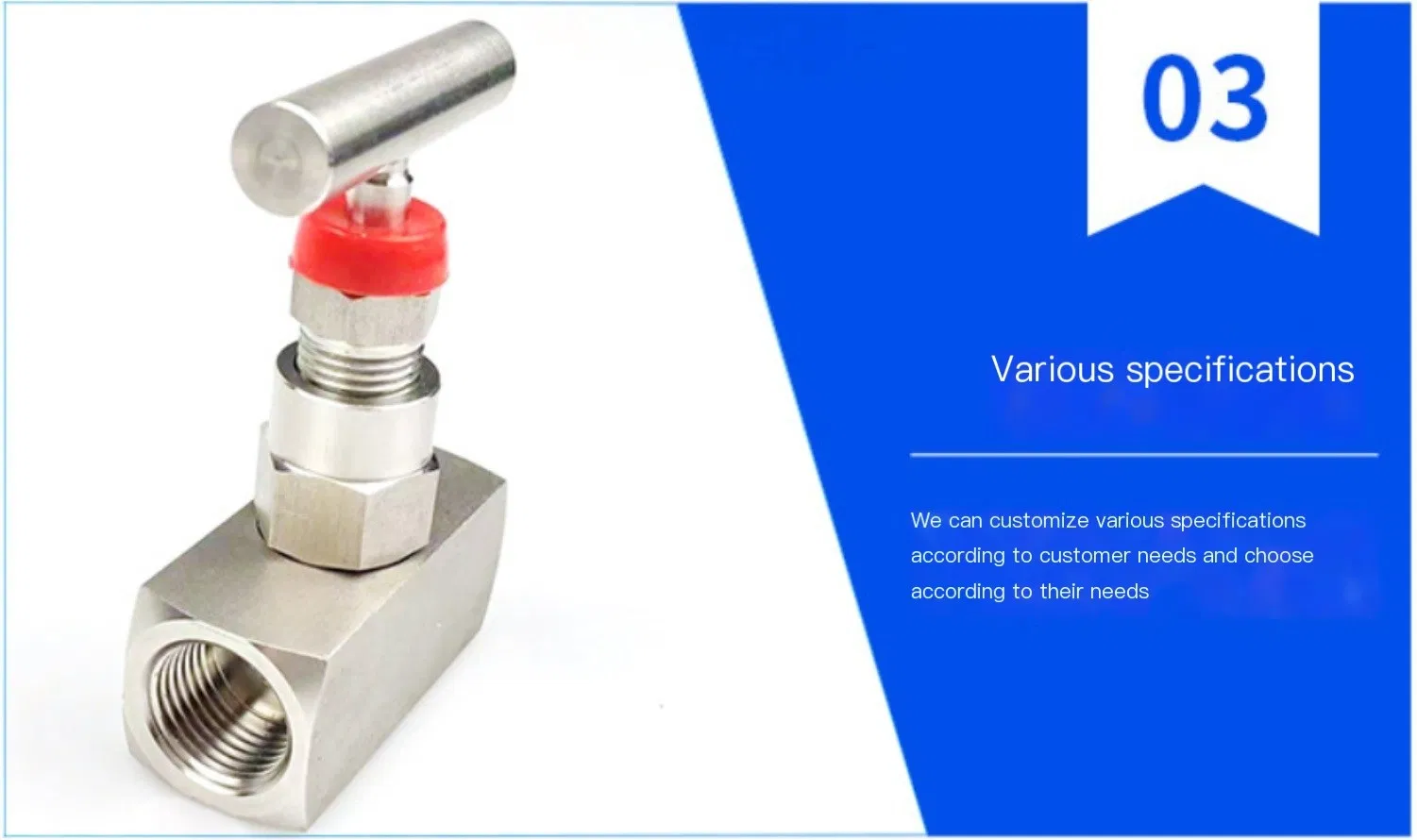

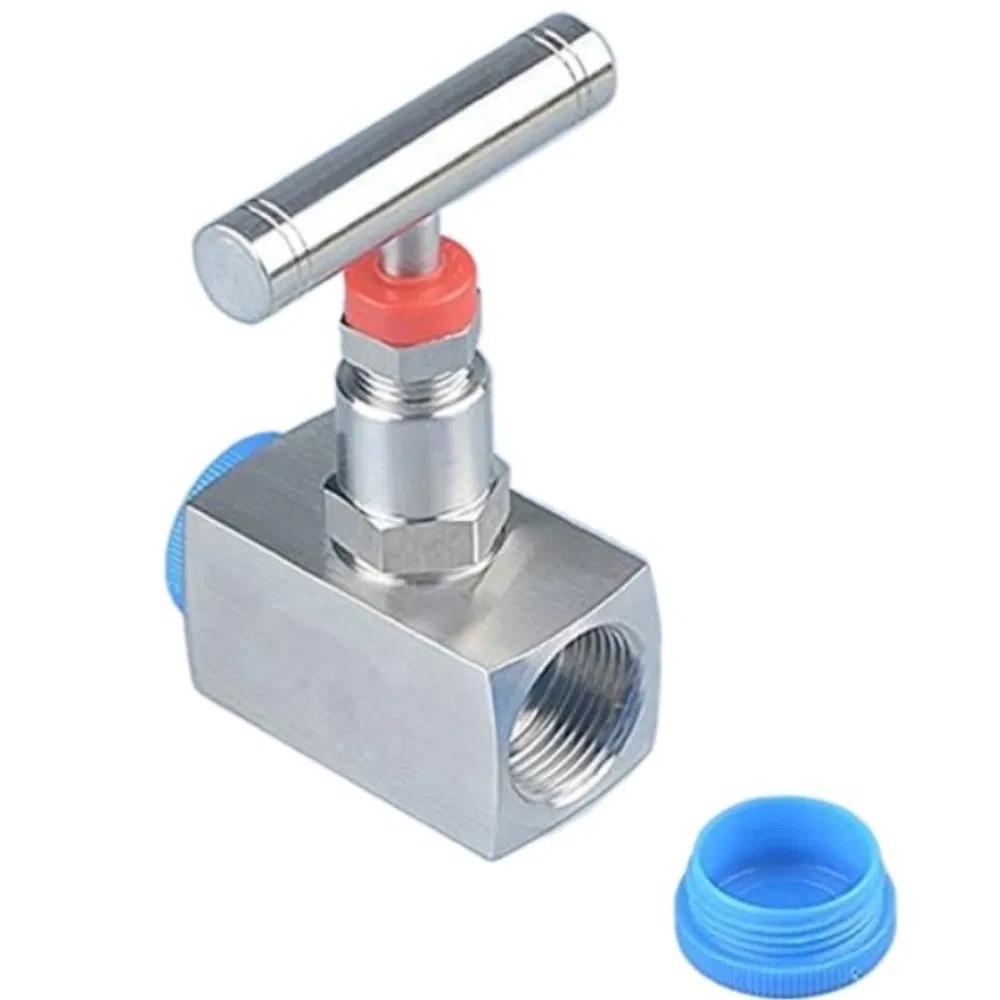

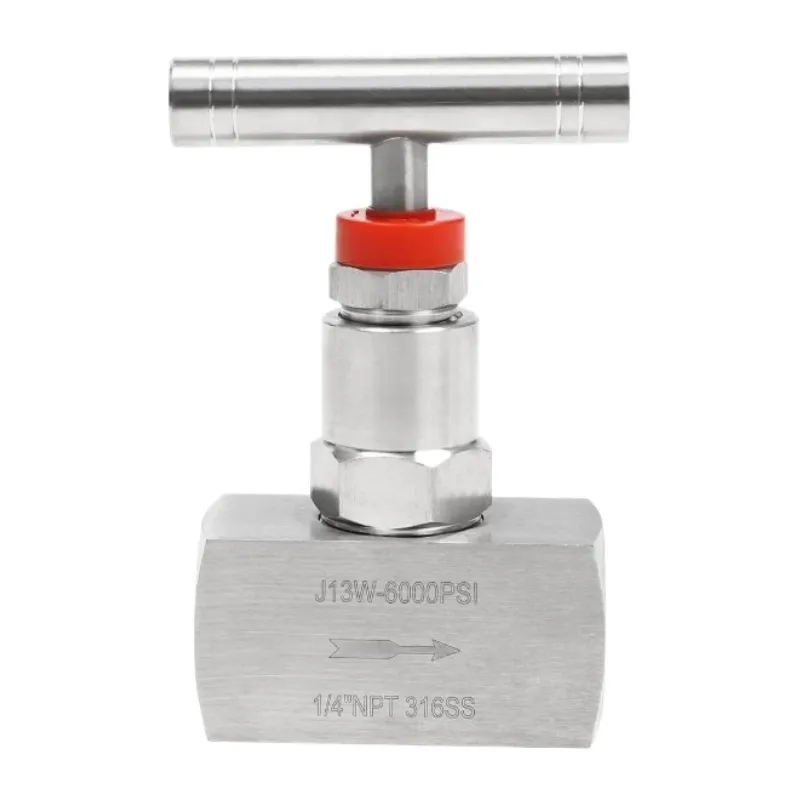

| Connection | Female Thread Needle Valve |
| Package Size | 10.00cm * 10.00cm * 10.00cm |
| Lead Time |
15 days (1 - 50 Sets) 20 days (51 - 200 Sets) 25 days (201 - 500 Sets) To be negotiated (> 500 Sets) |

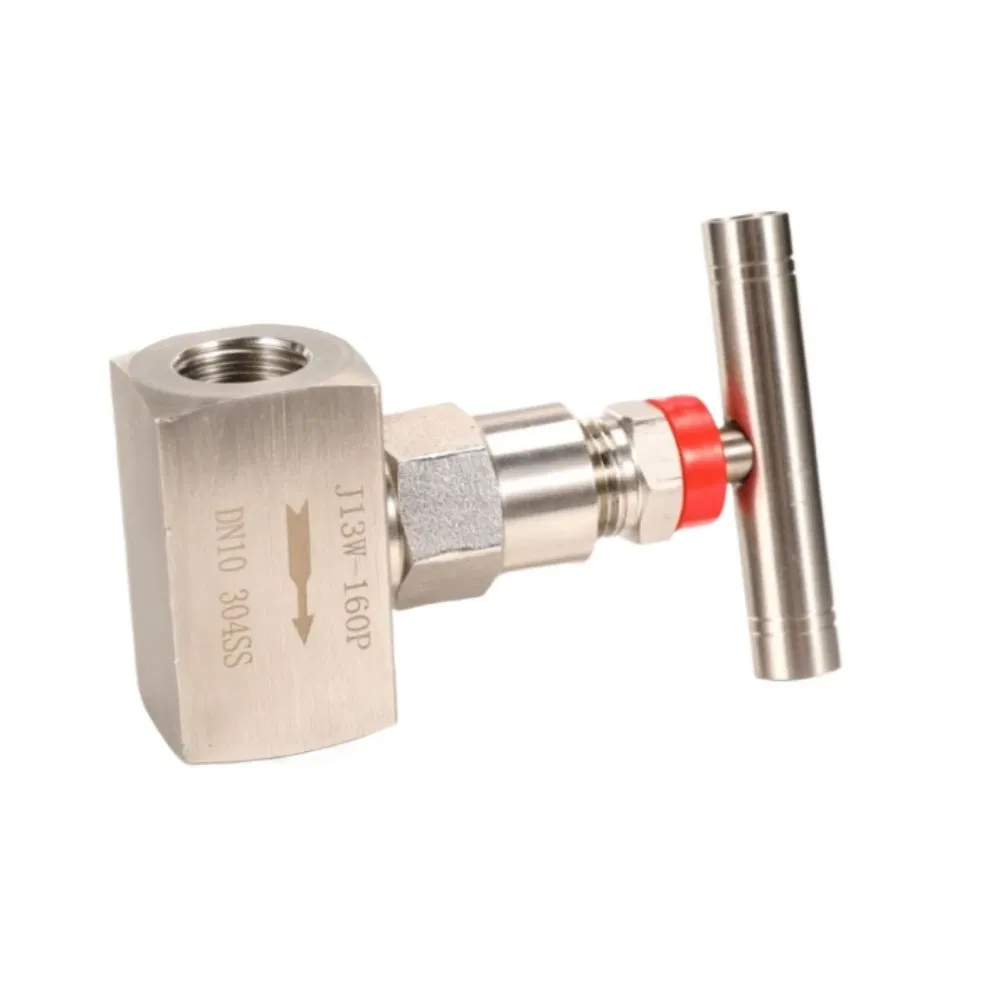

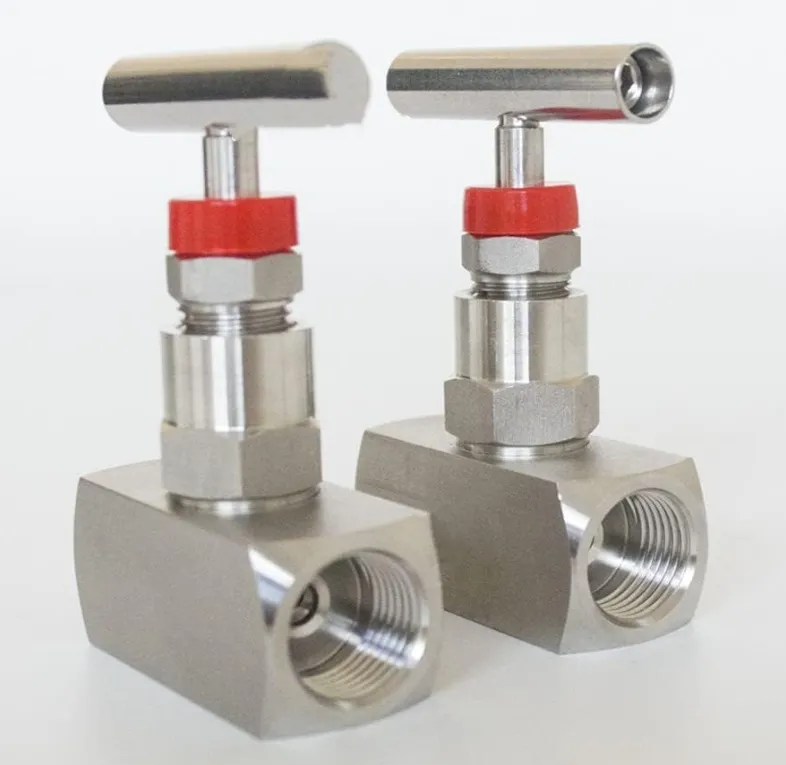

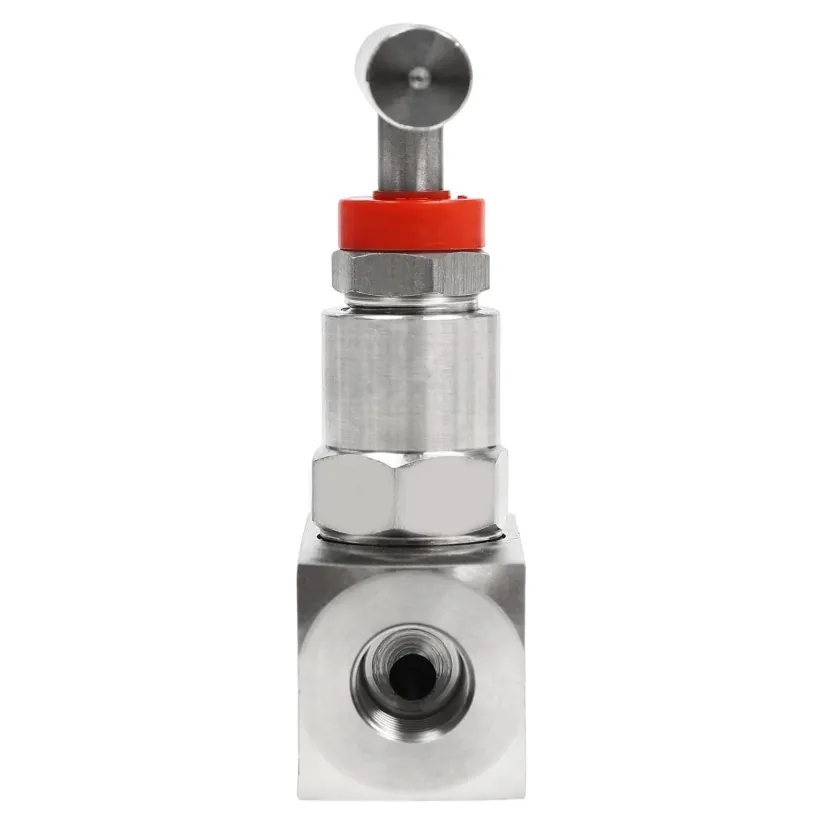

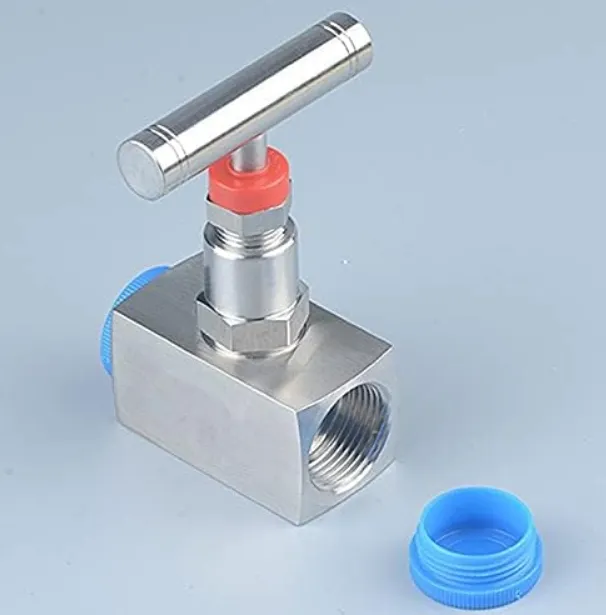

The stainless steel needle valve is mainly composed of valve body, valve stem, valve core, valve seat, packing, and gland. The valve core is needle-shaped and cooperates with the valve seat to achieve precise sealing.
Principle: By rotating the valve stem, the valve core moves up and down, changing the gap between the core and seat. This allows for precise control or complete cut-off of the medium flow rate.
Petrochemical Industry: Flow control for chemical raw materials, oils, and gases.
Electric Power: Instrument measurement pipelines and steam systems in power stations.
Metallurgical & Pharmaceutical: Precise transportation of oxygen, nitrogen, and hydraulic liquids, ensuring accuracy in drug production processes.

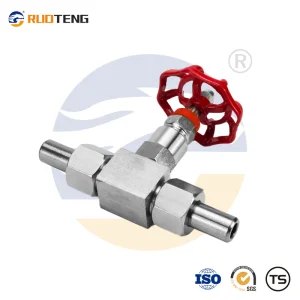

![[Ruoteng] 304 201 316 Stainless Steel J21W J23W 160p 64p High Pressure Welding Needle Valve Stop Valve](https://site.cdnfile.io/bb2d5e460a7d1ed2c25f244aa4eba07e300_300.webp)
