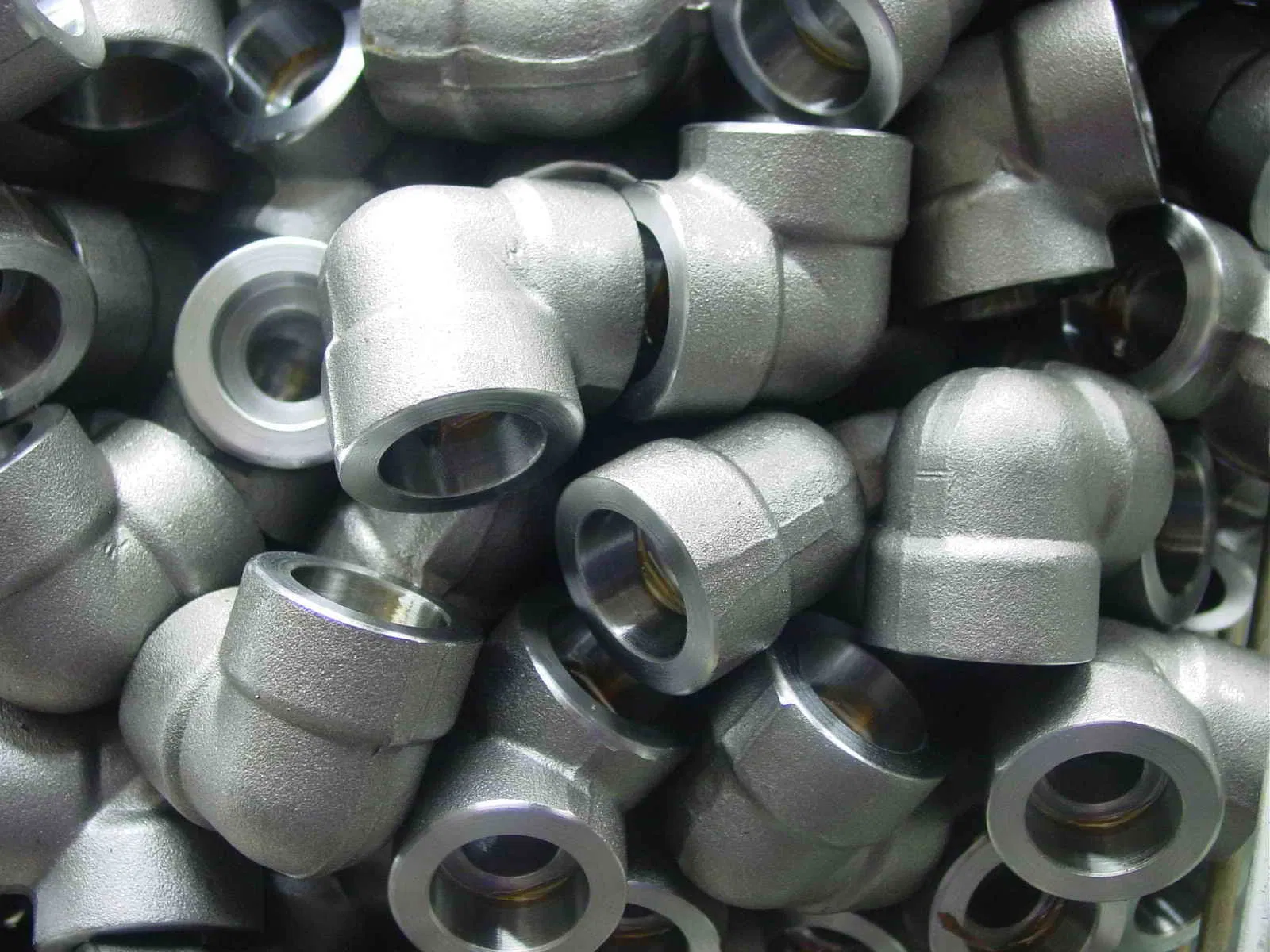

En545 Standard 90 Degree Flanged Elbow Fitting for Ductile Iron Pipes

Still deciding? Get samples of $ !
Request Sample

Product Description

i
Product Overview
Model NO.
Ductile Iron Loosing Flange Elbow
Wall Thickness
Sch40
Material
Stainless Steel & Carbon Steel
Technics
Forged
Certification
ASME, ANSI, DIN, BS
Color
Silver
Origin
Shandong
Transport Package
Standard Carton, Pallets, Bag, Wooden Case.
P
Product Description

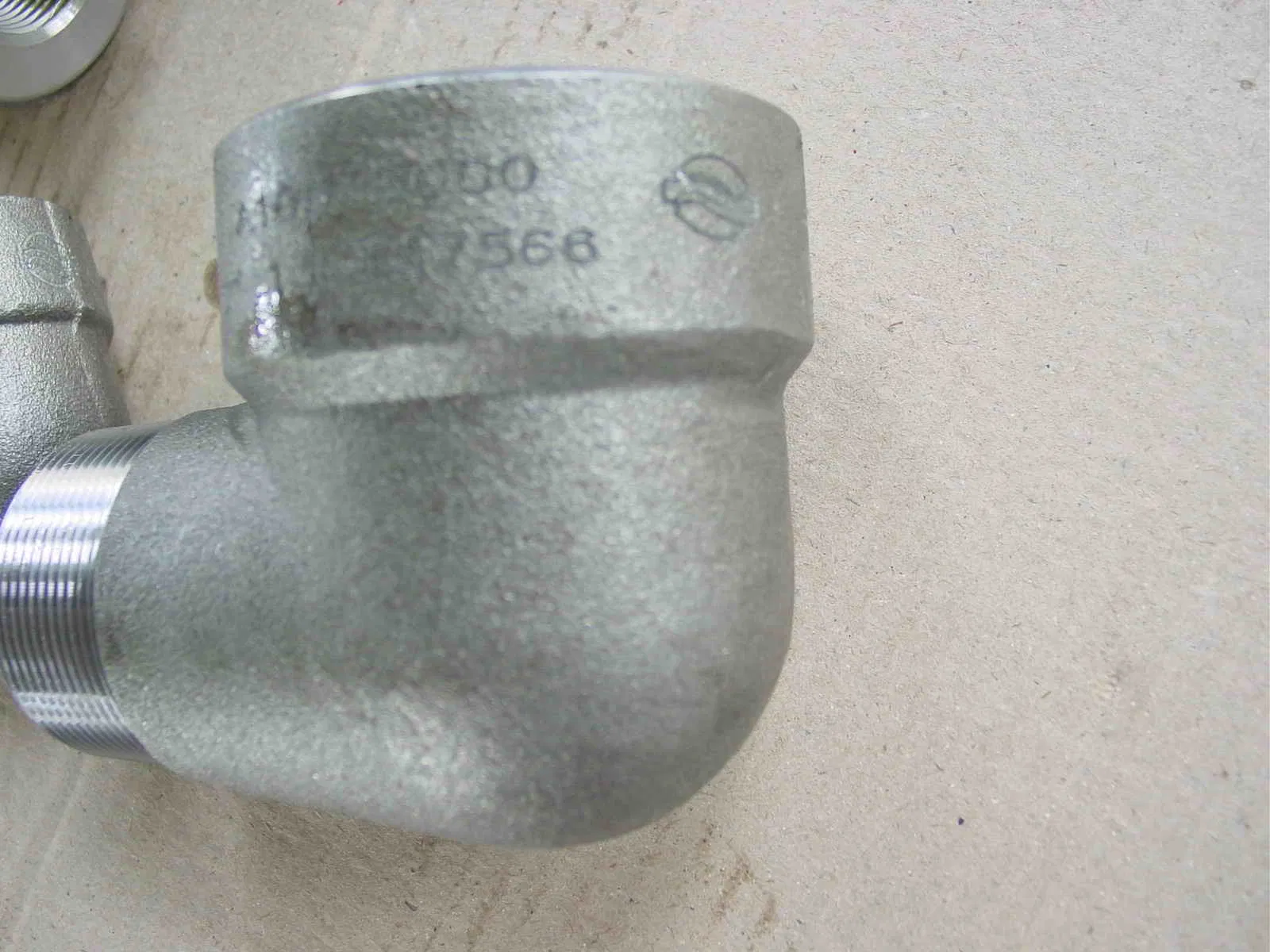

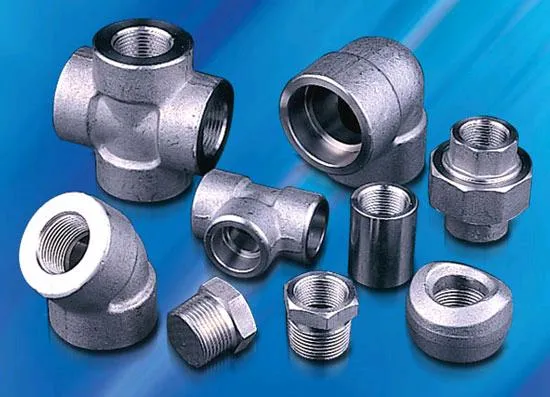

90 Degree Flanged Elbow Fitting

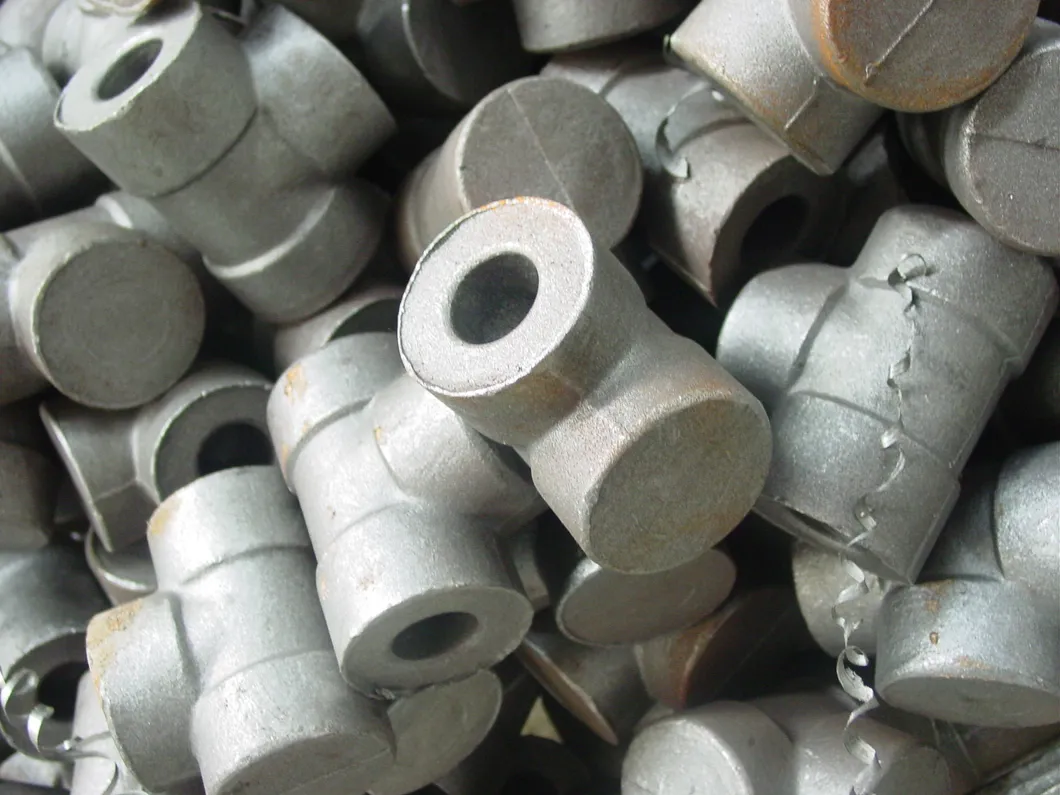

90 Degree Flanged Elbow Fitting Detail

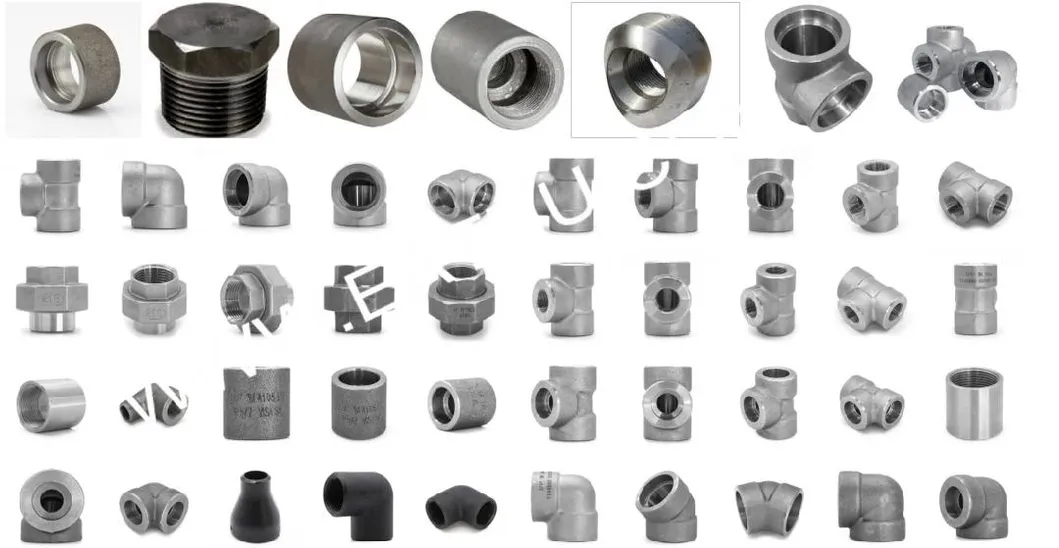

Ductile Iron Pipes Fitting Banner
S
Technical Specification
Product Name Forged pipe fitting (elbow, tee, coupling, cap, plug, union, nipple, insert, bushing, weldolet, threadolet, sockolet, etc.)
Size 1/8"-4"
Standard ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, BS3799, ASTM A733, etc.
Pressure 2000lbs, 3000lbs, 6000lbs, 9000lbs
End Thread (NPT/BSP), socket welded, butt weld
Wall Thickness sch20, sch10s, sch30, sch40, std, sch40s, sch80s, sch80, xs, sch100, sch120, sch140, sch160, xxs, customized, etc.
Surface CNC machined, anti-rust oil, HDG (hot dip galv.)
Application Petrochemical industry; aviation and aerospace industry; pharmaceutical industry; gas exhaust; power plant; ship building; water treatment, etc.
Technology Forged
Certificate ISO9001, API, CE, UL/FM

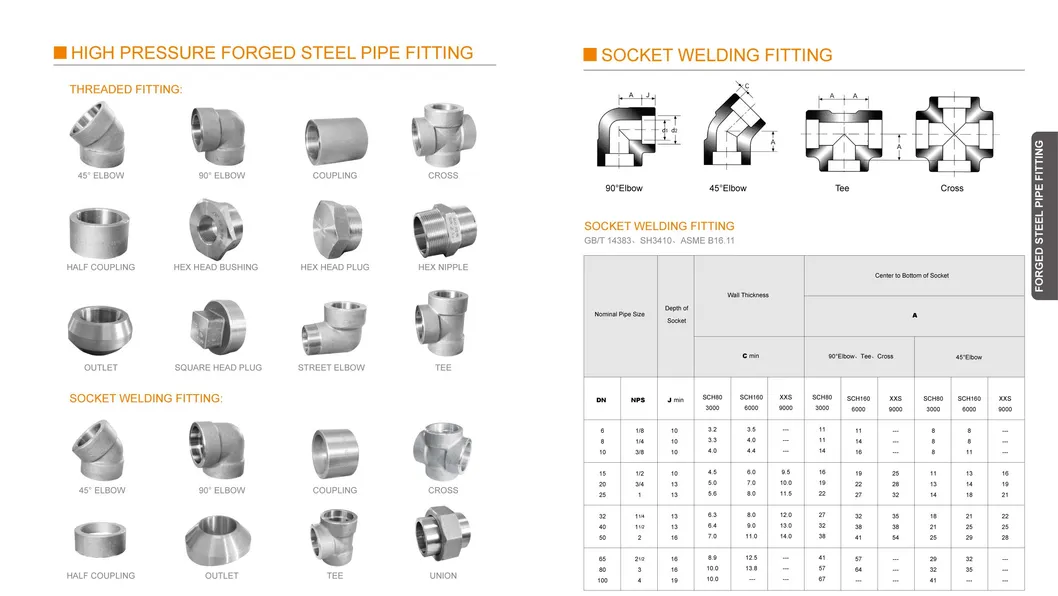

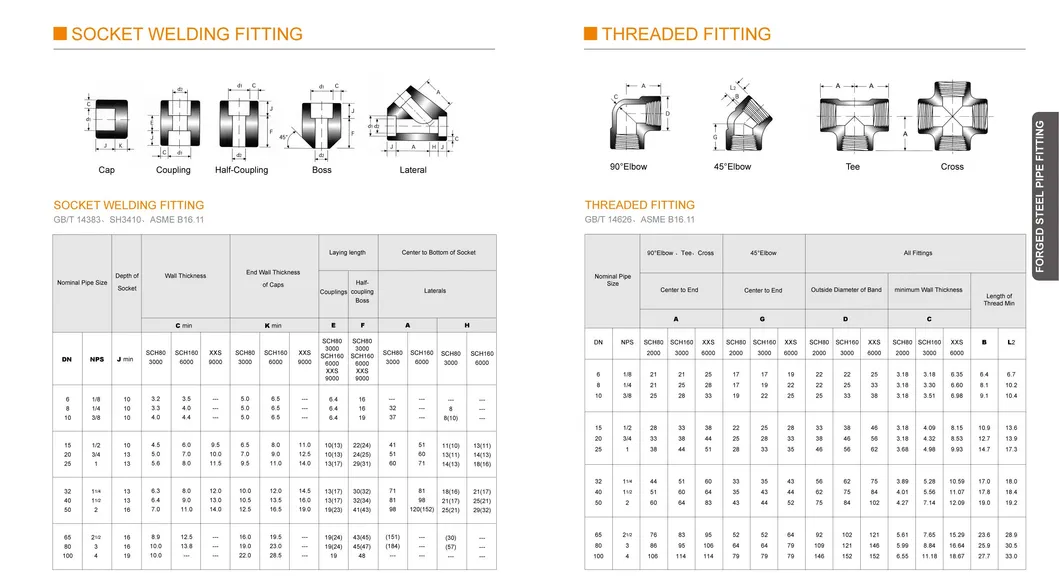

Fitting Size Chart
Fitting End Details
C
Certifications
Quality Certifications Overview
A
About Manufacturing
We are one of the biggest manufacturers and exporters of pipeline products in China. We specialize in pipeline products, casting and forging (with or without machining): Malleable iron pipe fittings, ductile iron grooved fitting and coupling, 125# cast iron pipe fitting, steel butt-welding pipe fitting, steel flange, forged steel pipe fittings, stainless steel threaded pipe fitting, steel pipe nipple & merchant coupling, steel pipe, brass pipe nipple and bronze fitting, cast iron soil pipe and fitting, resilient seat non-rising stem wedge gate valves, check valve, butterfly valve, brass valve and bib-cock, scaffolding couplers / clamps, scaffolding frame & props, scaffolding accessories, pipe clamp fitting, concrete lifting anchors, lifting insert, socket & fixing insert, concrete hardware accessories, expansion shell, pipe coupling & hose clamps, radiator, cast iron manhole cover, auto parts, sand casting parts, investment (lost wax casting) casting parts, die casting parts, and kinds of casting and forging machinery parts according samples or drawing from customers.
All our factories are certified to the international ISO-9001 quality system standard and all products are carefully tested to meet the strict quality requirements and industry standards prior to each shipment. Parts of our products have been tested, listed, approved by some predominant labs and bodies. In order to enhance our accountability for environment, the environmental management system to ISO14001 has been assessed and registered by BVQI (France).

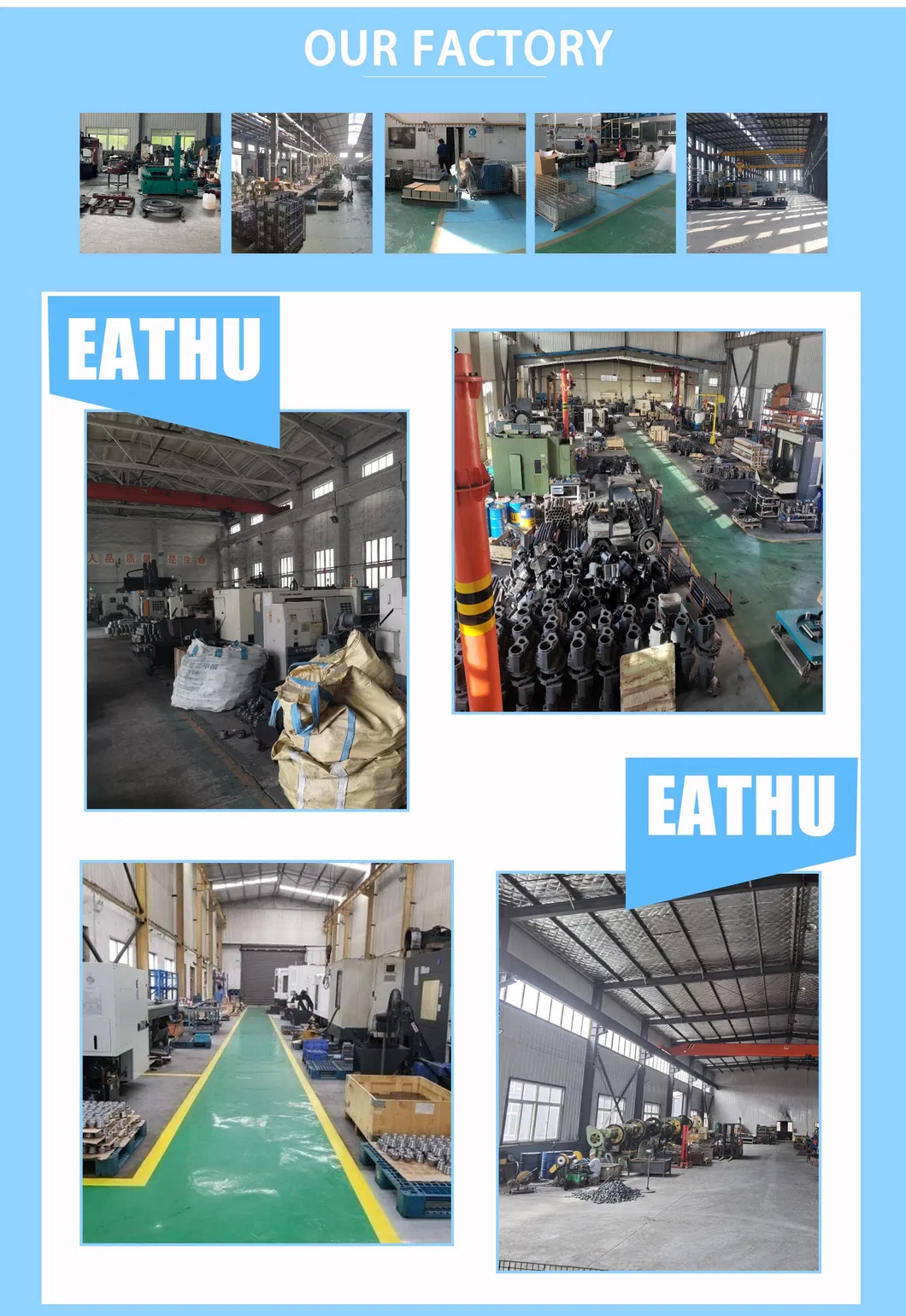

Manufacturing Facility
Quality Control Process
F
Frequently Asked Questions
What materials are used for the flanged elbows?
The flanged elbows are primarily manufactured from high-quality Stainless Steel and Carbon Steel, ensuring durability and resistance for various industrial environments.
Which international standards do your pipe fittings meet?
Our products comply with a wide range of international standards including ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, BS3799, and ASTM A733.
What pressure ratings are available for these fittings?
We provide forged pipe fittings with pressure ratings of 2000lbs, 3000lbs, 6000lbs, and 9000lbs to suit different operational requirements.
What are the typical applications for these ductile iron fittings?
These fittings are extensively used in the petrochemical industry, aviation and aerospace, pharmaceutical manufacturing, power plants, shipbuilding, and water treatment facilities.
Do your products have quality certifications?
Yes, our manufacturing processes and products are certified under ISO9001, API, CE, and UL/FM, ensuring the highest global quality standards.
Can you provide customized wall thicknesses?
While we offer standard sizes like sch40, sch80, and xxs, we also provide customized wall thickness options according to specific customer requirements.
