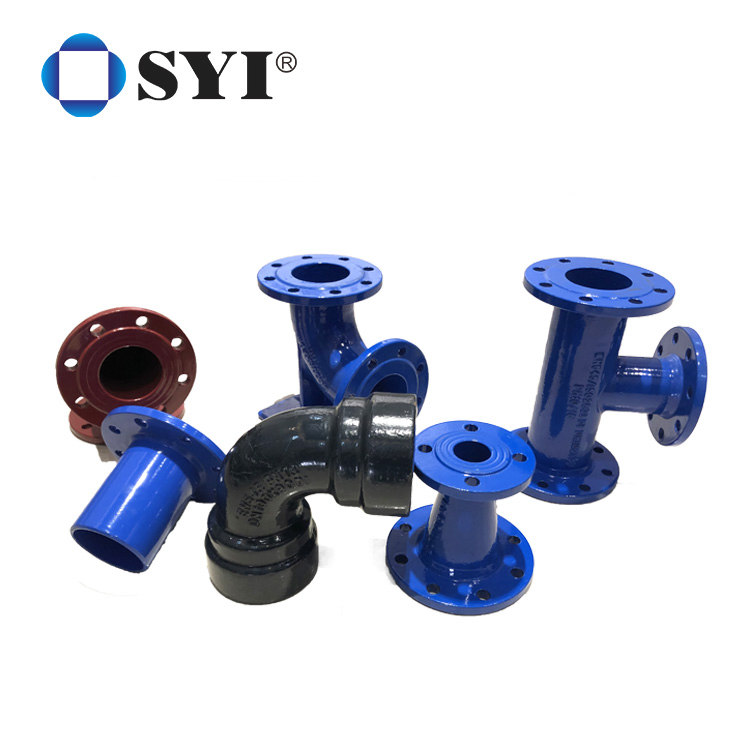

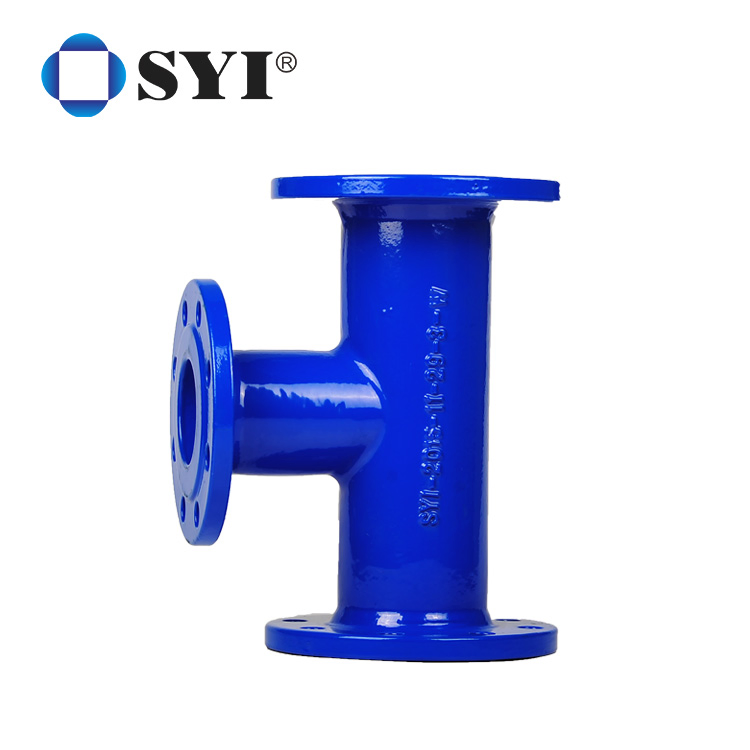

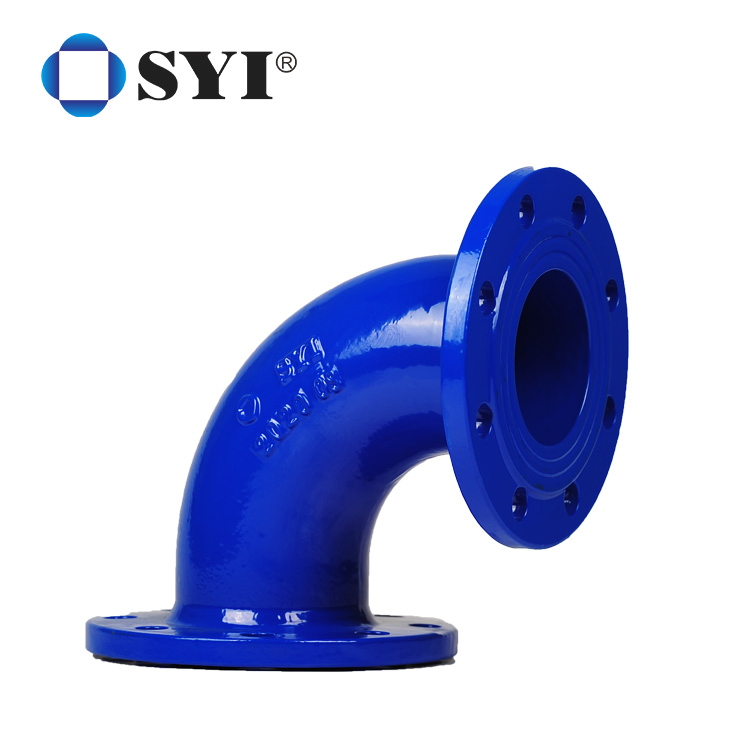

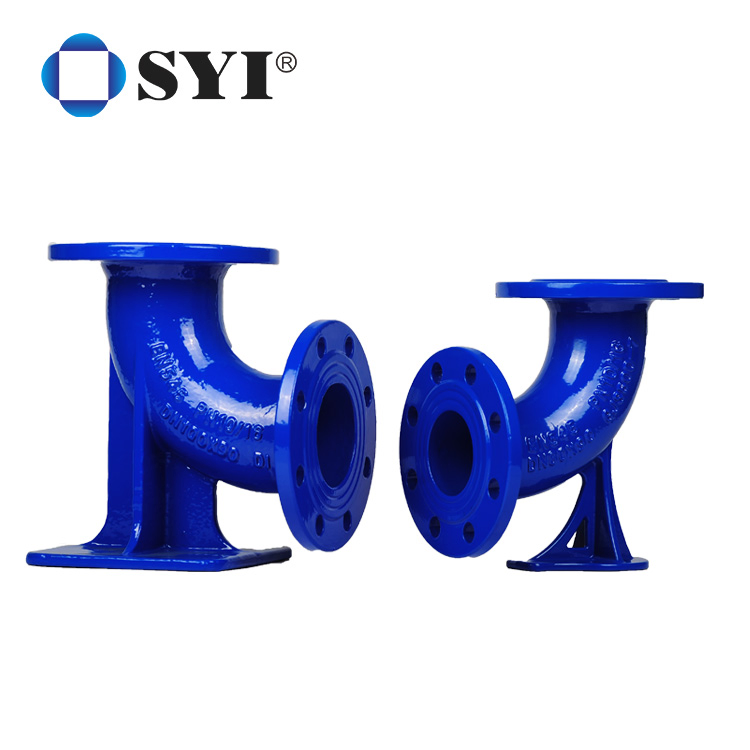

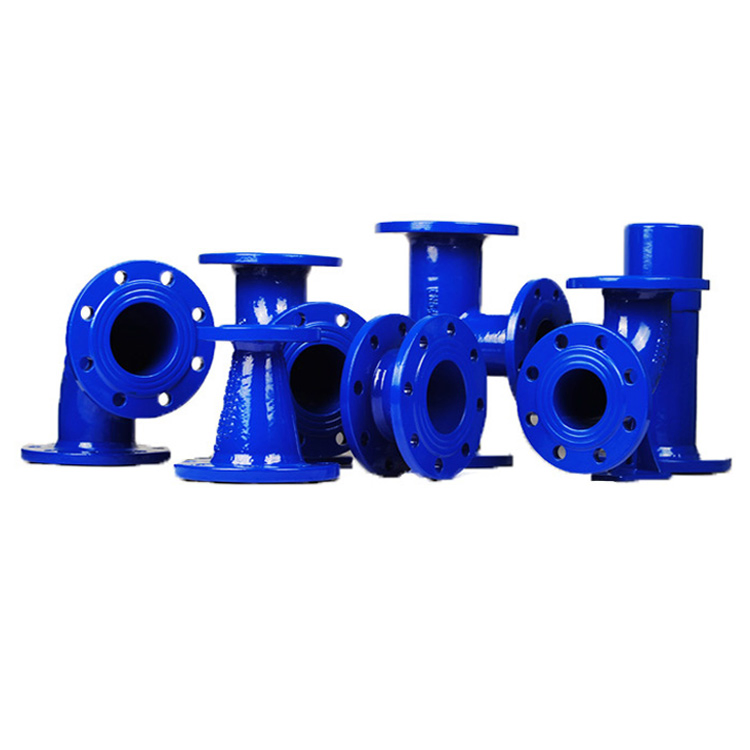

Our flanged pipe fittings are available in PN10, PN16, PN25, or PN40 drilling in accordance with ISO 7005-2/EN1092-2, ranging from DN80 to DN2000. These fittings are designed with high-performance ductile iron, allowing for improved design and reduced dimensions, making them ideal for congested urban areas and reducing valve chamber sizes.
| Technical Parameters | |
|---|---|
| Material | Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 |
| Flange Drilling | PN10, PN16 or PN25 in accordance with ISO 7005-2/EN 1092-2 |
| Fluid Temp | 0°C-50°C (Excluding frost) |
| External Coating | Zinc + bitumen, Liquid epoxy resin, or FBE (Fusion Bonded Epoxy) |
| Internal Coating | Cement mortar lining, Liquid epoxy resin, or FBE coating |
| Reference Rules | Dimensions and testing in accordance with ISO 2531 / EN 545 |

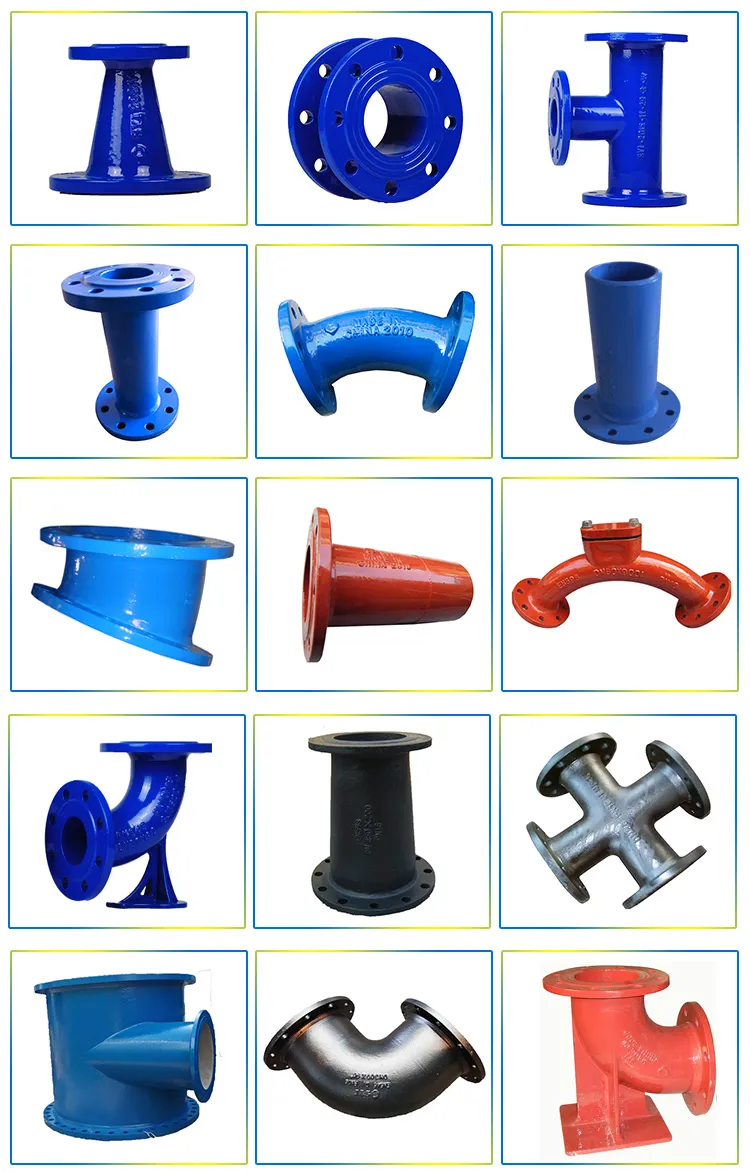

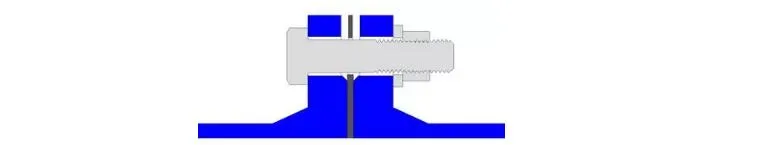

Available Accessories: Gaskets, bolts, and nuts can be supplied according to specific project requirements. Special customized fittings are also available.

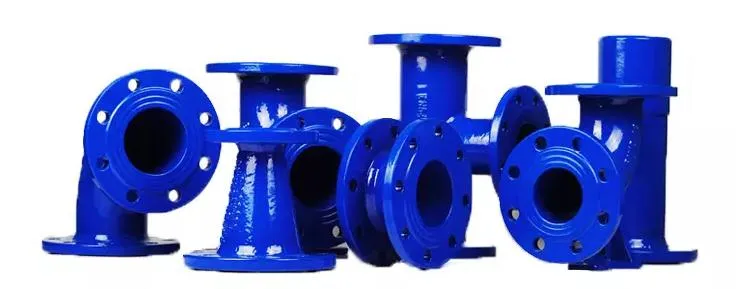

Ductile iron pipe fittings are cast from spherical graphite cast iron. They are typically used for jointing pipelines for water, gas, or other liquids, whether installed above or below ground. The system allows for pipeline deviation and changes in direction or bore size.

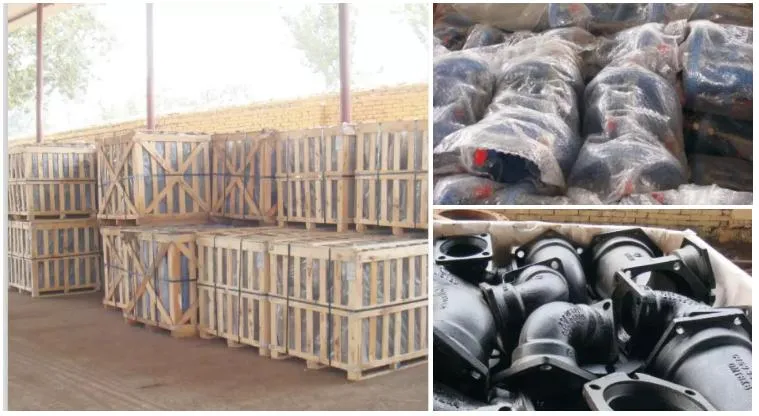

Packing Details: We provide various packaging options including wooden cases, pallets, plywood crates, and steel crates based on customer requirements for safe international transport.
