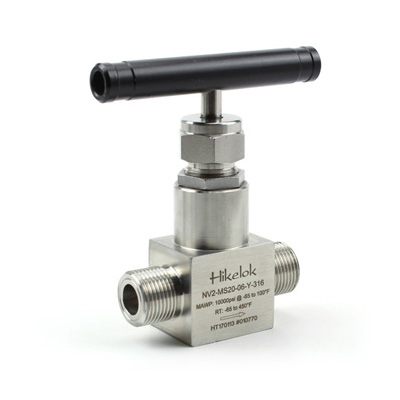

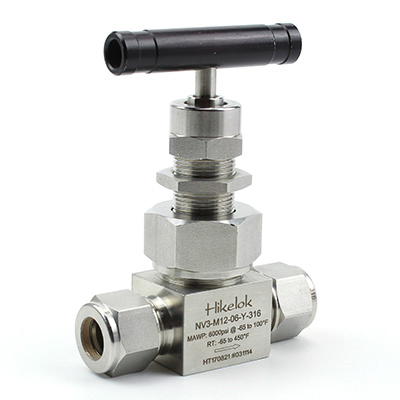

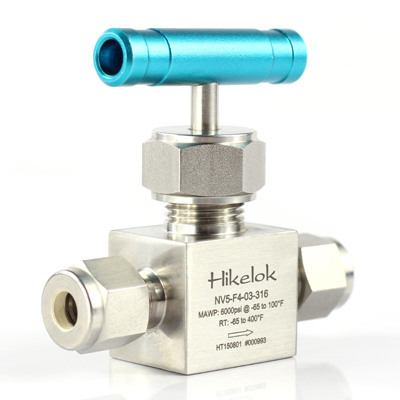

Needle Valve NV5 Series Features
◈Maximum working pressure up to 6000 psig (413 bar)
◈Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
◈Compact size design for efficient space utilization
◈Packing nut enables easy external adjustments

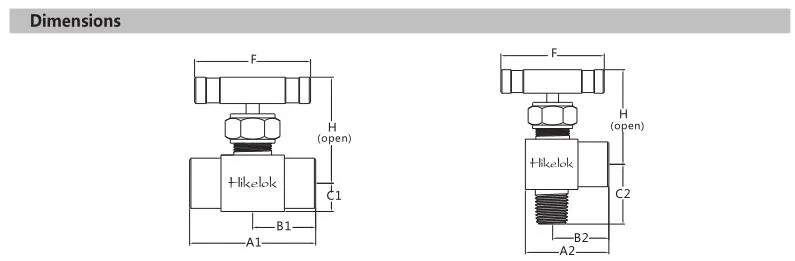

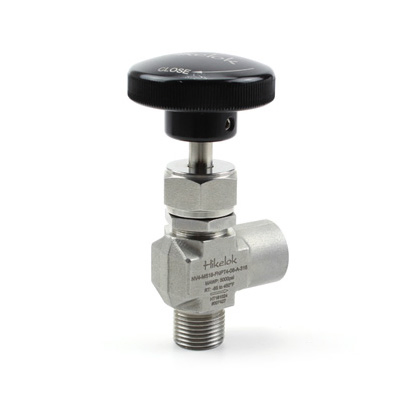

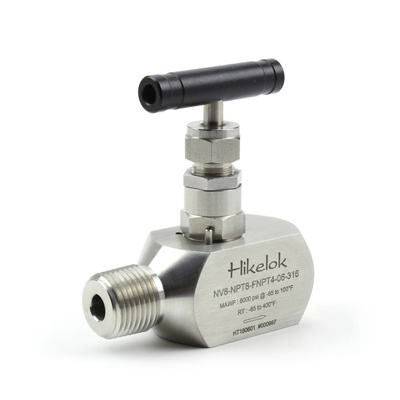

◈Available in straight and angle patterns
◈Softseats stem with PCTFE tip available
◈Optional handle colors available
Frequently Asked Questions
What is the maximum pressure for the NV5 Needle Valve?
The NV5 series is designed for high-pressure applications, supporting a maximum working pressure of up to 6000 psig (413 bar).
What materials are these needle valves made of?

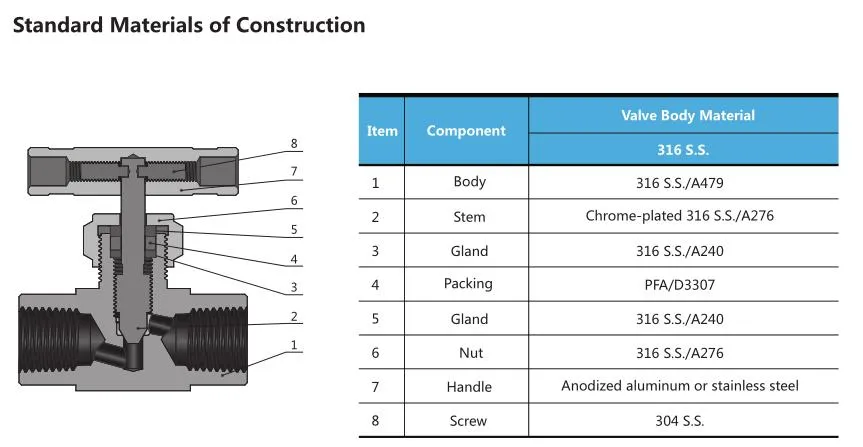

The standard body materials are 316 and 304 Stainless Steel, ensuring durability and resistance to corrosion in various environments.
Can these valves handle both gas and liquid media?
Yes, these needle valves are suitable for both gas and liquid media across a wide temperature range.

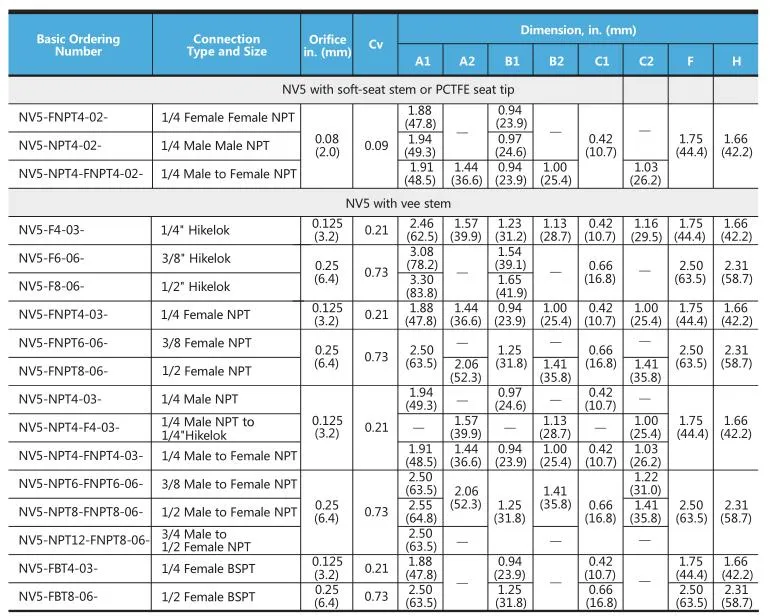

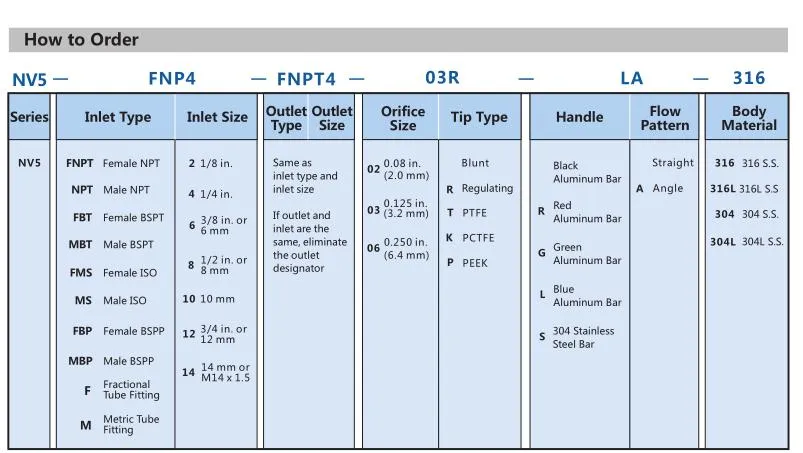

What types of inlet connections are available?
We offer a variety of inlet types including NPT, BSPT, ISO, BSPP, and Tube Fittings in sizes ranging from 1/8'' to 3/4''.
Are there different flow patterns available?
Yes, the valves are available in both straight and angle patterns to suit different piping requirements.
What is the working temperature range for the NV5 series?
The NV5 series can operate in temperatures ranging from -65ºF to 600ºF (-53ºC to 315ºC).
