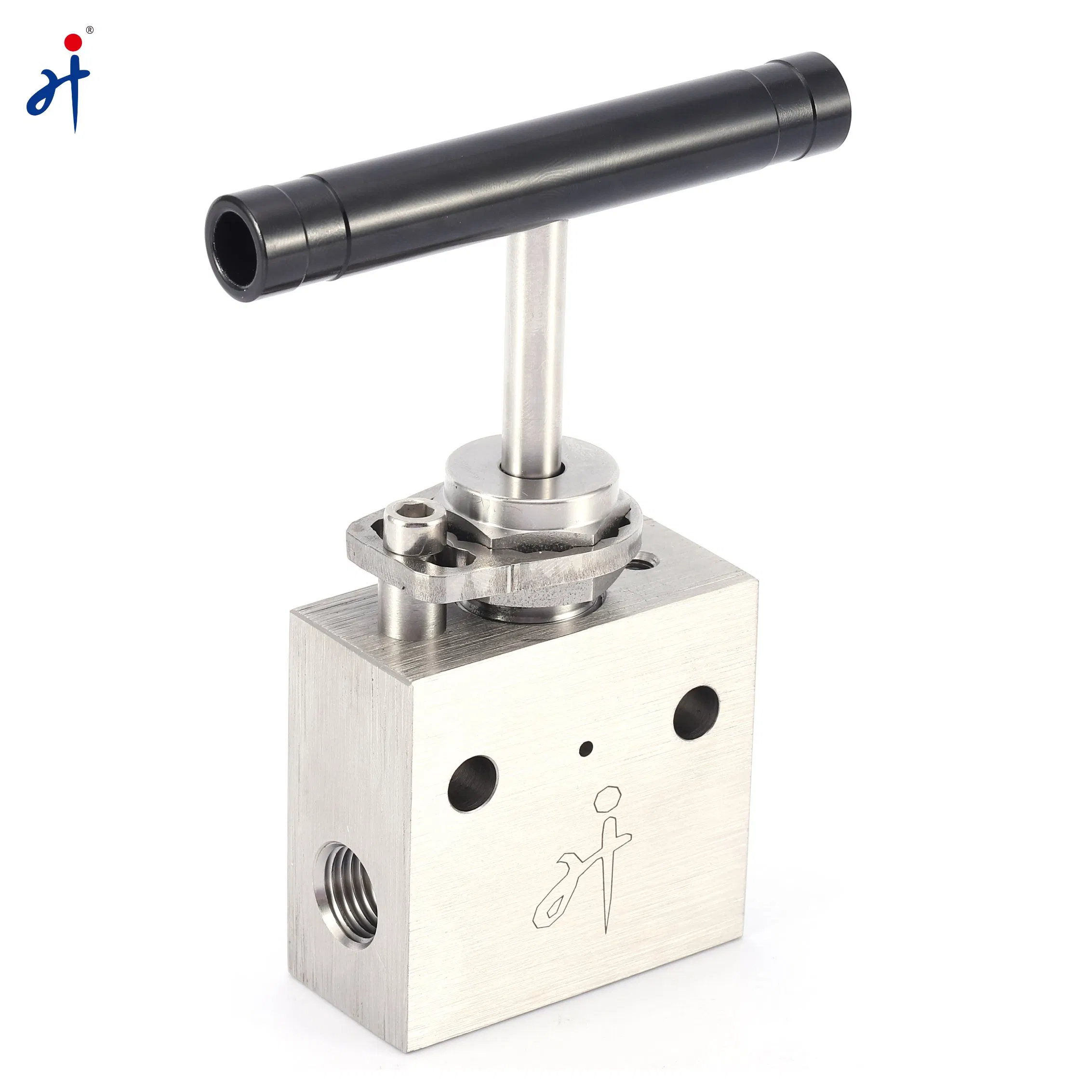

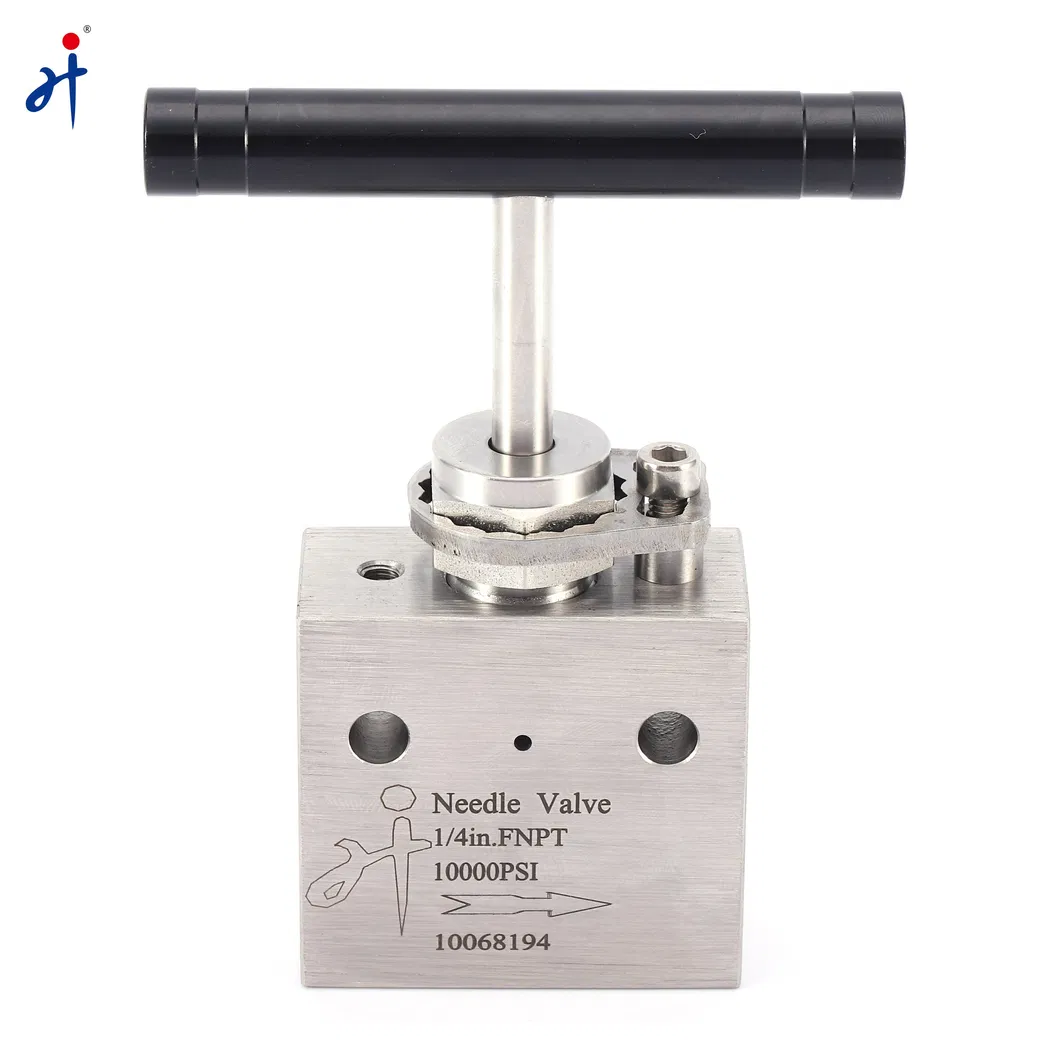

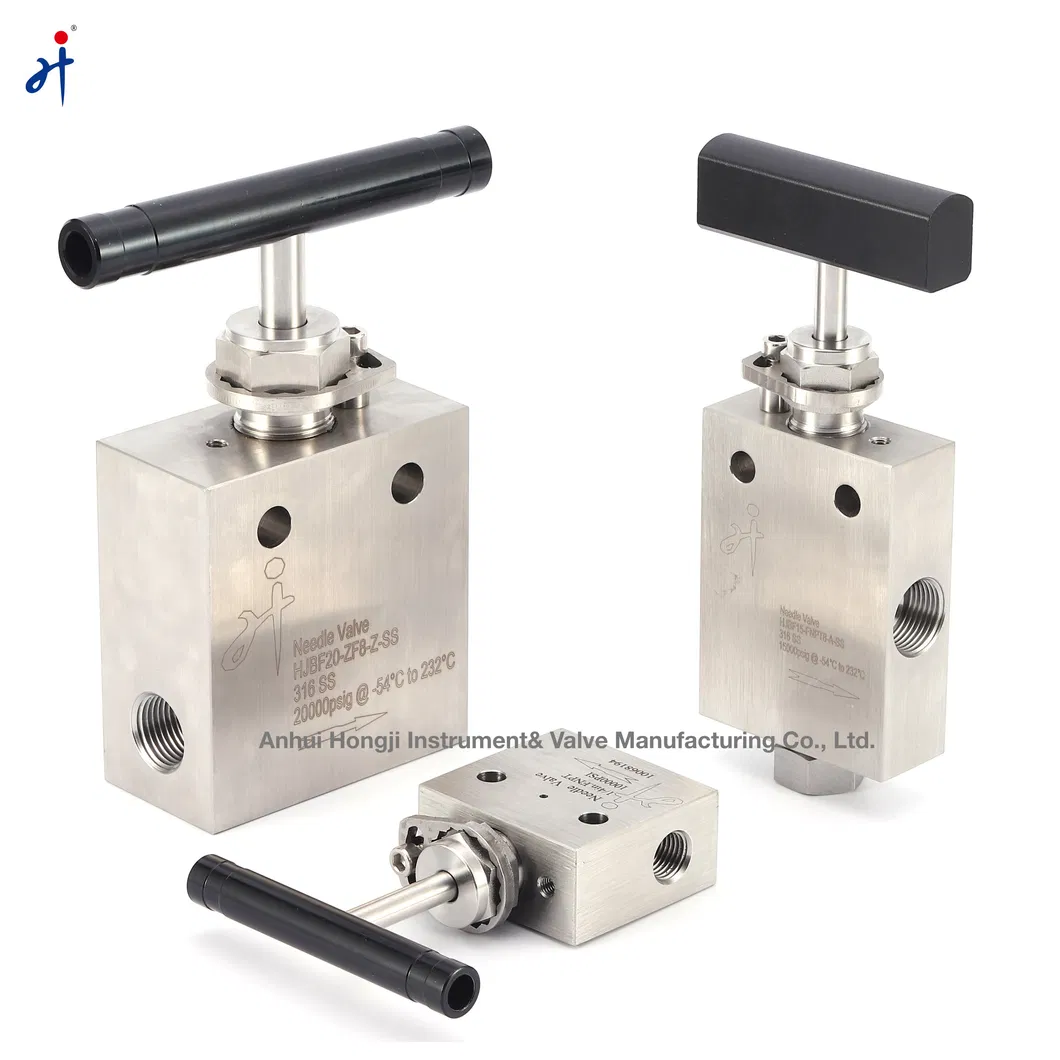

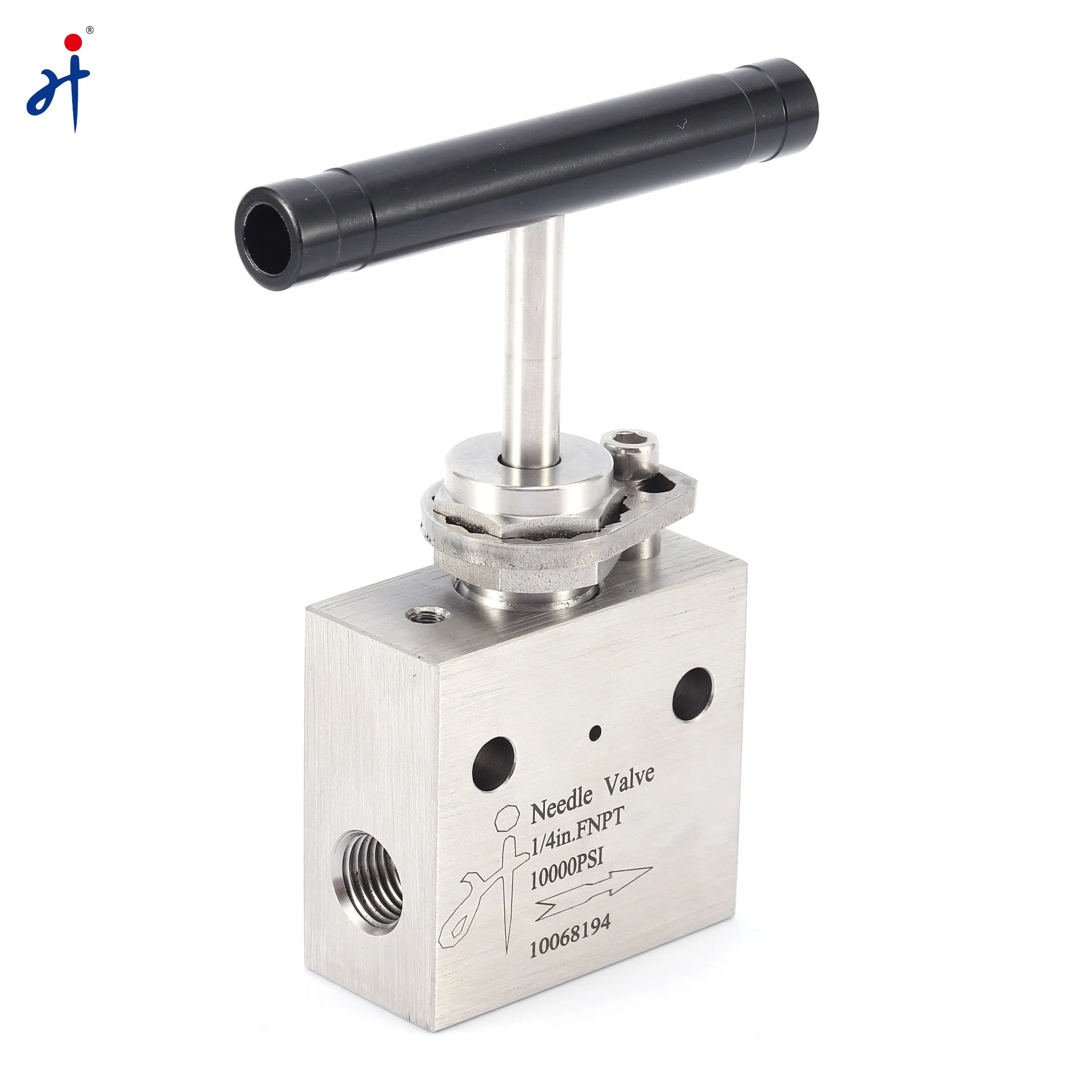

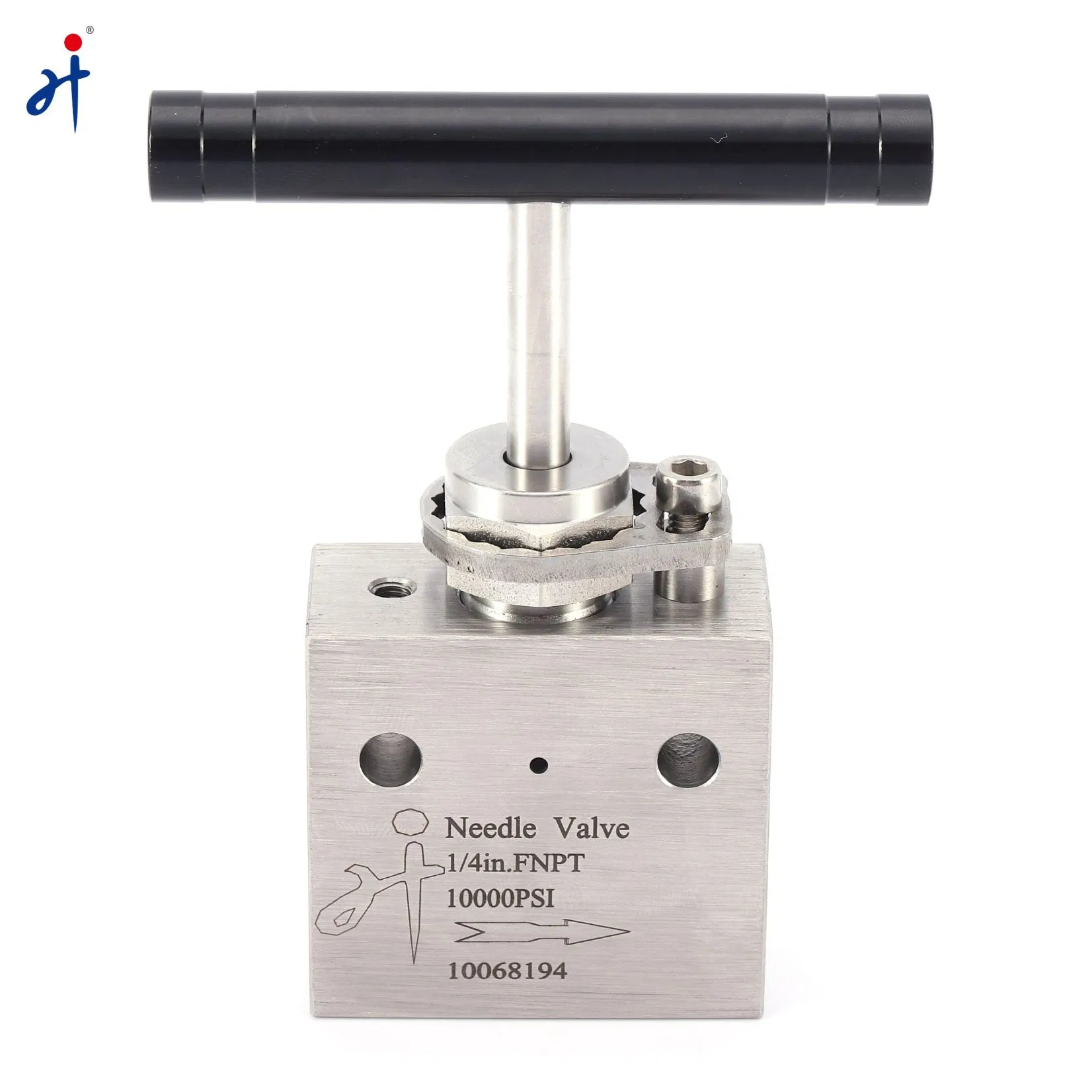

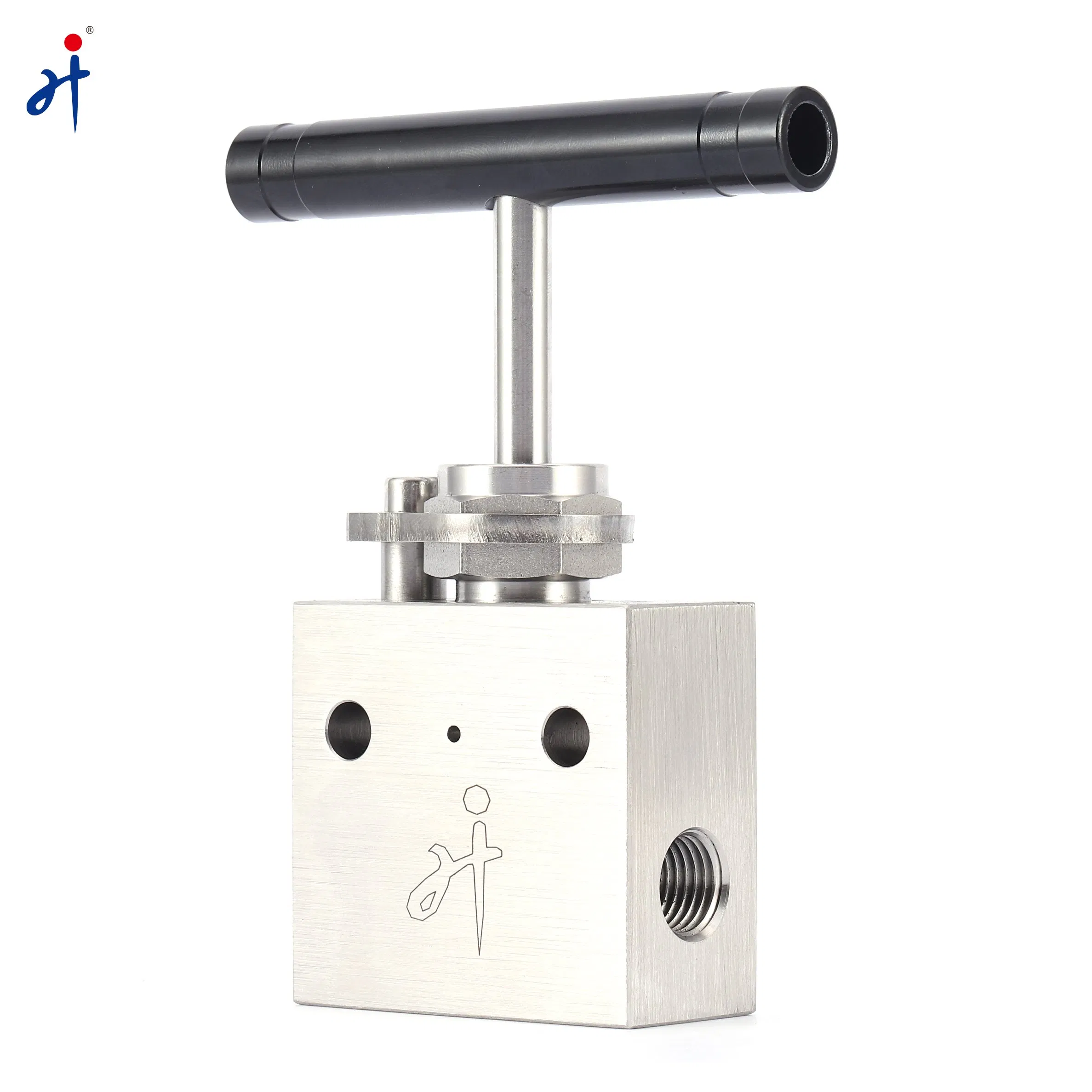

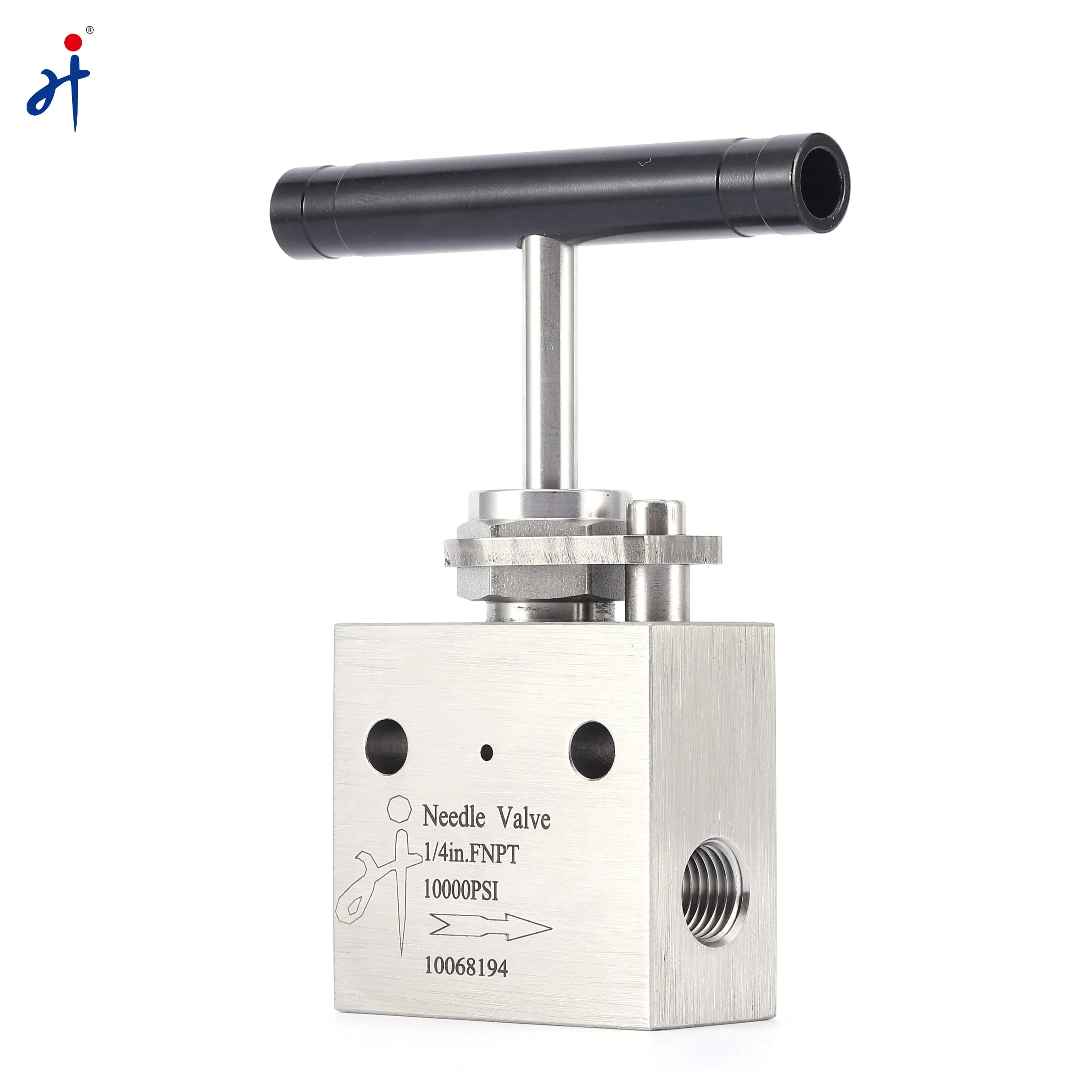

BF10 Series: 10,000 psig (690 bar)

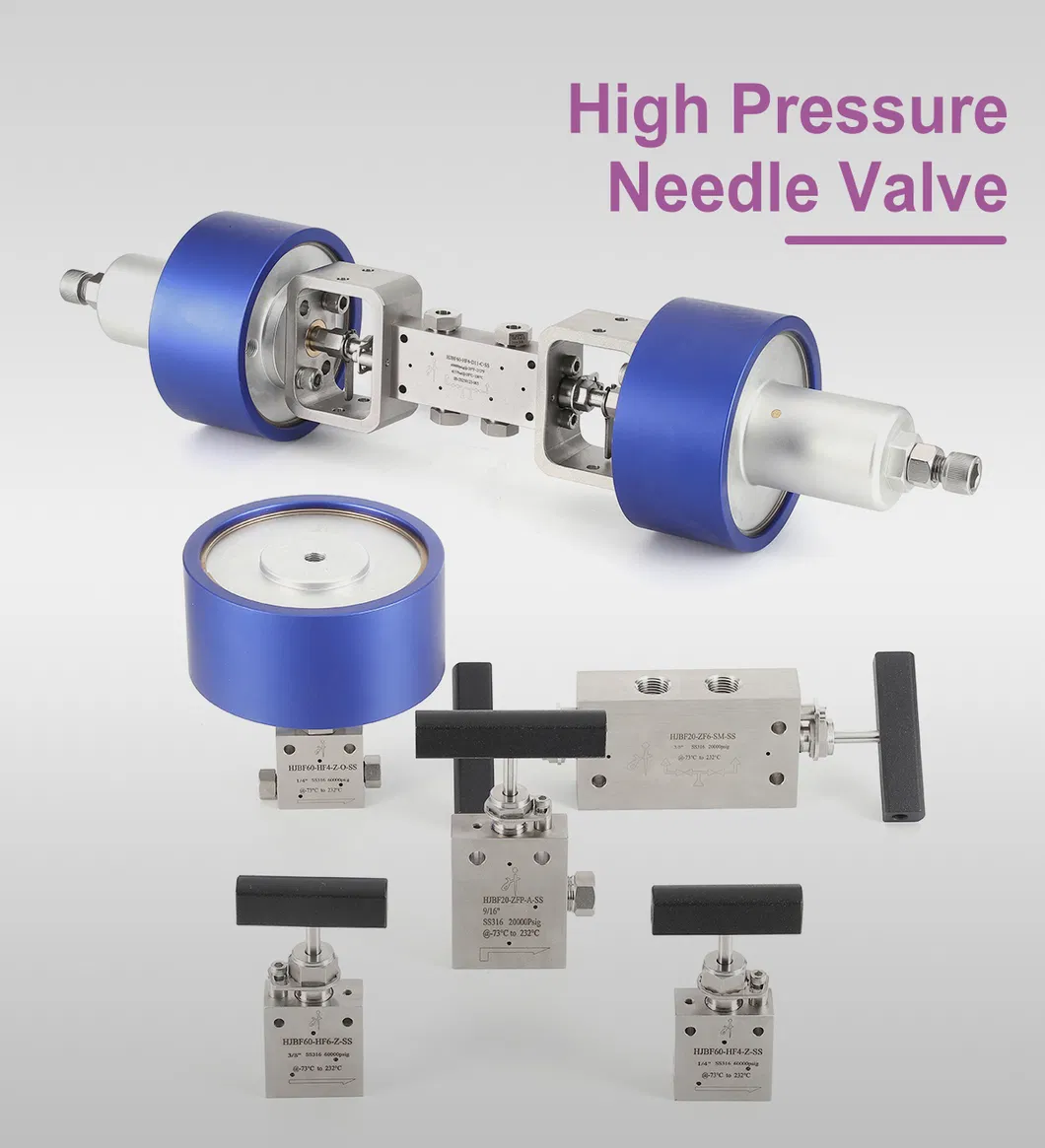

The high-pressure needle valve is specifically engineered for demanding applications including hydro testing machines and high-pressure gas systems.

Key Features

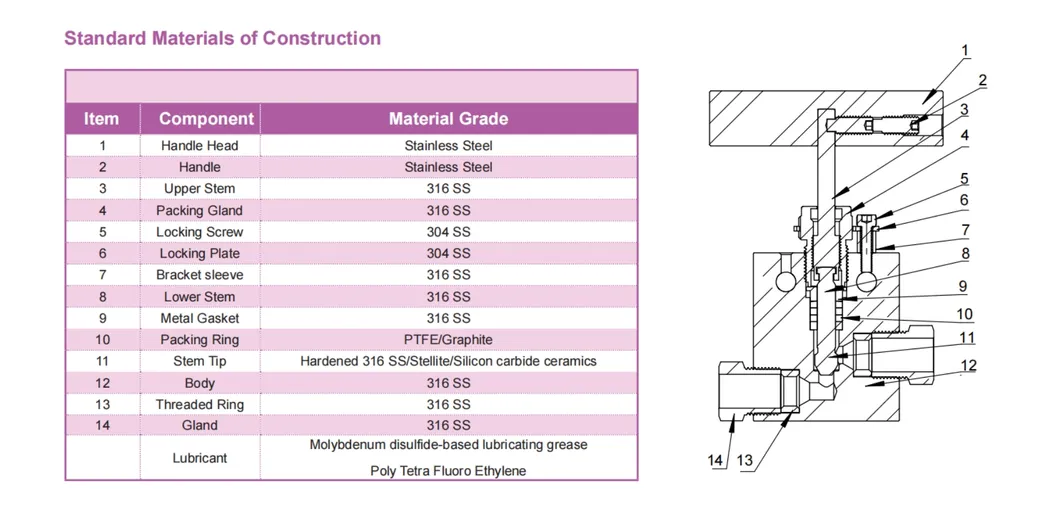

• Valve body crafted from high-tensile 316 stainless steel for maximum durability.
• Metal-to-metal seating ensures optimal shutoff and extended stem/seat service life.
• Outstanding corrosion resistance, ideal for abrasive flow environments.

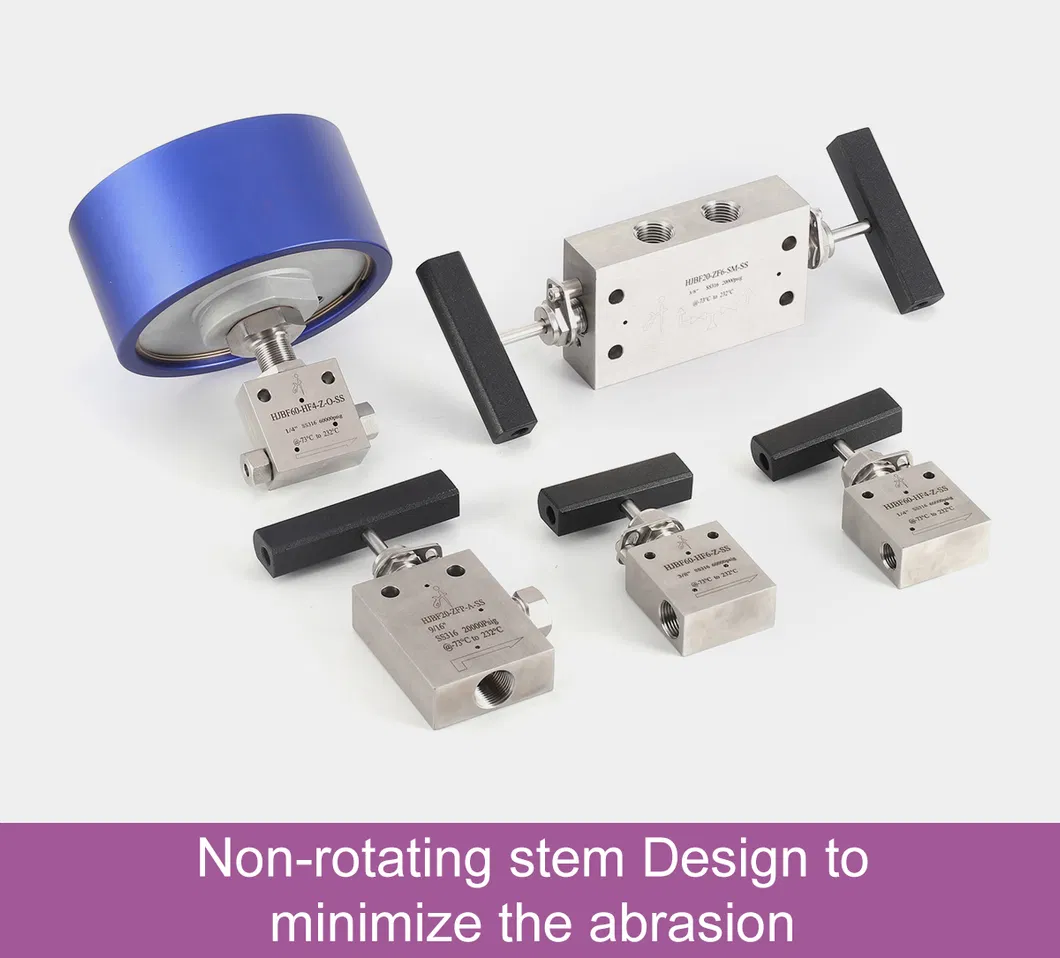

• Non-rotating stem and bar stock body design to prevent galling.

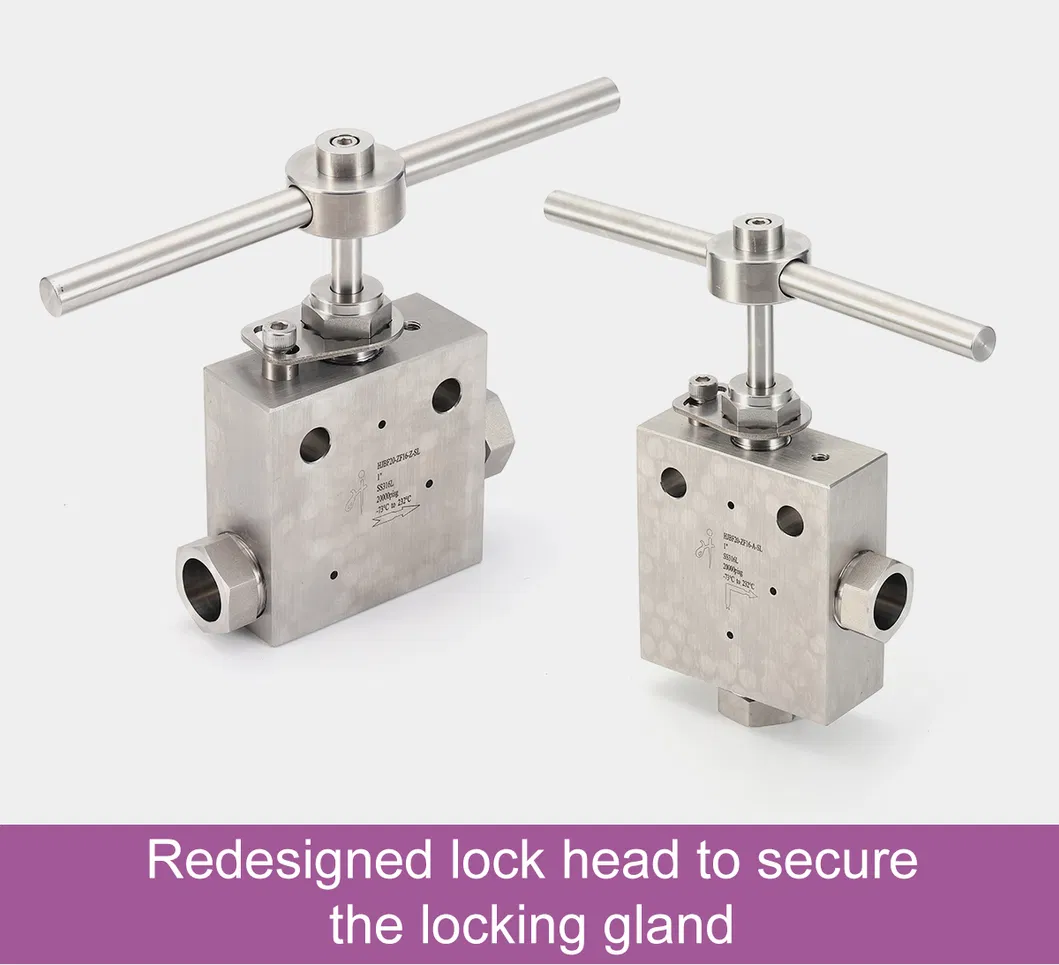

• Simple assembly and replacement of packing with a dependable locking device.
• Options for Vee or Regulating stem tips to suit specific flow requirements.

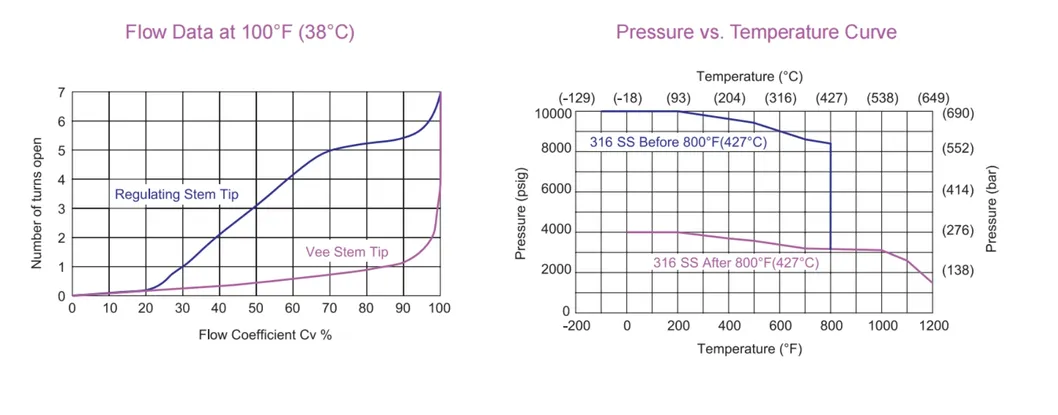

Technical Data

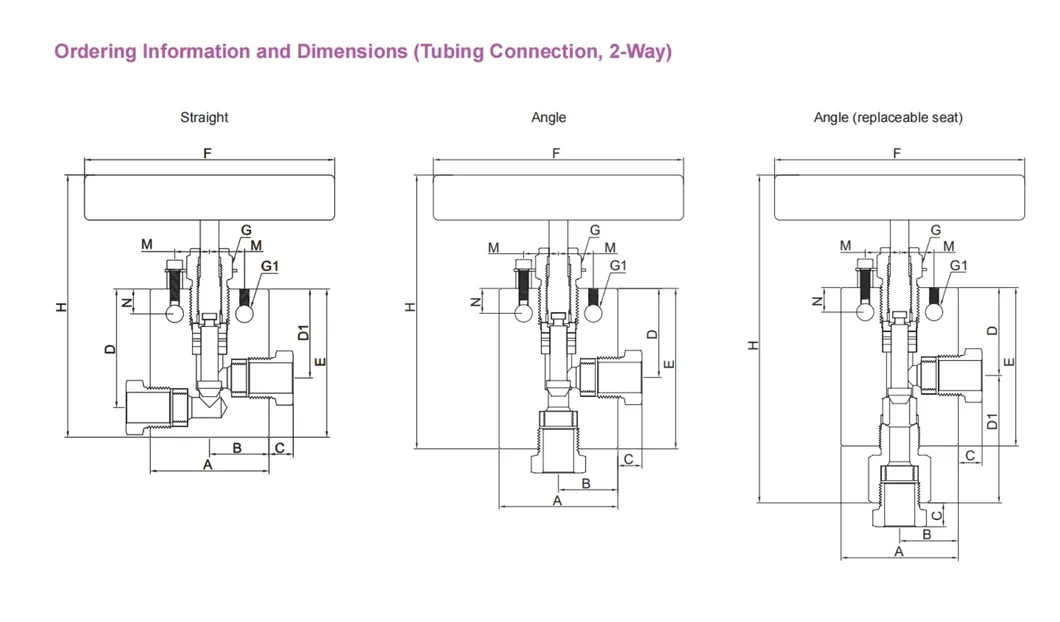

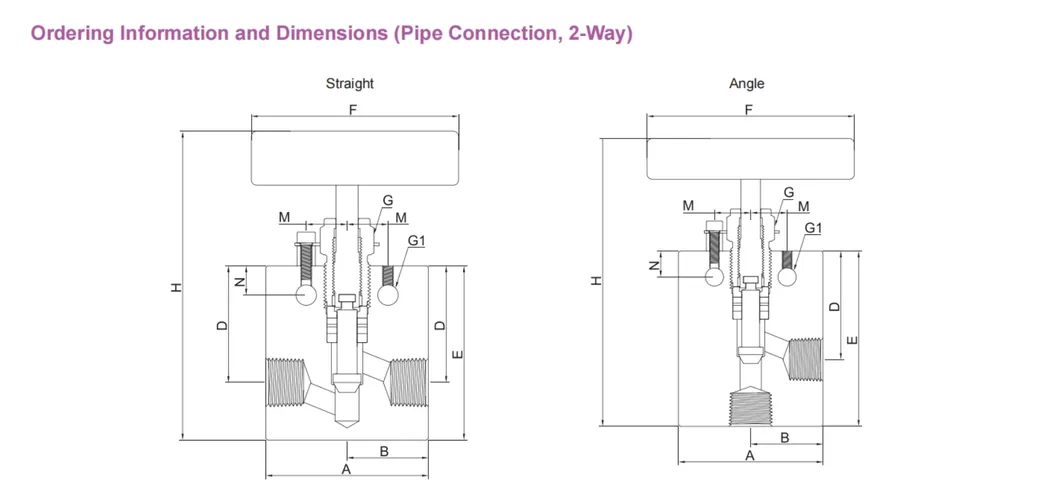

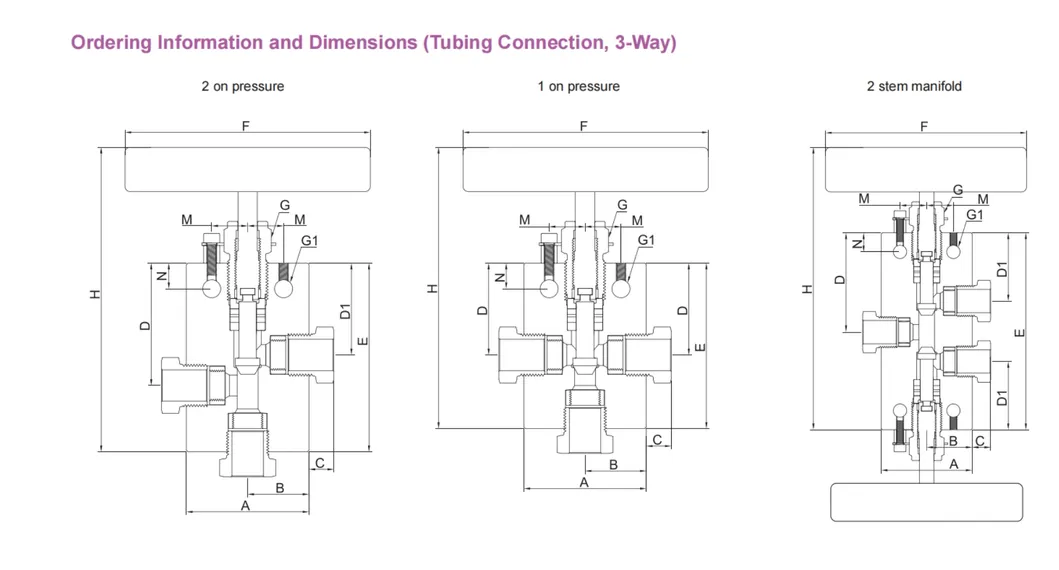

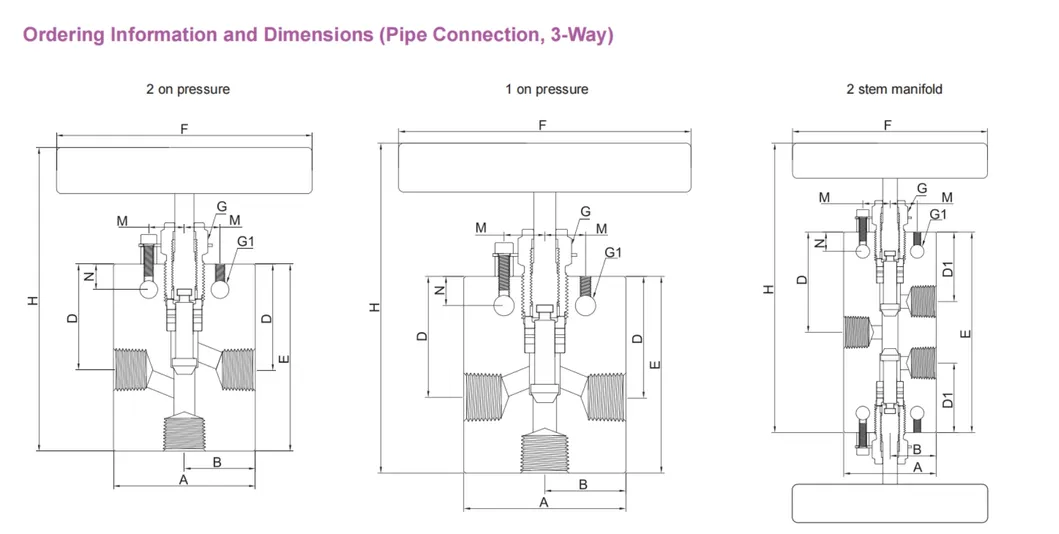

• Available in five different flow patterns.
• PTFE Standard Packing: -100°F to 450°F (-73°C to 232°C).
• Graphite Packing: 0°F to 800°F (-17.8°C to 427°C).
• Extended Stuffing Box (Graphite): 0°F to 1200°F (-17.8°C to 649°C).

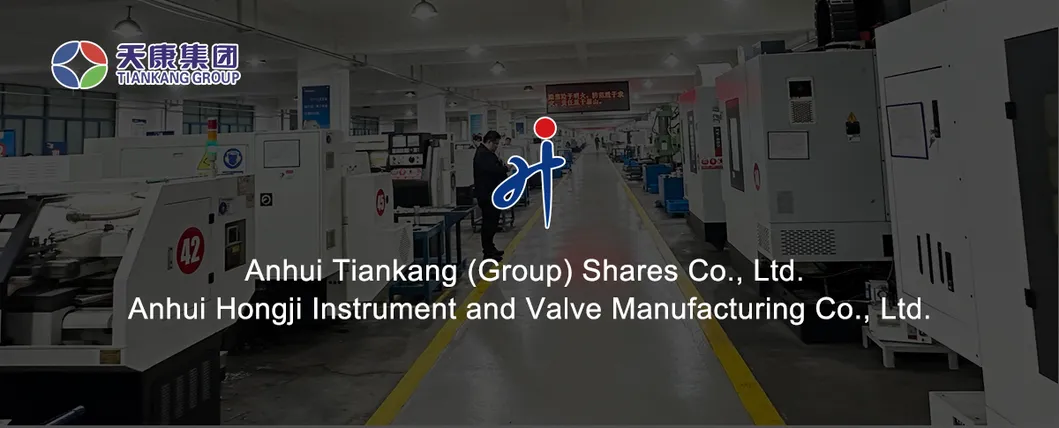

Our facility was established in 1974 and is a leader in research, development, and manufacturing of high-precision instruments and valves. We operate across a vast area with thousands of dedicated employees, serving critical industries such as nuclear power, petroleum, chemical, and telecommunications.

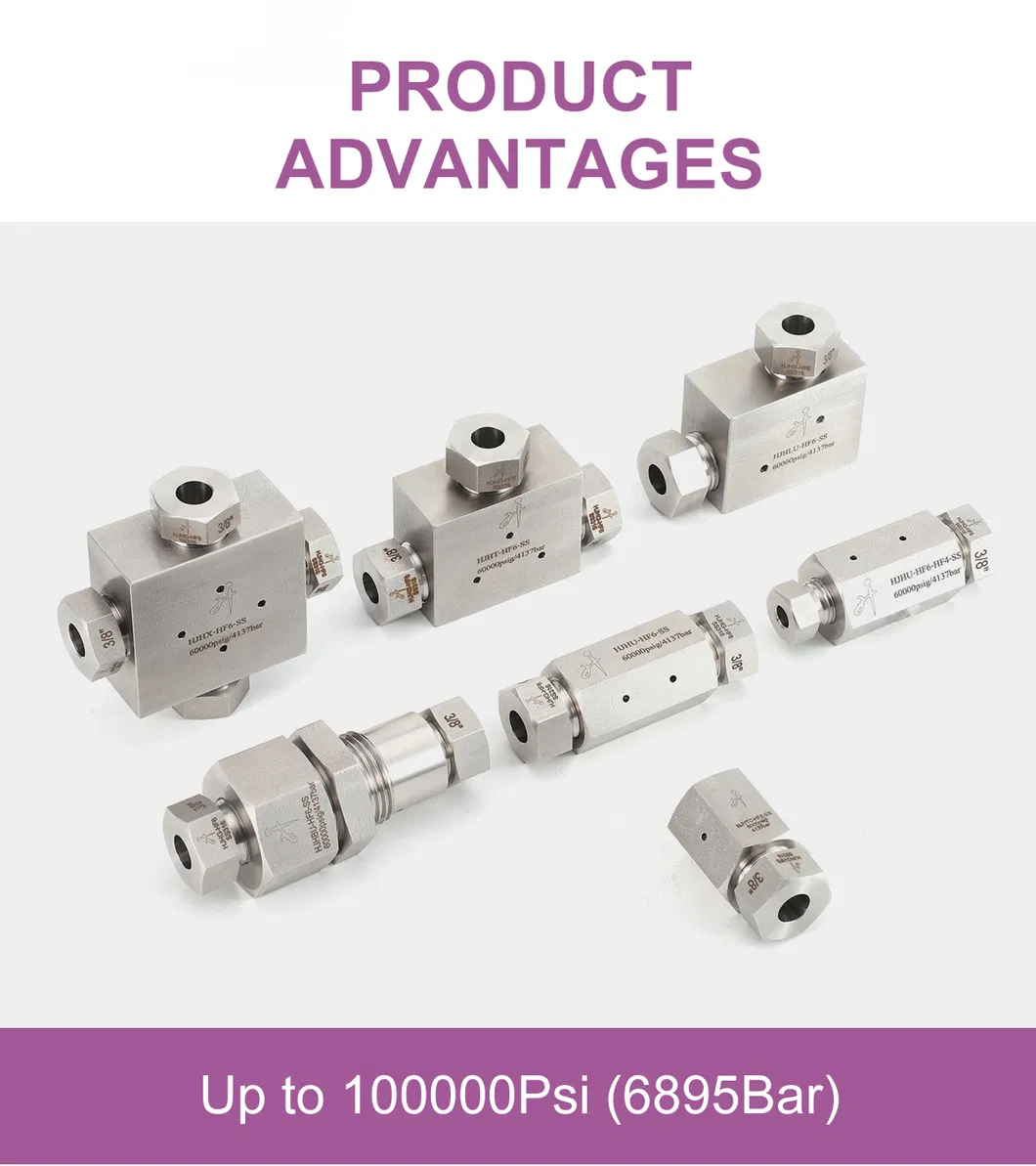

Specializing in instrumentation valves since 2004, we produce high-quality needle valves, ball valves, check valves, manifolds, and tube fittings. We prioritize excellence through rigorous quality control, ensuring 100% testing before any product is dispatched.
