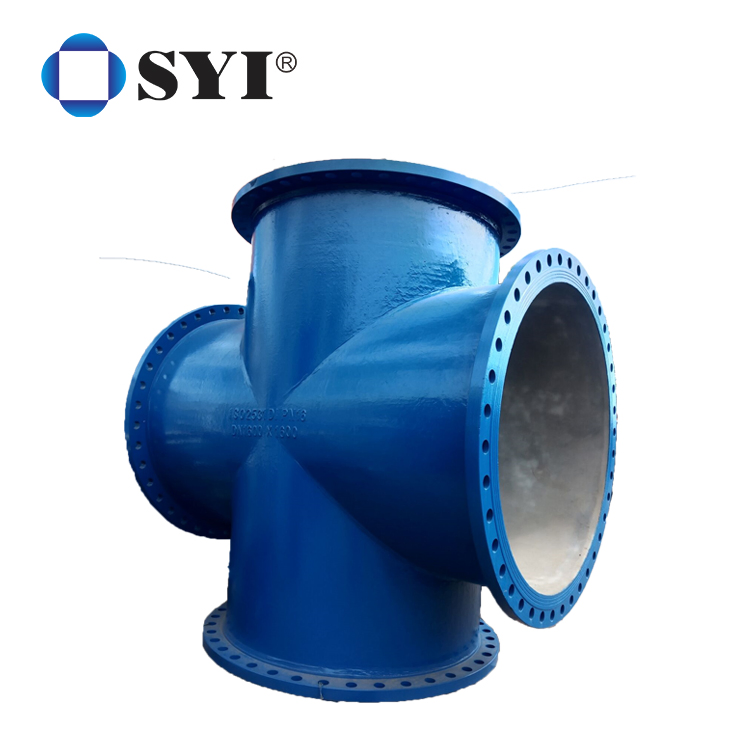

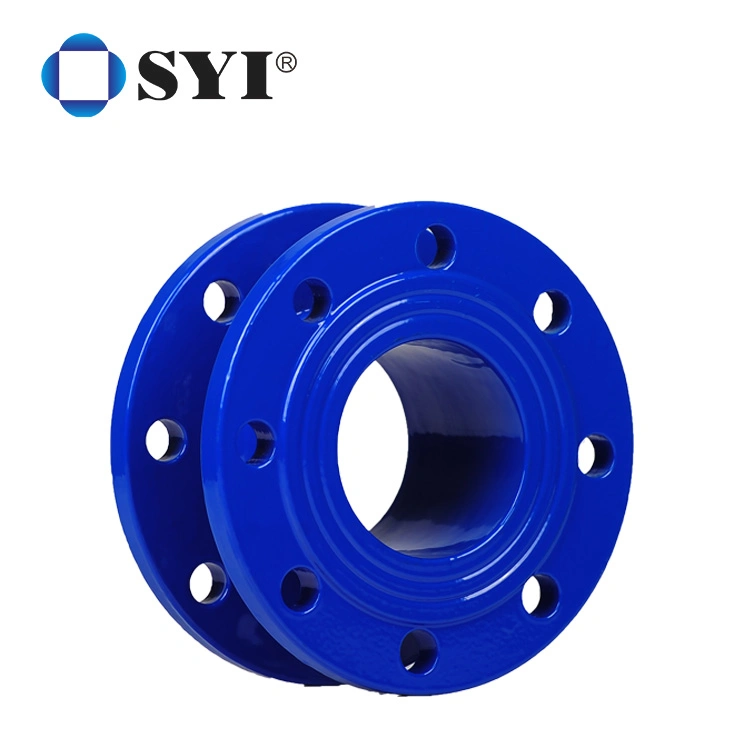

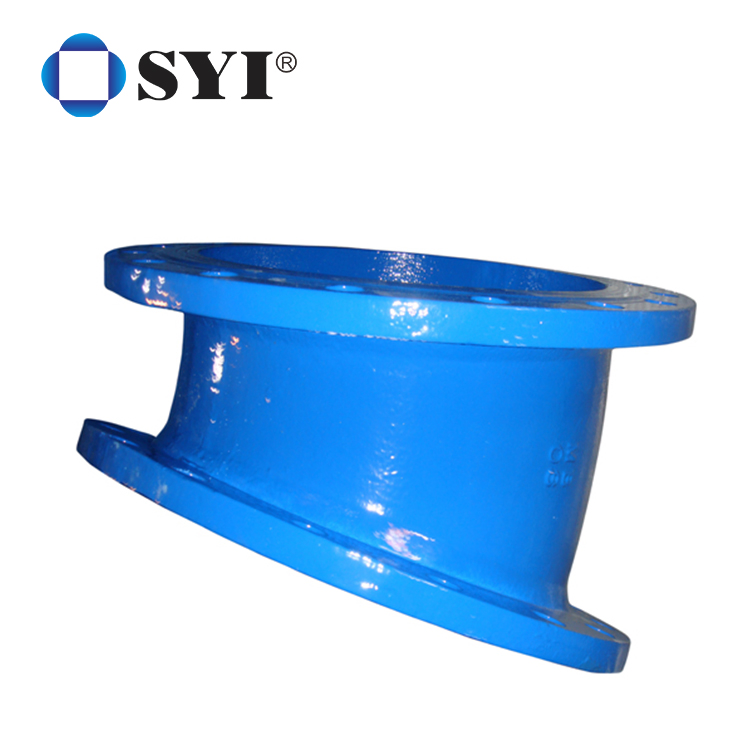

Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
1 / 5
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow
Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow

Water Supply Ductile Iron Double Flanged Bend Pipe Fittings Di Elbow

Customization: Available
Warranty: 1 Year
Material: Iron
Send Inquiry

Product Description

📋Basic Specifications

Model NO.
Ductile Iron Flanged Fitting
Connection
Flange
Transport Package
Standard Export Package
Specification
Different sizes available (DN80 to DN2000)
Origin
Shanxi
Capacity
1500 tons/Month
Ductile Iron Flanged Pipe Fittings ISO 2531 EN 545 EN598 AWWA C110 For Water Or Sewerage Pipeline Projects

🔍Product Description

Our flanged pipe fittings are available in PN10, PN16, PN25, or PN40 drilling in accordance with ISO 7005-2/EN1092-2. Sizes range from DN80 to DN2000. These fittings are designed for water supply or sewerage pipeline projects with multiple coating options including Zinc, Black Bitumen, Red/Blue Epoxy, or Polyurethane (PU) coating.

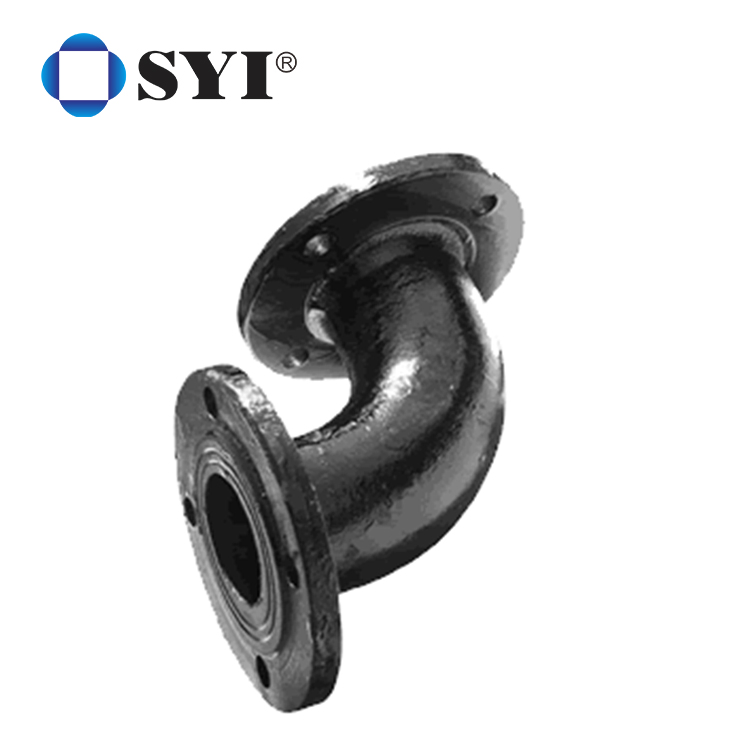

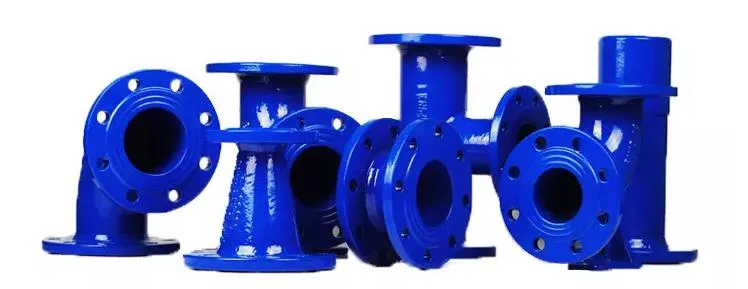

Ductile Iron Double Flanged Bend
Technical Data Sheet
Material Ductile iron grade 500-7/ 450-12 (ISO 1083)
Flange Standard PN10, PN16 or PN25 drilling (ISO 7005-2/EN 1092-2)
Fluid Temperature 0°C-50°C, excluding frost
External Coatings Zinc + bitumen painting; liquid epoxy resin; FBE epoxy
Internal Coatings Cement mortar lining; liquid epoxy resin; FBE epoxy
Reference Rules Dimensions and testing in accordance with ISO 2531 / EN 545

⚙️Application & Features

Ductile iron pipe fittings are cast from spherical graphite cast iron. The superior performance of ductile iron allows for a more compact design, making it easier to lay mains in congested urban areas and reducing the size of valve chambers. These fittings are essential for jointing pipelines for water and other liquids, allowing for deviation, change of direction, or bore changes in both pressurized and non-pressurized systems.

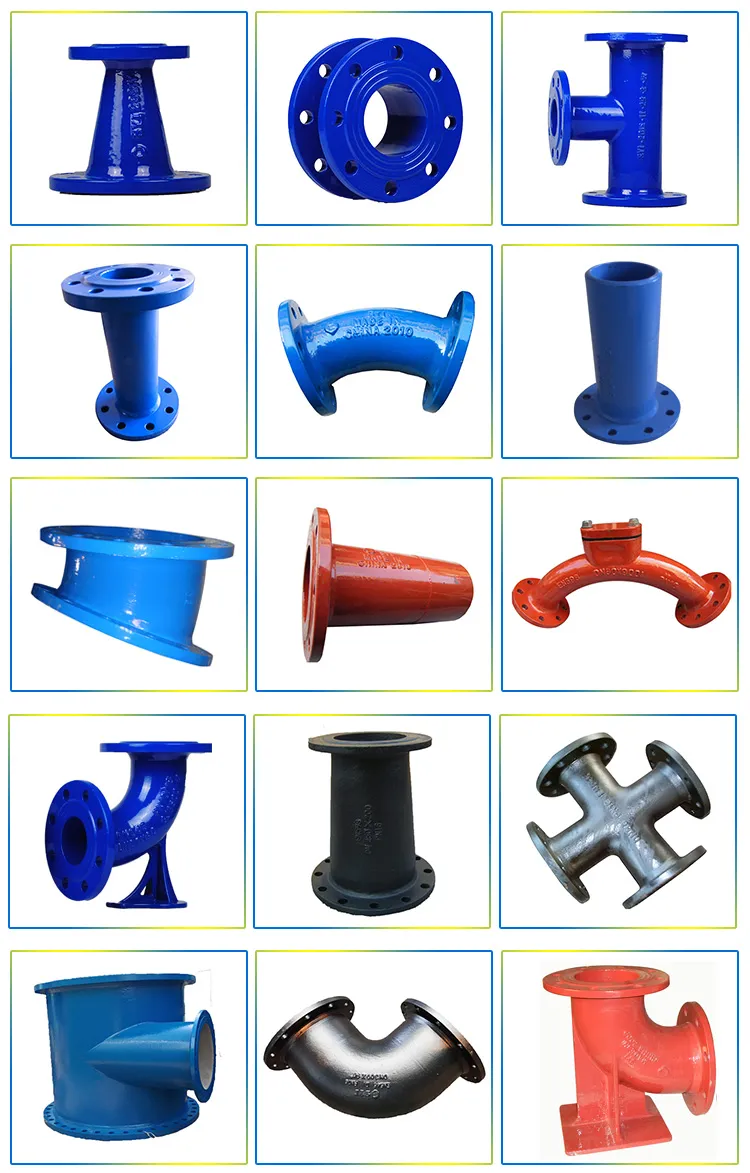

Pipe Fittings Accessories

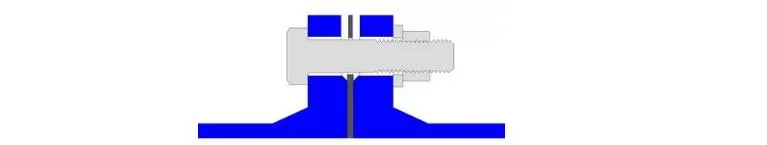

Ductile Iron Note

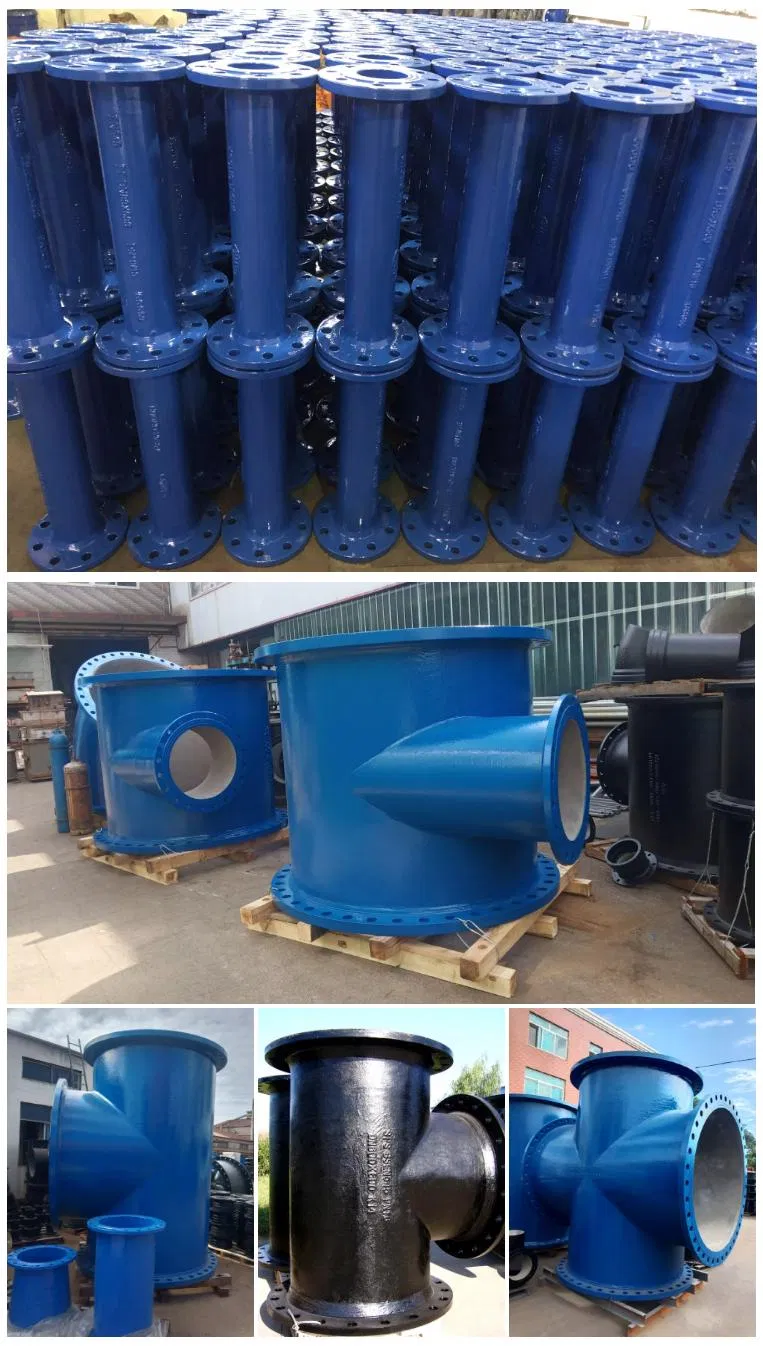

Technical Details

📦Available Range

  • Flanged pipe fittings
  • Loosing flanged pipe fittings
  • Push-in socket pipe fittings (Tyton)
  • Mechanical Joint socket pipe fittings (MJ)
  • Express socket pipe fittings (EX)
  • Fittings for uPVC and PE pipes
  • Other specialized pipeline accessories

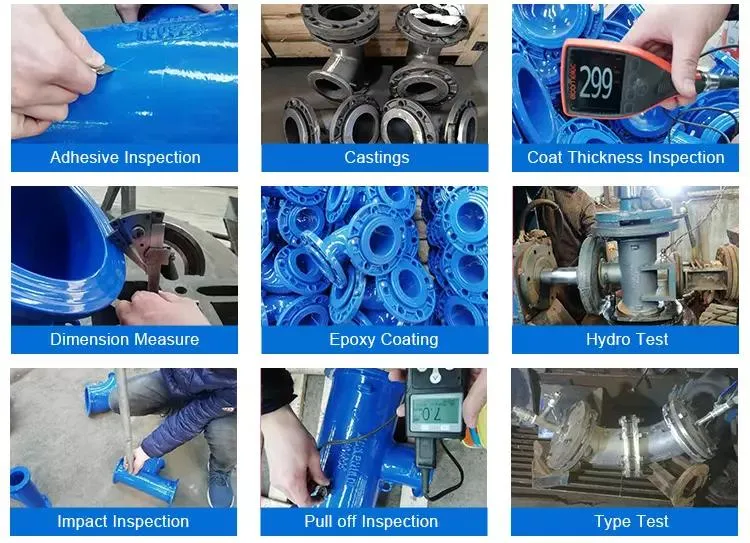

Product Range

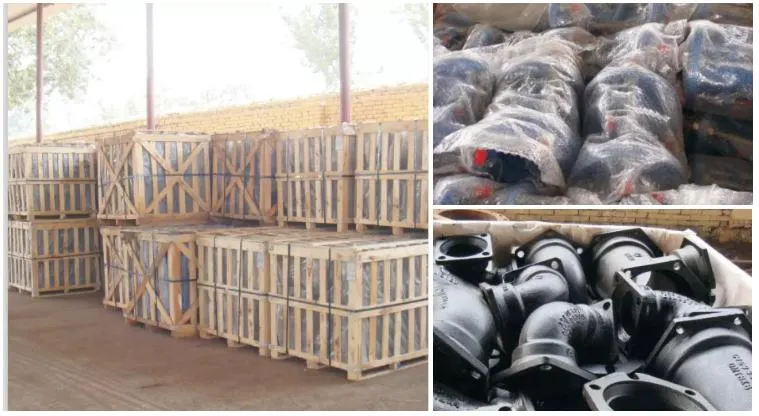

Packaging

🏭Production & Packaging

Packing Details: We provide various packaging solutions upon request, including wooden cases, pallets, ply-wood crates, and steel crates to ensure safe transportation.

Production Process

❓Frequently Asked Questions

1. What international standards do these fittings comply with?
Our ductile iron fittings comply with ISO 2531, EN 545, EN 598, and ANSI/AWWA C110/C153 standards.
2. What size range is available for flanged pipe fittings?
We supply flanged pipe fittings in sizes ranging from DN80 up to DN2000.
3. What are the common coating options for these fittings?
External coatings include Zinc with Bitumen, Liquid Epoxy, or FBE. Internal coatings include Cement Mortar Lining, Liquid Epoxy, or FBE.
4. Can accessories like gaskets and bolts be provided?
Yes, gaskets, bolts, and nuts can be supplied separately along with the fittings according to specific customer requirements.
5. What is the material grade used for the production?
We use ductile iron grade 500-7 or 450-12 in accordance with ISO 1083 standards.
6. What type of joint connections are supported?
We offer Flanged, Push-in (Tyton), Mechanical Joint (MJ), Express Socket (EX), and specialized fittings for uPVC and PE pipes.
