📋 Basic Information
Applications
Boilers, HVAC, Water Pipelines
Working Medium
Air, Water, Steam, Gas
🛠️ Product Description

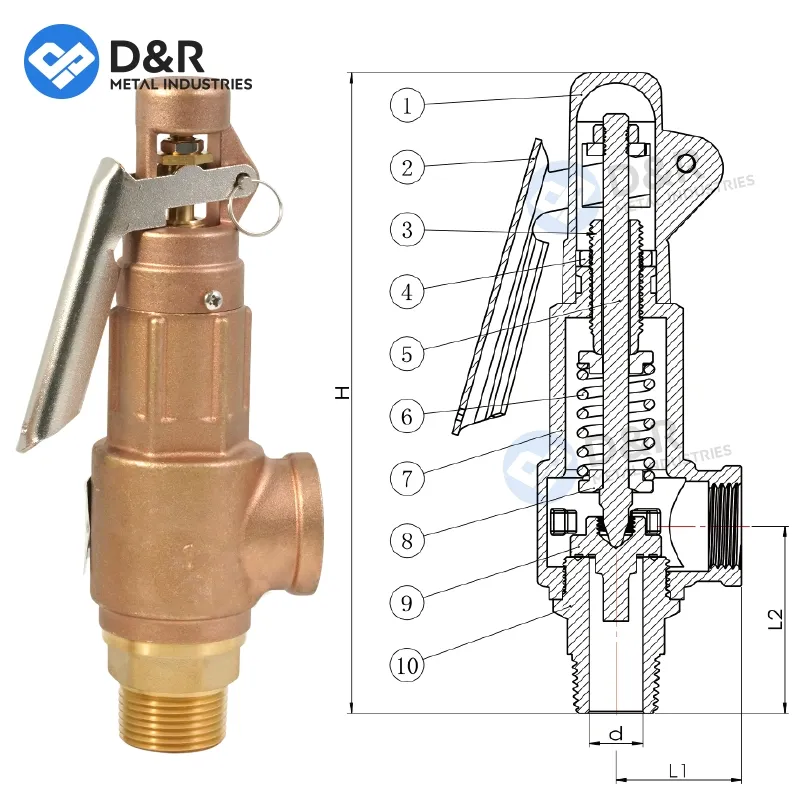

Materials & Construction
- 1. Cap - Brass

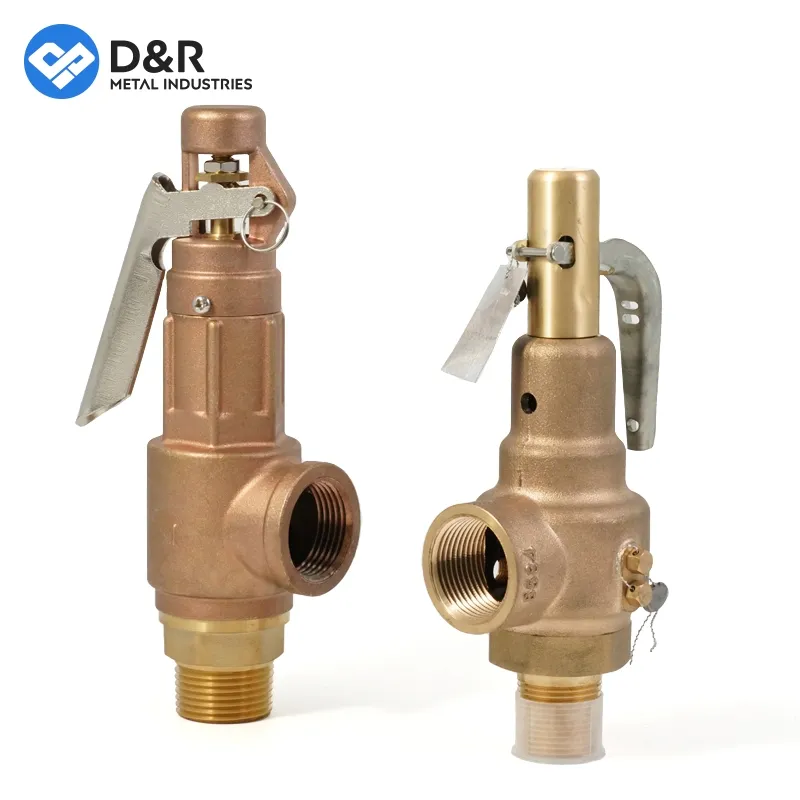

- 2. Lever - Q235
- 3. Adjust Screw - Brass
- 4. Nut - Brass
- 5. Spindle - Brass
- 6. Spring - 55CrSi
- 7. Valve Body - Brass
- 8. Spring Seat - Brass
- 9. Disc - Brass
- 10. Valve Seat - Brass
Sealing Options & Temperature Range
| Sealing |
Temperature Range (Reference) |
Features (Reference) |
| FKM | -30 ~ 180℃ | Oil, gas, chemical media |
| PTFE | -60 ~ 170℃ | Strong chemical resistance |
| RPTFE | -60 ~ 220℃ | High-temp stability |
| EPDM | -40 ~ 110℃ | Hot water, HVAC systems |
| Metal-to-Metal | Higher | Long life |
Working Principle
- System pressure acts on the disc from the inlet side.
- The pre-compressed spring keeps the disc tightly sealed under normal operation.
- When pressure reaches the set point, upward force overcomes spring force and the disc pops open instantly.
- High-velocity discharge stabilizes the valve in a full-open position for rapid pressure release.
- As pressure drops below the reseat point, the spring pushes the disc back to the seat for a tight, leak-free seal.
📐 Specifications
Dimensions (Unit: mm)
| Inlet |
d |
Outlet |
Lift |
L1 |
L2 |
H |
| 1/2" | 13 | 1/2" | 0.5 | 30.5 | 46 | 157 |
| 3/4" | 19 | 3/4" | 0.7 | 35 | 54 | 169.5 |
| 1" | 25 | 1" | 0.9 | 40.5 | 66.5 | 200 |
| 1 1/4" | 32 | 1 1/4" | 1.2 | 50 | 73.5 | 216 |
| 1 1/2" | 38 | 1 1/2" | 1.4 | 59 | 86 | 243.5 |
| 2" | 50 | 2" | 1.8 | 65 | 95.5 | 281.5 |
🔗 Related Products
🏭 Manufacturing Excellence
✔ 100% Pressure Set-Point Calibration: Each valve is tested individually for accuracy.
✔ Full CNC Machining: Disc, seat, spindle, and body processed with high precision.
✔ High Durability: All-metal structure for long lifespan in harsh environments.
✔ Customizable: Set pressure, connection type, and lever style options.
