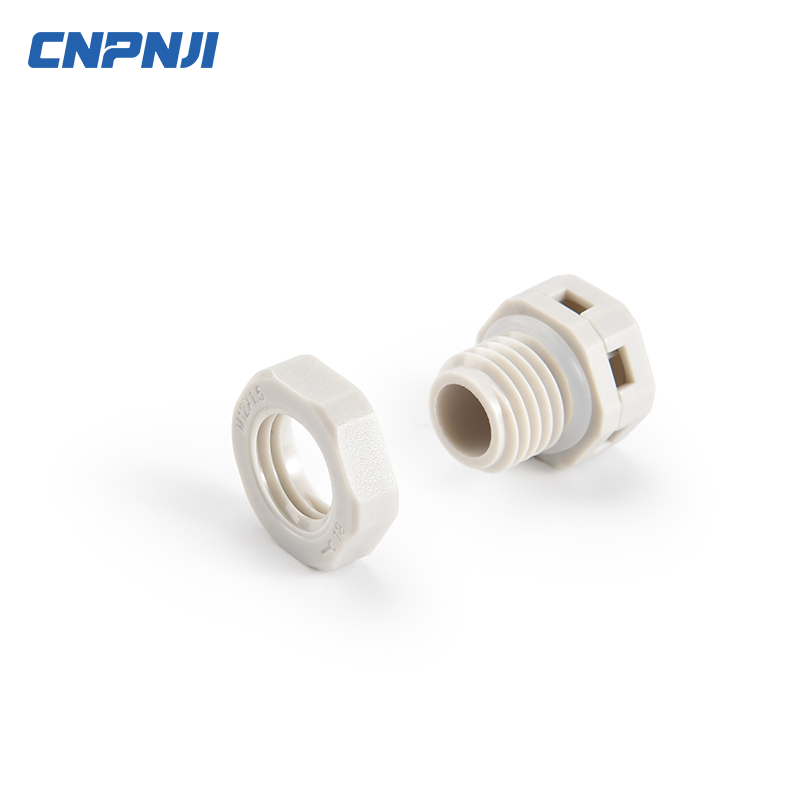

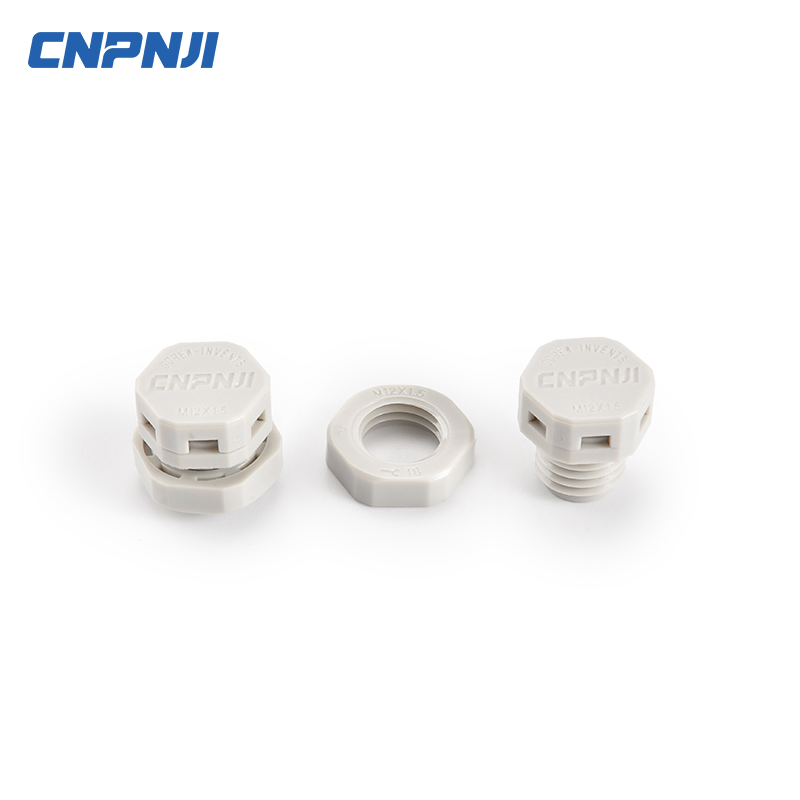

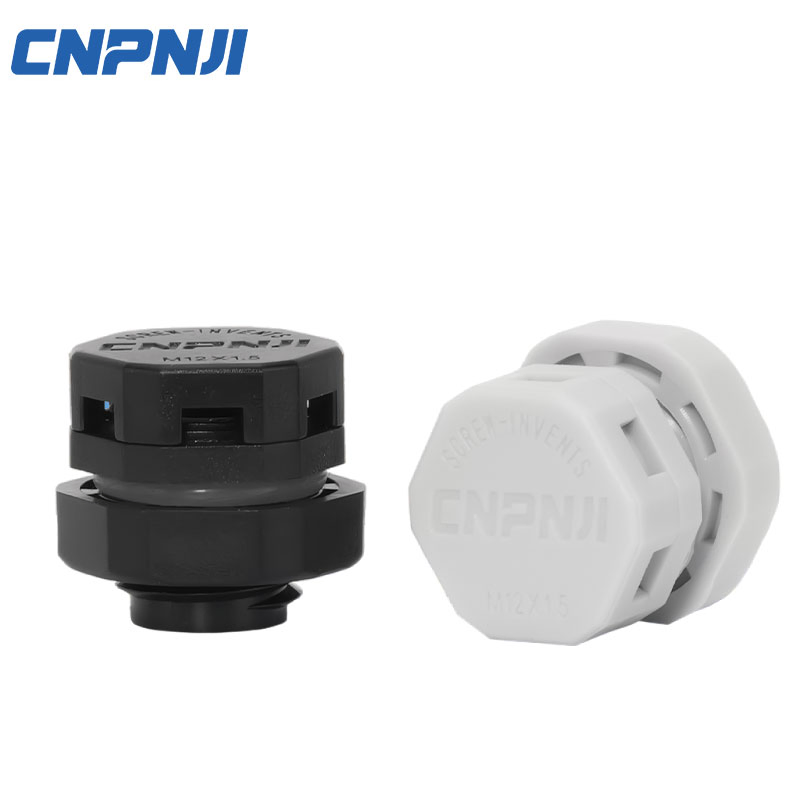

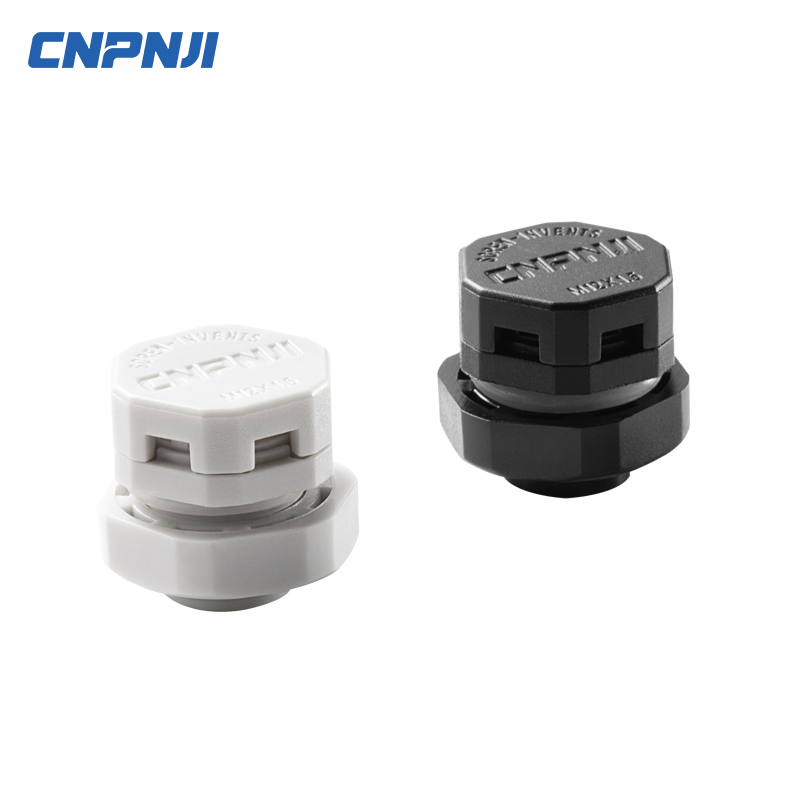

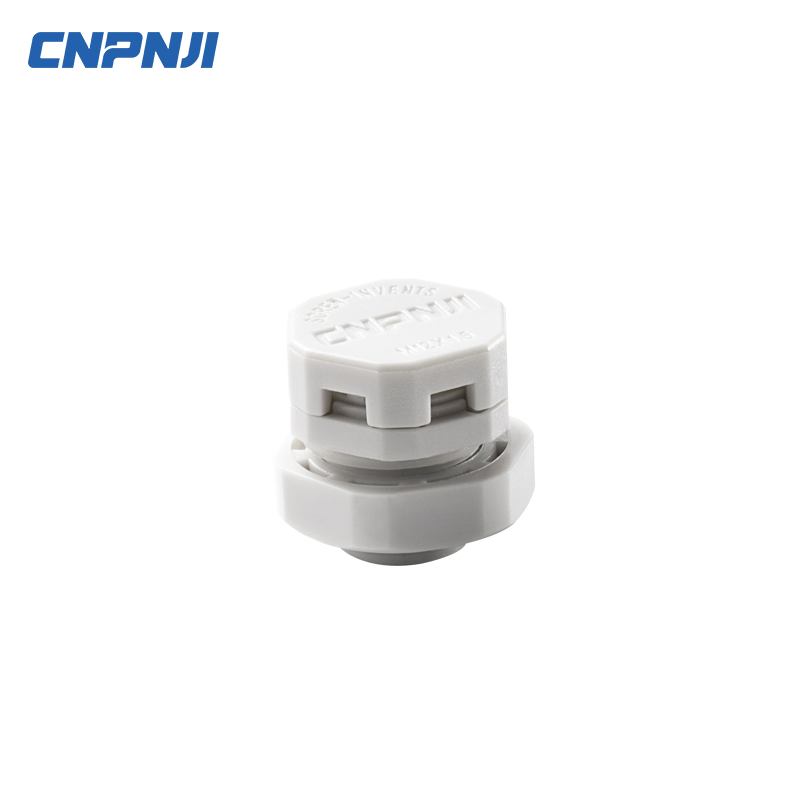

Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
1 / 5
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland
Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland

Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.M8 MaterialPA66
TemperatureHigh Temperature PressureVentilate
ConnectionThread StructurePulse
Thread O.D.8mm Packing50PCS/Bag
CertificateRoHS ApplicationLED Light, Car, Battery
🔍 Product Description

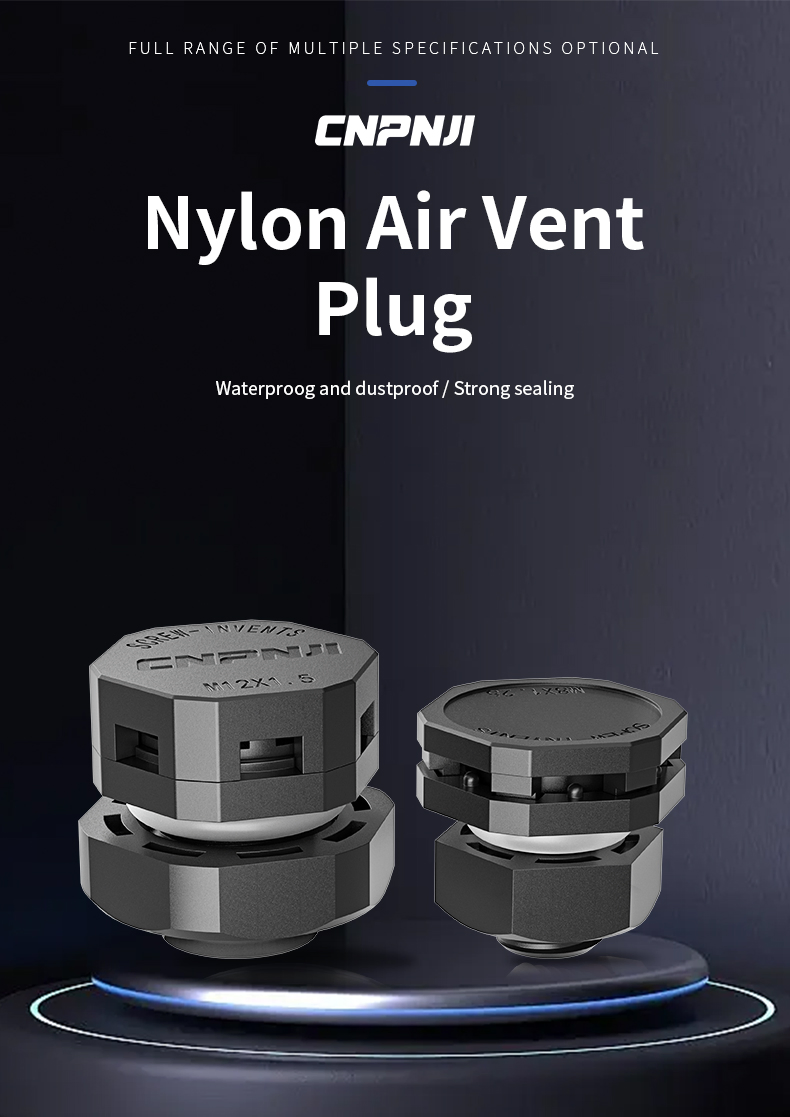

Nylon Air Vent Plug
Expertly engineered to resolve pressure differentials in sealed enclosures. Crafted from high-quality nylon for robust durability and corrosion resistance, it utilizes a unique one-way membrane to efficiently release built-up gases and moisture while reliably blocking out external dust and water, ensuring a dry and clean interior.
Nylon Air Vent Plug

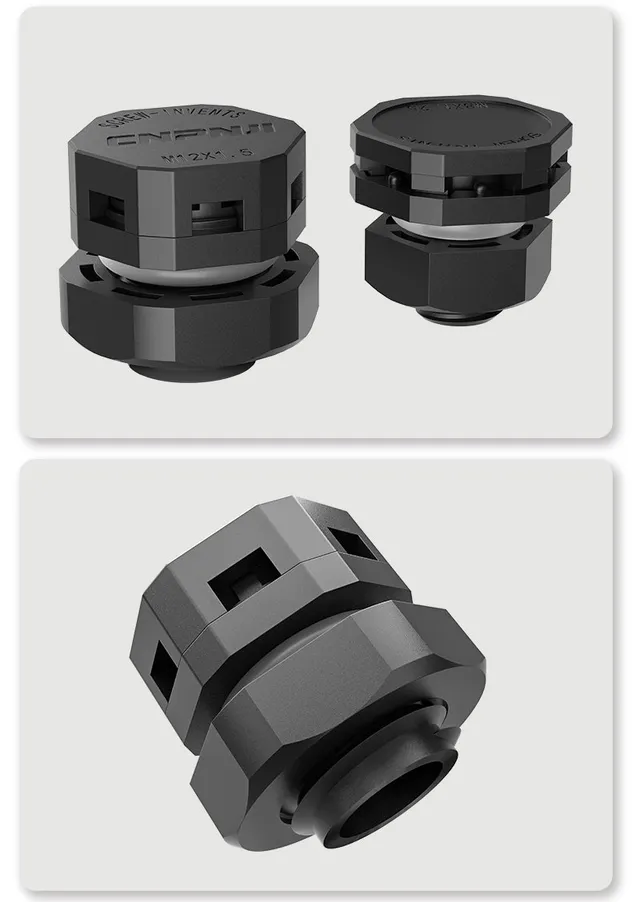

Breather Plug Detail

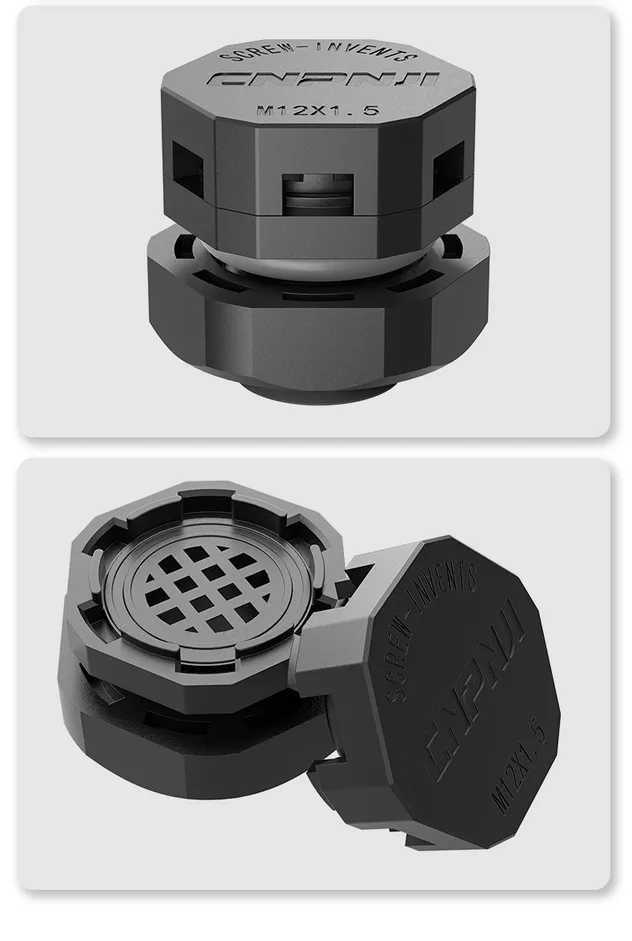

Waterproof Breather
✅
IP68 Waterproof Rating: Ensures high-level protection against water ingress and environmental dust.
✅
Sturdy PA66 Material: High-quality engineering plastic offers impact and wear resistance.

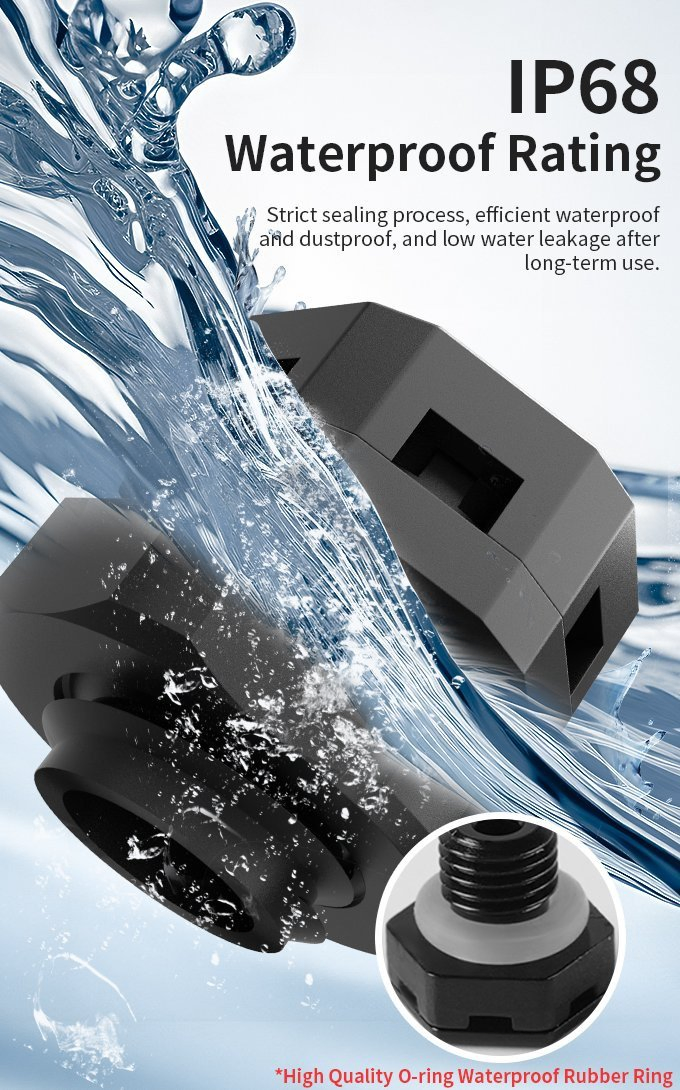

IP68 Test

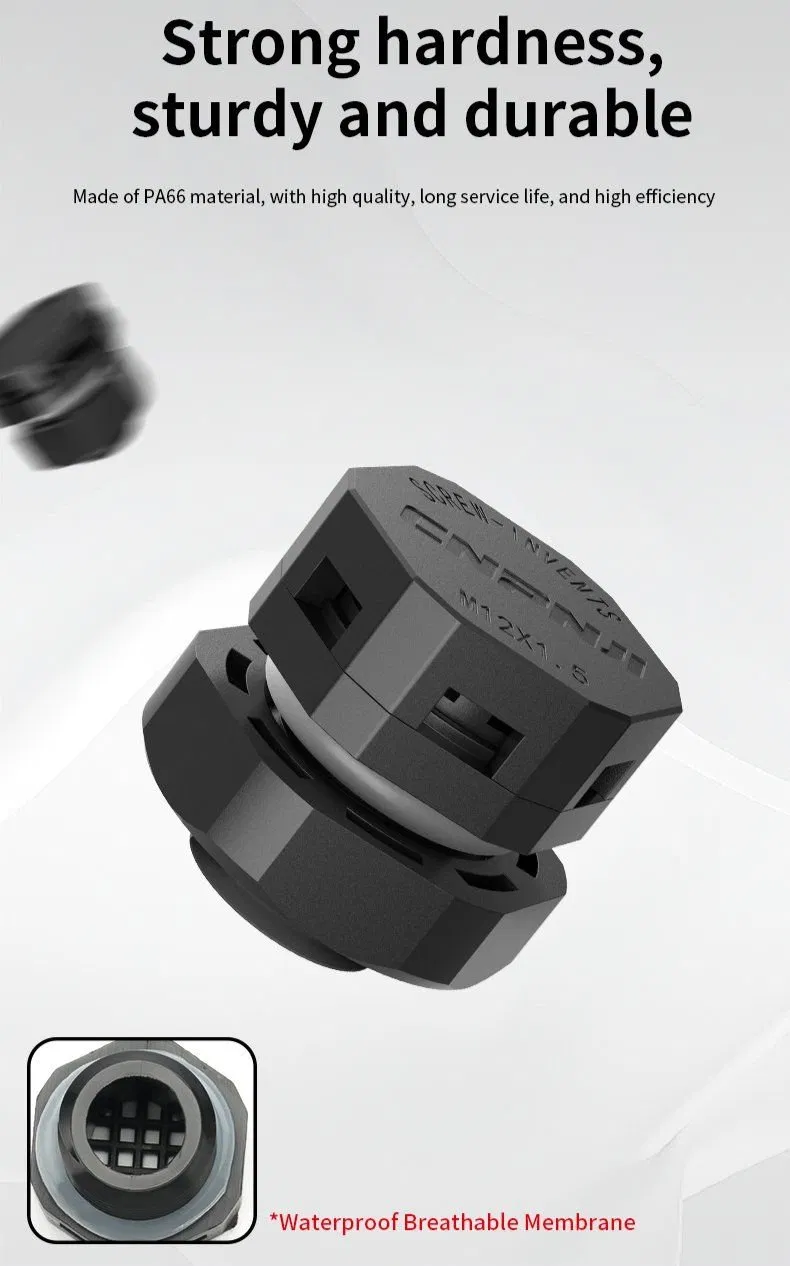

Durability Test
🛠 Custom Molding Process
Customization Process

We offer various customization options, including mold customization, logo customization, color customization, and more.

📐 Specifications
Thread Size Material Thread O.D. Thread Length Pressure range Air permeability
M5*0.8PA/PC58P=7Kpa1200ml/min
M6*0.75PA/PC68P=7Kpa1200ml/min
M8*1.25PA/PC810P=7Kpa2200ml/min
M12*1.5PA/PC1210P=7Kpa3600ml/min
M24*1.5PA/PC2415P=7Kpa7000ml/min
🚂 Product Application
Application 1

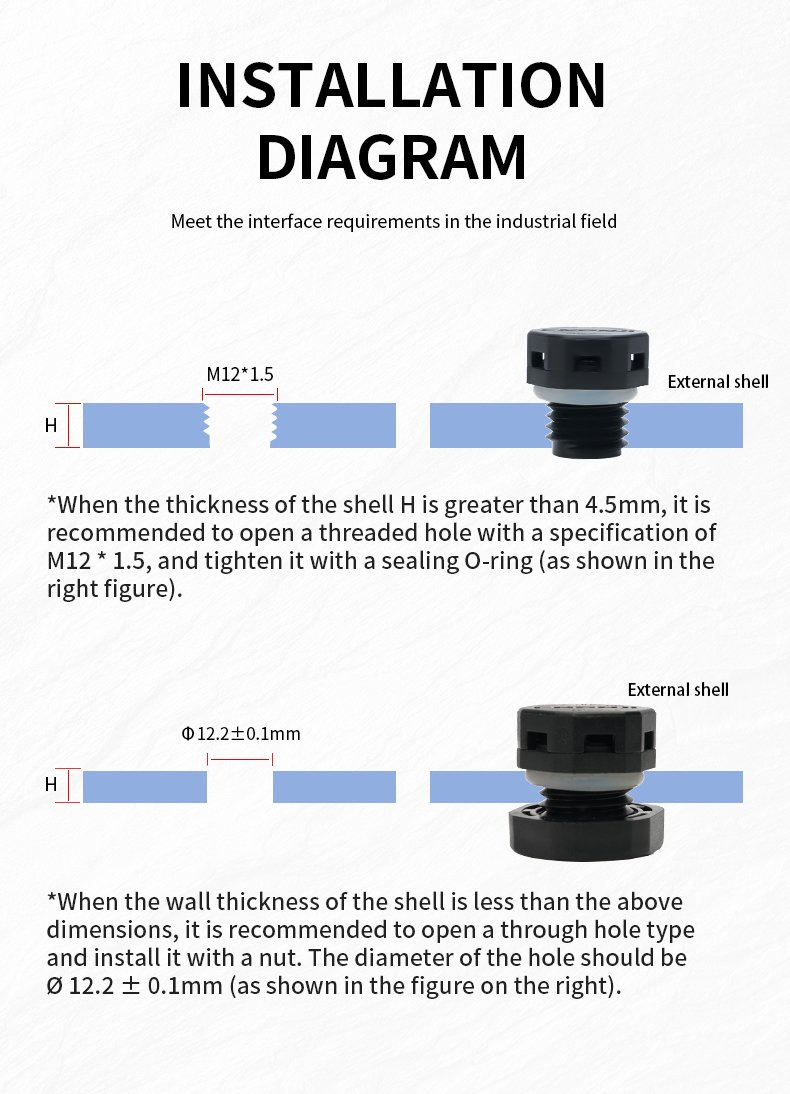

Application 2
🏭 Manufacturing Excellence
[Company Introduction Video Placeholder]
Production Facility

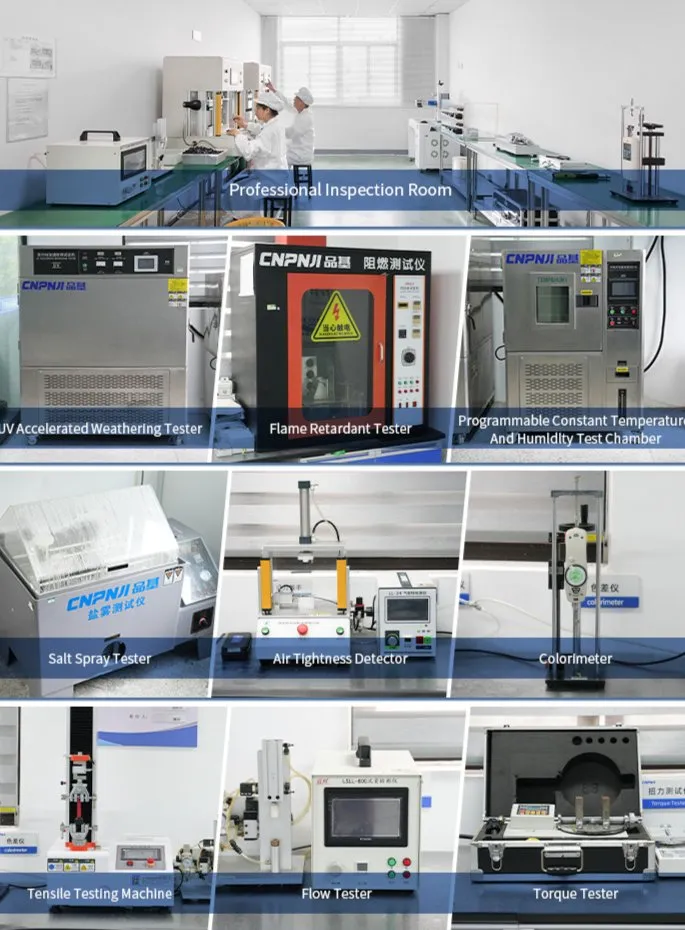

Testing Lab
🔵 Professional Testing: Our professional laboratory is equipped with waterproof, insulation, impact, and salt-spray testing equipment to ensure quality from raw materials to finished products.
❓ FAQ
Q1: What certifications do your products have?
A1: Our products hold IP68, CE, CCC, UL, REACH, TUV, and RoHS certifications, complying with international standards for global export.
Q2: Do you support customization?
A2: Yes, we are an integrated manufacturer with R&D and mold teams. We support OEM/ODM customization for size, material, and logo.
Q3: How do I select the right air vent plug?
A3: Focus on thread type (M/PG/NPT), mounting hole size, and required air permeability. Contact us for specific model recommendations.
Q4: What is the lead time for orders?
A4: Standard products are in stock. For customized items, the lead time depends on the specific process and quantity required.
Q5: How is quality ensured for mass production?
A5: We maintain a strict quality control system from raw materials to final inspection. Samples are available for testing before bulk orders.
Q6: What materials are used for the permeable membrane?
A6: We use high-performance e-PTFE membranes which allow air flow while blocking water and dust effectively.
