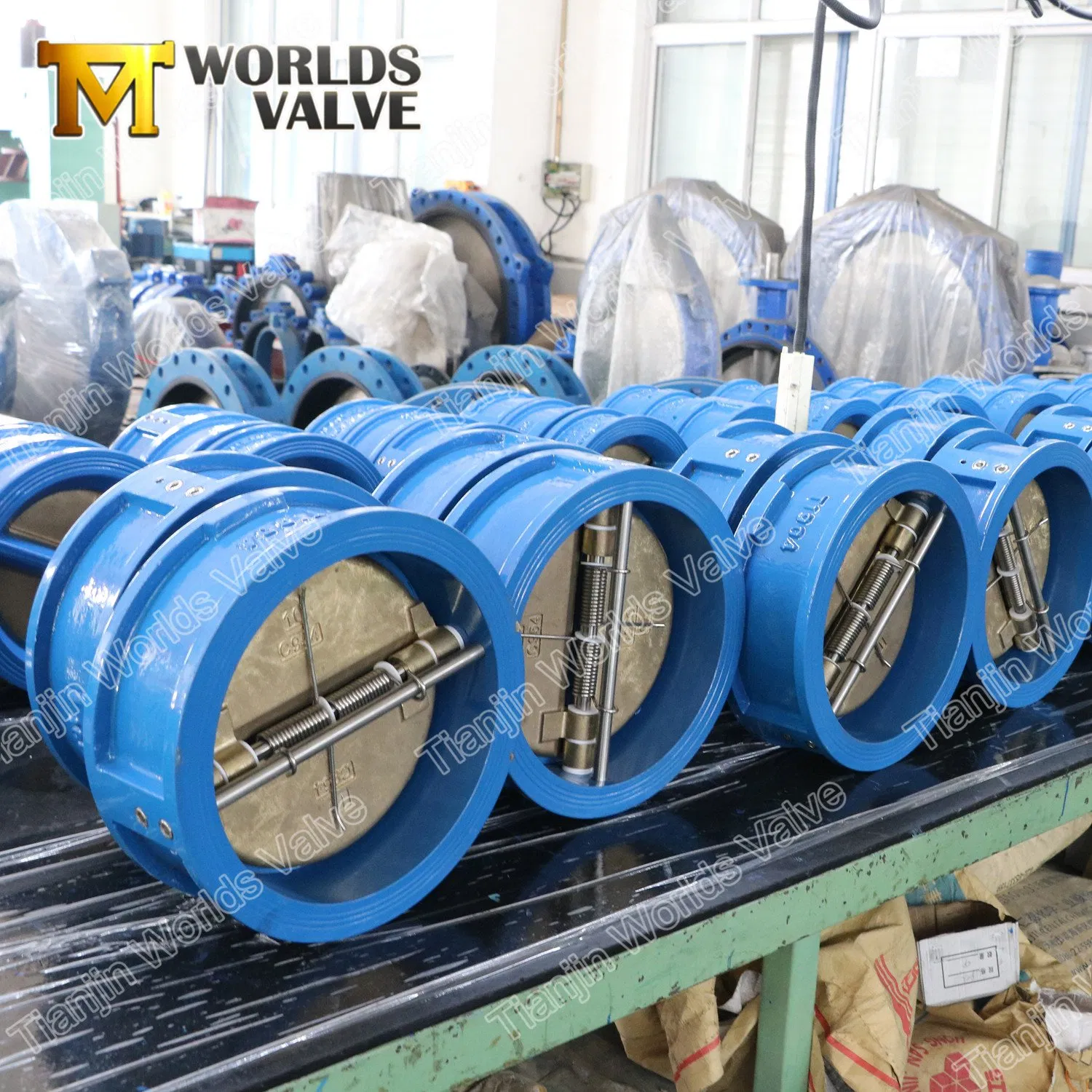

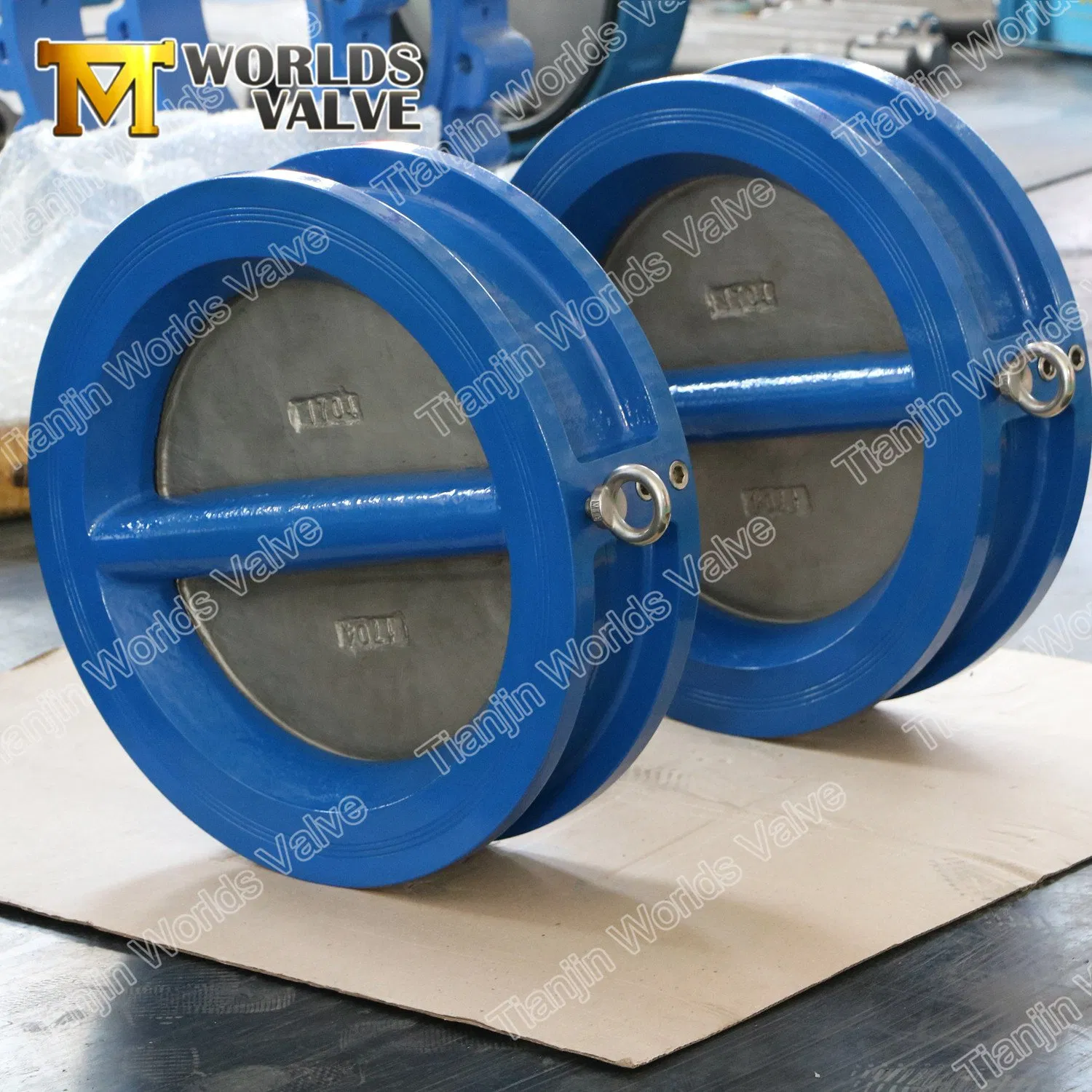

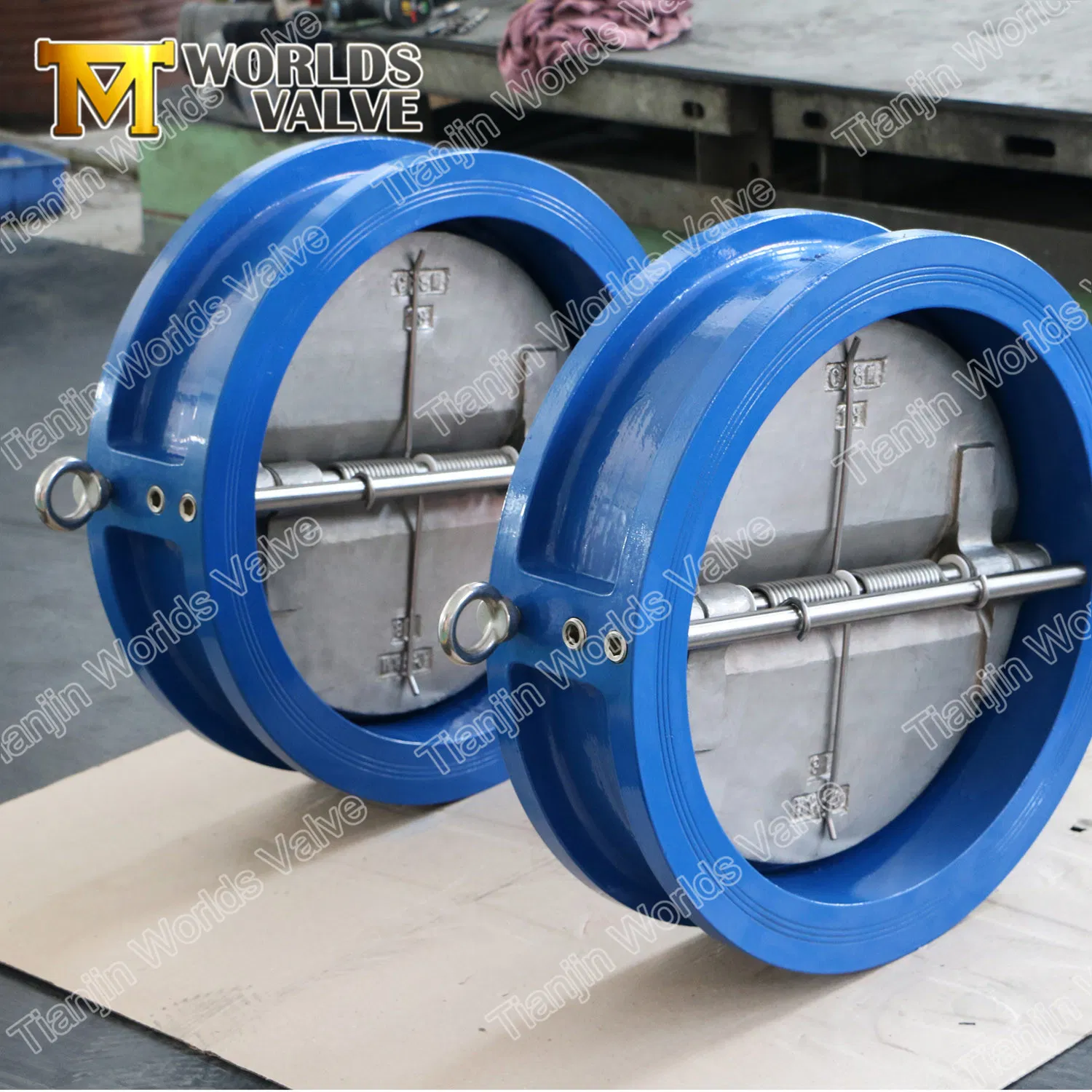

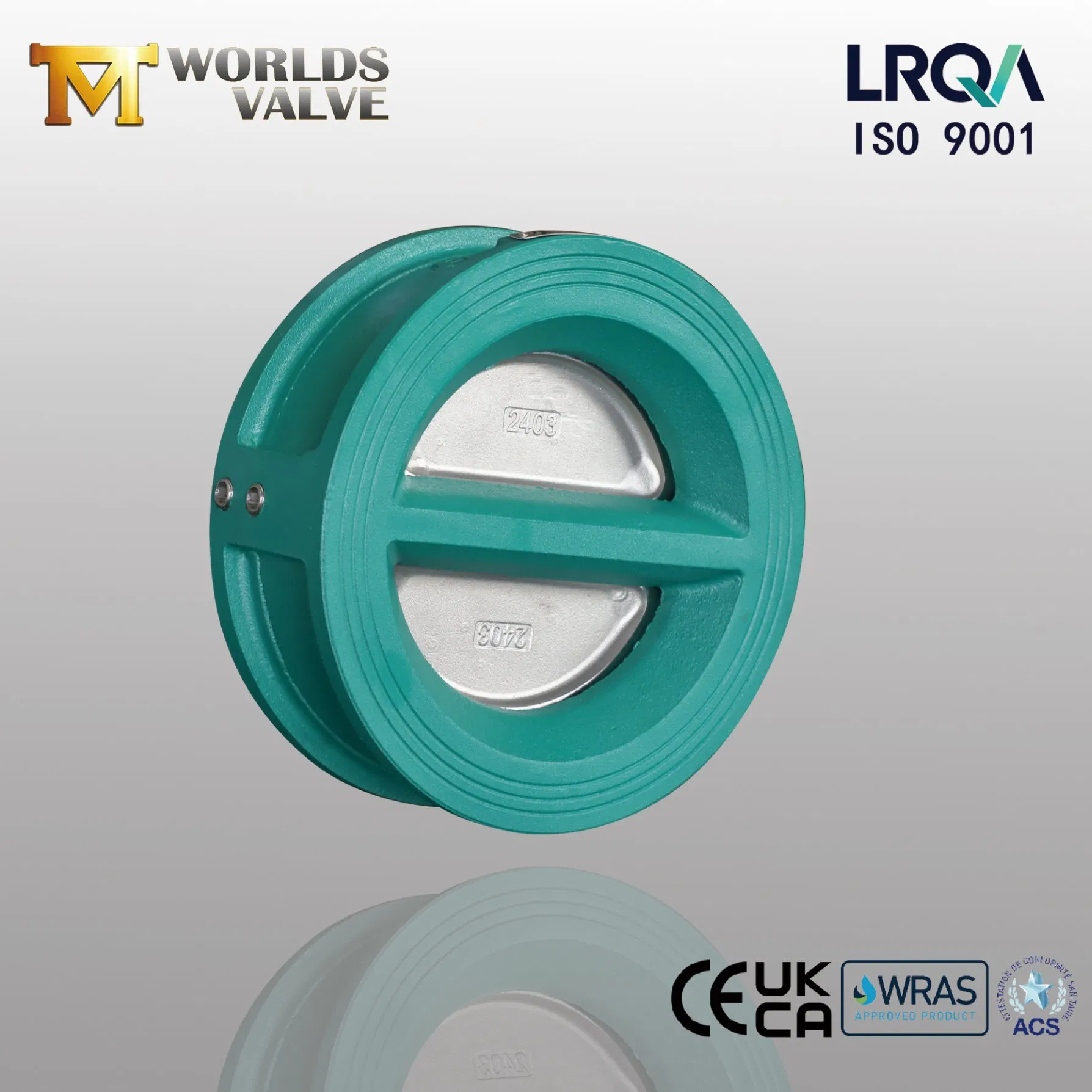

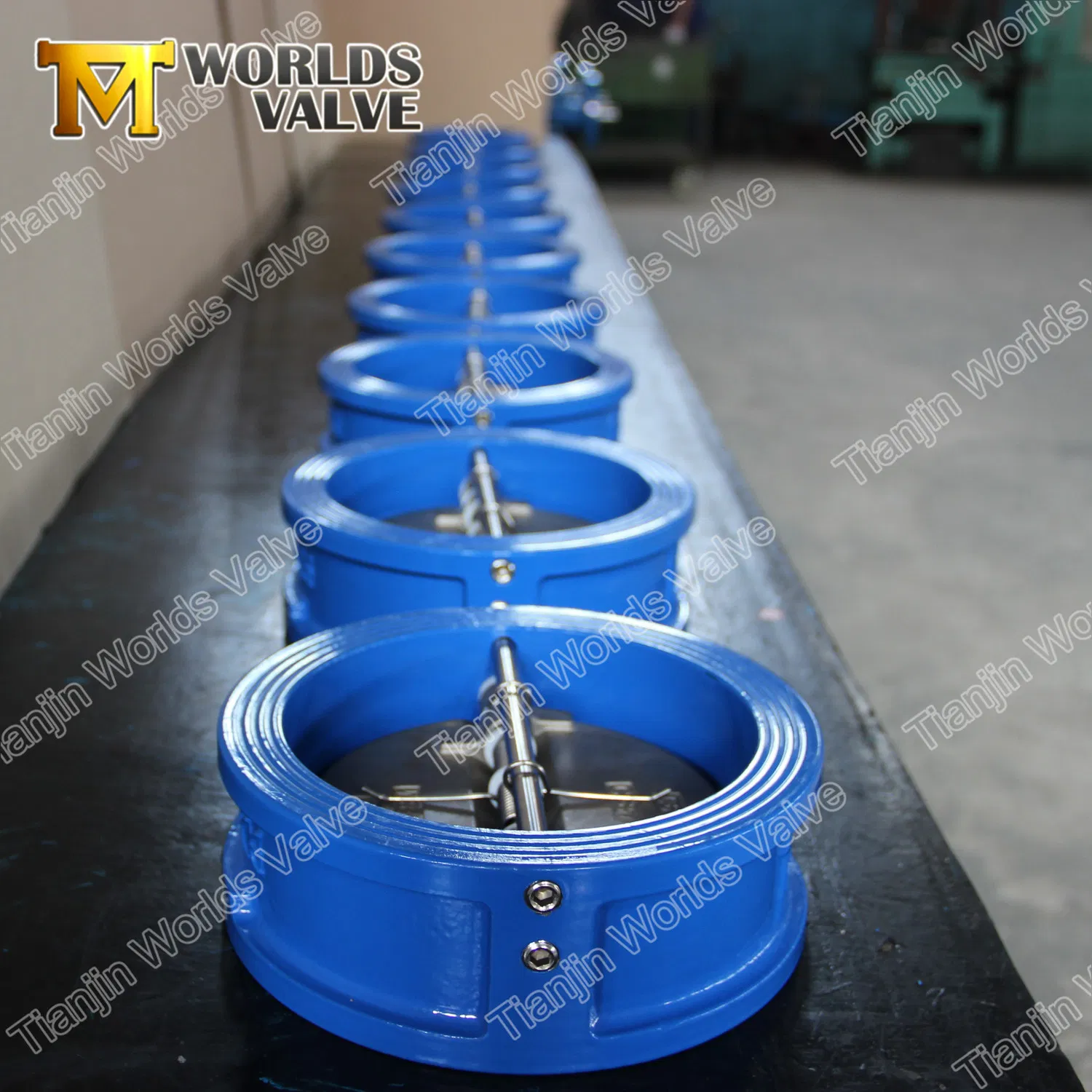

Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
1 / 5
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve
Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve

Casting Iron Wafer Type Double Door Dual Plate Check Valves Non Return Valve

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📑 Basic Information
Model NO. H77X-10/16 Material Cast Iron
Connection Form Flange Structure Wafer
Pressure Ordinary Pressure Flow Direction Unidirection
Standard DIN3356; API594; API6D Application Industrial, Water Industrial, Household
Body Material Cast Iron/Ductile Iron/WCB/CF8M/CF8/Al-Bronze
Disc Material 1.4469/1.4529/Saf2205/2507/CF8/CF8M etc
Seat Material NBR/EPDM/PTFE/Silicone etc
Coating FBE Epoxy Coated HS Code 8481804090
⚙️ Product Parameters

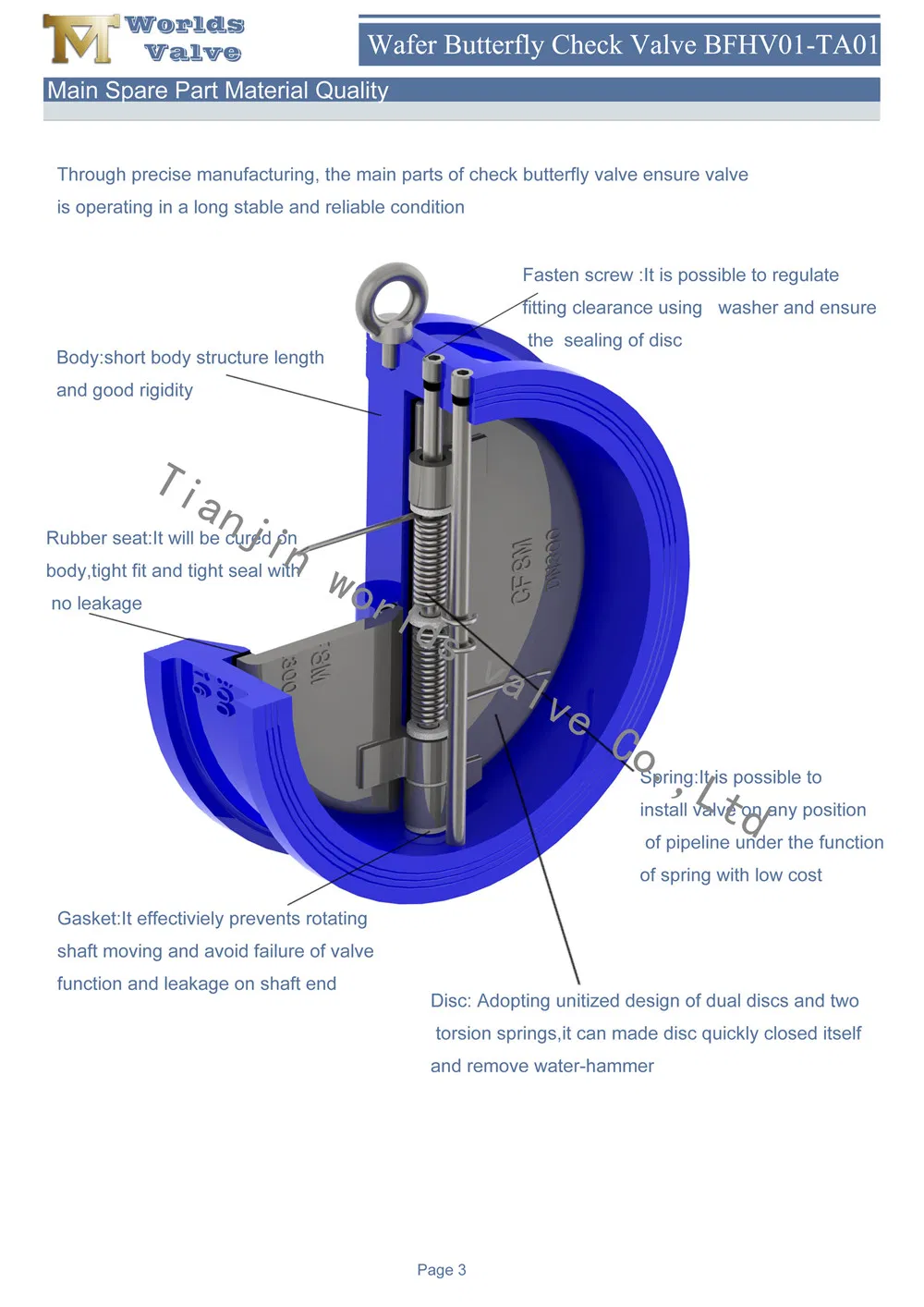

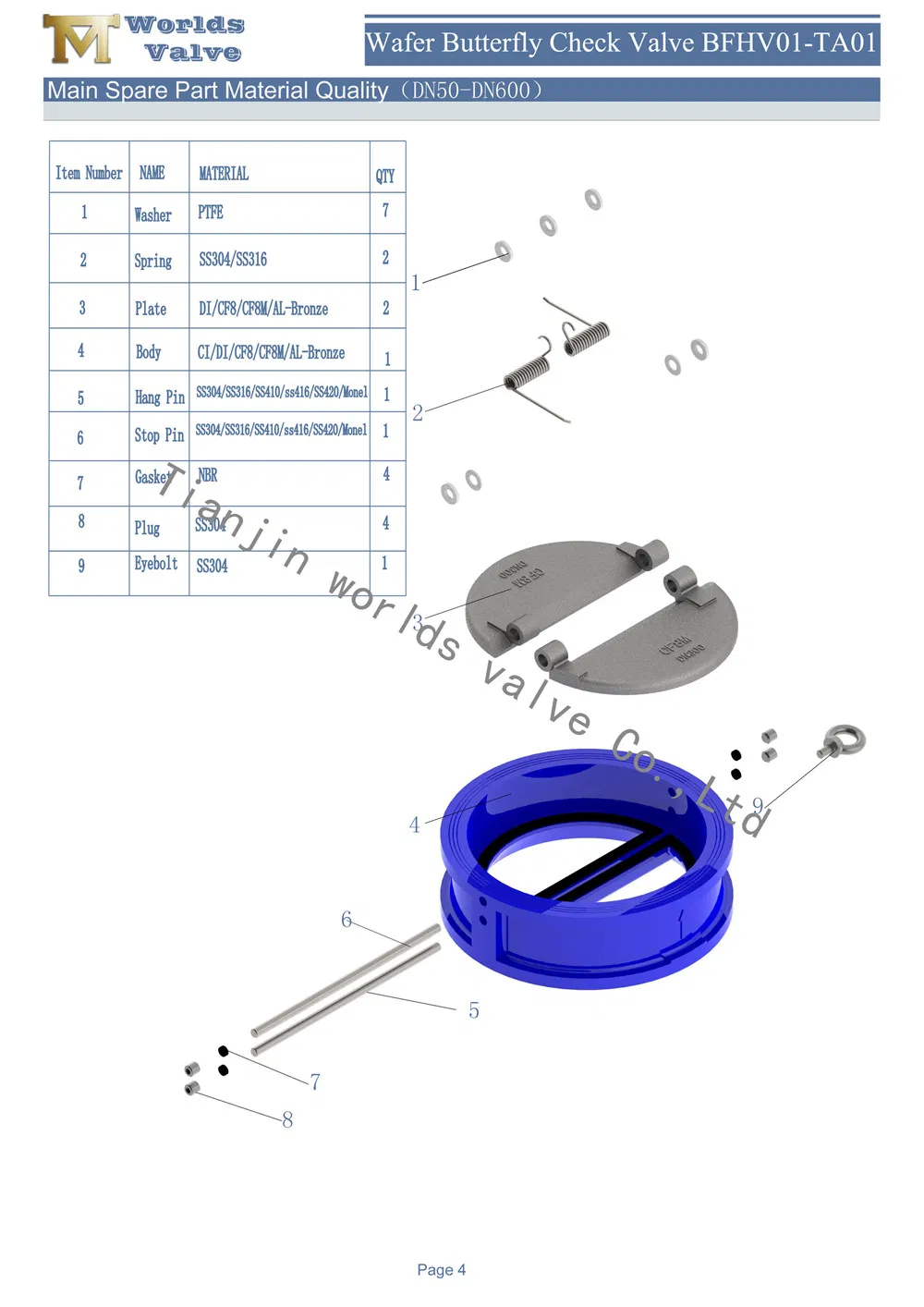

Check Valve Parameters 1
Check Valve Parameters 2

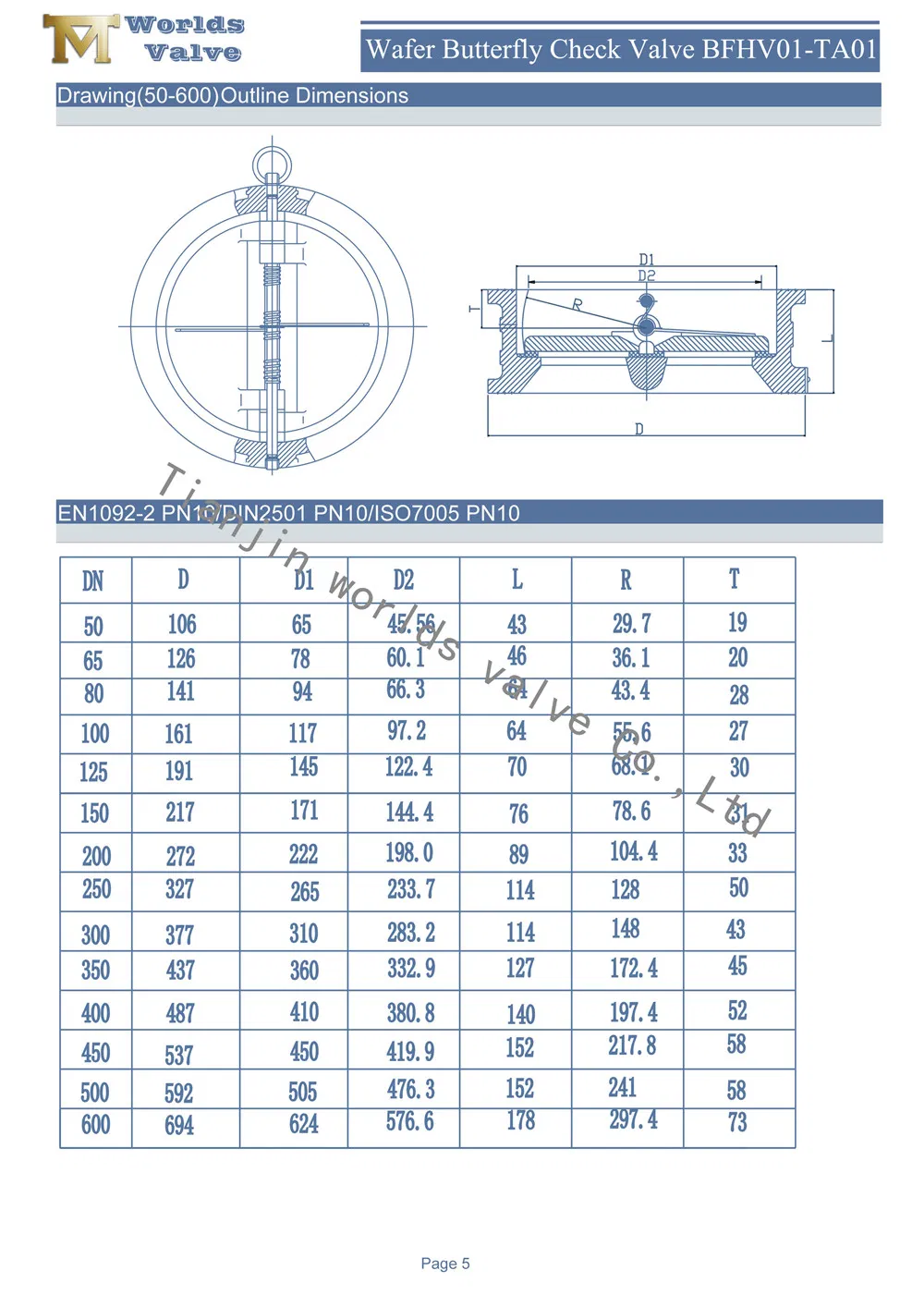

Check Valve Parameters 3
Product Highlights:
  • Pressure seal design for enhanced safety.
  • Unique cage unit: assembly can be tested outside the valve, eliminating pin seal leakage.
  • Easy in-line service and efficient operation.
  • The hinge pin located near the center of gravity allows rapid movement without sliding or wear.
  • Superior tightness: conical, lapped-in hardfaced seating is self-aligning.
📊 Technical Specifications
Operation Parameters
SizeDN50-DN900
Working Pressure16Bar10Bar
Shell Test24Bar15Bar
Seal Test18Bar11Bar
Temperature-10ºC ~ +120ºC
Main Materials
BodyCast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
DiscDuctile Iron, Carbon Steel, Stainless Steel, AL-Bronze
PinStainless Steel, Monel K500
SeatBUNA, NBR, EPDM, HEPDM, Neoprene, Hypalon, Natural rubber
📜 Executive Standards
Design StandardEN12334, EN14341
Inspection & TestEN12266-1, ISO5208
End StandardANSI B16.1, BS4504, EN1092-2, AS 2129, ISO 7005, ASME B16.5, JIS B2220
Face to FaceEN558-1, ISO 5752, ANSI B16.10, GB/T12221, DIN3202
🛠️ Design & Manufacturing

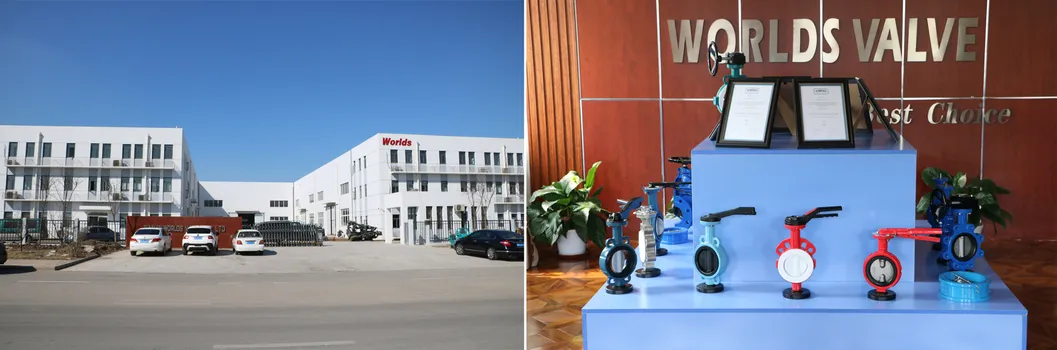

Design Capability
Development Ability

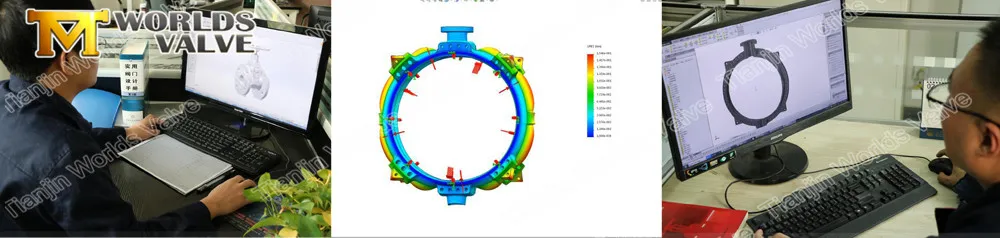

Software Tools
🔍 Measurement & Inspection

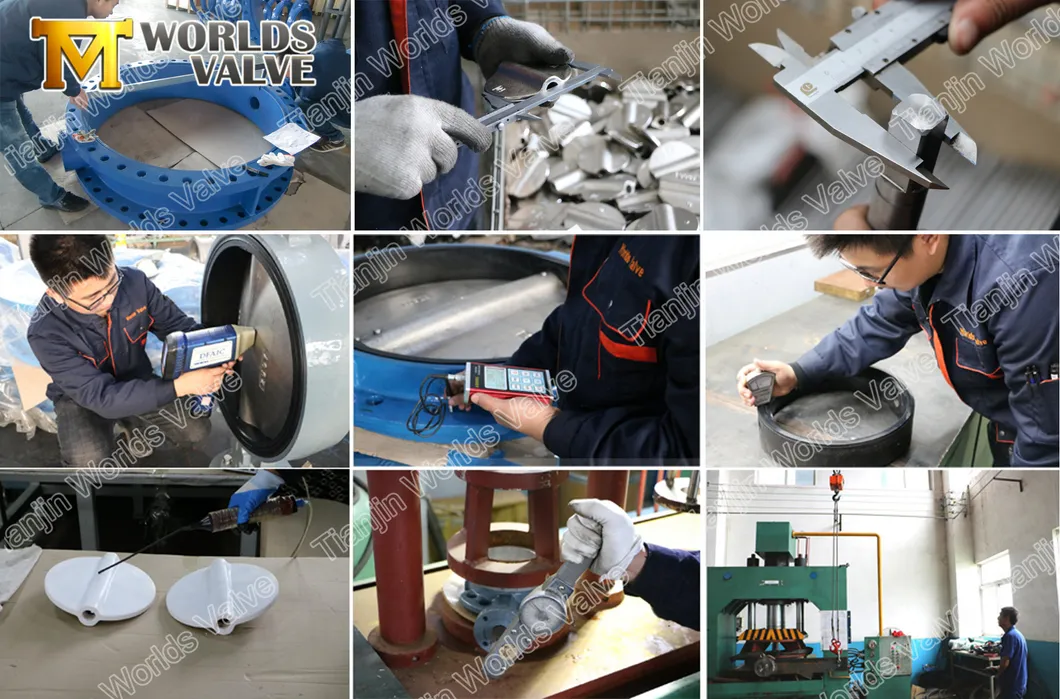

Inspection Process

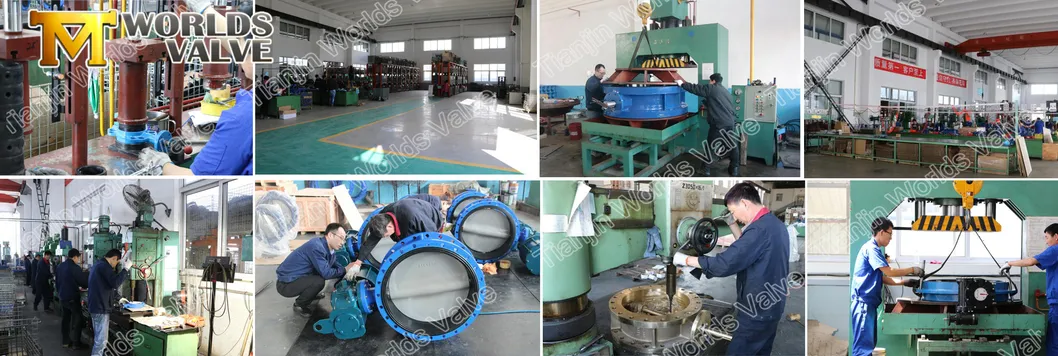

🏗️ Assembly Workshop
Assembly Workshop
📦 Packaging & Shipping

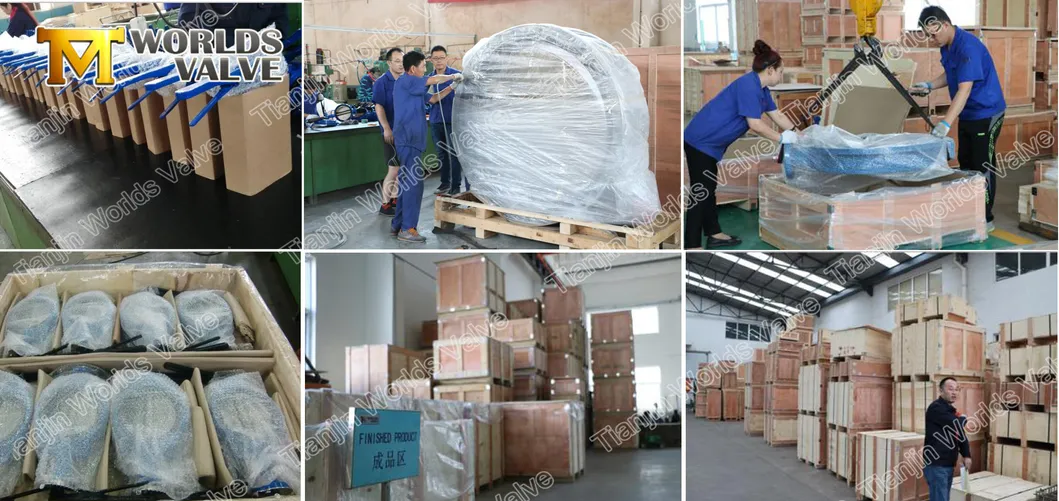

Packaging

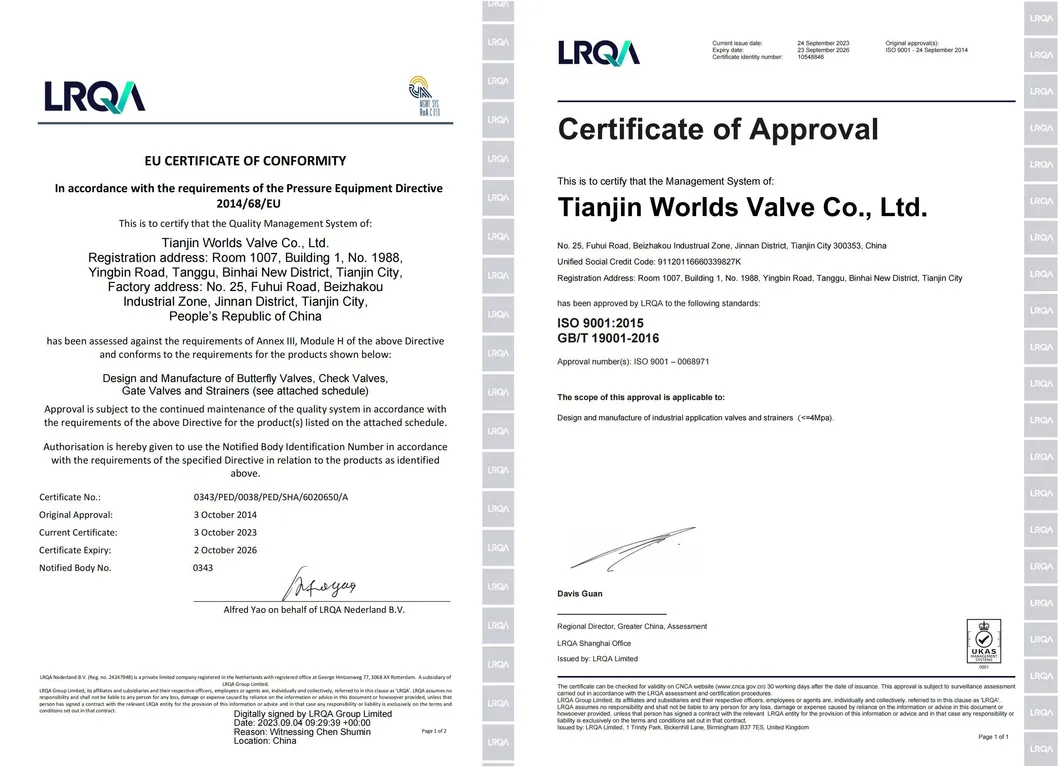

🏆 Certifications

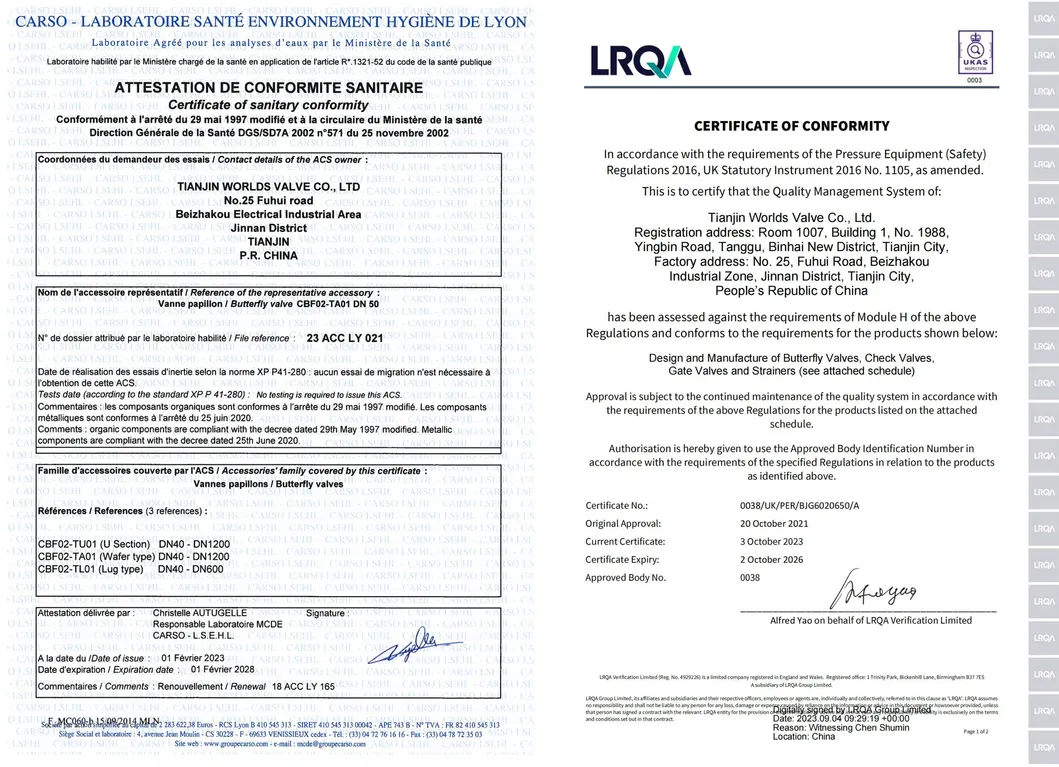

Certification 1

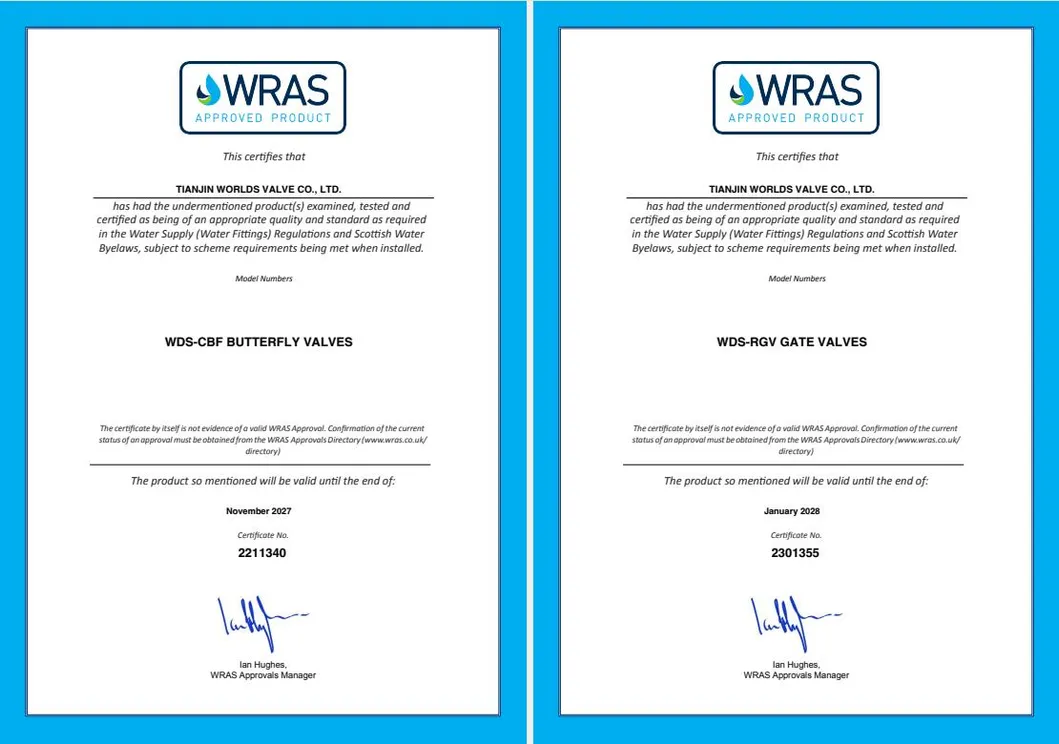

Certification 2
Certification 3
❓ Frequently Asked Questions
What are the primary applications for this wafer check valve?
These valves are widely used in ballast and bilge systems, chemical processing, desalination plants, drinking water systems, food and beverage industries, HVAC, mining, and wastewater treatment.
What pressure ratings do you offer for these valves?
Our standard offerings include 10 Bar and 16 Bar working pressures, with shell tests up to 24 Bar and seal tests up to 18 Bar.
Can the valve be installed in vertical pipelines?
Yes, due to its superior tightness and self-aligning conical seating, the valve can be used in vertical piping with an upward flow.
What materials are available for the valve body and seat?
Body materials include Cast Iron, Ductile Iron, Carbon Steel, and Stainless Steel. Seats can be customized with BUNA, NBR, EPDM, Neoprene, or Viton depending on the medium.
Does the valve design help prevent water hammer?
Yes, the disc pivots through a small arc which allows for rapid closing, effectively preventing backflow and minimizing "water hammer" effects.
Which international standards do your products comply with?
Our check valves are designed and tested according to EN12334, API594, ISO5208, and ANSI B16.1, among other major global standards.
