Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
1 / 5
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve
Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve

Non-Returen SS316 Check Valve 3000psi 1/4inch Female Cracking Pressure 1psi Check Valve

Customization: Available
After-sales Service: Standard
Warranty: Standard
Send Inquiry

Product Description

📋 Basic Product Information
Model NO.
CV
Connection
Female
Type
Equal
Technics
Forged
Material
Stainless Steel
Certification
ASME
Color
Silver
MOQ
10 PCS
Application
Oil and Gas
Delivery
7-10days
Pressure
3000-6000psi
Transport Package
Standard Case
Specification
1/4"-1"
Origin
China
Production Capacity
10000
⚙️ Product Description & Features

🛡️ High Performance

Non-return check valve designed for reliability. Features a floating sealing ring that prevents pollutants from affecting the seal integrity.

⚡ Pressure & Temp

Maximum working pressure up to 6000 psi. Temperature range performance from -18°C to 204°C.

🔄 Versatility

Constructed with premium 316 body materials. Supports installation in any direction for flexible system integration.

Technical Data Specifications
Material SS316
Series CV1 CV2 CV3
End Connection Sizes 1/8", 1/4", and 6mm 3/8", 1/2", 5/8", 10mm, and 12mm 3/4", 1", 22mm, and 25mm
Working pressure @70°F(20°C) 3000PSI 3000PSI
CV 0.67 MAX 1.8 MAX 4.7 MAX
Operating Temp Range -10° to 375°F
Nominal cracking pressure 1 psig
🖼️ Product Showcase

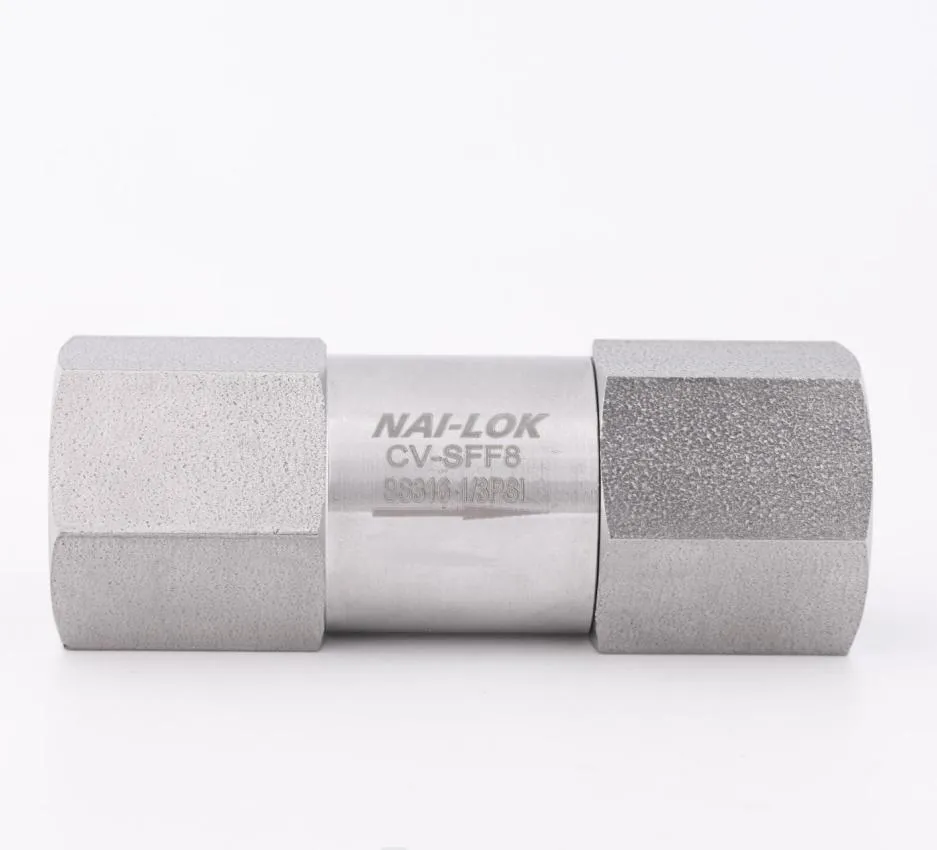

SS316 Check Valve View 1

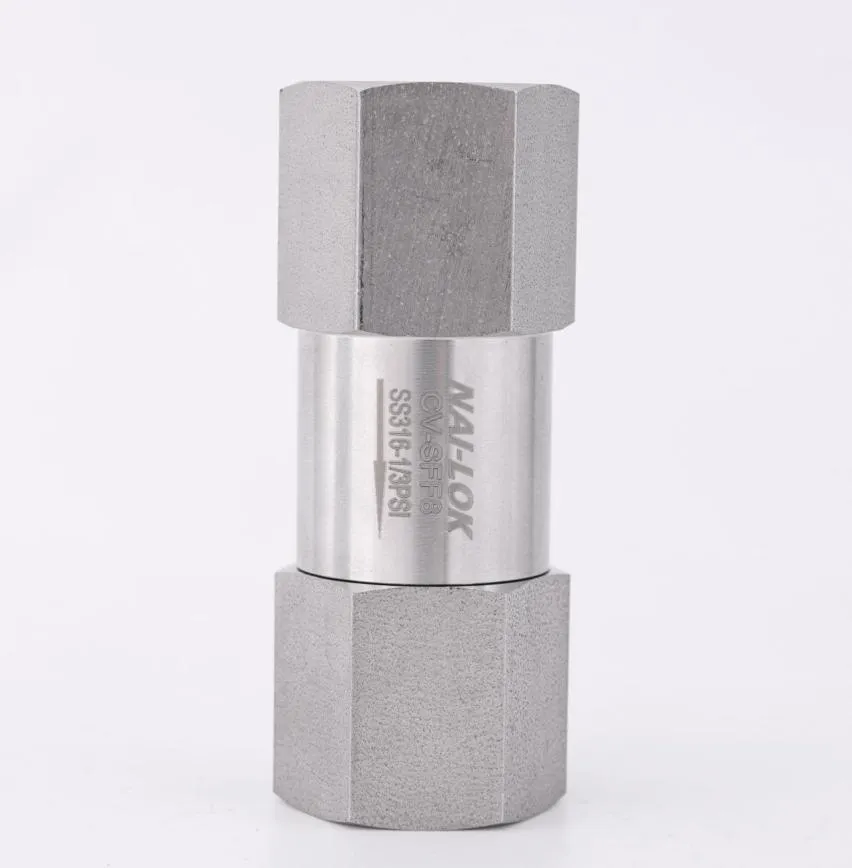

SS316 Check Valve View 2
SS316 Check Valve View 3

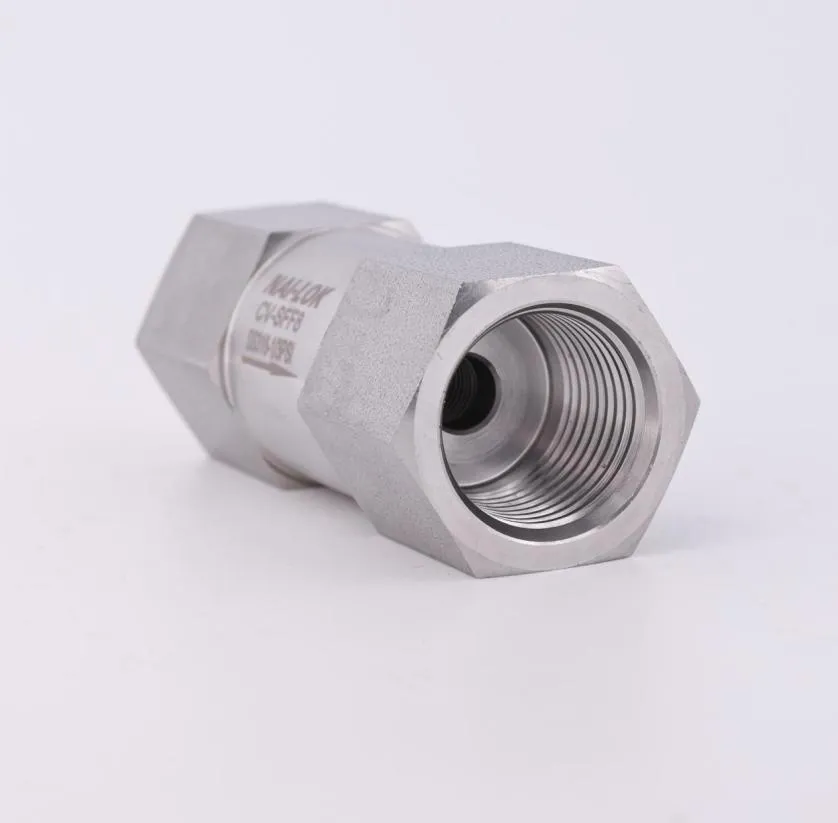

SS316 Check Valve View 4

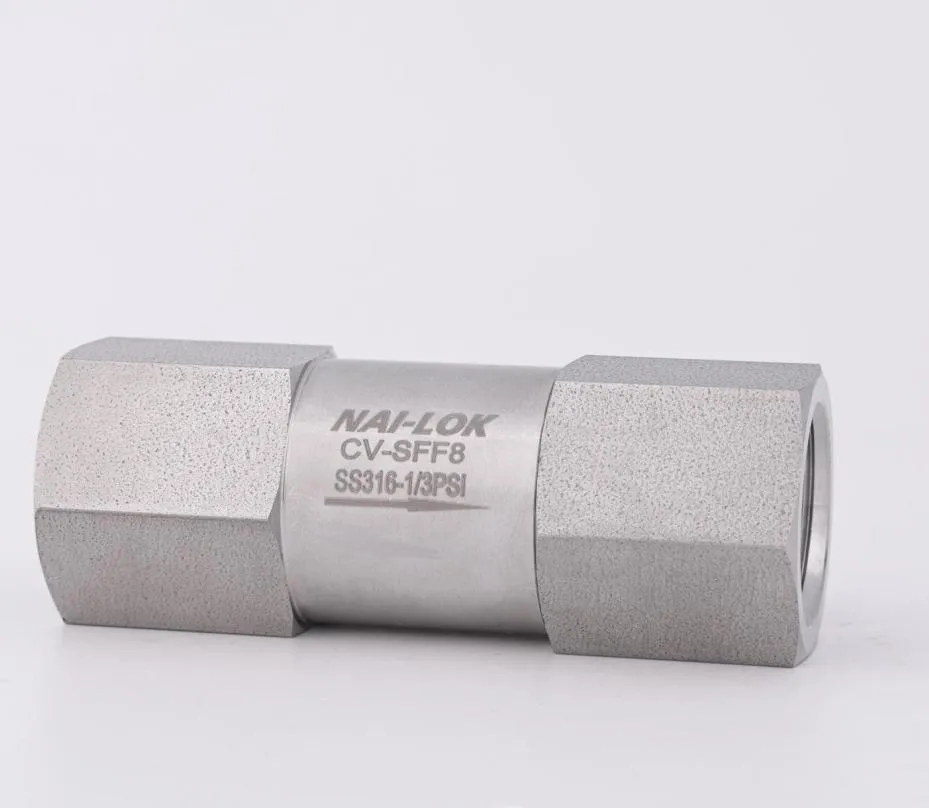

SS316 Check Valve View 5
❓ Frequently Asked Questions
What is the maximum working pressure for these check valves?
The valves are designed to handle working pressures ranging from 3000 psi to 6000 psi depending on the specific series and configuration.
What materials are available for the valve body?
We provide high-quality Stainless Steel 316 (SS316) body materials to ensure excellent corrosion resistance and durability.
Does the installation direction matter for this valve?
No, these non-return check valves are designed to be versatile and can be installed in any orientation or direction within your system.
What is the cracking pressure for the CV series?
The nominal cracking pressure for these valves is approximately 1 psig.
What temperature ranges can these valves withstand?
The operating temperature range is -18°C to 204°C (-10°F to 375°F), making them suitable for various industrial applications.
What sizes are available in this check valve line?
We offer a wide range of sizes from 1/8" to 1", including metric sizes like 6mm, 10mm, 12mm, 22mm, and 25mm.
