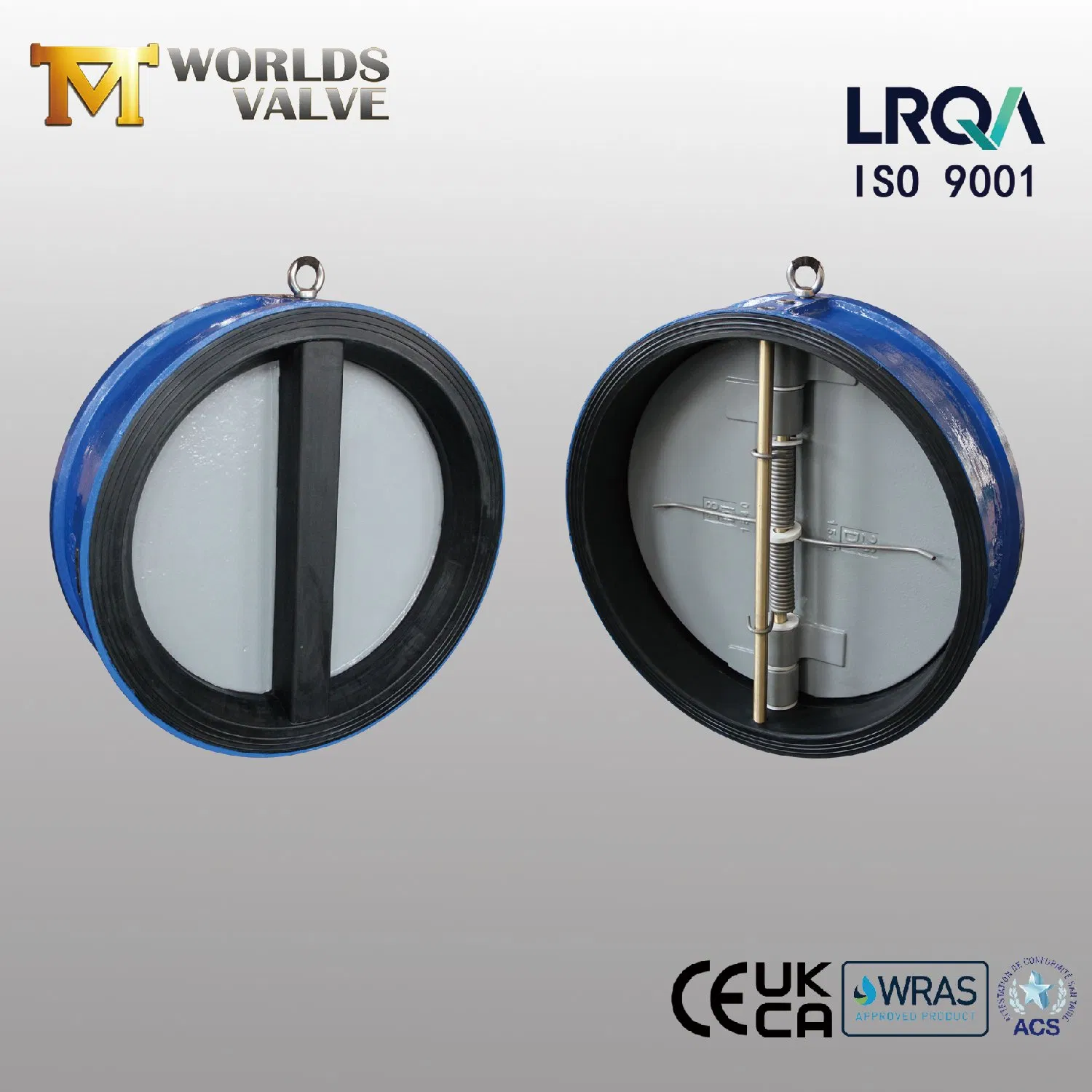

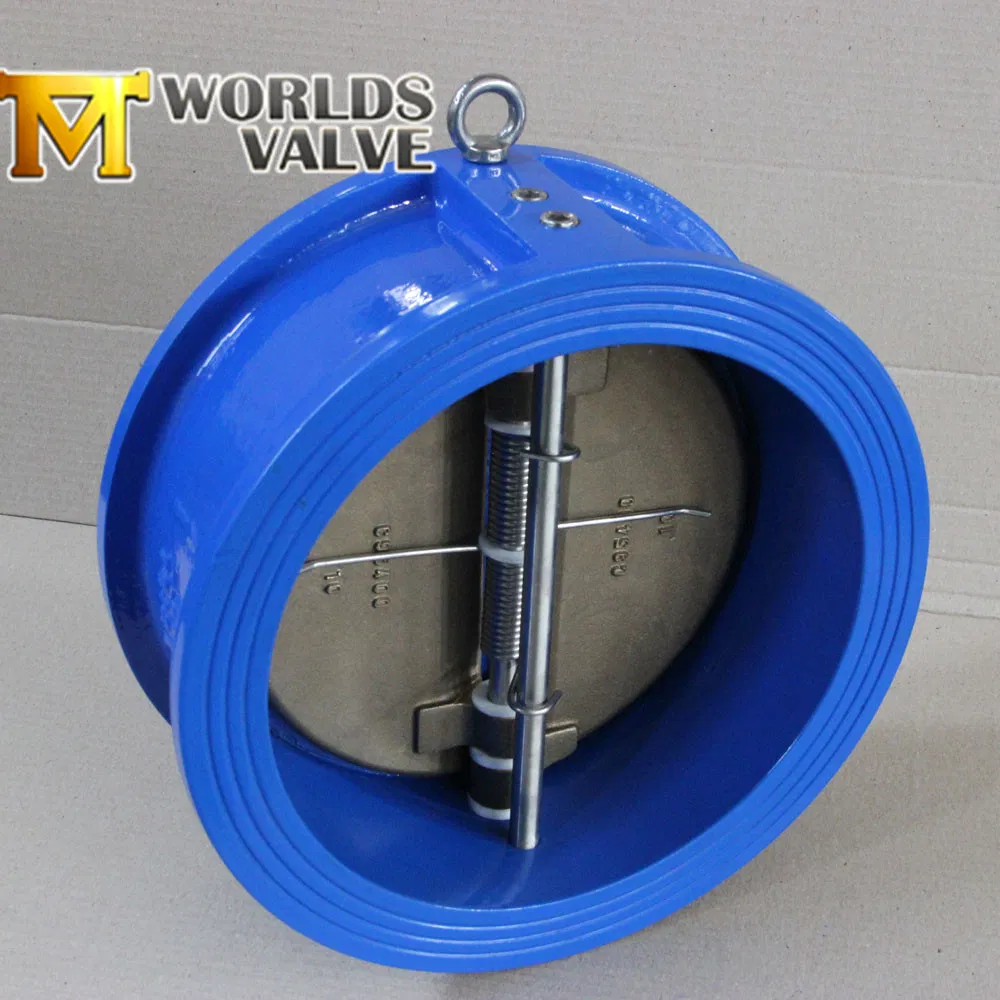

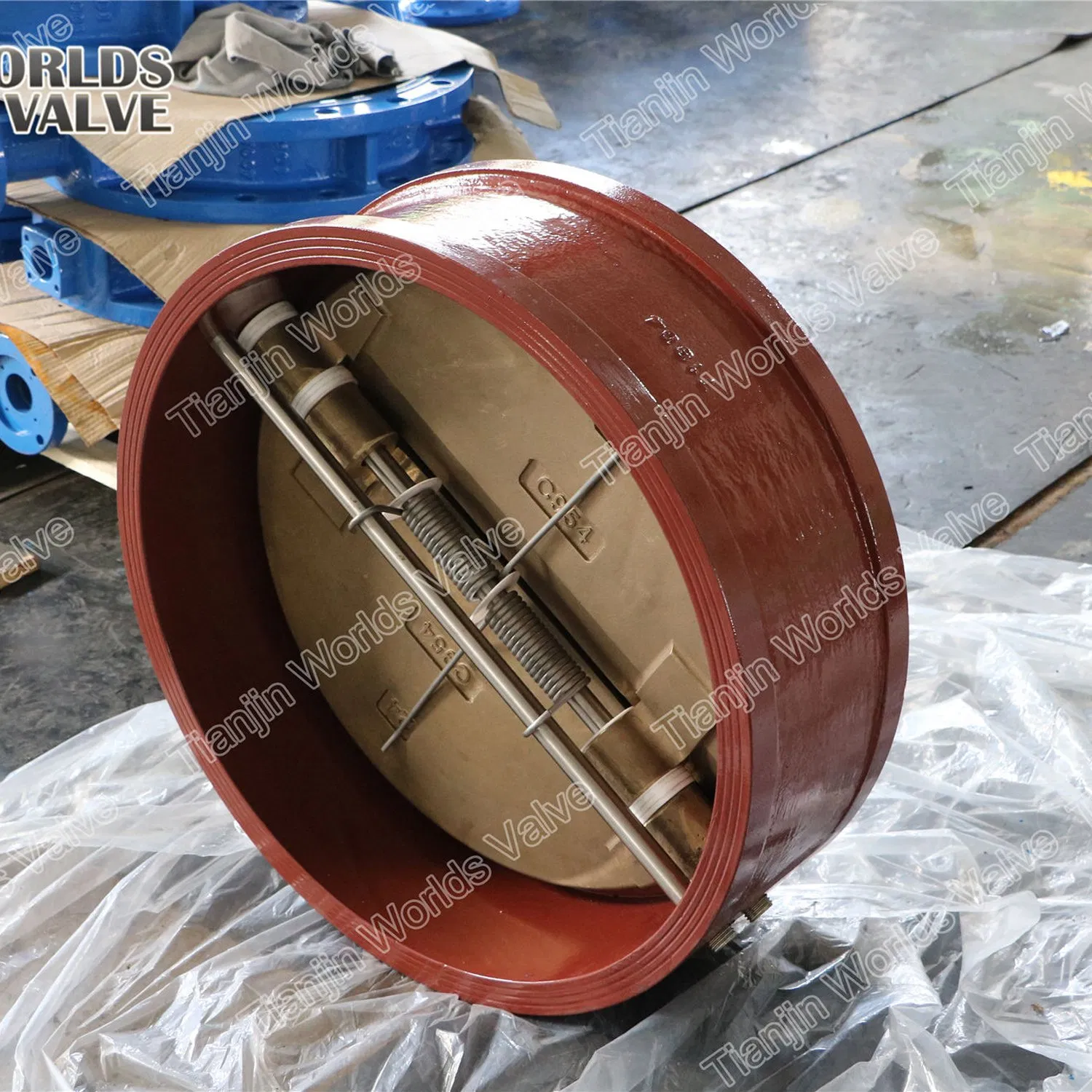

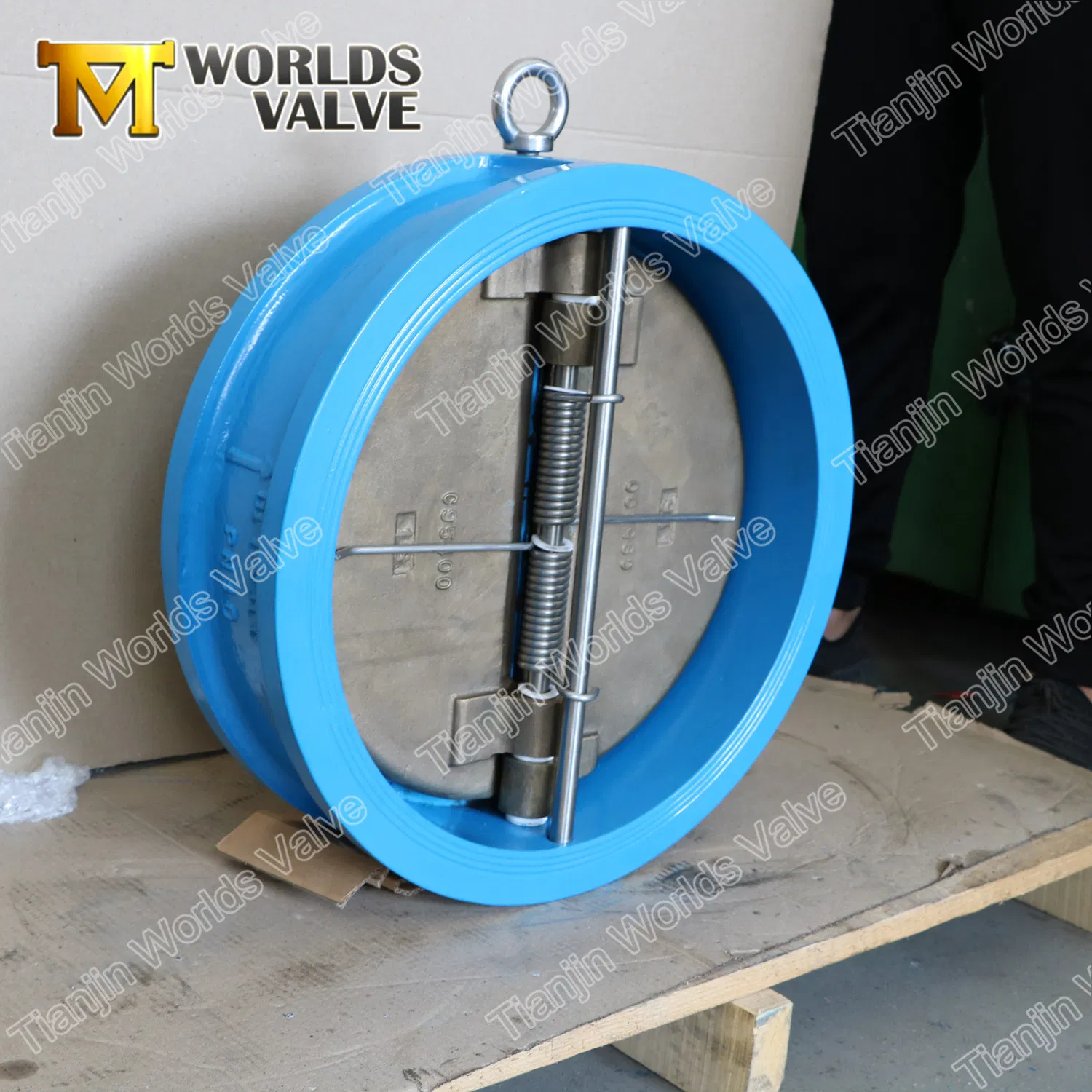

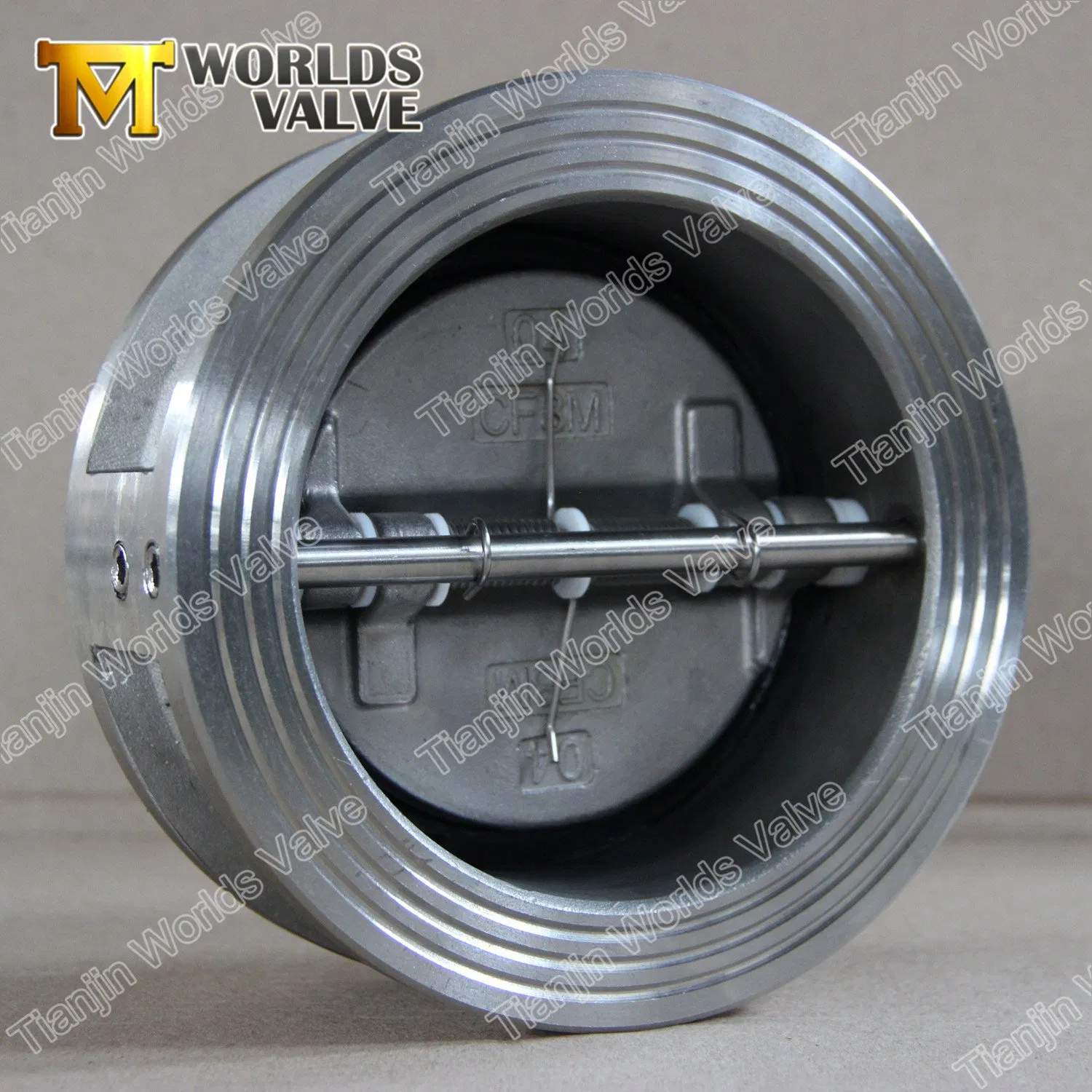

API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
1 / 5
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve
API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve

API594/ISO5752 Ductile Cast Iron Wafer Type Dual Plate Double Door Check Valves Non Reture Valve

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
BFHV01-TA01
Material
Cast Iron
Connection
Flange
Structure
Butterfly
Pressure
Low Pressure
Sealing Form
Bellows Globe Valve
Direction
Unidirection
Standard
GB, ISO, CE, JIS, ANSI
Body Material
Cast Iron/Ductile Iron/WCB/CF8M/CF8/Al-Bronze
Coating
FBE Epoxy Coated
Capacity
100,000,000 Sets/Year
HS Code
8481804090
Product Parameters

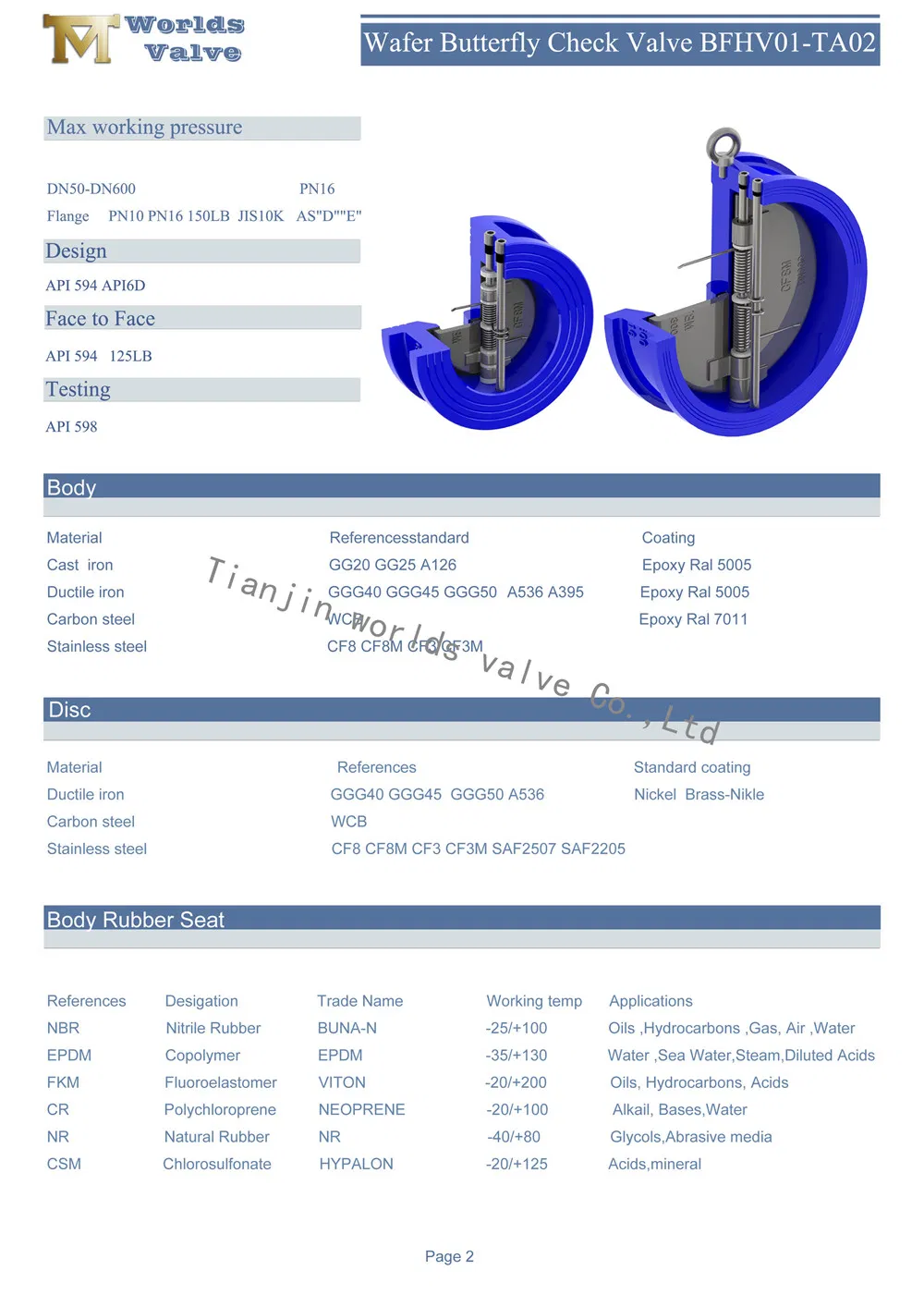

Check Valve Parameter 1

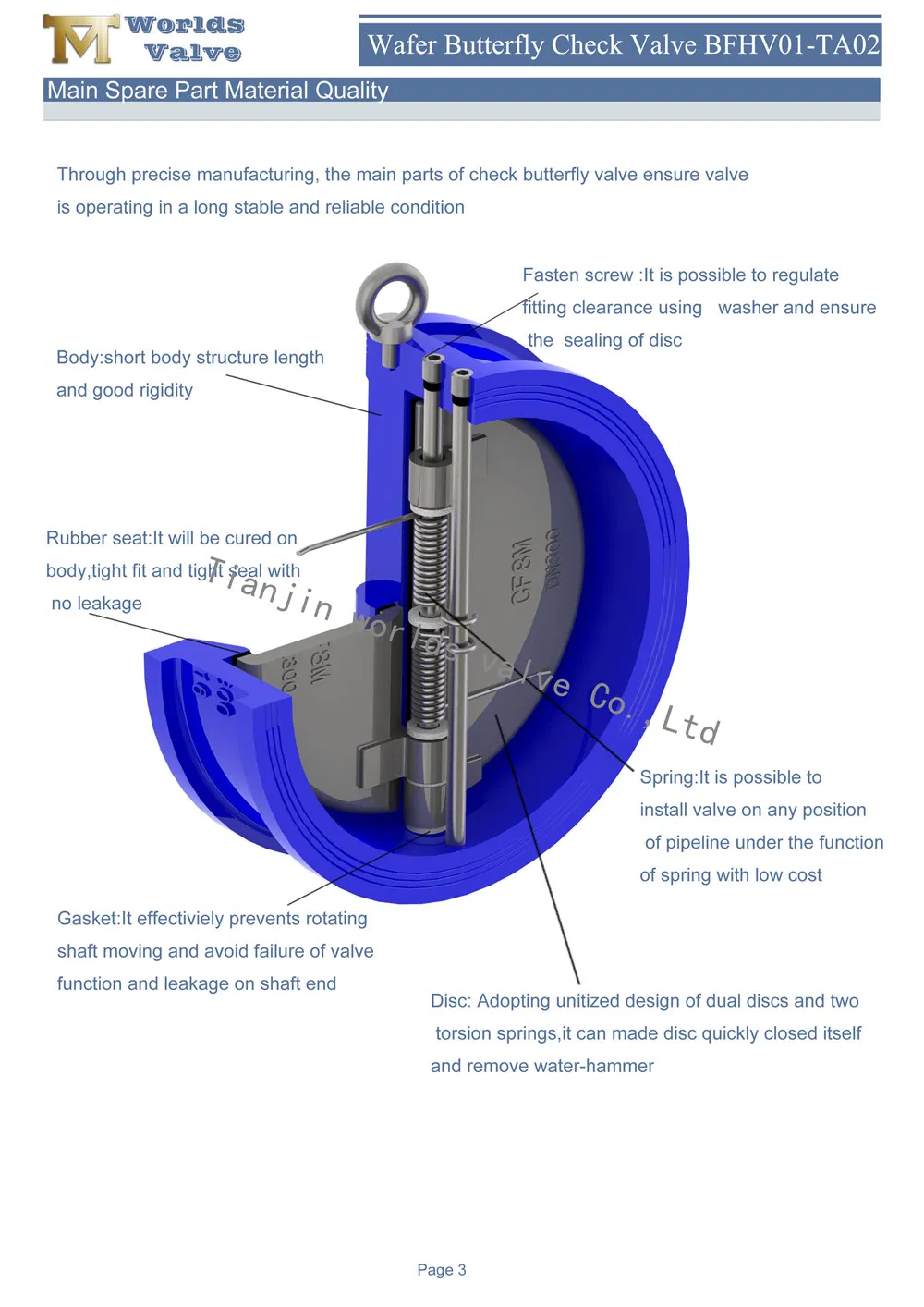

Check Valve Parameter 2

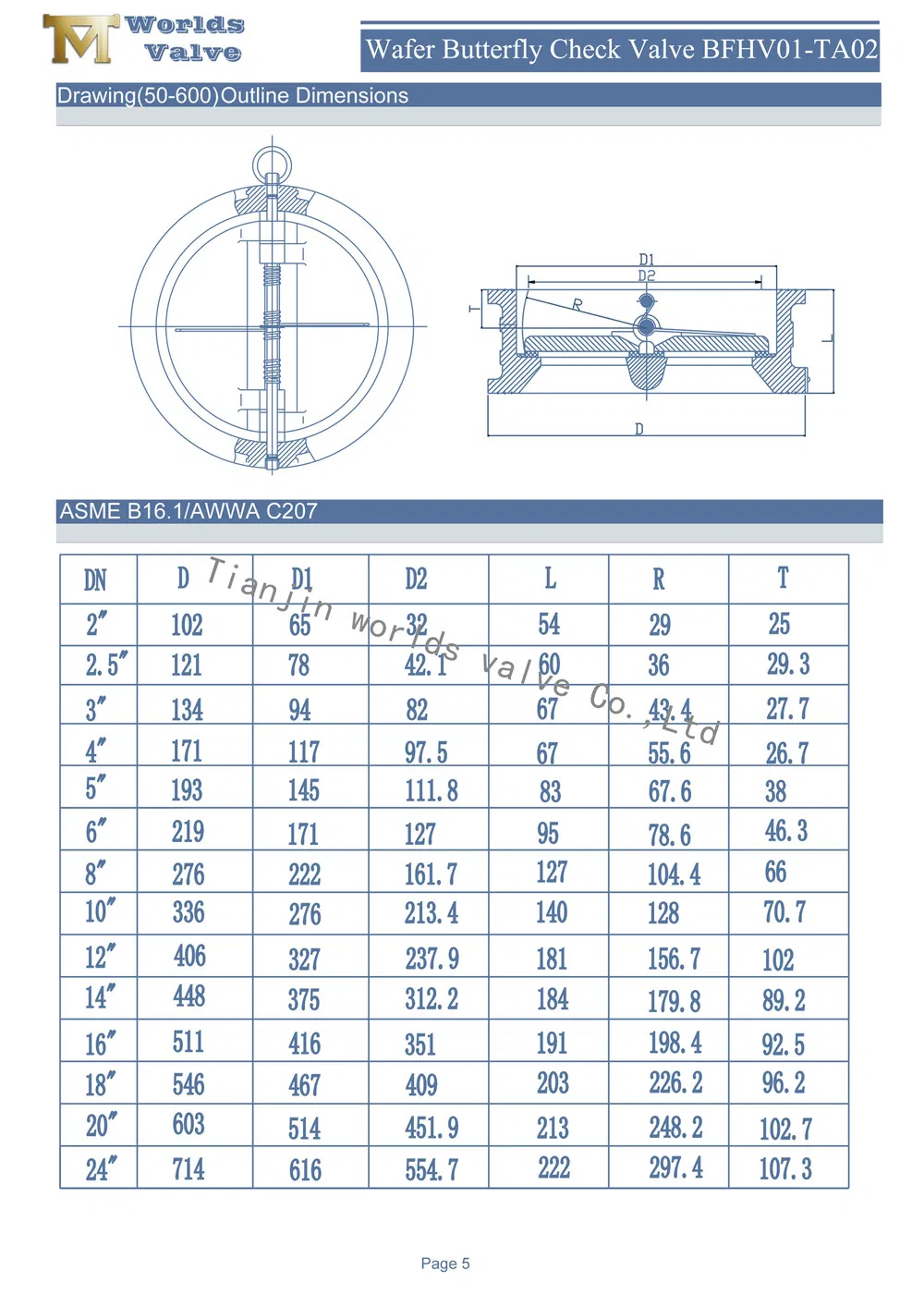

Check Valve Parameter 3
Product Features
  • Pressure Seal Design: High-integrity sealing performance under various pressures.
  • Unique Cage Unit: The entire seat-hinge-pin-disc assembly can be tested outside the valve before seal welding, eliminating pin seal leakage.
  • Easy In-line Service: Designed for convenient maintenance without removing the valve body from the pipeline.
  • Efficient Operation: Hinge pin located near the center of gravity allows the disc to move rapidly without sliding or wear, preventing "water hammer".
  • Superior Tightness: Conical, lapped-in hardfaced seating is self-aligning. Suitable for vertical piping with upward flow.
Technical Specifications
Size RangeDN50 - DN900
Working Pressure16 Bar10 Bar
Shell Test24 Bar15 Bar
Seal Test18 Bar11 Bar
Temperature-10ºC to +120ºC
EnvironmentBallast & bilge, Chemical processing, Desalination, Drilling, Drinking water, Food & beverage, HVAC, Mining, Paper, Seawater, Waste water.
Main Material Construction
ComponentMaterial Options
BodyCast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
DiscDuctile Iron, Carbon Steel, Stainless Steel, AL-Bronze
PinStainless Steel, Monel K500
SeatBUNA, NBR, EPDM, HEPDM, Neoprene, Hypalon, Natural Rubber
Executive Standards
Design StandardEN12334, EN14341
Inspection & TestEN12266-1, ISO5208
End ConnectionANSI B16.1 (125LB), BS4504, EN1092-2, AS 2129 Table D/E, ISO 7005, ASME B16.5 (150LB), JIS B2220 5K/10K
Face to FaceEN558-1 Series 16, ISO 5752 Series 16, ANSI B16.10, GB/T12221, DIN3202 K3
Design Ability
Measurement & Inspection

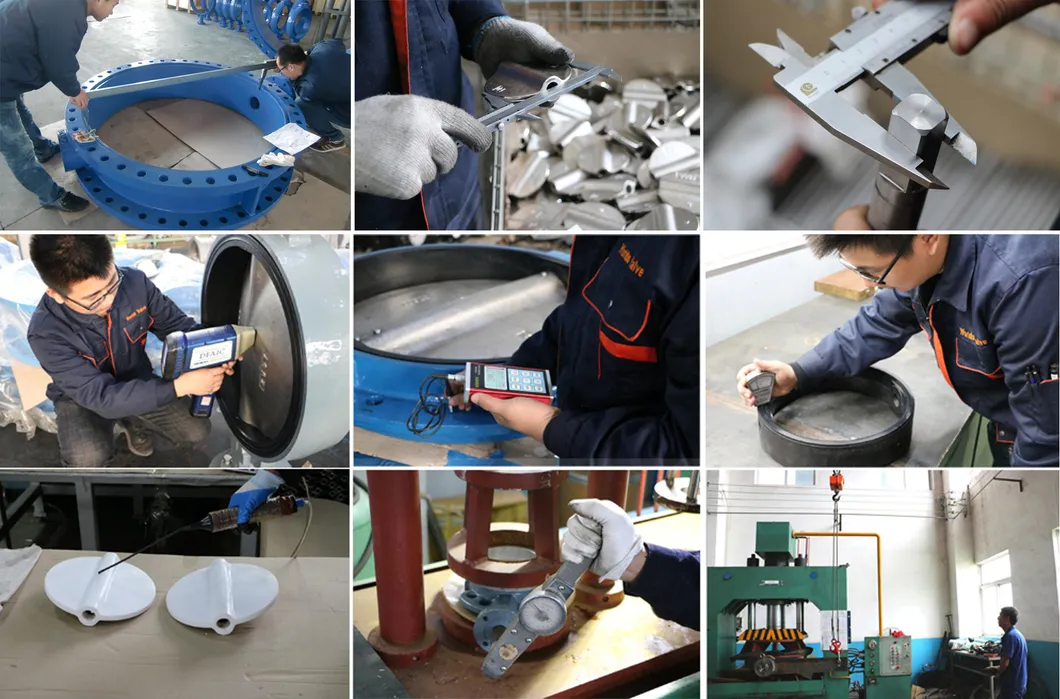

Dimension Measurement

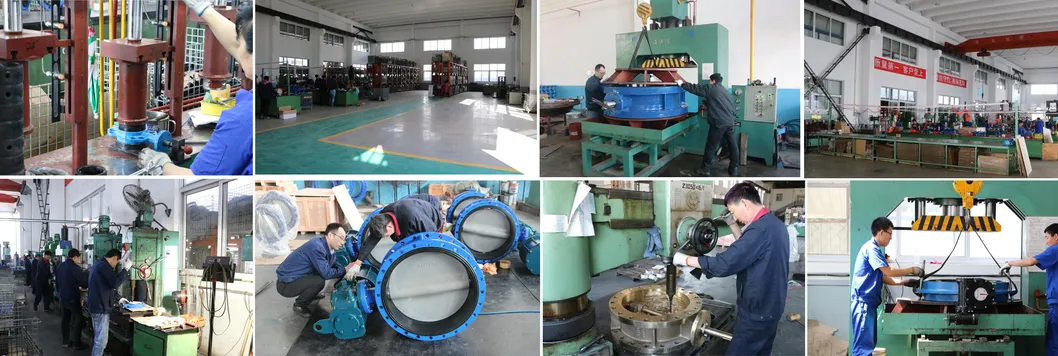

Assembly Workshop
Assembly Workshop
Packaging & Shipping
Package Size
110.00cm * 110.00cm * 90.00cm
Gross Weight
500.000kg
Materials
Bubble Bags and Plywood Case

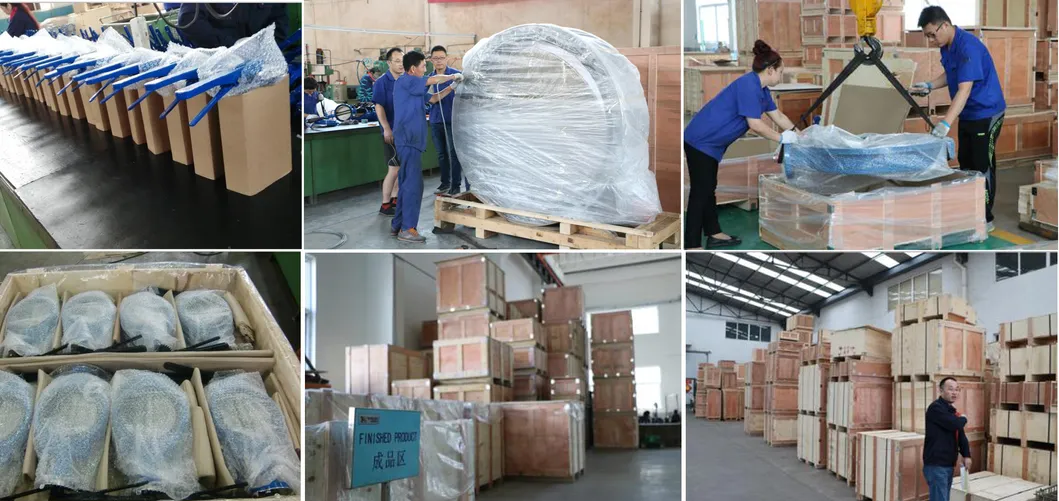

Packaging Detail
Certifications

Our products are certified to meet international quality and safety standards, including CE, ISO, WRAS, and ACS certificates.

Certification 1
Certification 2
Certification 3
Frequently Asked Questions (FAQ)
1. What is the size range for these dual plate check valves? We offer a wide size range from DN50 up to DN900 to accommodate various industrial piping requirements.
2. What are the primary materials available for the valve body and disc? The valve bodies and discs are available in Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel (CF8/CF8M), and Aluminum-Bronze.
3. What is the maximum working pressure and temperature range? The valves are designed for low-pressure applications with a standard working pressure of 10-16 Bar and an operating temperature range of -10ºC to +120ºC.
4. Which international standards do your check valves comply with? Our products comply with multiple standards including ANSI B16.1, EN1092-2, ISO 7005, JIS B2220, and design standards like EN12334 and ISO 5752.
5. How does the "unique cage unit" benefit the valve performance? The cage unit allows the entire internal assembly to be tested for integrity before it is sealed into the body, which effectively eliminates potential pin seal leakage.
6. Are these valves suitable for seawater or chemical applications? Yes, by selecting specific materials like AL-Bronze for the body/disc and suitable seat materials (like EPDM or NBR), these valves are ideal for seawater, desalination, and chemical processing.
