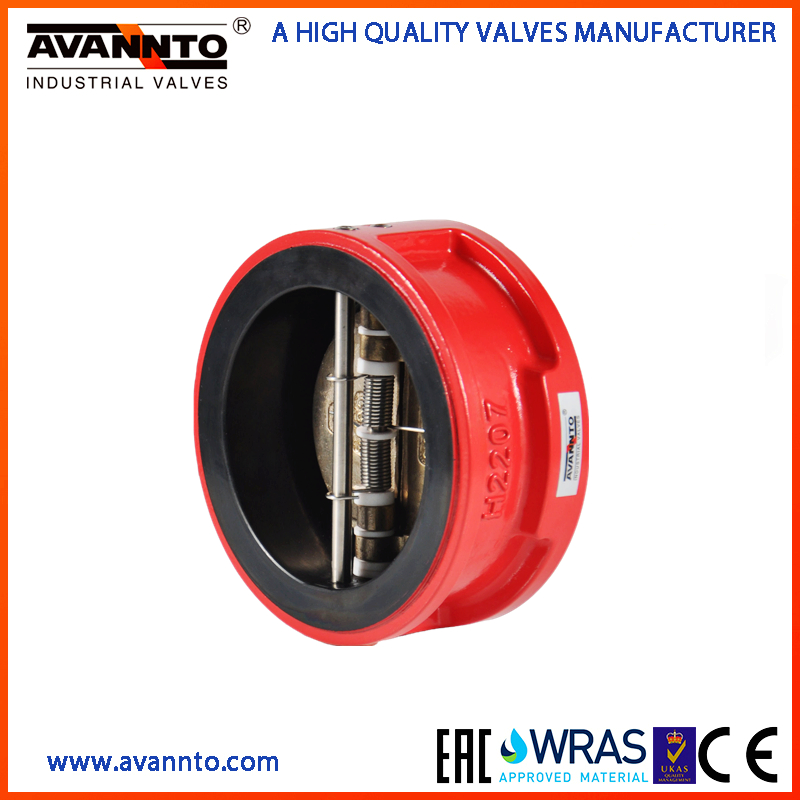

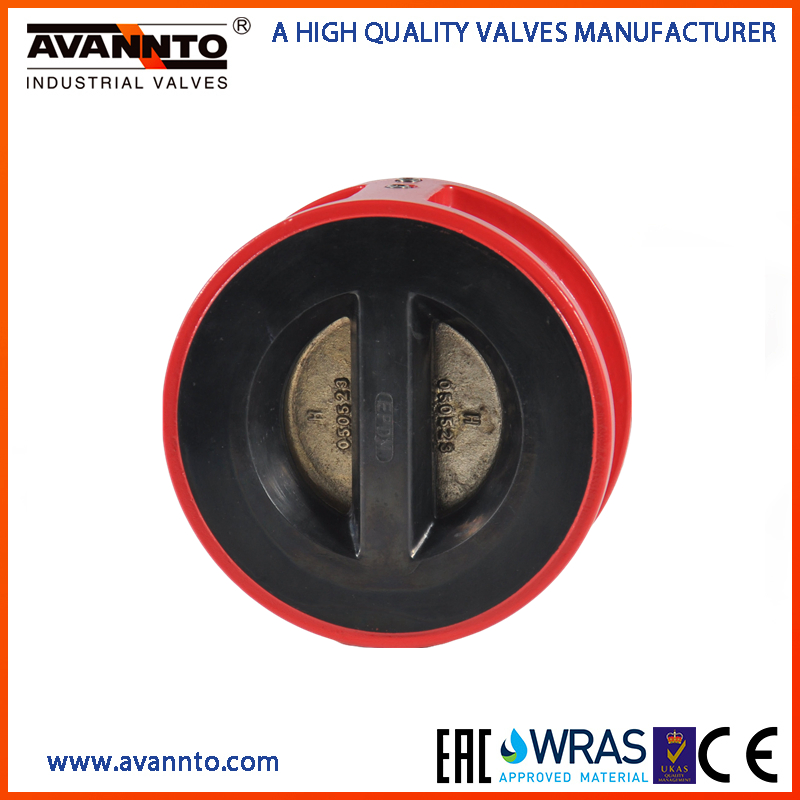

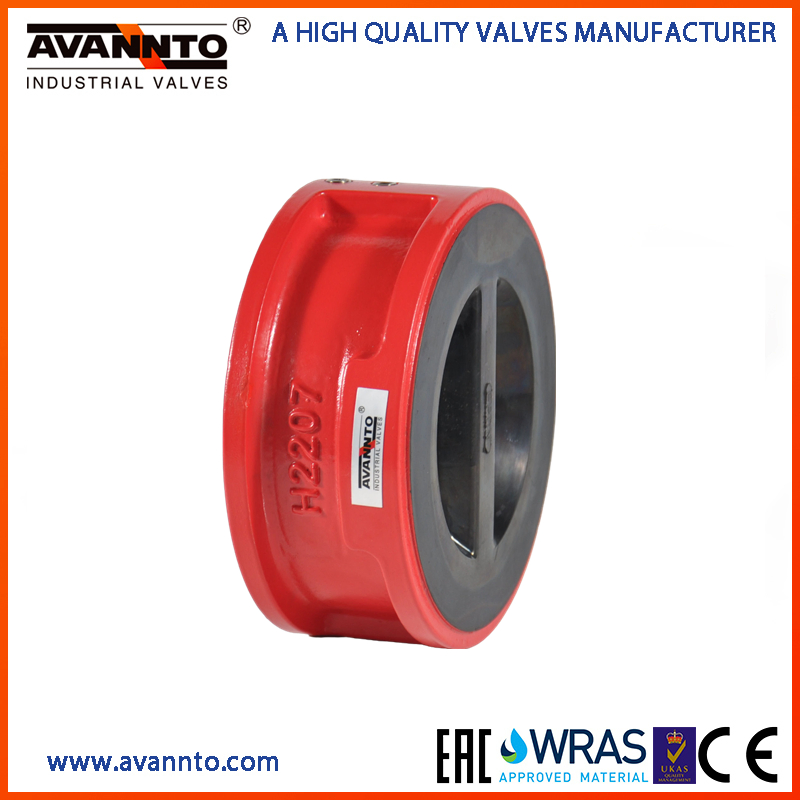

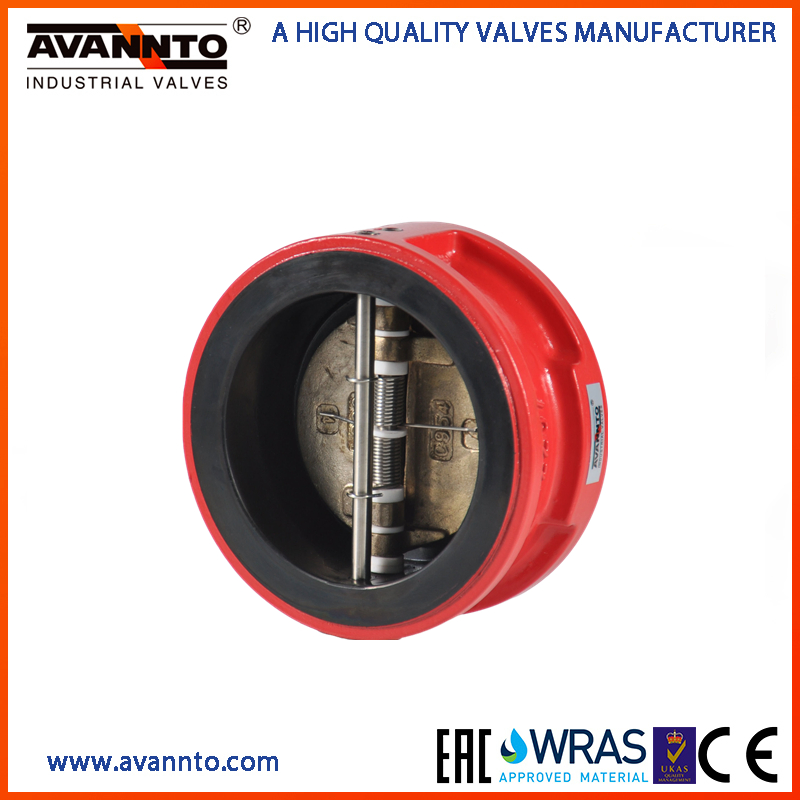

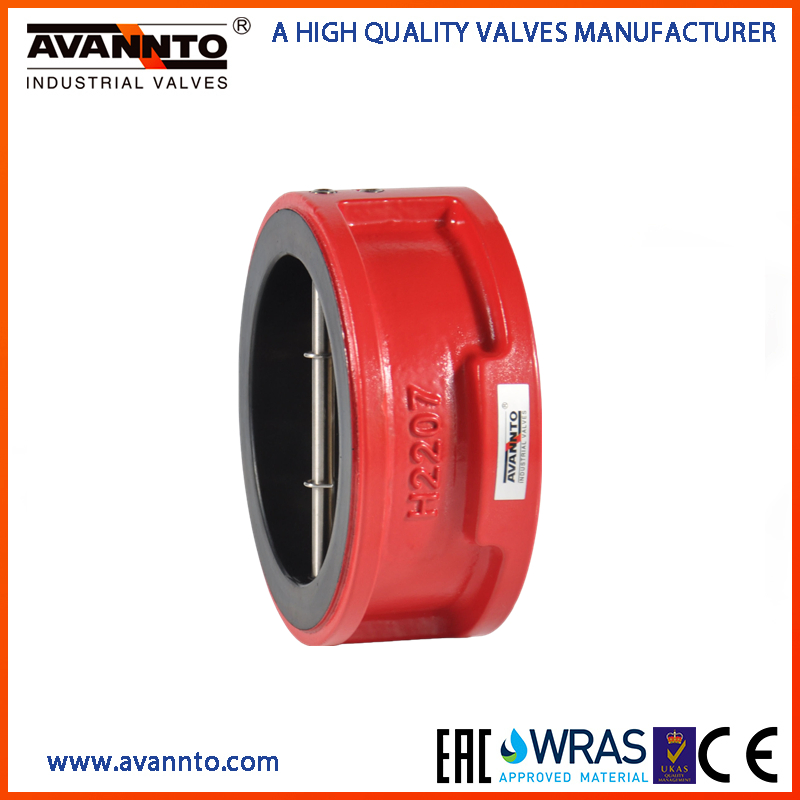

Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
1 / 5
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves
Full Liner Dual Plated Wafer Type Check Valves

Full Liner Dual Plated Wafer Type Check Valves

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
Dual plate check valve
Material
Cast Iron, Ductile Iron
Connection
Wafer, Flanged
Structure
Butterfly
Pressure
Ordinary Temperature
Sealing Form
"0" Leakage
Standard
API609 En593 BS5155 En1092 ISO5211
Application
Industrial, Water, Household
Coating
Fbe Epoxy Coated
Specification
DN32-DN1200
Product Description

Full rubber lined dual plate check valve, for mounting directly between flanges according to DIN and API594. Maintenance not required. For liquids in the industrial range, general services, water treatment. Not suitable for media with solid components.

⭐ Highlights
  • Full rubber lined dual plate check valve is usually used in seawater desalination system, High concentration brine and sewage industry.
  • Recommended specifications: Ductile Iron (GGG40) body with aluminum bronze disc (C95400).
  • Full Vulcanized liner enhance the life circle, prevent body from corrosion.
  • Low weight and short laying length saves initial cost, requires less space, and is easier to install.
  • Independent springs provide quick-closing, non-slam shut off for reduced water hammer potential.
  • Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation.
⚙️ Technical Specifications
Body
Cast Iron, Ductile Iron, Stainless Steel
Disk
Ductile Iron, Stainless Steel, Aluminum bronze
Seat
NBR, EPDM
Nominal Diameter
DN 40 - DN 1200
Max Pressure
16 bar
Temperature
-10 °C to + 130°C
Product Showcase
Check Valve 1

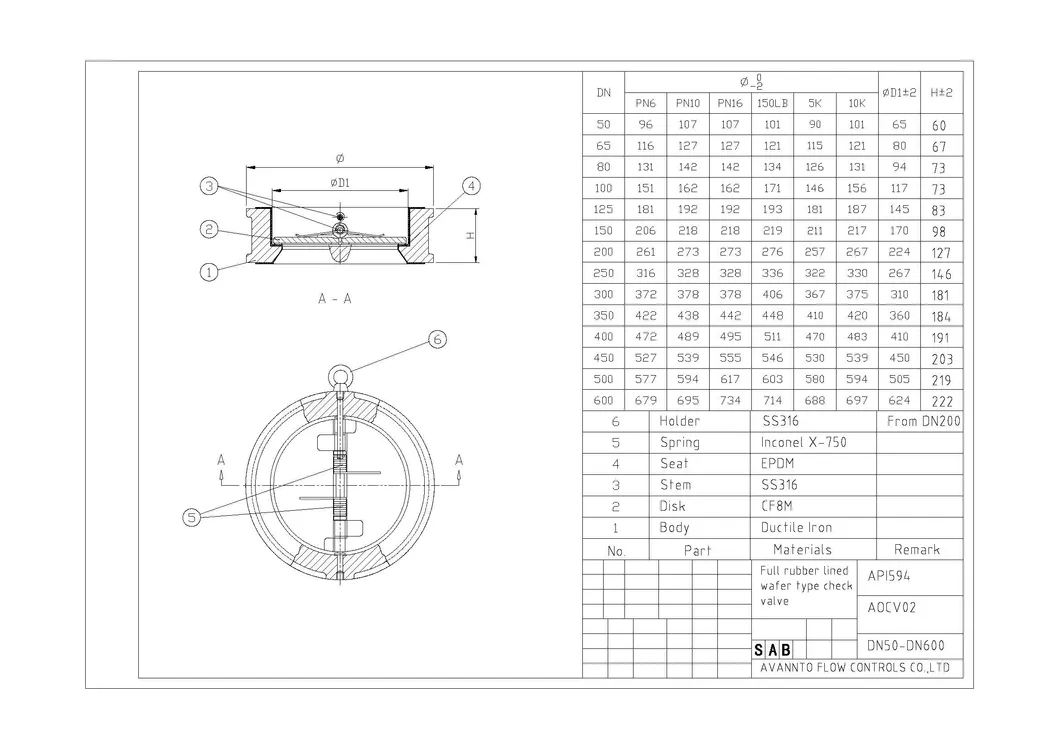

Check Valve 2
Manufacturing & Facility

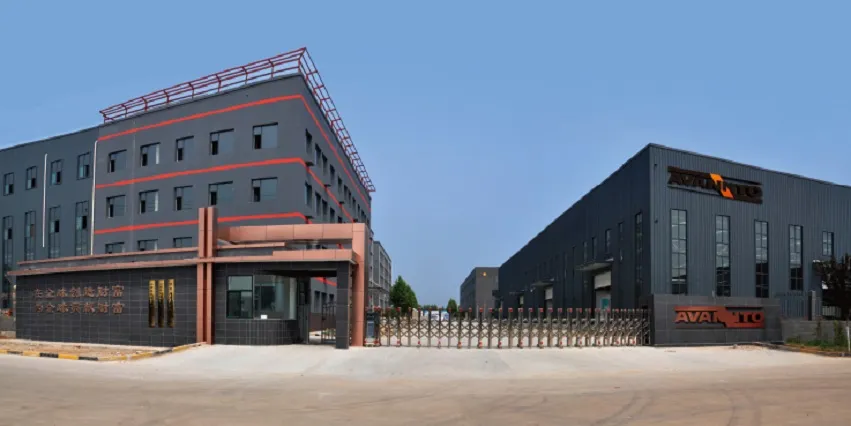

Facility 1

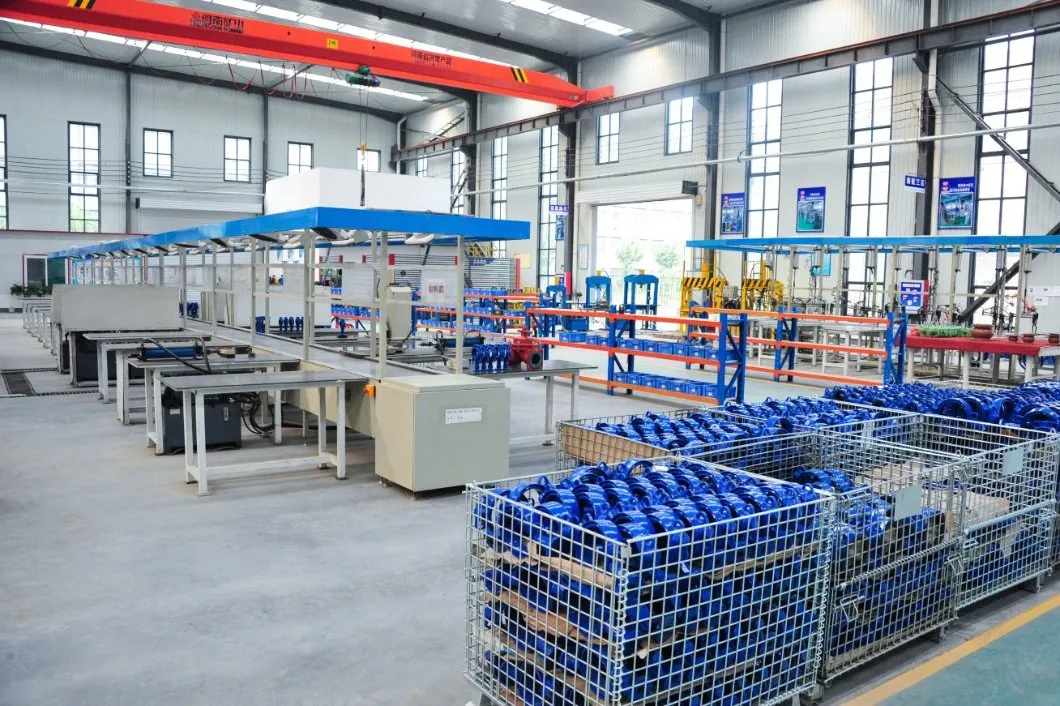

Facility 2

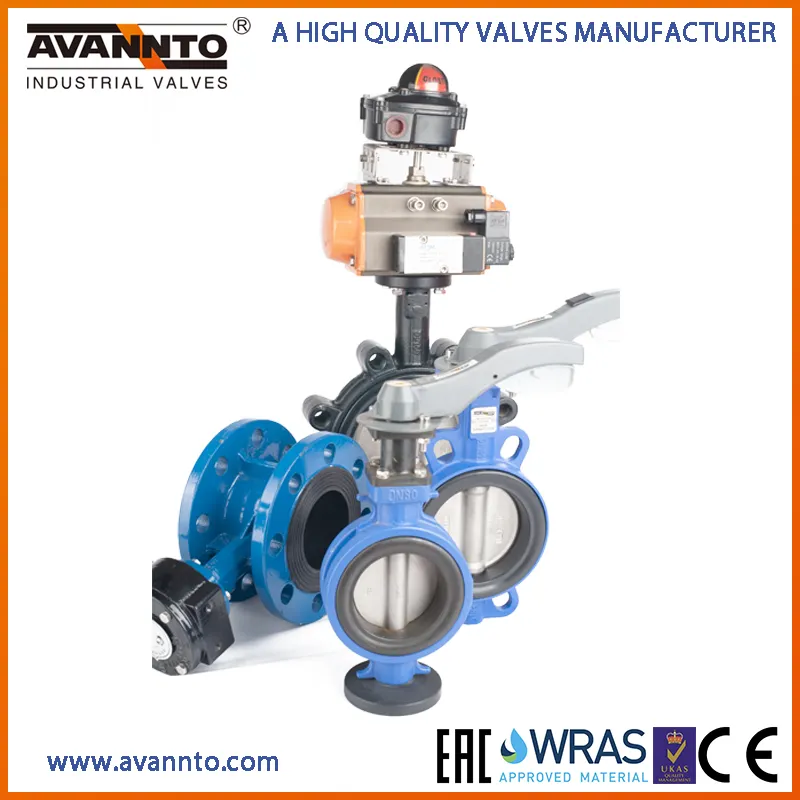

Facility 3
Shipment & Logistics
Shipment 1

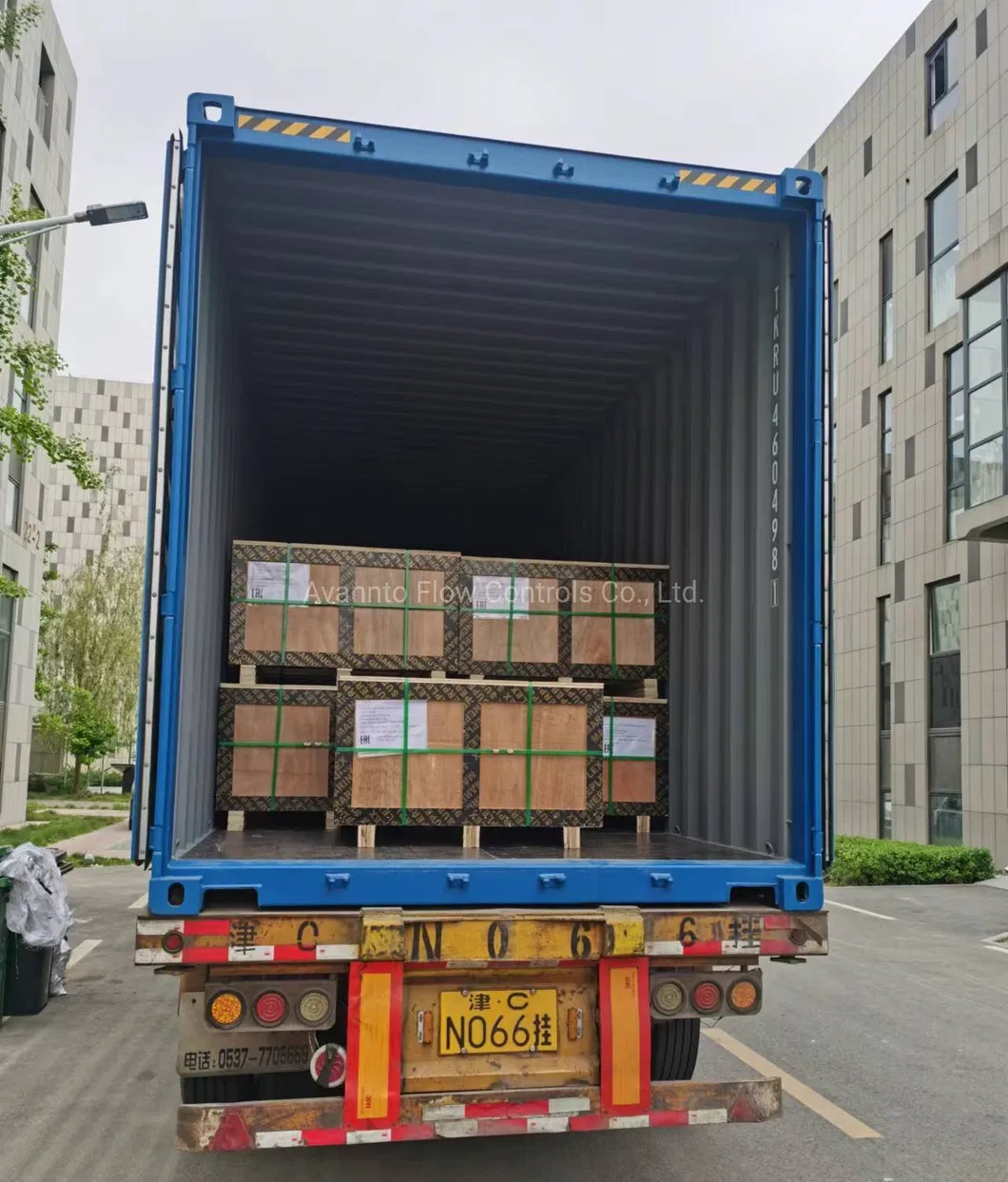

Shipment 2
Shipment 3
Exhibition
Exhibition Photo
Frequently Asked Questions
How soon can I get a price quote?
Once we know the size, material, and drive method, we can provide you with a competitive price quote within 24 hours.
Can I get a sample?
Yes, samples are available. You will need to provide a courier account number for shipping. Sample delivery usually takes 5-7 days.
Can my order be produced under my own brand?
Yes, we offer OEM services. Please provide your brand or LOGO design in .AI or .PSD format, and we can produce goods with your branding.
What is your typical delivery time?
Standard production usually takes 2-4 weeks to complete all order requirements, excluding legal holidays.
Is there a minimum order requirement (MOQ)?
Due to machine setup costs and shipping freight, our minimum order quantity is 5 pieces.
What are your terms of delivery?
We accept various terms including FOB and CIF. You can choose the option that is most convenient or cost-effective for your needs.
