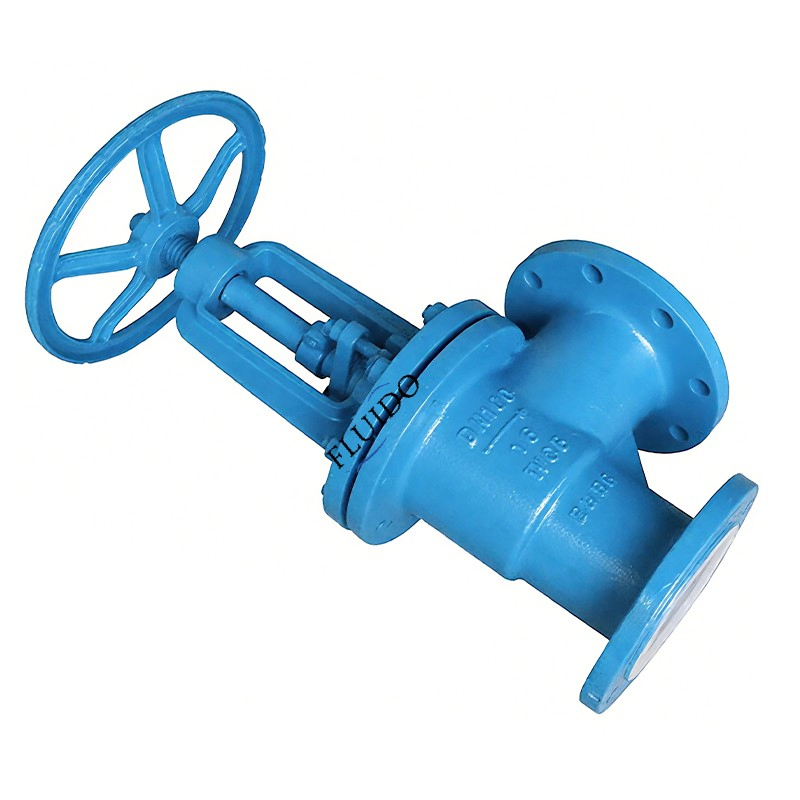

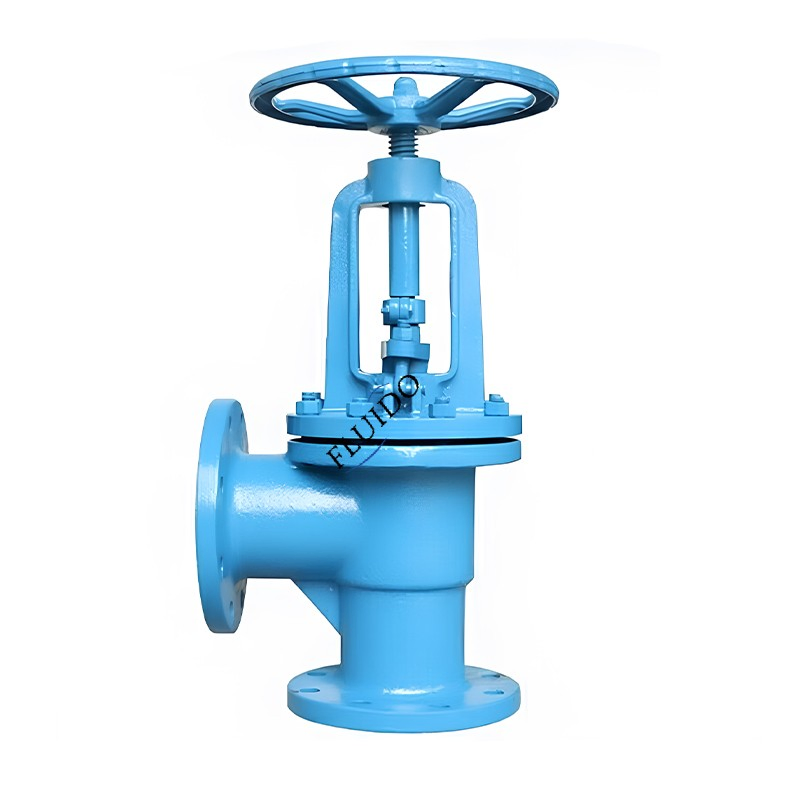

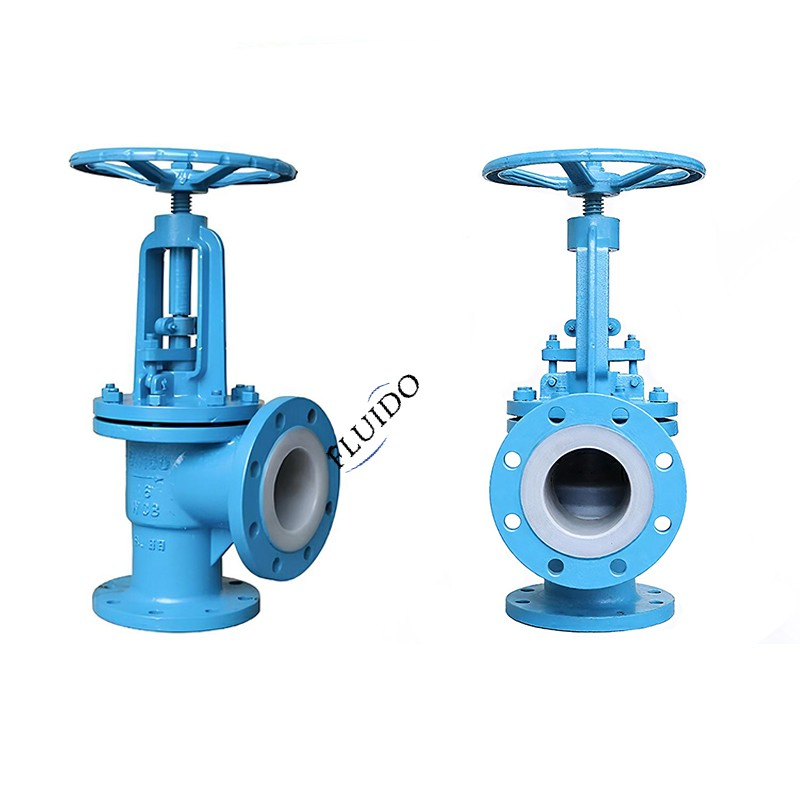

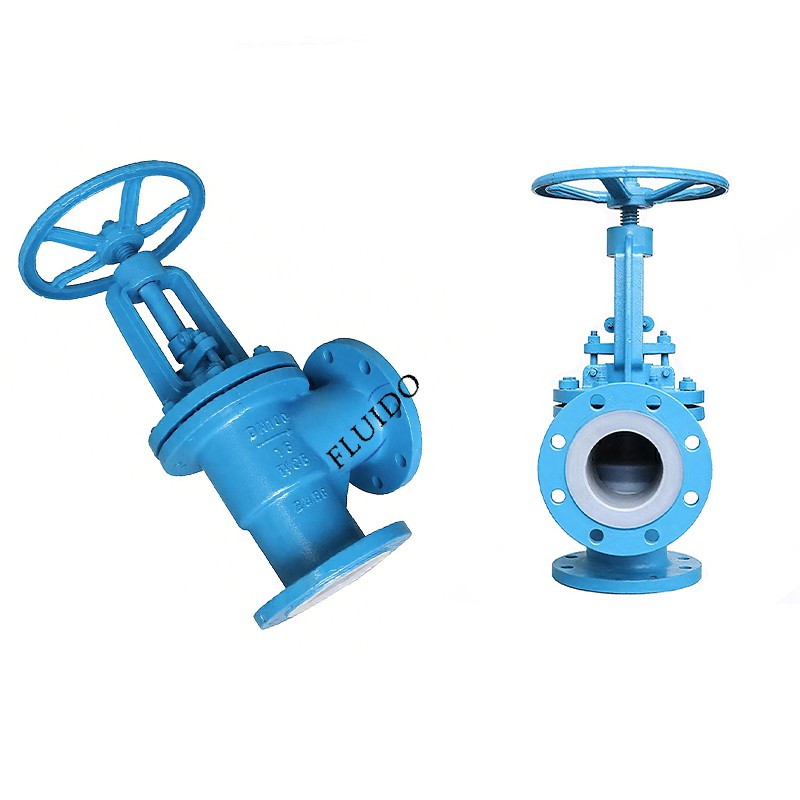

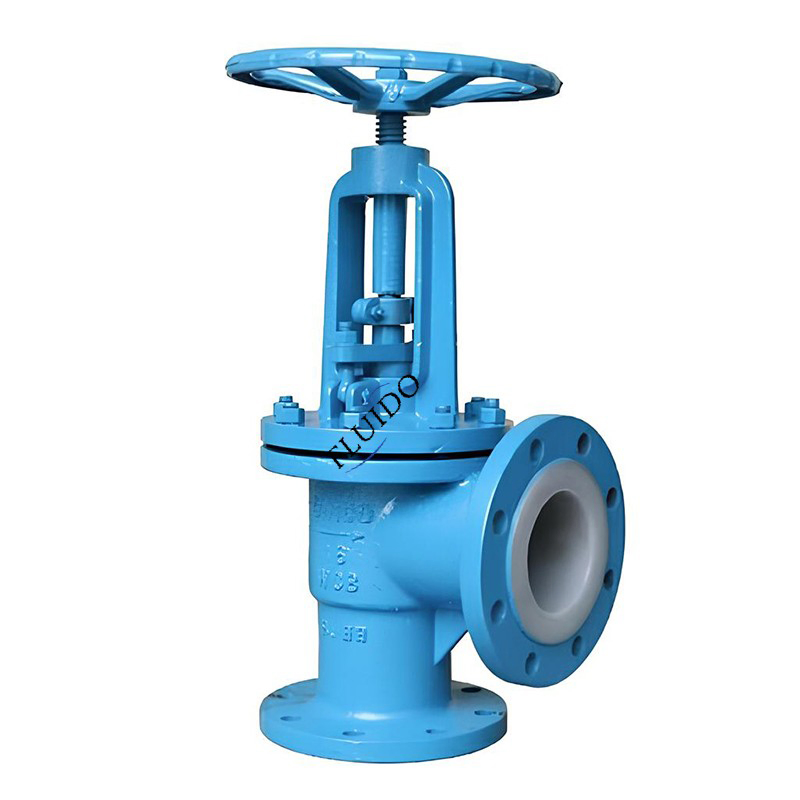

Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
1 / 5
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems
Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems

Efficient Sealing American Standard Angle Globe Valve with Special Angle Connection for Pipeline Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.

Model NO.:Special Angle Connection Valve
Actuator:Manual
Material:Iron, Steel or Stainless Steel
Structure:Angle Type Globe Valve
Working Pressure:Pn16-40
Length:DIN or ANSI Awwa
Valve Body Material:Iron, Steel Wcb or Ss SS304 SS316
Stem:Rising Stem, Non-Rising Stem
Connection Type:Flanged or Threaded
Specification:DN15-DN300

Product Description

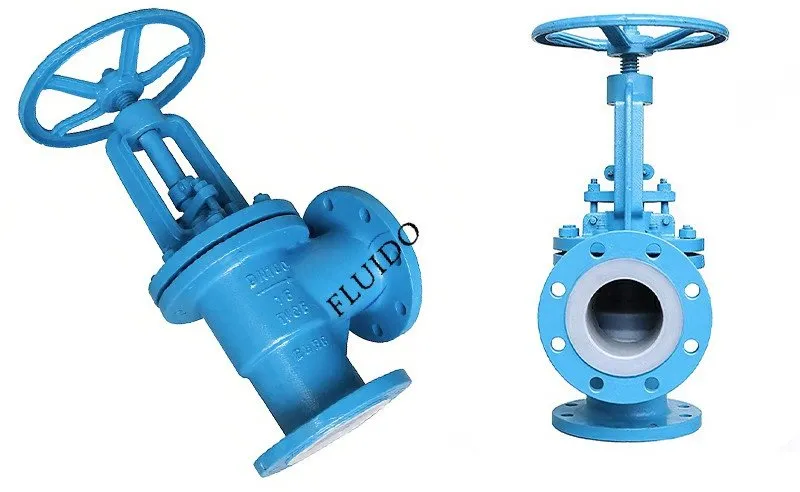

DIN Angle Globe Valve

DIN Angle Globe Valve

  • Face to face: DIN3202-F32
  • Flange drilled: DIN2532/2533
  • Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
  • Normal diameter: 1/2"~24" (DN15~DN600).
  • Pressure range: 150lbs~2500lbs (PN16~PN420).
  • Working temperature: -29℃~+560℃.

‌Angle stop valve characteristics: The valve can make the medium flowing through the valve to change lowing direction, so generating a certain pressure loss. The valve entry has been designed as pipe-connection and flat bottom.

Valve Details 1

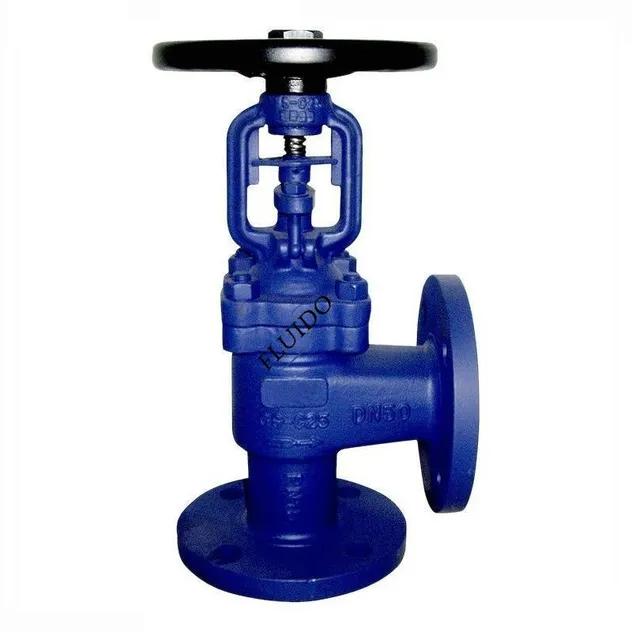

Valve Details 2

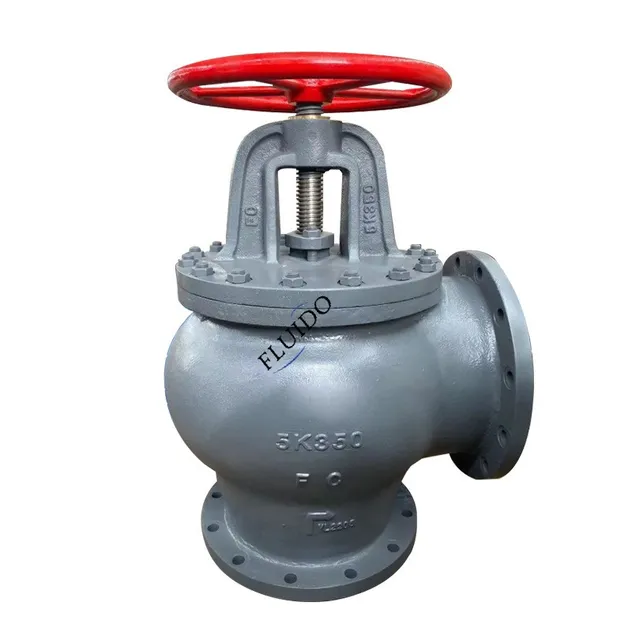

Valve Details 3

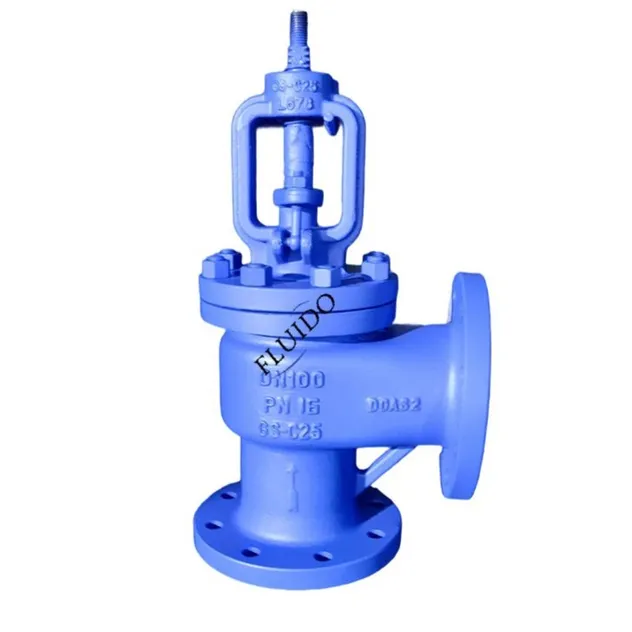

Valve Production 1

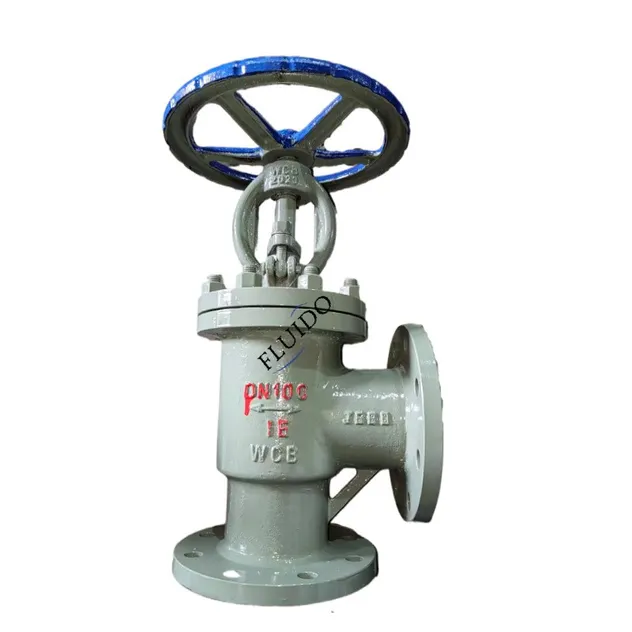

Valve Production 2

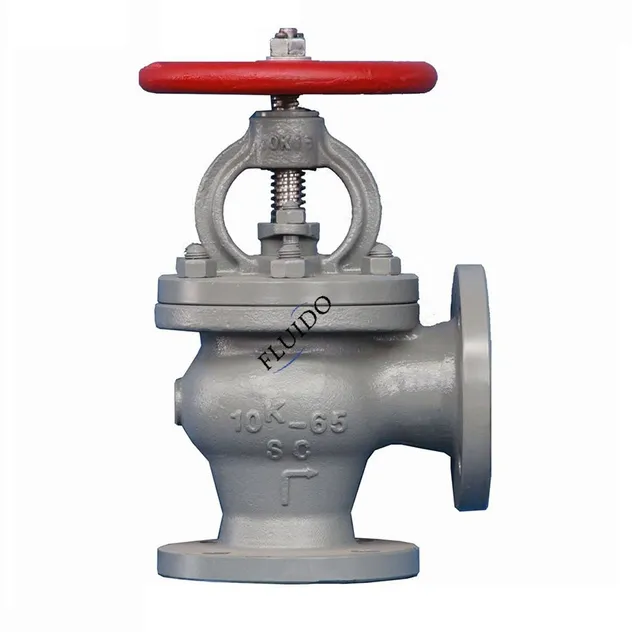

Valve Production 3

Specification & Material

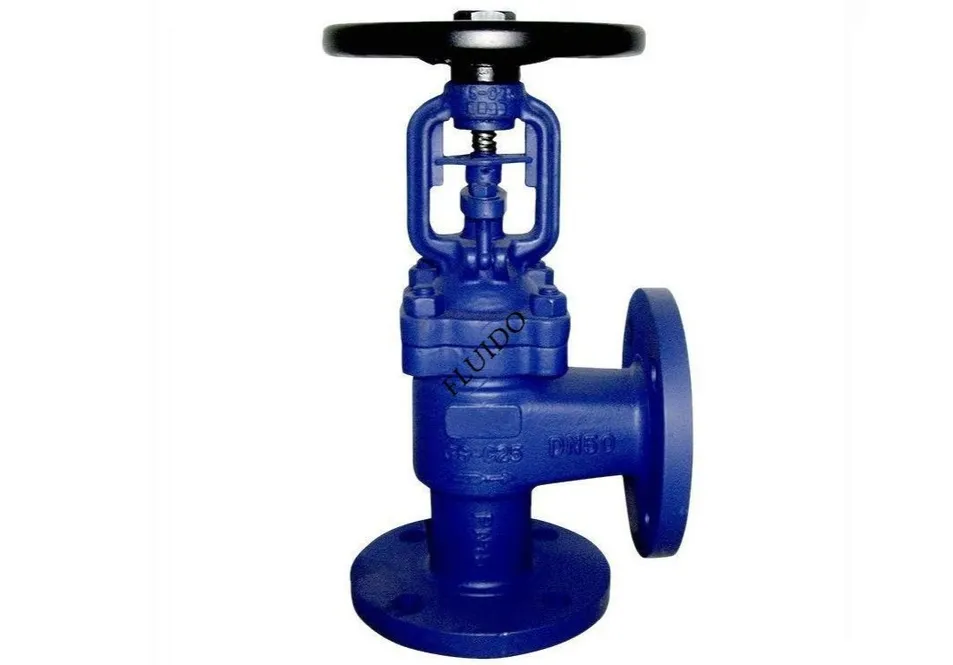

Material Diagram 1

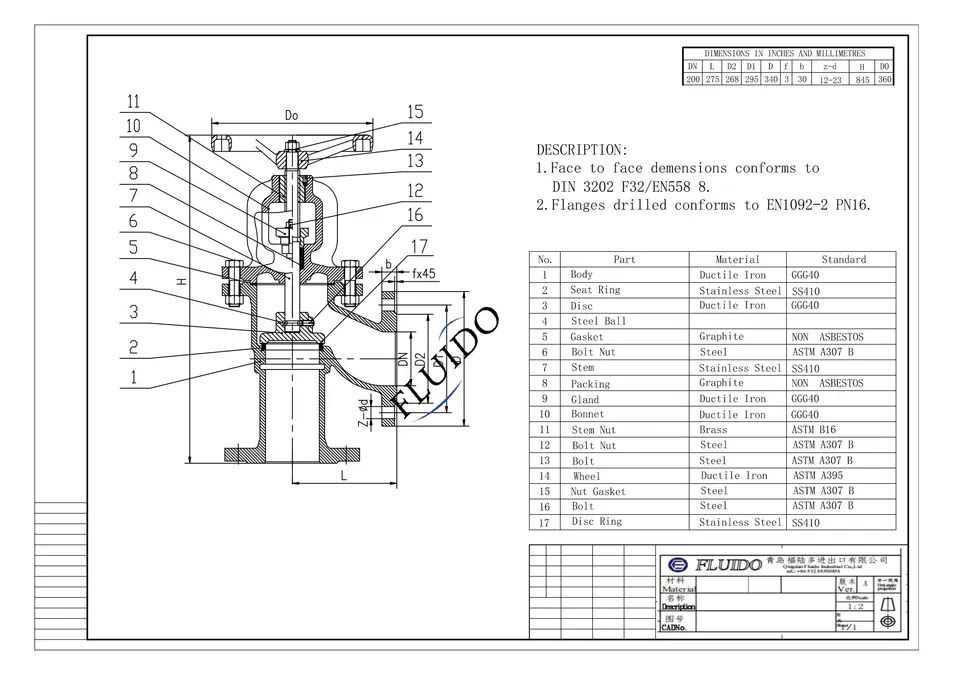

Material Diagram 2
No. Part Name Material
1BodyCast Iron
2DiscASTM A182-Gr.F6a / F22 / F304 / F316
3PinASTM A182-Gr.F6a / F22 / F304 / F316
4StemStainless Steel
5Bellow unit1Cr18Ni9Ti 304 316
6BonnetCast Iron
7PackingFlexible graphite PTFE
8GlandGS-C25 / 1.4308 / 1.4408
9Yoke nutCopper Alloy
10HandwheelWCB QT400-18
11Bolt/NutCarbon Steel
13GasketFlexible graphite+stainless steel PTFE

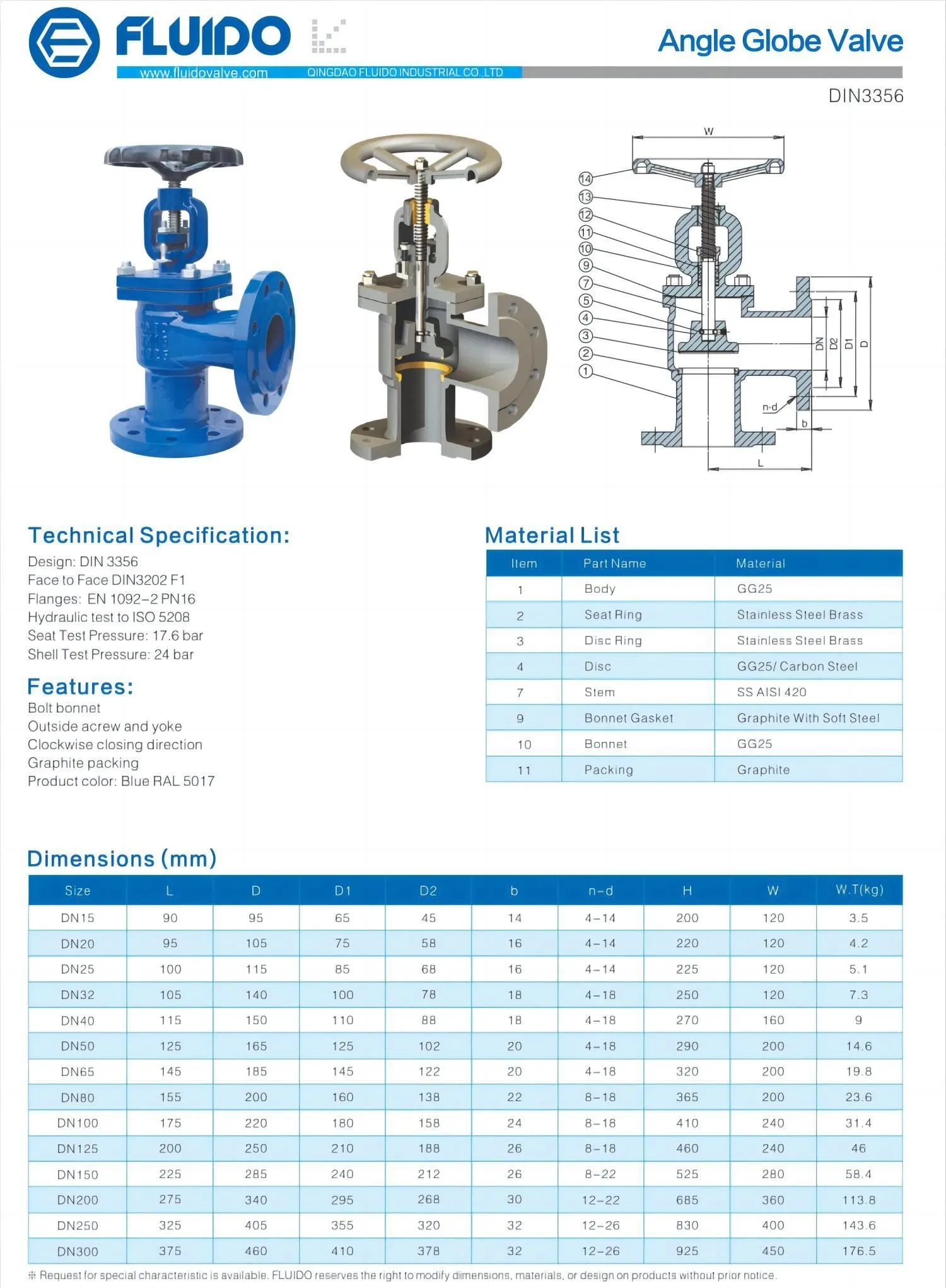

Specification Sheet

Factory Overview

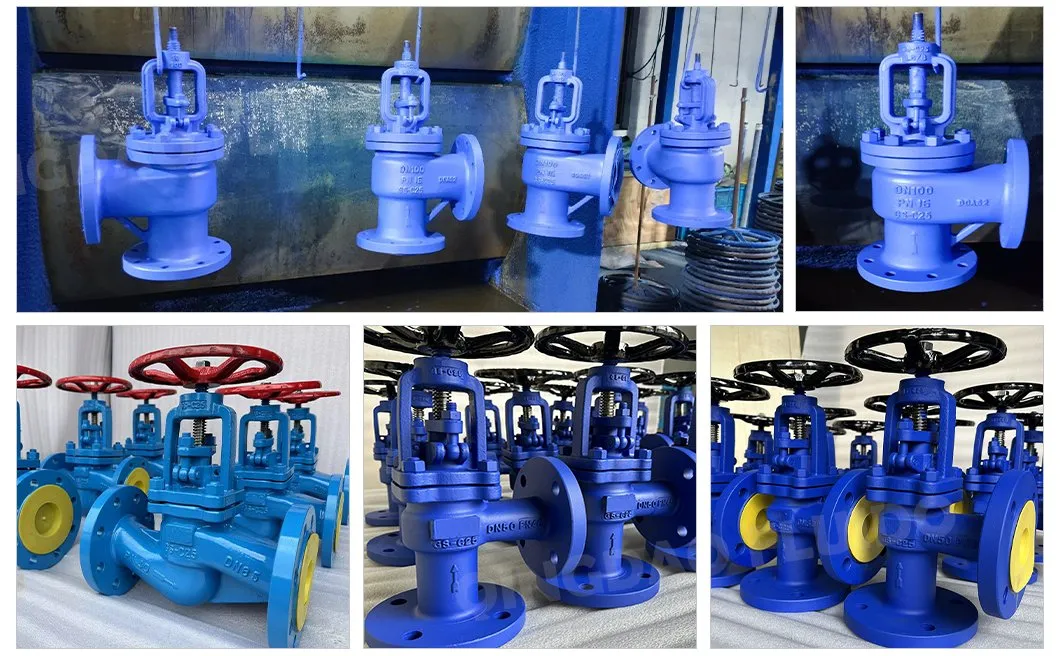

Factory Facilities

Related Products

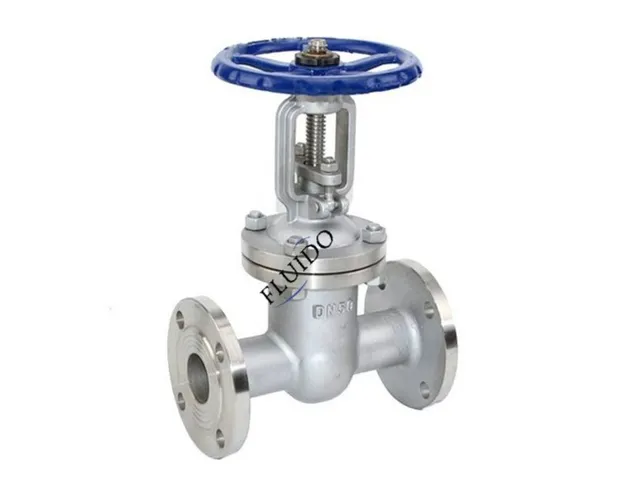

Cast Steel Gate Valve
Cast Steel Gate Valve
Cast Steel Globe Valve
Cast Steel Globe Valve

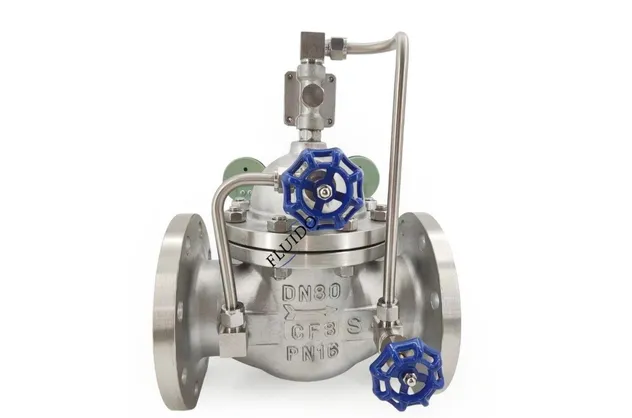

Pressure Reducing Valve
Pressure Reducing Valve
Check Valve

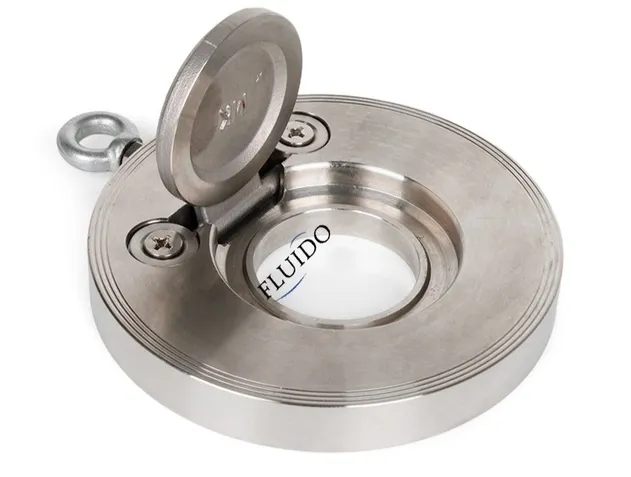

Single Disc Wafer Check Valve
Cast Steel Check Valve
Cast Steel Check Valve

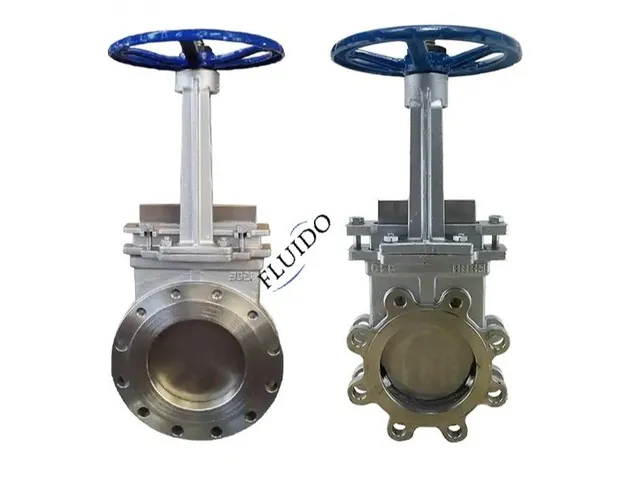

Knife Gate Valve
