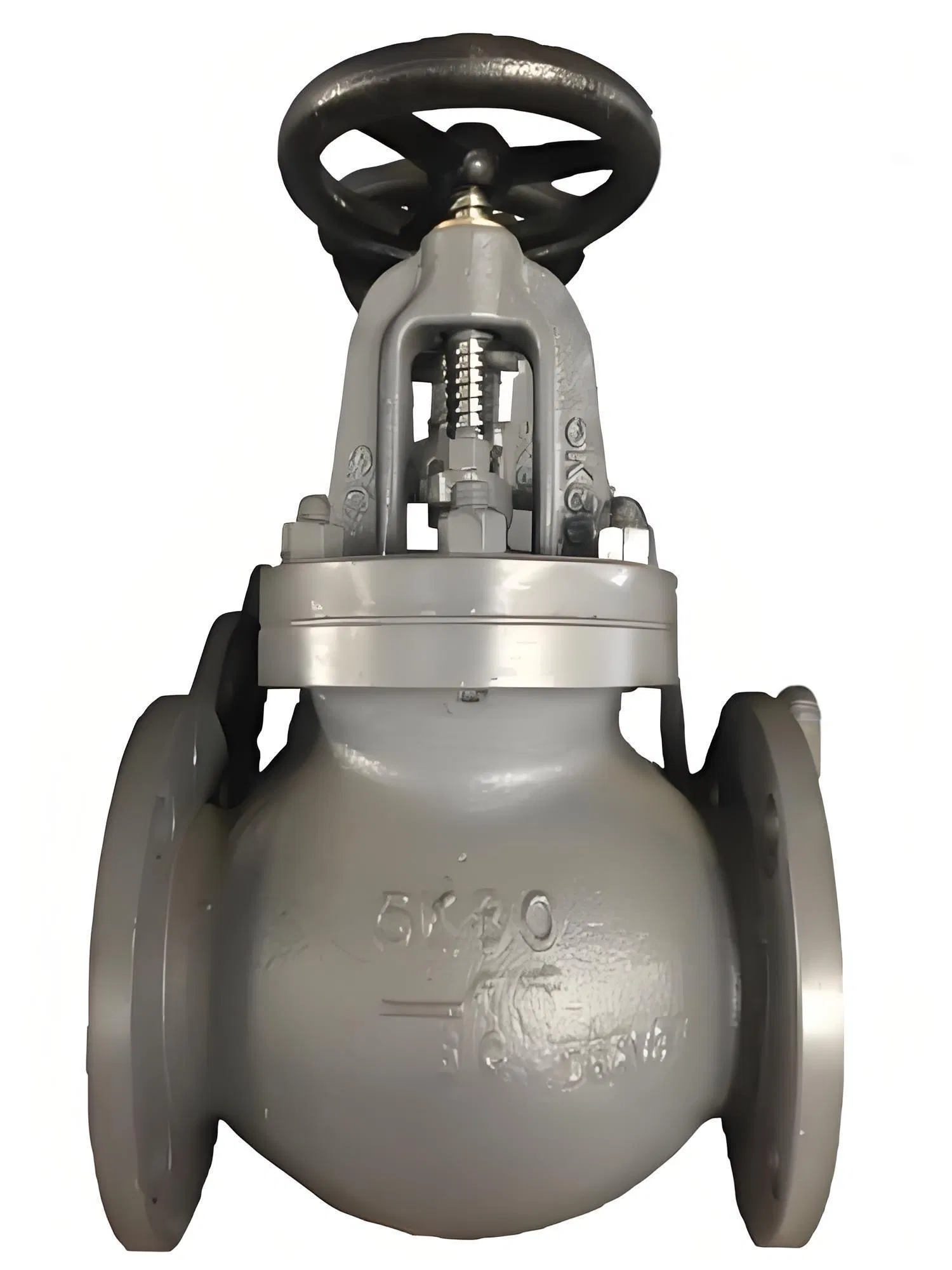

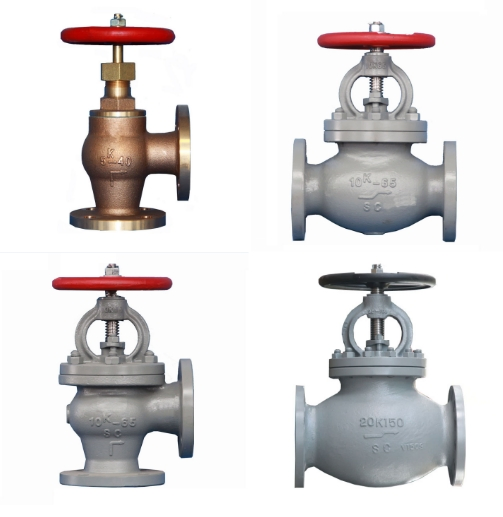

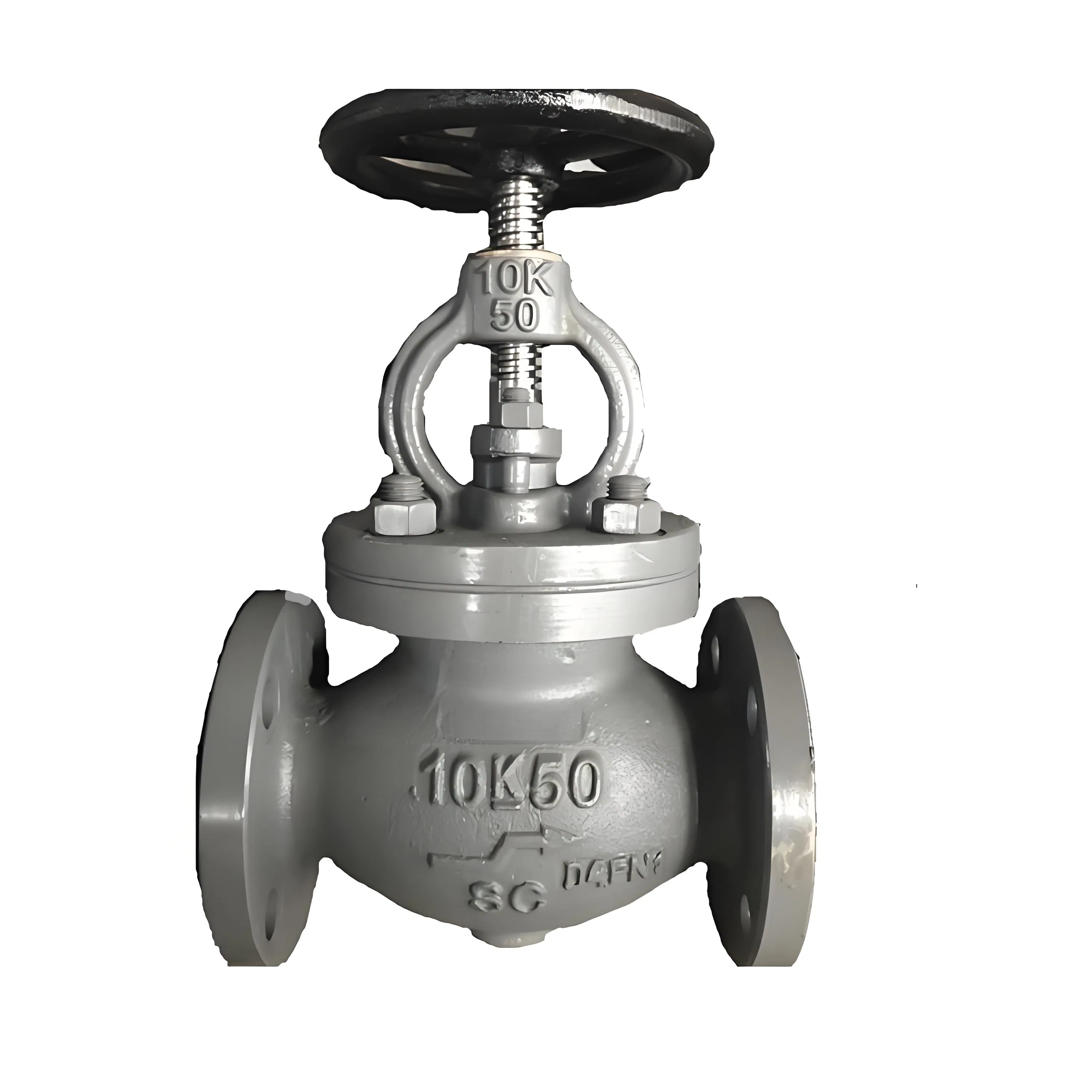

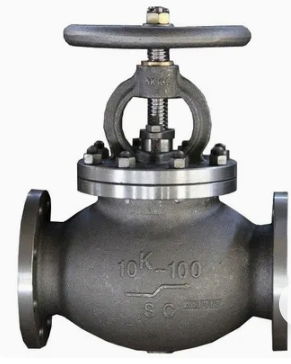

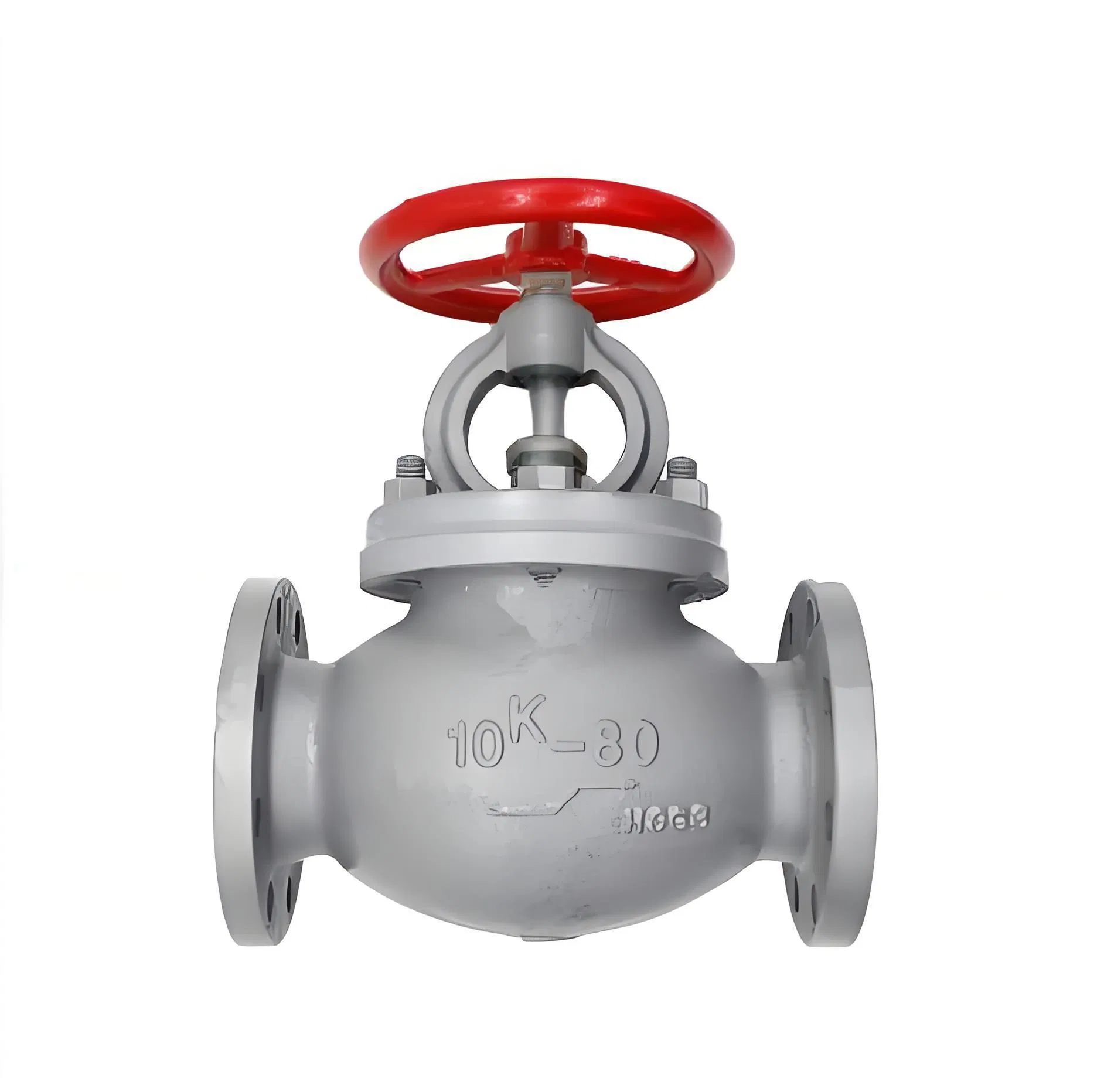

Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
1 / 5
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves
Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves

Factory JIS F7319 Cast Iron 10K-100A Screw-Down Check Globe Valves

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
JIS F7319
Actuator
Manual
Material
Cast Iron
Structure
Through Way Globe Valve
Sealing Form
Gland Packings Globe Valve
Application
Marine Usage
Standard
JIS
Capacity
100,000 Pieces/Year
Package Size
45.00cm * 45.00cm * 45.00cm
Gross Weight
18.000kg
⚓ Product Description

We support OEM with high production capacity, fast shipment, and a professional design team. Marine globe valves are linear-motion valves designed for precise flow regulation in shipboard piping systems. Unlike simple on/off valves, they allow fine-tuned throttling of liquids and gases such as seawater, fuel, and steam while maintaining reliable shutoff.

Key Features of Marine Globe Valves
  • Design Principle: Spherical body with an internal baffle forcing flow to change direction for better control.
  • Movable Disc: Uses a plug that presses against a stationary seat to regulate flow via a handwheel.
  • Accurate Adjustment: Critical for engine cooling systems, fuel dosing, and steam lines.
  • Corrosion Resistance: Made from Bronze, stainless steel, or duplex alloys for harsh marine environments.

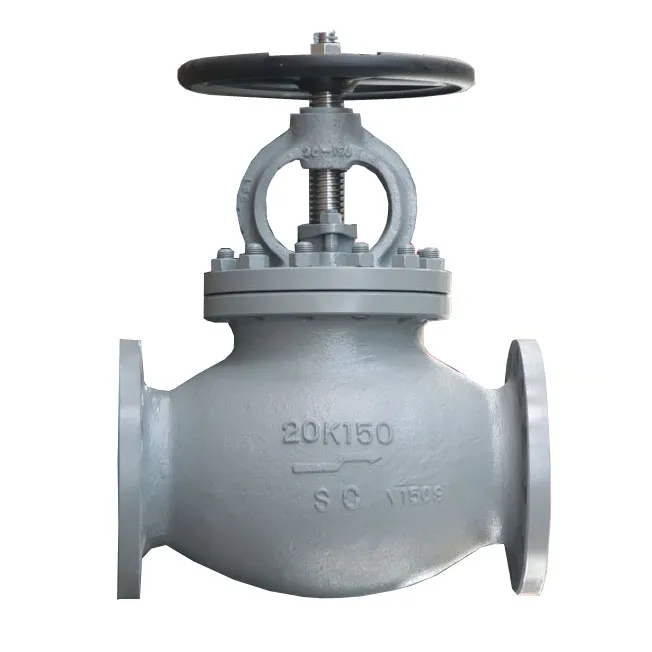

Marine Globe Valve View 1

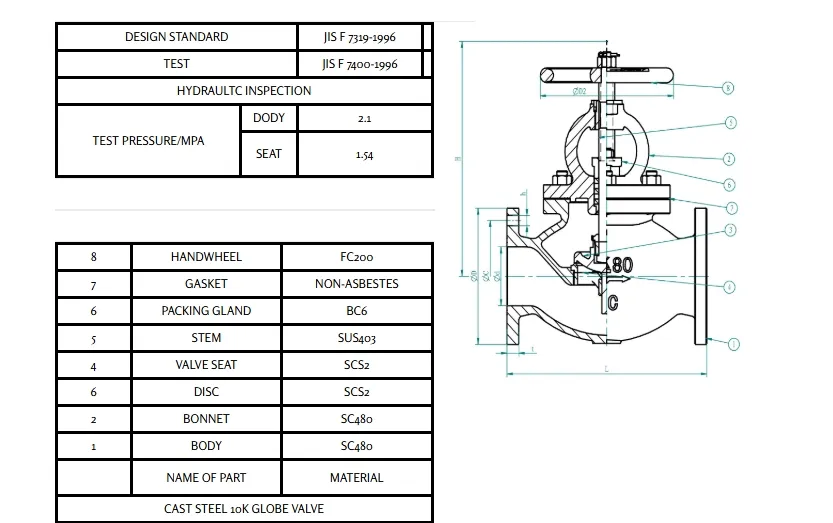

Marine Globe Valve View 2
Marine Valve Comparison Guide
Valve Type Primary Function Best for Marine Use When...
Globe ValveThrottling/Flow controlPrecise adjustment needed (e.g., cooling systems)
Gate ValveFull on/off (low resistance)Main seawater intake (minimal pressure drop)
Ball ValveQuick on/off operationFuel tank isolation (fast shutoff)
Check ValvePrevent backflowBilge pumps, overboard discharges
⚙️ Technical Specifications
Material Components
No. Part Material
1BodyDuctile iron GGG40
2BonnetDuctile iron GGG40
3Seat ringBronze Rg5
4DiscBronze Rg5
5StemSpecial brass / SUS
6HandwheelCast iron
7GlandpackingGraphite
Dimensions & Sizes (JIS F7319)
Product Code DN L (mm) D (mm) nxd Hcd
F7319502201554x19120
F7319652701754x19140
F7319803001858x19150
F73191003502108x19175
F73191504902808x23240
F731920057033012x23290
🏭 Workshop & Production

Our production facilities include an 8,000 square meter workshop equipped with specialized machinery for design, mold development, casting, processing, assembly, and testing. We manage lathes, CNC machines, and painting assembly lines to ensure high-quality output and short delivery times.

Production Process

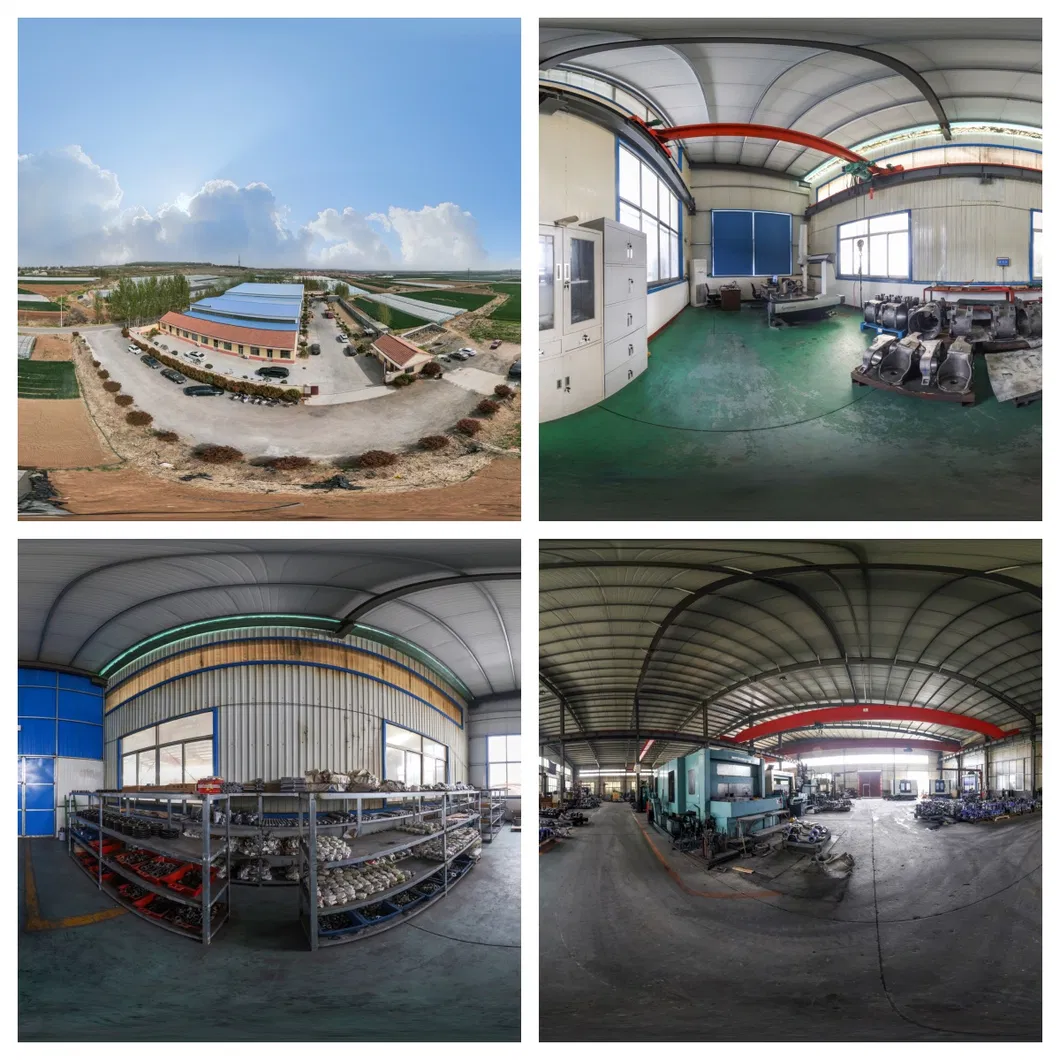

Workshop Machine

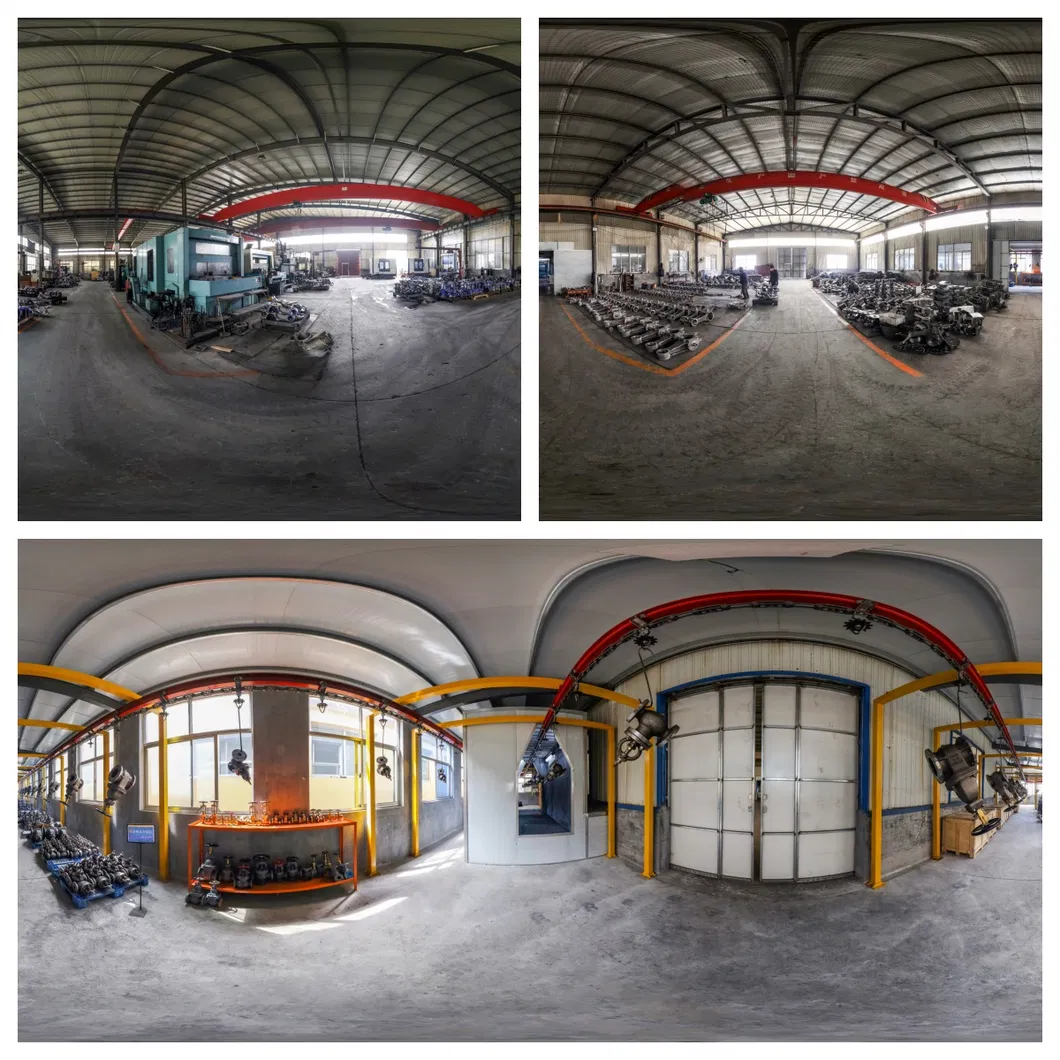

Factory Floor

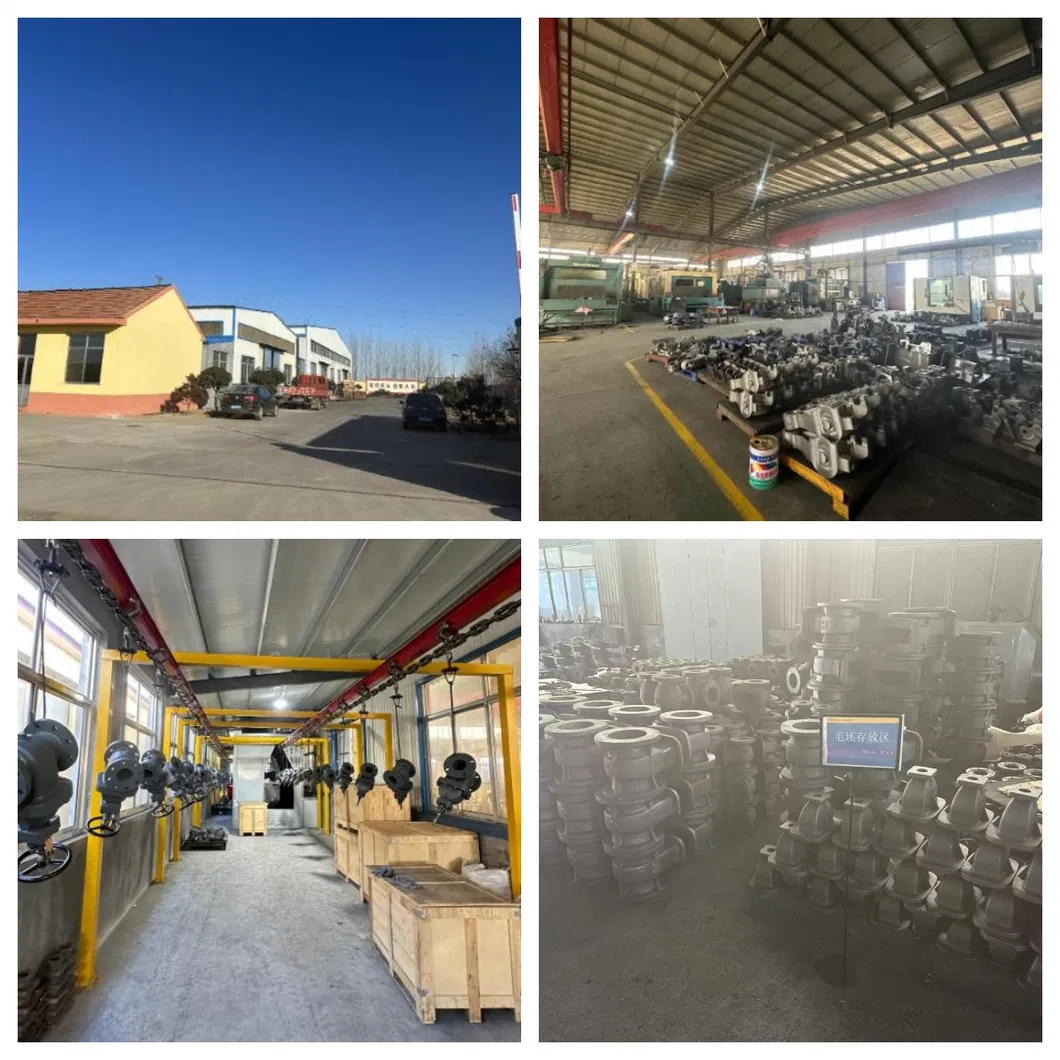

Finished Product Storage

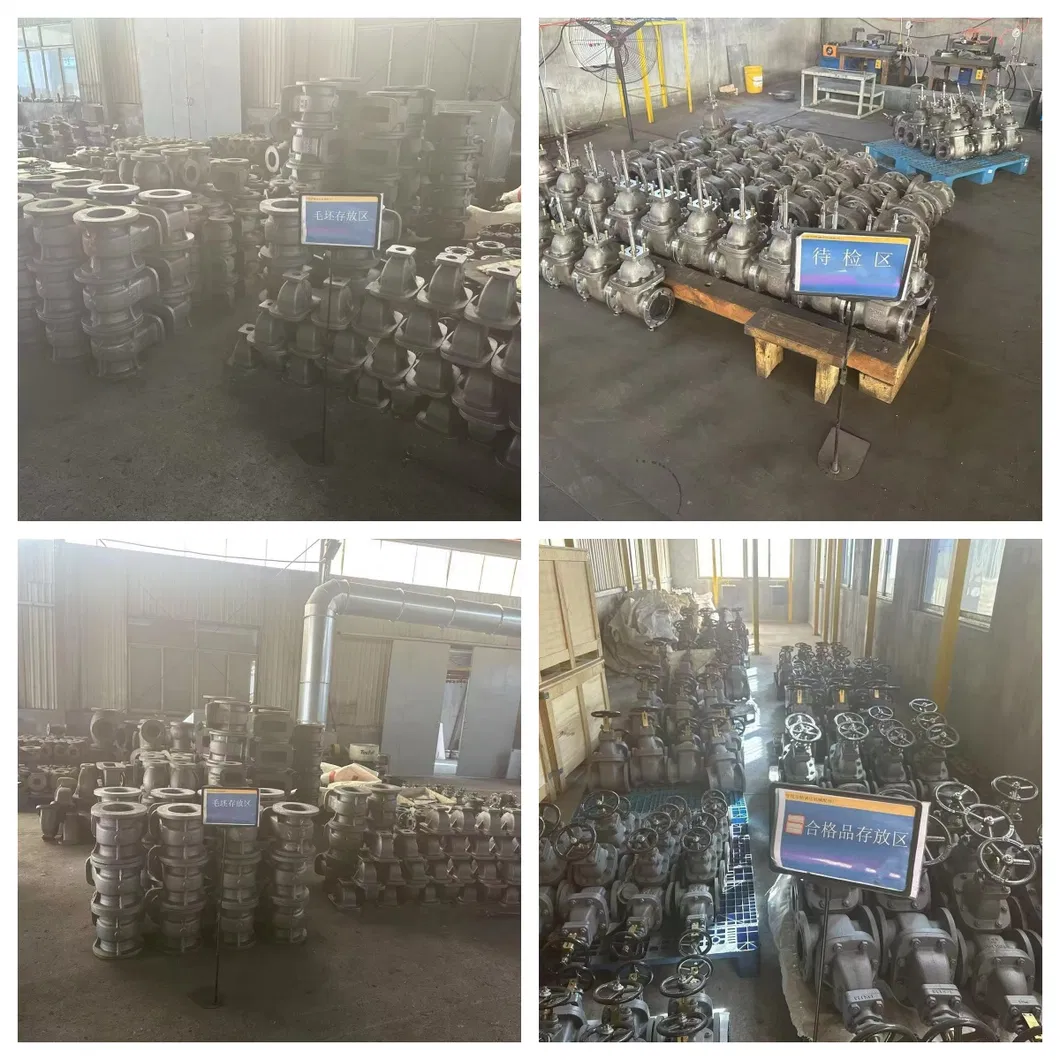

Valve Testing

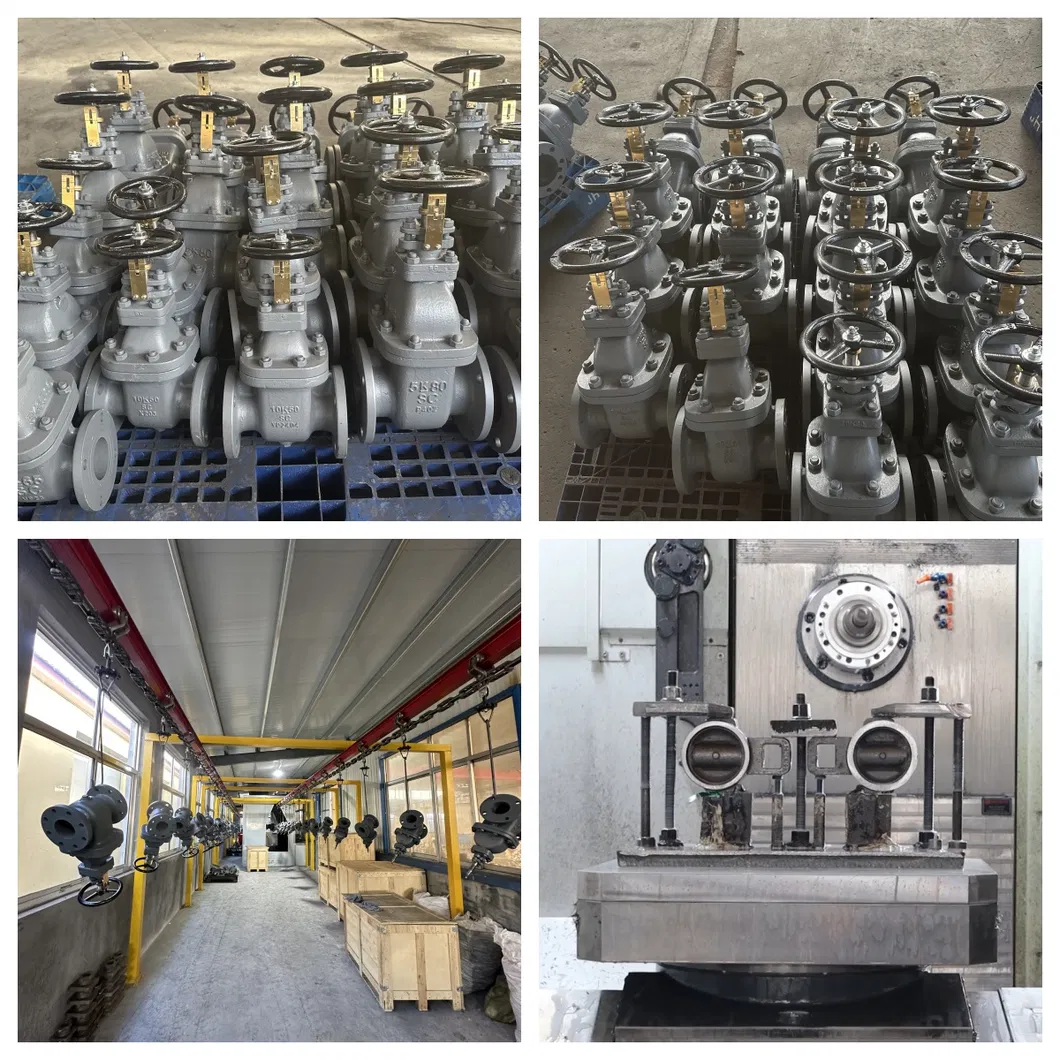

Quality Control
⭐ Our Advantages
  • Complete Production Line: All processes are handled in-house to save costs and offer competitive pricing.
  • Flexible Scheduling: Own workshop allows for more flexible control of delivery timelines.
  • Quality Assurance: Strict quality control in every step of the production line.
  • Certifications: Class Approval Certifications available for marine applications.
  • Post-Sale Guarantee: Reliable quality guarantee after sale.
📦 Packaging & Shipping

Valves are securely packed in plywood boxes to ensure safety during sea or express transport.

Plywood Box Packaging
Frequently Asked Questions (FAQ)
What standards do your marine valves follow?
Our products are manufactured according to JIS (Japanese), DIN (German), GB (National), and BS standards to meet global marine requirements.
Can you provide customized OEM support?
Yes, we provide full OEM services. Customers can provide their own drawings or logo requirements, and we can handle the production accordingly.
How long is the typical delivery time?
For items in stock, delivery is usually within 3 days. For custom or non-stock orders, it typically takes 35 days depending on the quantity.
What are the primary materials used in your globe valves?
We use high-grade materials like Ductile Iron GGG40, Bronze Rg5, and Graphite for sealing to ensure durability and seawater resistance.
Do you provide samples before bulk ordering?
Yes, we offer samples for quality evaluation and technical verification prior to large-scale production.
What type of packaging is used for international shipping?
We use professional plywood box packaging to prevent damage and ensure the valves remain in perfect condition during sea or air transport.
