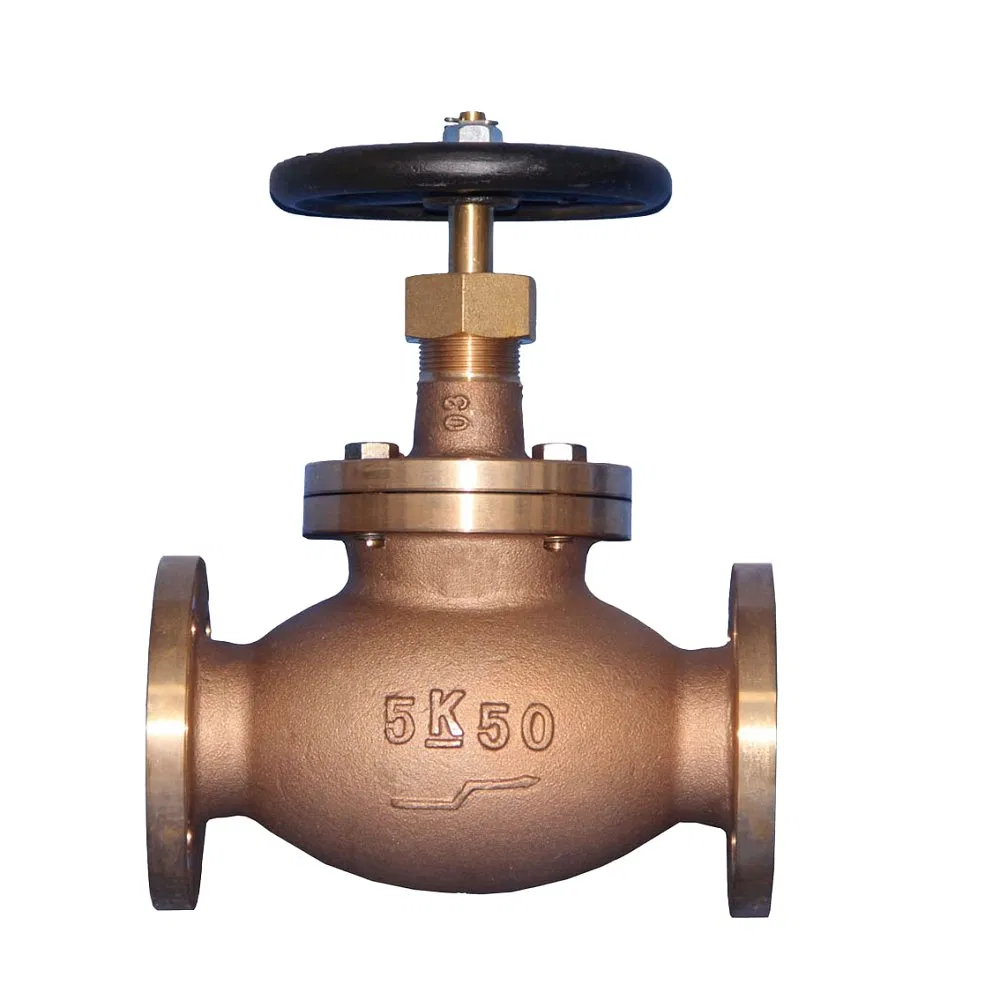

Marine Valve JIS F7351 Bronze 5K 65 Screw-Down Check Globe Valve

1 / 5

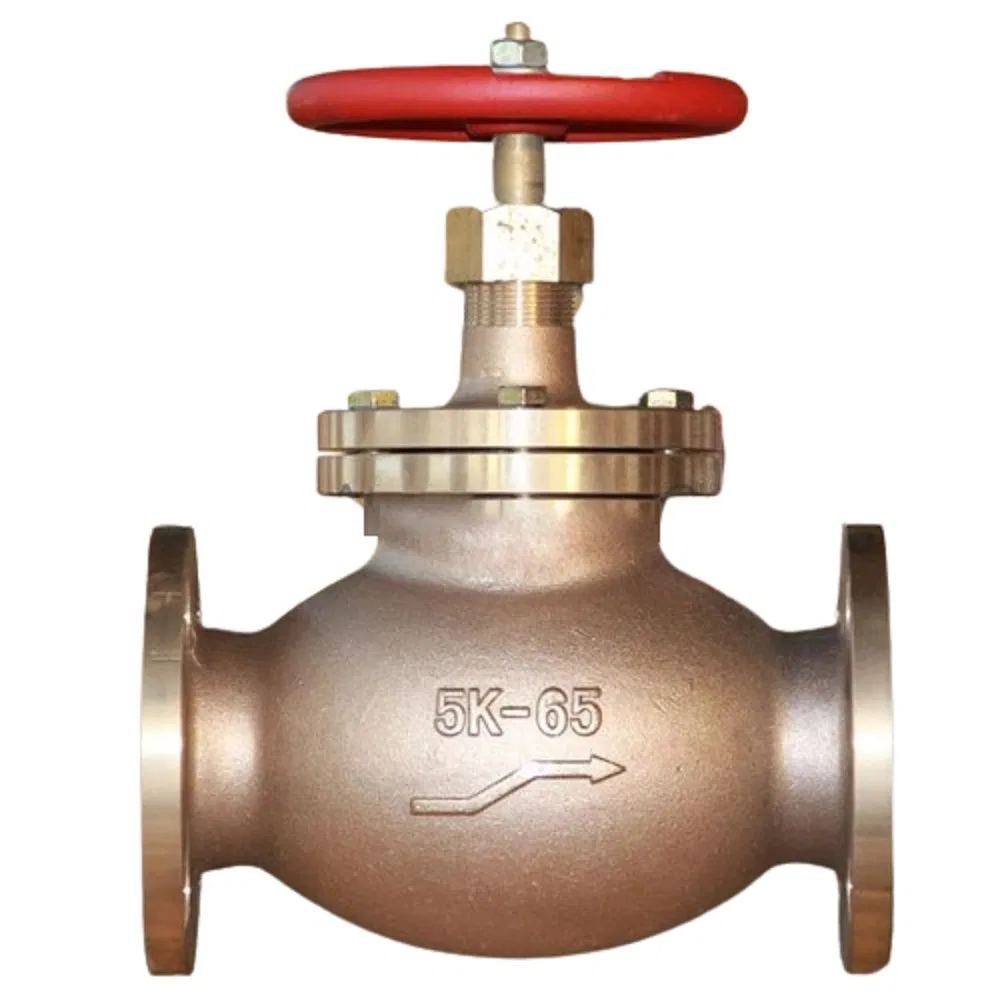

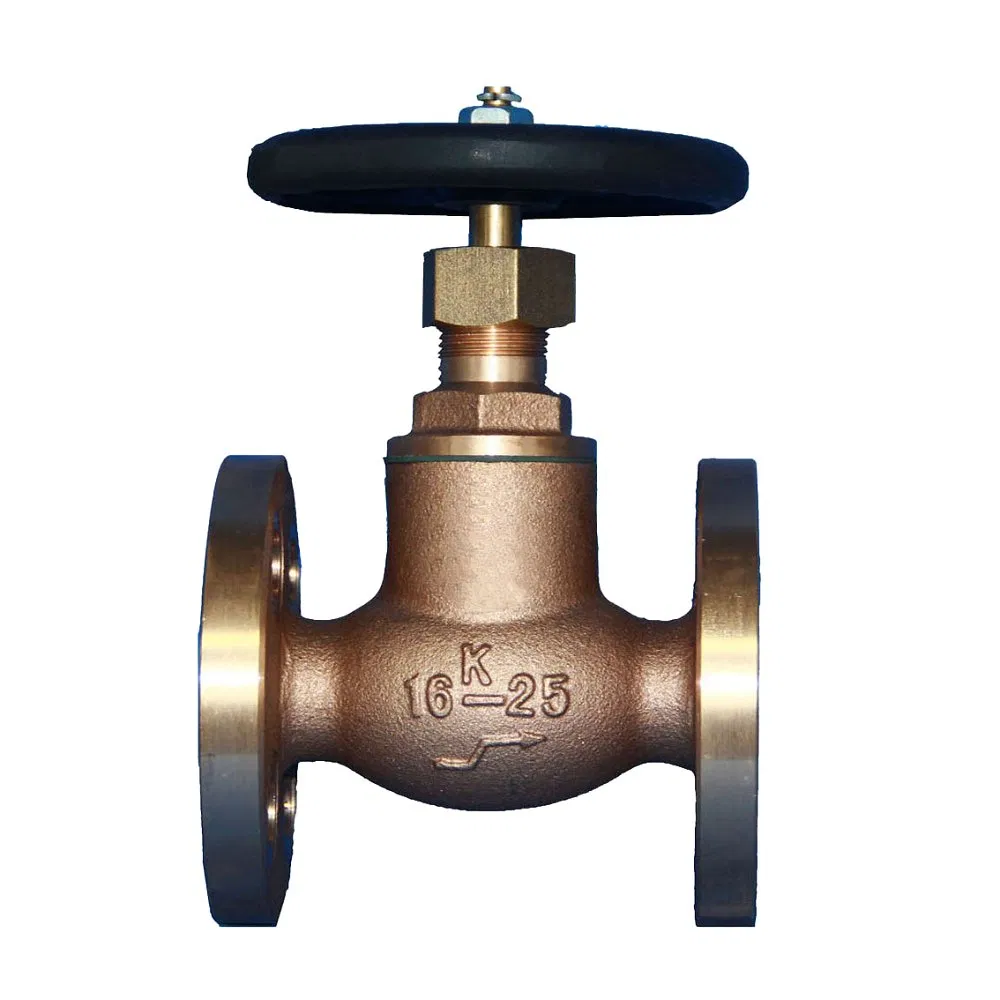

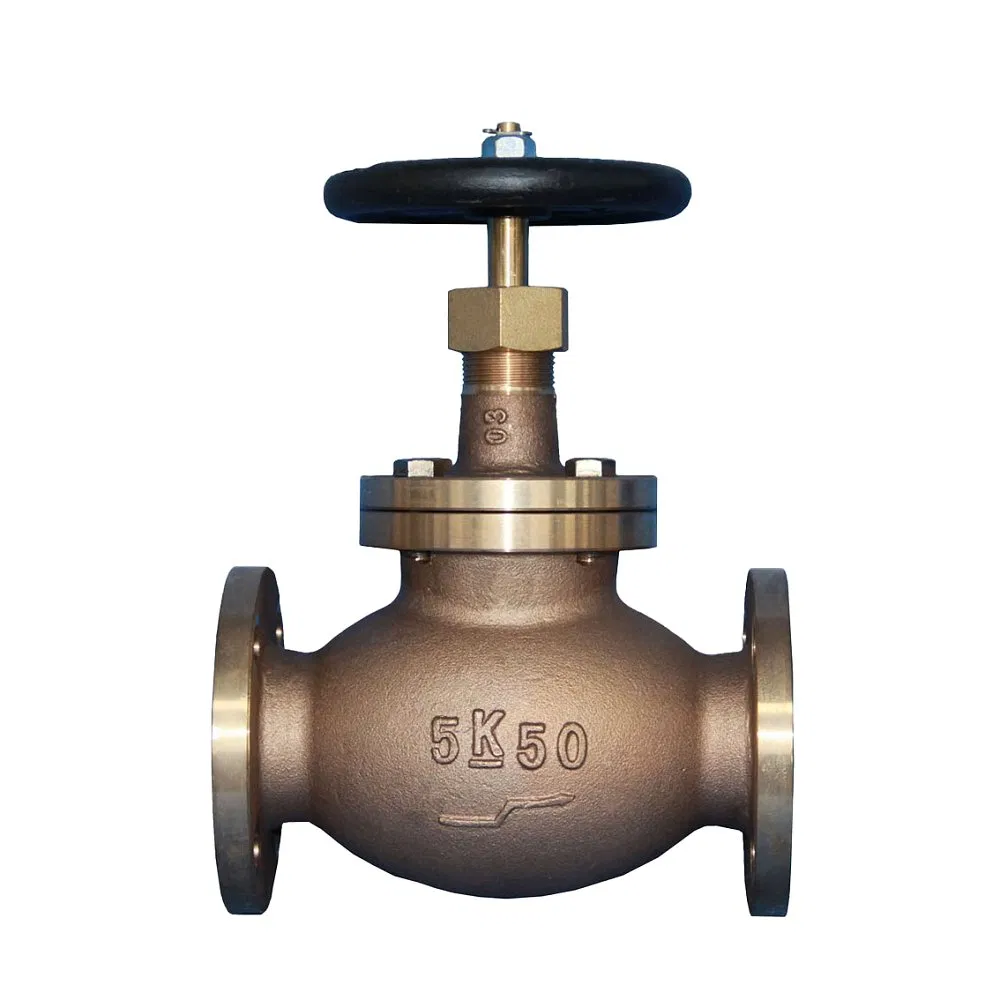

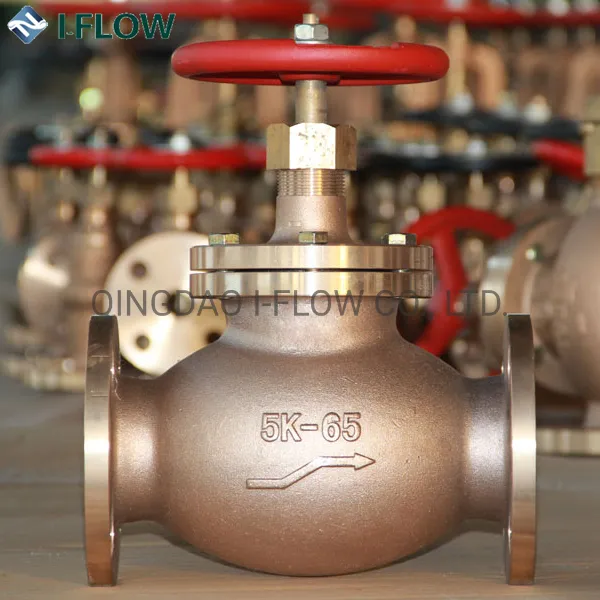

Marine Valve JIS F7351 Bronze 5K 65 Screw-Down Check Globe Valve

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

F7351

Actuator

Manual

Material

Brass and Bronze

Structure

Through Way Globe Valve

Sealing Form

Gland Packings Globe Valve

Stem Thread

Outside Screw Stem

Application

Cryogenic Globe Valve

Standard

DIN, GB, ANSI, BSW, JIS

Product Name

JIS F 7351 Bronze Check Globe Valve

Connection

Flange Ends

Certificate

ISO9001:2008 CE

Production Capacity

5000pieces/Month

Design Standard & Test

DESIGN STANDARD	JIS F 7351-1996
TEST	JIS F 7400-1996
HYDRAULTC INSPECTION	Body: 1.05 MPA / Seat: 0.77-0.4 MPA

Technical Specification

Part No.	Name of Part	Material
5	HANDWHEEL	FC200
4	STEM	C3771BD OR BE
3	DISC	BC6
2	BONNET	BC6
1	BODY	BC6

Pressure	5K, 10K, 16K
Size	DN15 - DN300
Material	Cast iron, cast steel, forged steel, brass, bronze
Type	Globe valve, angle valve
Media	Water, Oil, Steam

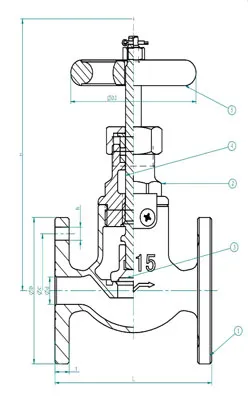

Dimensions Data (mm)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	80	60	4	12	9	155	80
20	20	110	85	65	4	12	10	165	100
25	25	120	95	75	4	12	10	185	125
32	32	140	115	90	4	15	12	195	125
40	40	160	120	95	4	15	1	210	140

Product Showcase

Frequently Asked Questions

Can I have a sample order for the valve?

Definitely Yes. We welcome your sample order for test and quality check. Mixed samples are acceptable.

Can you provide OEM or ODM service?

Yes, we have a professional research & development team. The products can be manufactured as per your request.

What relevant documentation and certificates can you provide?

We can provide ISO 9001:2000, CE certification, DNV, LR, CCS, and FM/UL certifications. Test reports, material analysis, and Certificates of Origin are also available.

What is the average lead time for production?

For samples, delivery is 2-5 days. For batch production, lead time is 15-60 days after deposit and drawing approval. We provide status updates every two weeks.

What are your terms of delivery and shipping methods?

We accept EXW, FOB, CIF, DAP, etc. Goods are usually shipped in sea-worthy plywood cases by sea, though train and air delivery are optional.

How do you handle after-sales service?

We provide a 12-month warranty from shipment and are responsible for all quality problems. Longer warranty periods can be discussed based on detailed requests.
