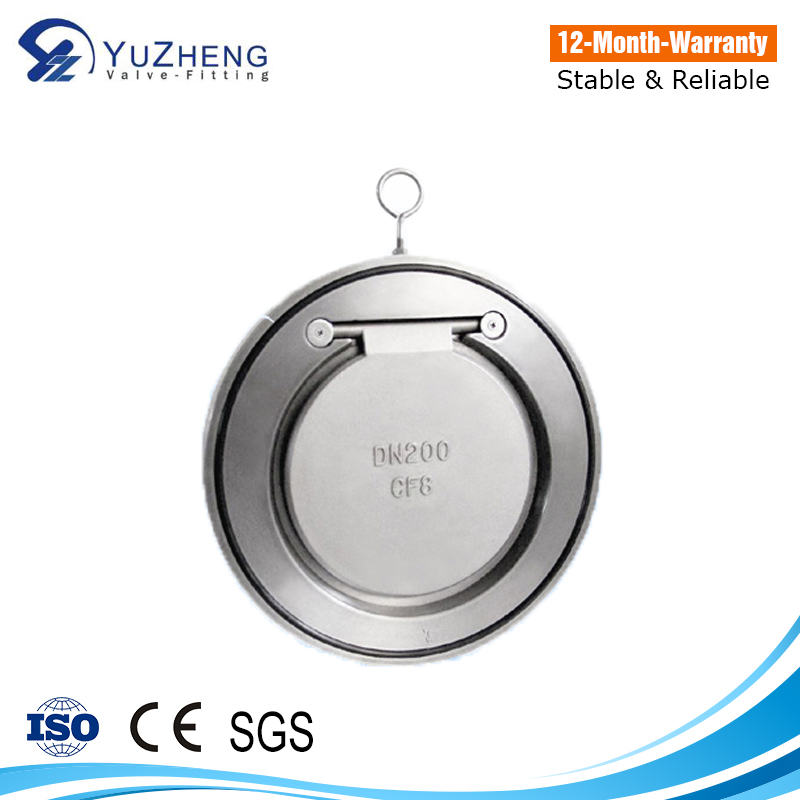

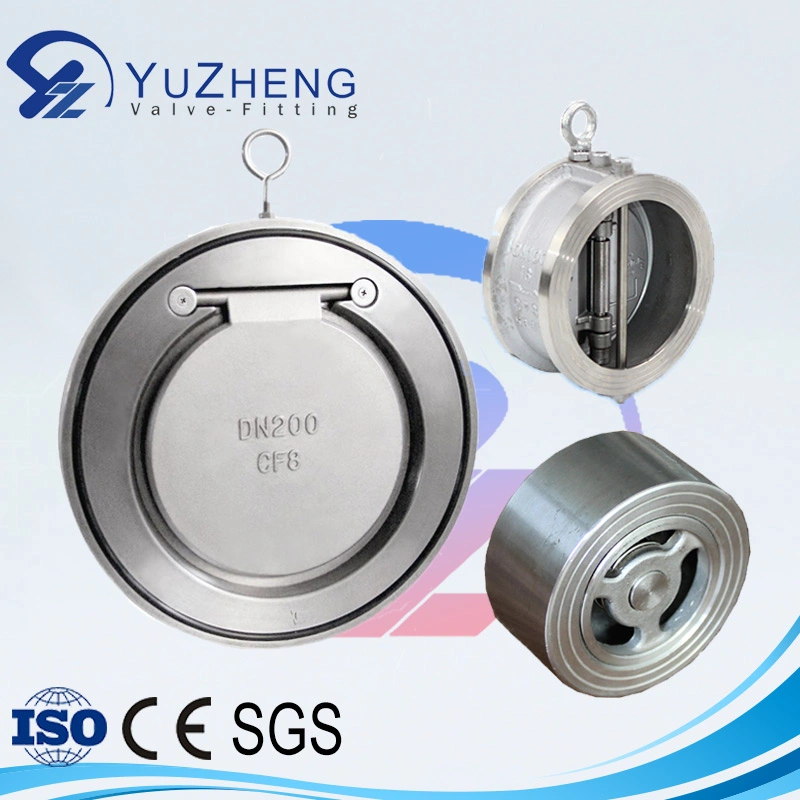

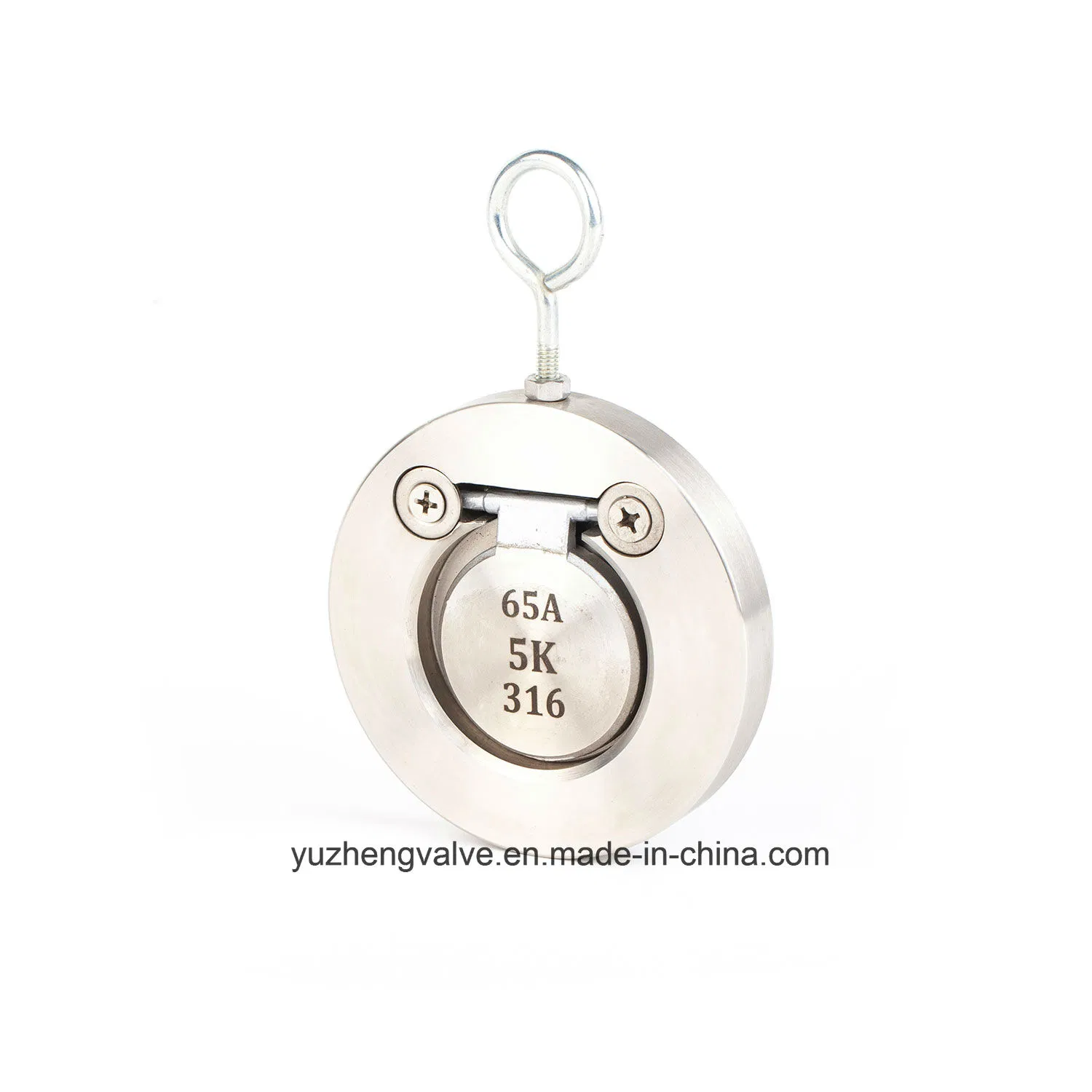

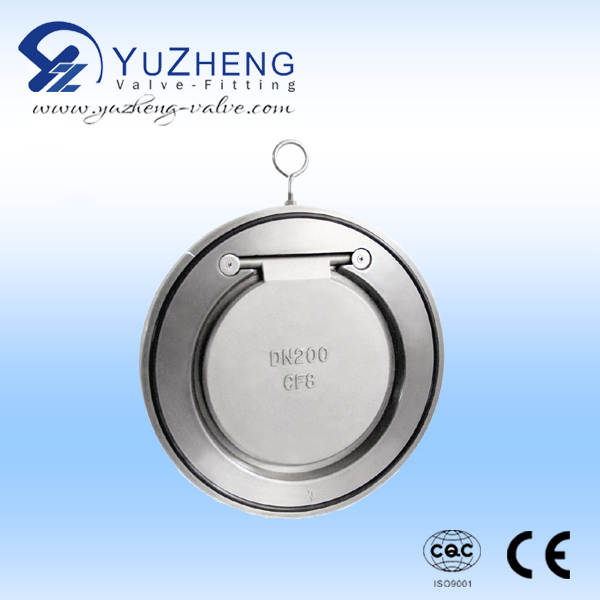

What is Check Valve: A check valve, clack valve, non-return valve or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. Available in a wide range of sizes, check valves generally are very simple and efficient. They work automatically and most are not controlled by an external control, hence they do not have a valve handle or stem. The bodies of most check valves are made of metal or plastic.
Type: H74W-PN16/PN25/PN40
Size: DN15-DN600
Body Material: 304/316/CF8/CF8M

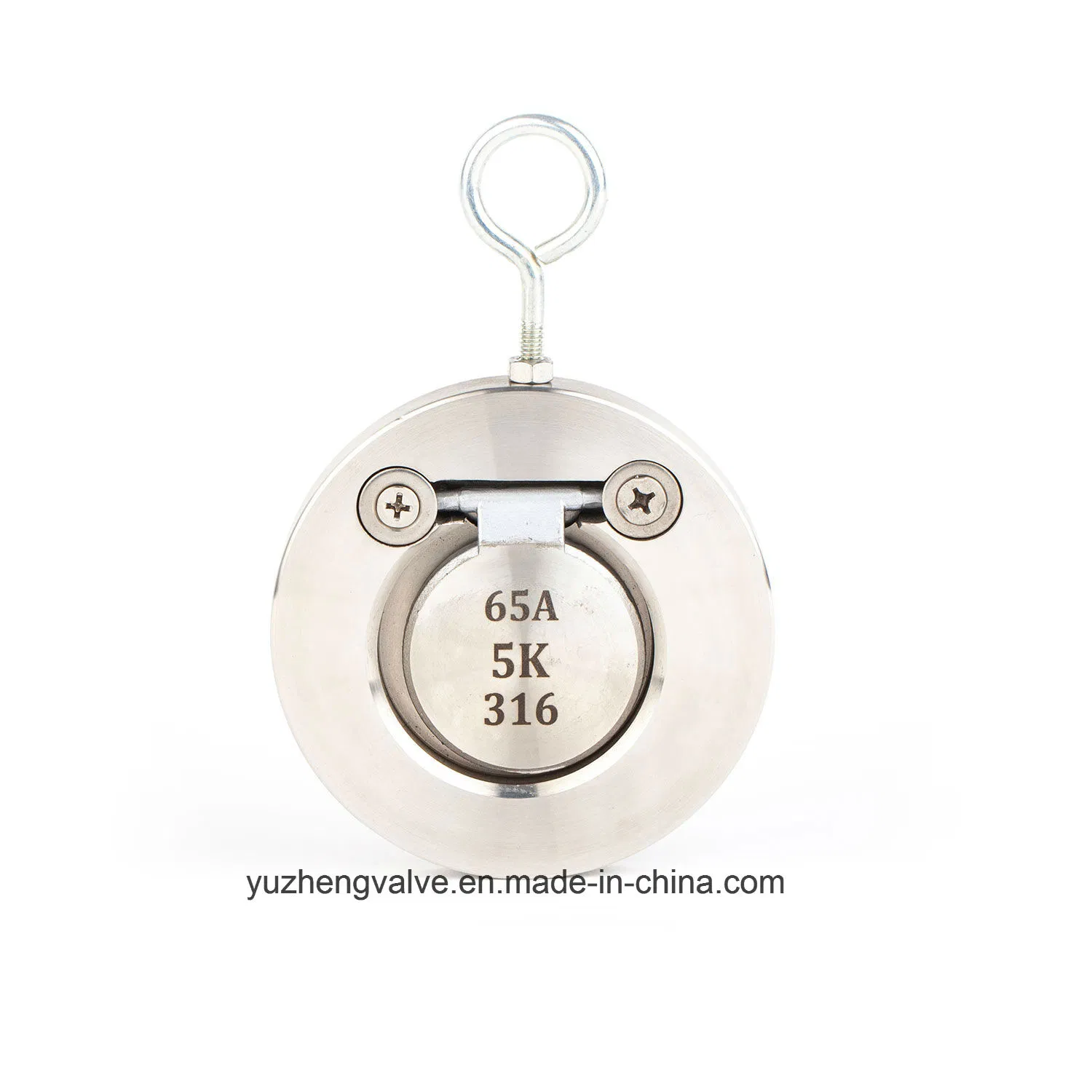

| Product Name | Stainless Steel Check Valve |
| Material | 304/316/CF8/CF8M |
| Size Range | DN15-DN200 |
| Certificate | ISO9001: 2000, CE |
| Working Pressure | PN16/PN25/PN40/150LB/300LB |
| Connection Ends | Thread/Wafer |
| Suitable Medium | Water, gas, air and some corrosive liquid |
| Temperature Range | -20 to 300 degree C |
| Sealing | Metal Seat (304/316) |
| Quality Standard | 100% leakage tested at 100 psi air under water |
| Guarantee Period | 18 months |

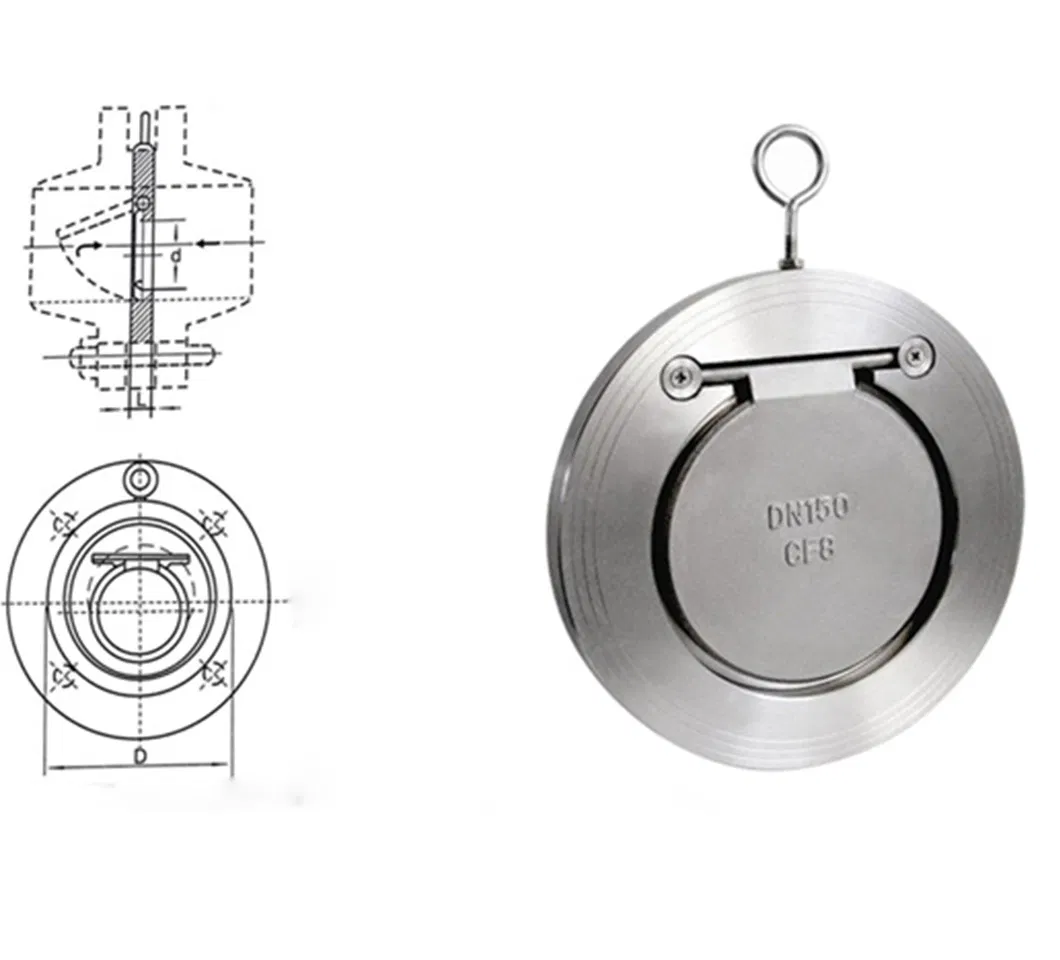

| DN | d | L (Type I) | L (Type II) | PN1.0 (D) | PN1.6 (D) | PN2.5 (D) | PN4.0 (D) |
|---|---|---|---|---|---|---|---|
| 50 | 32 | 15 | 22 | 105 | 105 | 109 | 109 |
| 80 | 55 | 15 | 22 | 140 | 140 | 144 | 144 |
| 100 | 77 | 15 | 24 | 160 | 160 | 170 | 170 |
| 200 | 145 | 25 | 40 | 270 | 270 | 276 | 293 |
| 400 | 308 | 51 | 62 | 485 | 485 | 517 | 549 |
| 600 | 490 | 70 | 90 | 693 | 693 | 734 | 750 |
