Significant performance makes the valve widely used in many applications such as Airport refueling, Hydrocarbon processing, HVAC, Air treatment, Chemical processing, Purified gas, Steam and vacuum services, Potable water, Powder and pulp processing, etc.
| Feature | Specification Details |
|---|---|

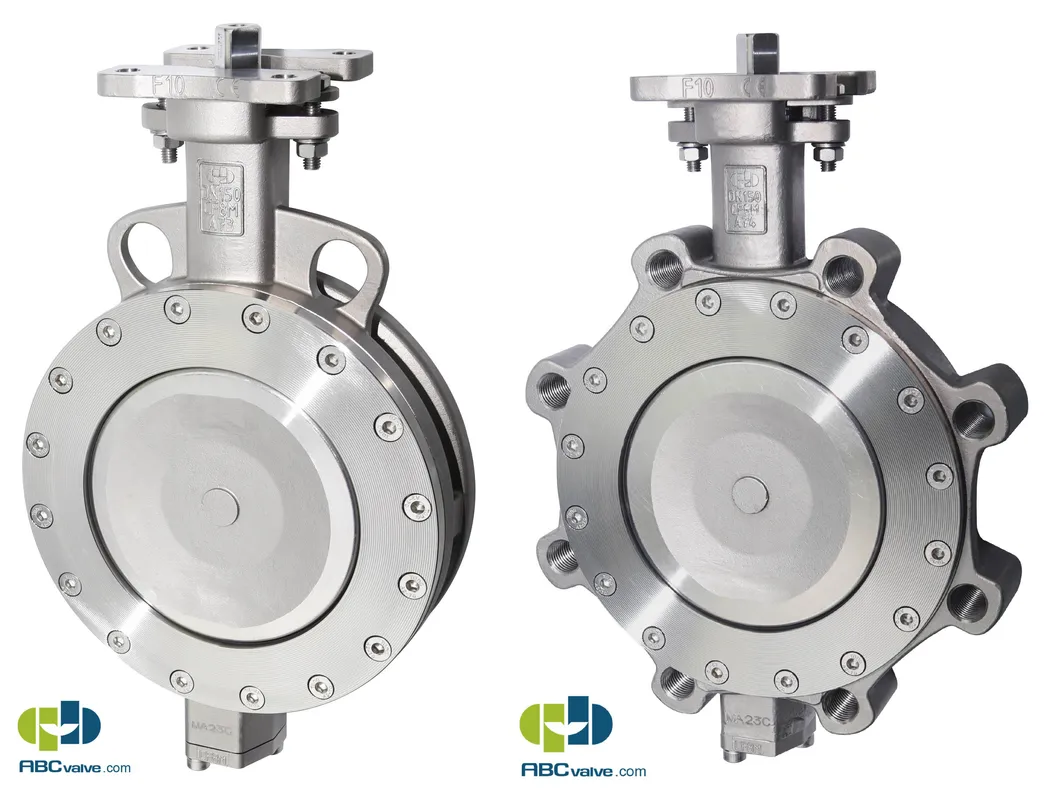

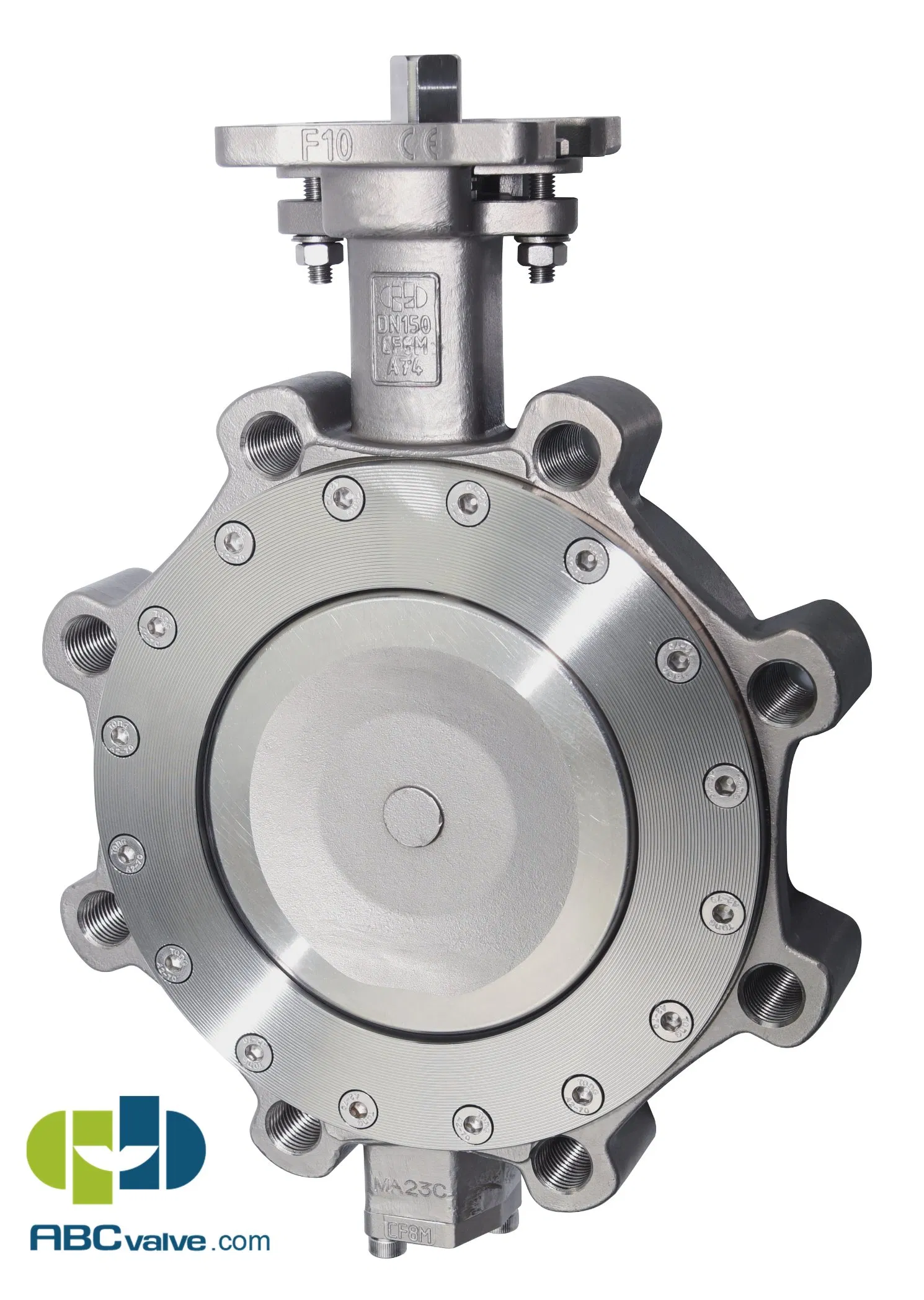

| Connection | Wafer / Lug |
| Nominal diameter | DN50-DN600 |
| Max. working pressure | Up to 50 Bar (Class 300) |
| Vacuum | Full vacuum |
| Face to Face | API 609 Category B |
| Flange standard | EN1092 PN10/16, ANSI Class150, JIS 10K/16K |
| Top flange | ISO 5211 |
| Temperature range | -40° C to +400° C |

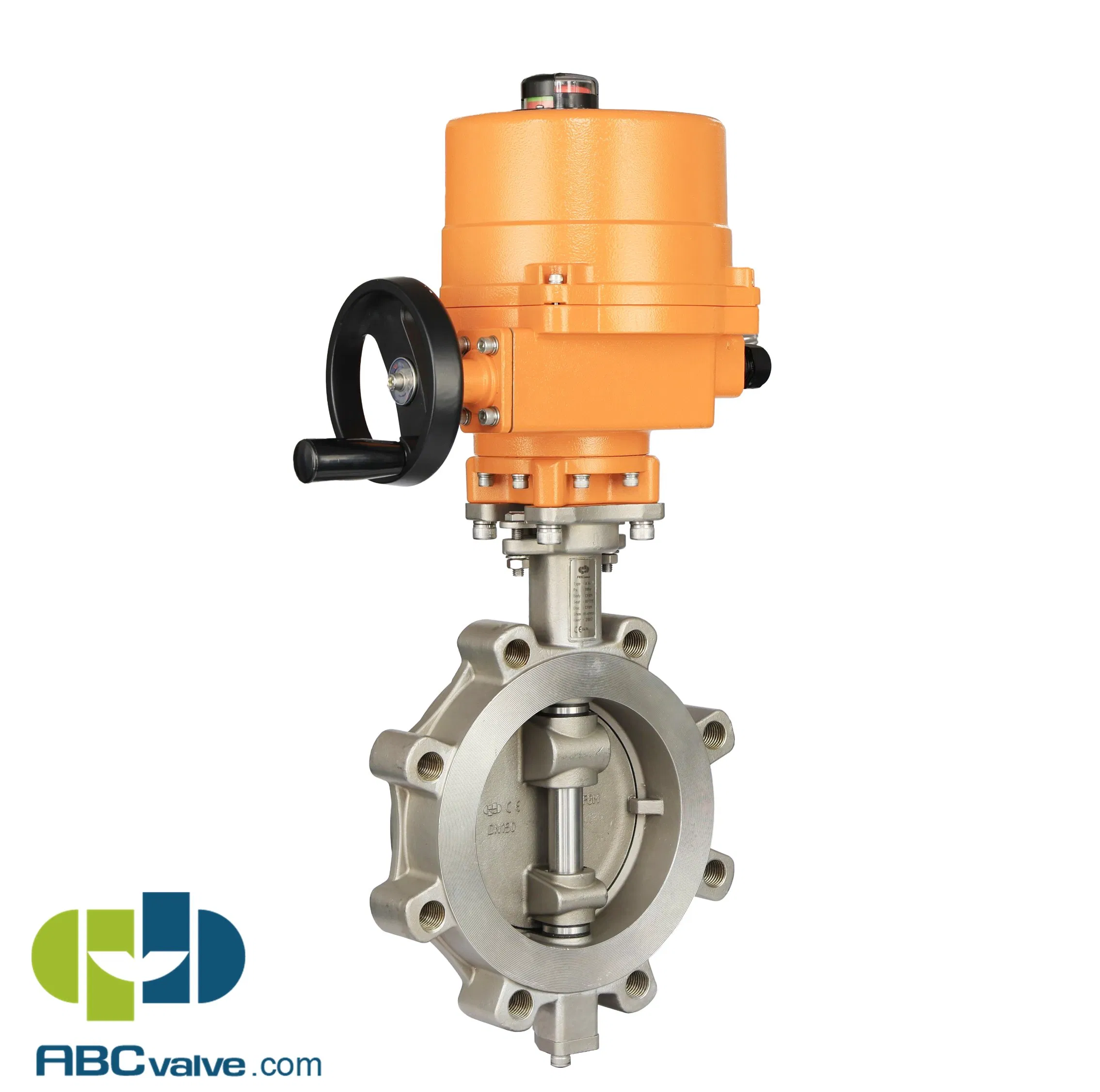

| Operation | Hand level, gear box, pneumatic actuator, electric actuator |

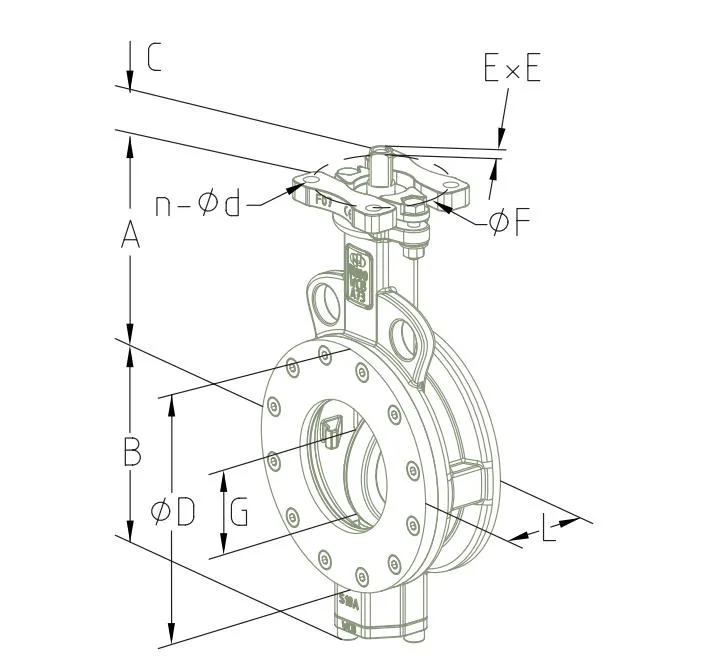

| SIZE | Class 150 | Class 300 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | Inch | A | B | C | D | E | Flange | G | L | WT | A | B | C | D | E | Flange | G | L | WT |
| 50 | 2" | 126 | 79 | 13.5 | 92 | 11 | F05 | 45 | 43 | 3 | 126 | 79 | 13.5 | 92 | 11 | F05 | 45 | 43 | 3 |
| 80 | 3" | 145 | 100 | 17.5 | 130 | 11 | F07 | 72 | 48 | 5 | 145 | 100 | 17.5 | 130 | 11 | F07 | 72 | 48 | 5 |
| 100 | 4" | 170 | 124 | 17.5 | 157 | 14 | F07 | 91 | 54 | 6 | 170 | 124 | 17.5 | 157 | 14 | F07 | 91 | 54 | 6 |
| 150 | 6" | 203 | 150 | 18.5 | 216 | 17 | F10 | 145 | 57 | 12 | 203 | 150 | 18.5 | 216 | 17 | F10 | 145 | 57 | 12 |
| 200 | 8" | 239 | 186 | 24.5 | 269 | 22 | F10 | 192 | 64 | 19 | 257 | 204 | 24.5 | 269 | 22 | F10 | 192 | 73 | 23 |
| 300 | 12" | 307 | 251 | 30 | 380 | 27 | F12 | 285 | 81 | 42 | 330 | 268 | 30 | 380 | 27 | F12 | 285 | 92 | 55 |

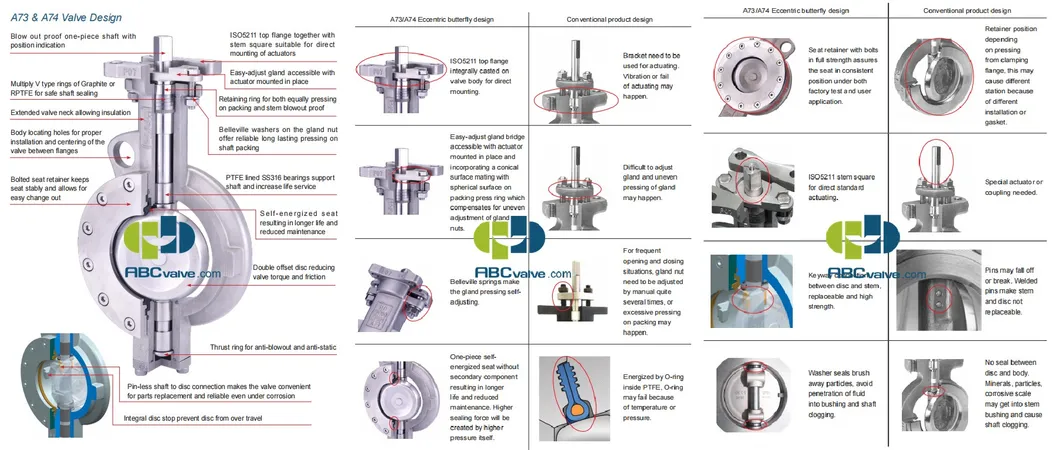

Design & Advantages:
The manufacturing system and products are certified by ISO9001, BV Marine, CE, ATEX and TS. Our products are widely applied in lithium battery industry, food industry, pharmaceutical, textile dyeing, heating and cooling, municipal, shipbuilding, electronics, nuclear power, petrochemical, paper-making, and environmental protection.
