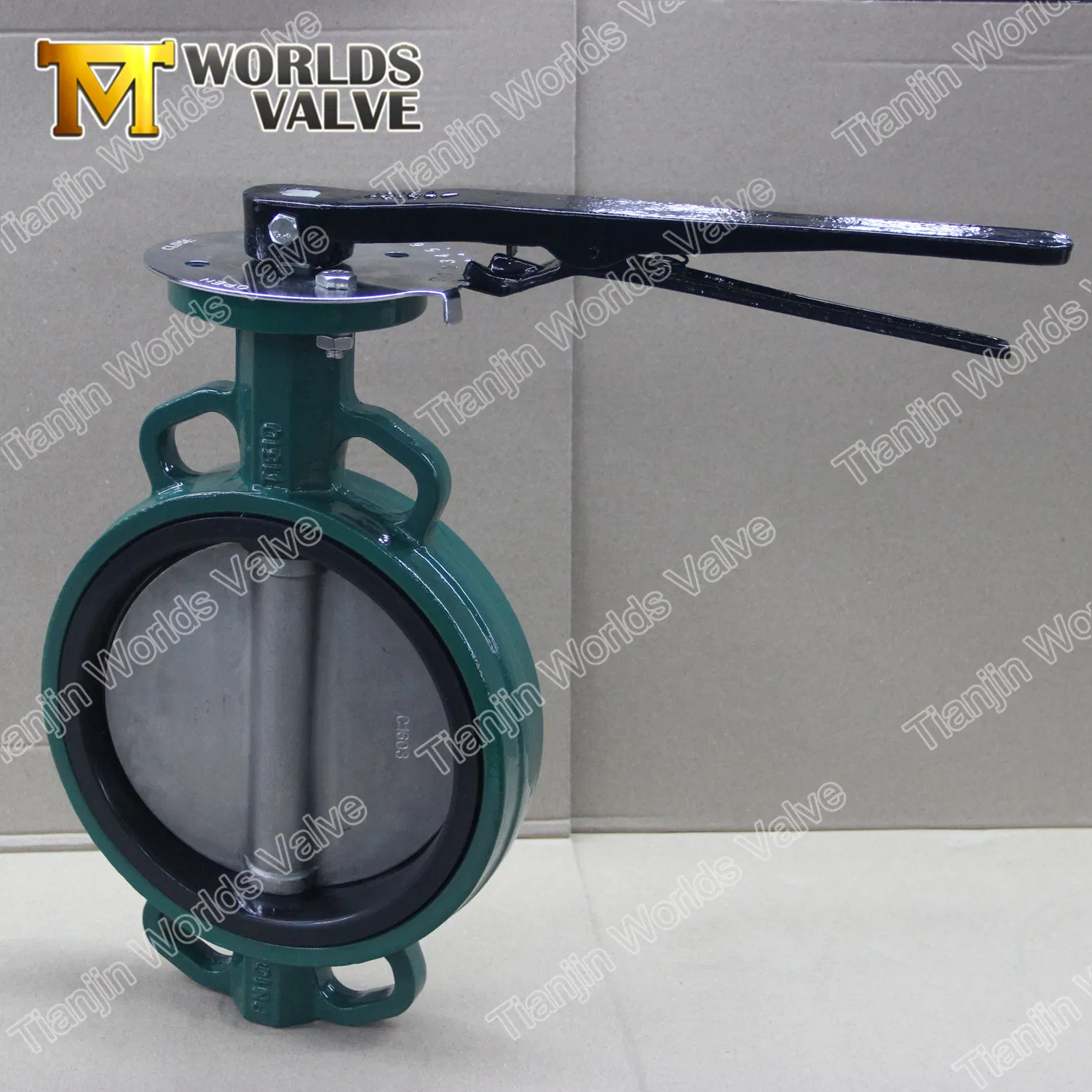

Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
1 / 5
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified
Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified

Hand Lever Operated Wafer Type Rubber Seated Butterfly Valves with CE Certified

Customization: Available
Media: Water
Driving Mode: Manual
Send Inquiry

Product Description

Basic Information
Model NO.
CBF02-TA01
Connection Form
Wafer
Structure
Centre Sealing
Seal Form
Auto Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
-40°C < T < 120°C
Standard
API609 EN593 BS5155 ISO5211
Body Material
Cast Iron/Ductile Iron/WCB/CF8M
Seat Material
NBR/EPDM/PTFE/FKM/Silicone
Product Description
SeriesU butterfly valve
SizeDN40-DN3000
End flangeANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213
Face to faceISO 5752, EN 558, MSS SP67, API 609, DIN3202
Nominal pressureDN40-DN600: PN1.0/1.6MPa; DN700-DN1200: PN1.0MPa
Disc MaterialDuctile Iron/Ni-plated/AL-Bronze/SS304/SS316/Hastelloy
Stem MaterialSS416/SS304/SS316/SS431/17-4PH/Monel
Suitable MediumFresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt
Product Parameters

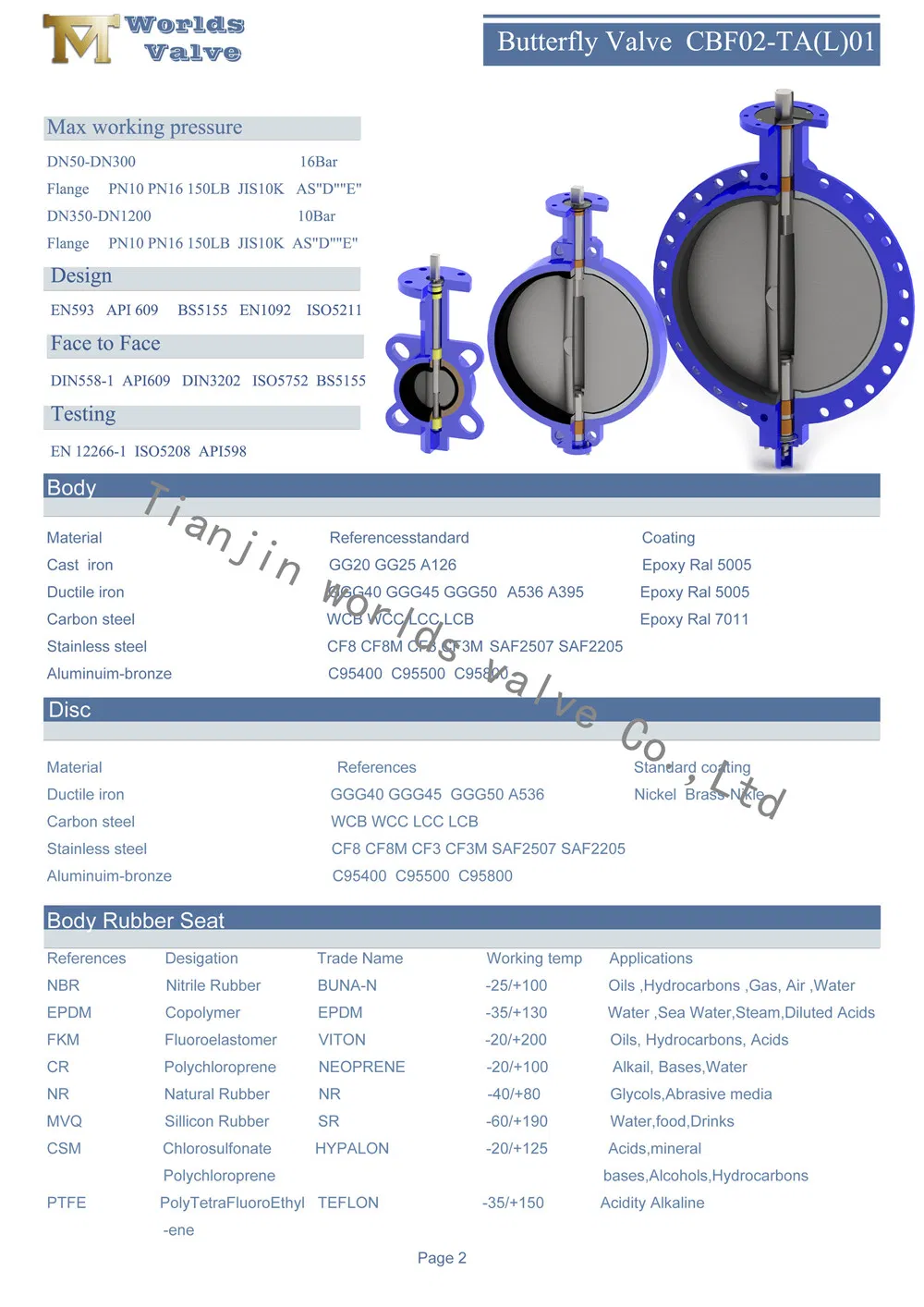

Product Parameters 1

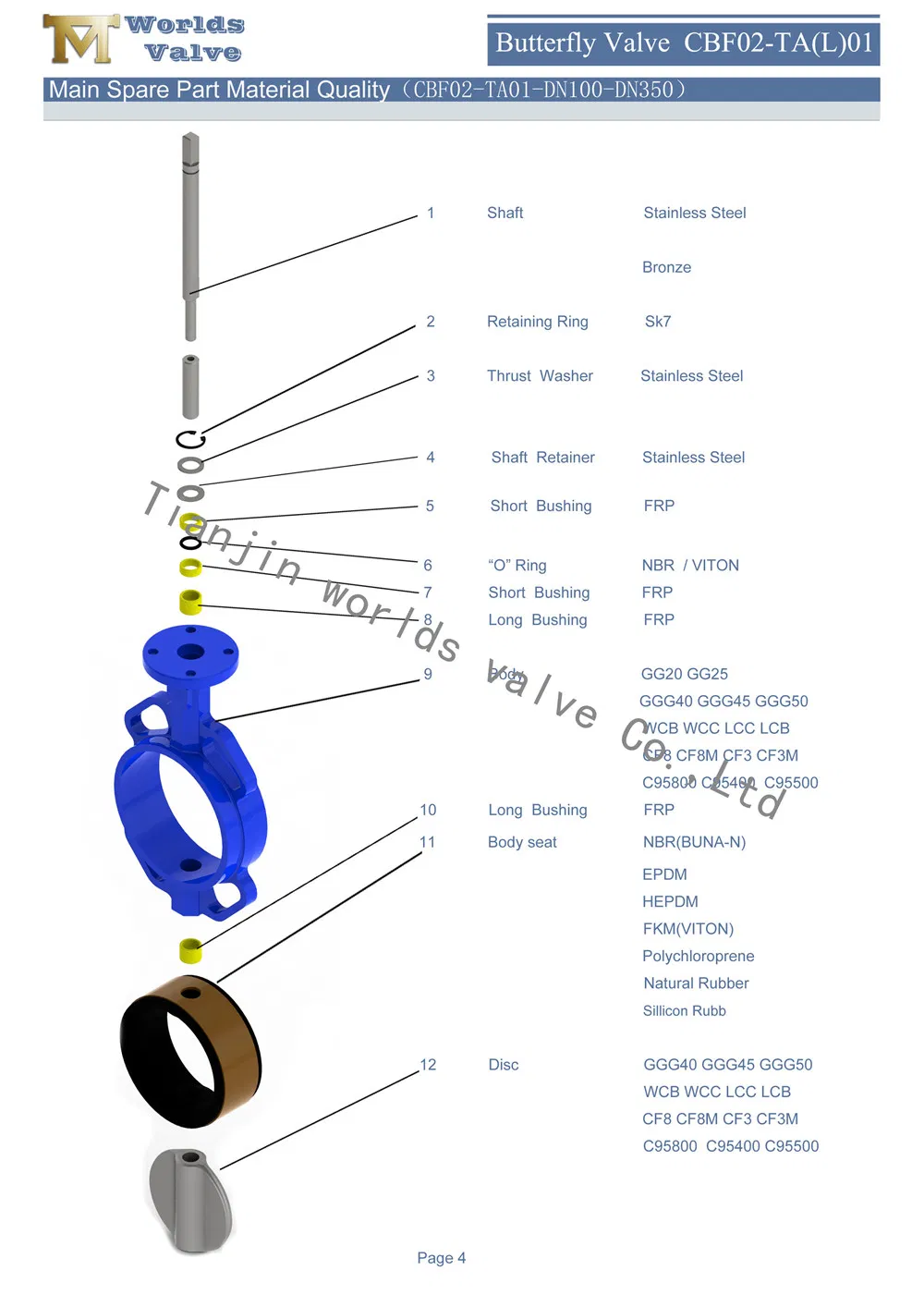

Product Parameters 2

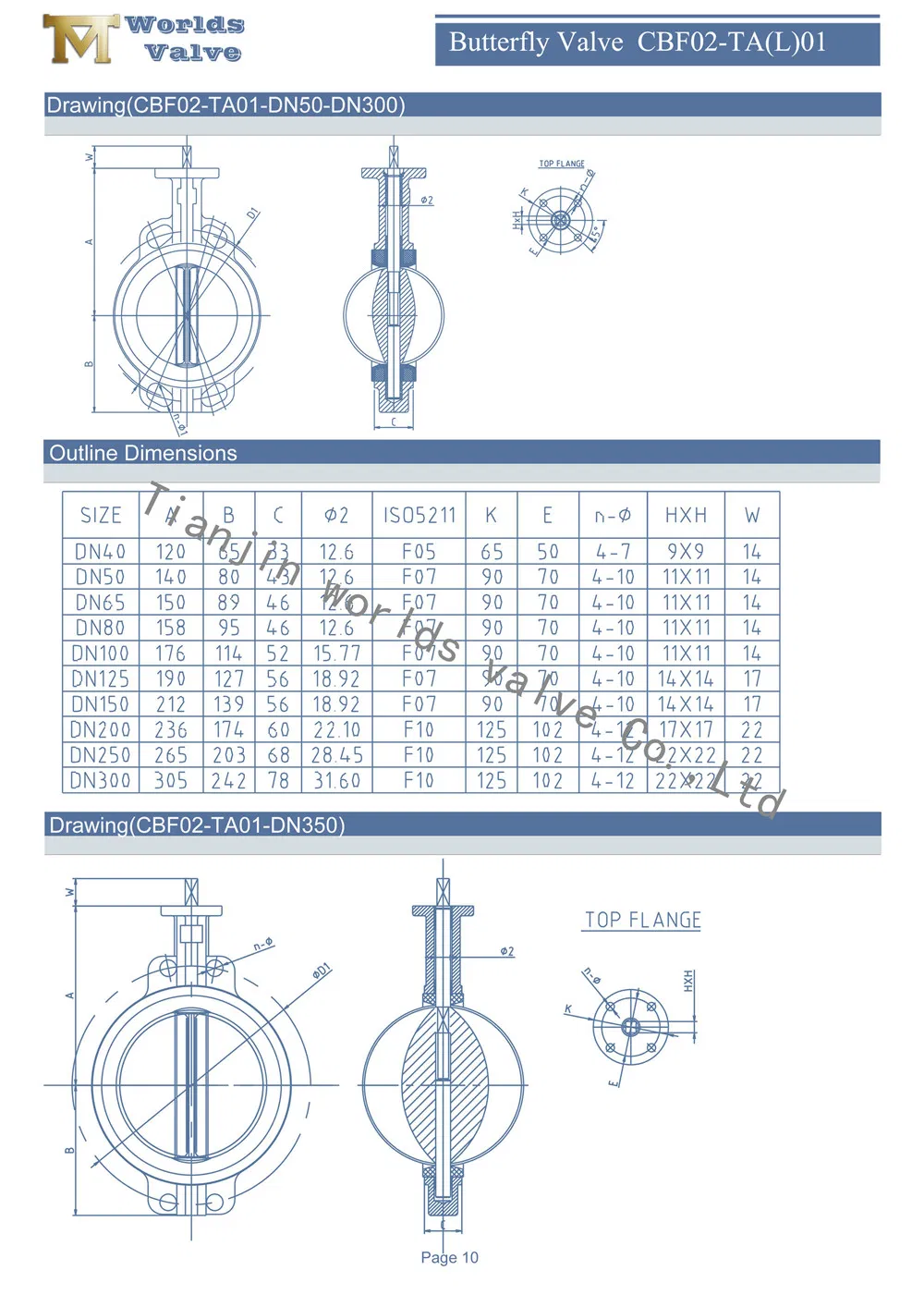

Product Parameters 3
Design & Quality Control

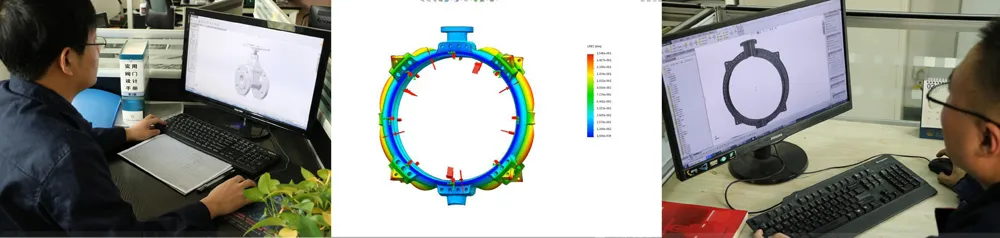

Design Ability

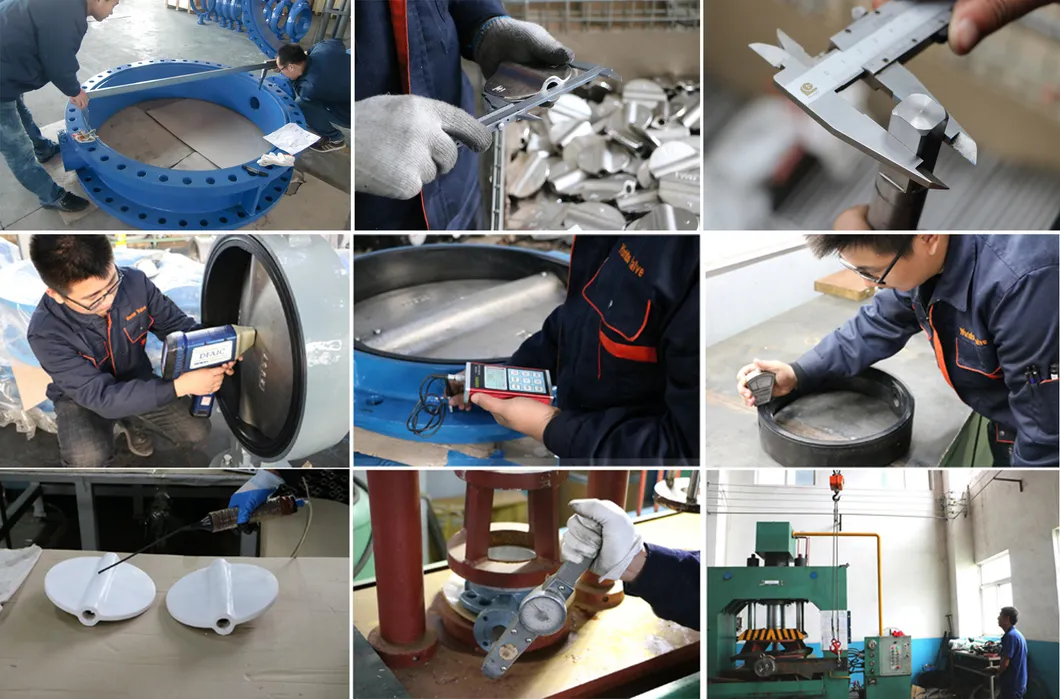

Measurement Inspection
Assembly & Production

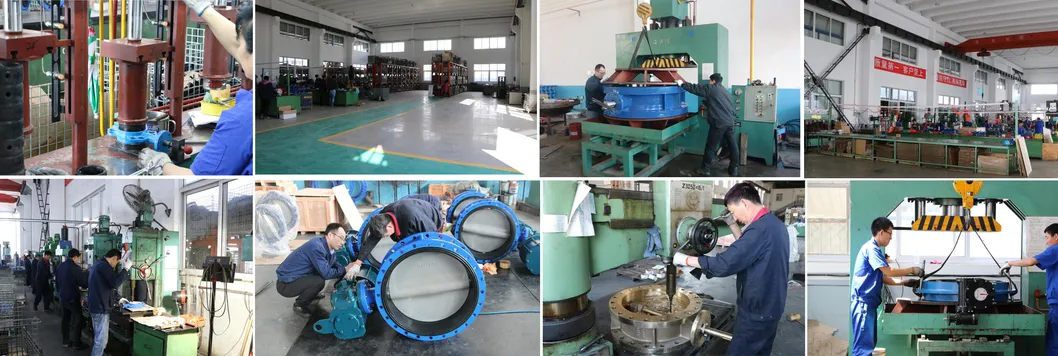

Assembly Workshop
Packaging & Shipping
Package Size
110.00cm * 110.00cm * 90.00cm
Gross Weight
500.000kg

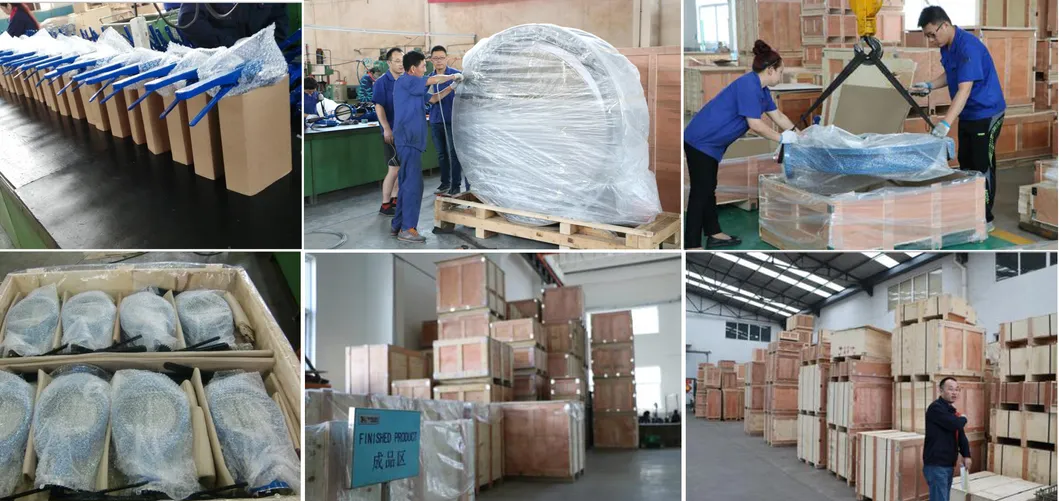

Packaging
Certifications

Our products are certified by international standards including CE, ISO, WRAS, ACS, and UKCA.

CE ISO Certificate

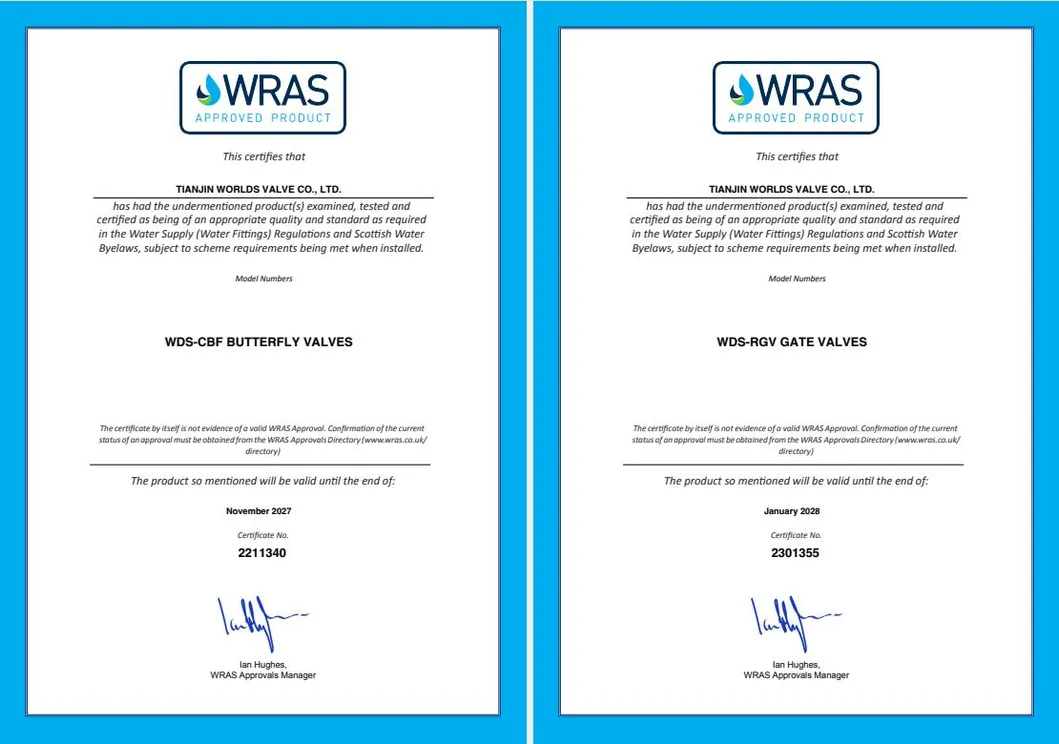

WRAS Certificate

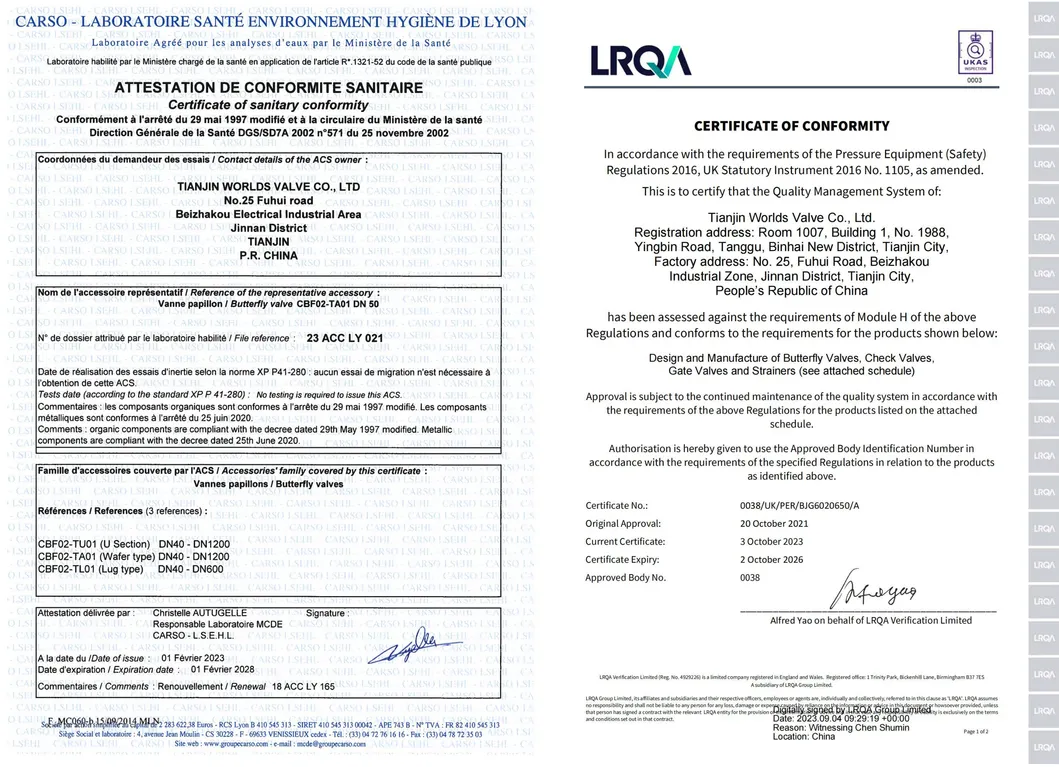

UKCA Certificate
Frequently Asked Questions
What are the main application areas for this butterfly valve?
These valves are widely used in industrial applications, water treatment systems, and household water usage due to their versatile design and reliable sealing.
What standards do these valves comply with?
Our butterfly valves comply with international standards such as API609, EN593, BS5155, ISO5211, and meet various flange requirements including ANSI, DIN, and JIS.
What materials are available for the valve seat?
We offer a variety of seat materials to suit different media and temperatures, including NBR, EPDM, PTFE, FKM, and Heat-Resistant EPDM.
What is the pressure rating for the DN40-DN600 sizes?
For sizes DN40 through DN600 (1.5" to 24"), the nominal pressure rating is PN1.0/1.6MPa (150/200 PSI).
Can these valves handle corrosive media?
Yes, by selecting appropriate disc and seat materials such as SS316, CF8M, or specialized alloys like Monel and Hastelloy, the valves can effectively handle corrosive media like sea water or chemicals.
What certifications do your valves hold?
Our production process and products are certified by CE, ISO, WRAS, ACS, and UKCA, ensuring compliance with global safety and quality requirements.
