| Product Name | Aluminium Actuator Pneumatic Butterfly Valve |
| Material | SS304, SS316L |

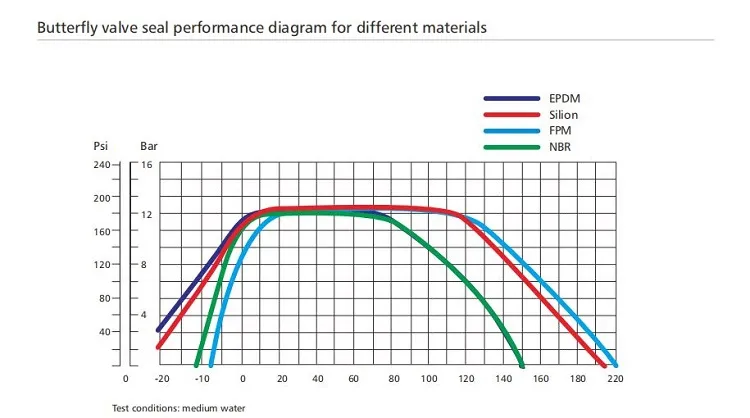

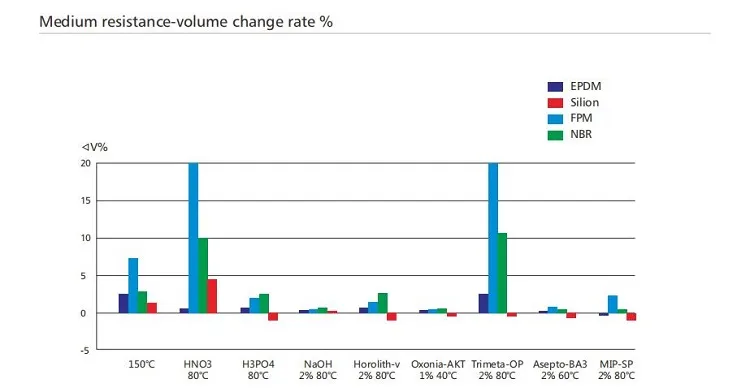

| Seal Material Option | EPDM, Silicon or FPM |
| Size Range | 1/2"-8" or DN15-DN200 |
| Finish | Semi-bright |
| Actuator Max Air Pressure | 700 kPa (7 bar) |
| Actuator Temperature Range | -25°C to +90°C |
| Valve Max Product Pressure | 1000kPa (10Bar) for DN15-DN100; 800kPa (8Bar) for DN125-DN150 |
| Valve Temperature Range | -10°C to +120°C |
A butterfly valve is a flow control device used to start or stop fluid flow through a pipe section. It is ideally applied in stainless steel pipe systems for food, beverage, dairy, brewing, pharmaceutical, and chemical industries.

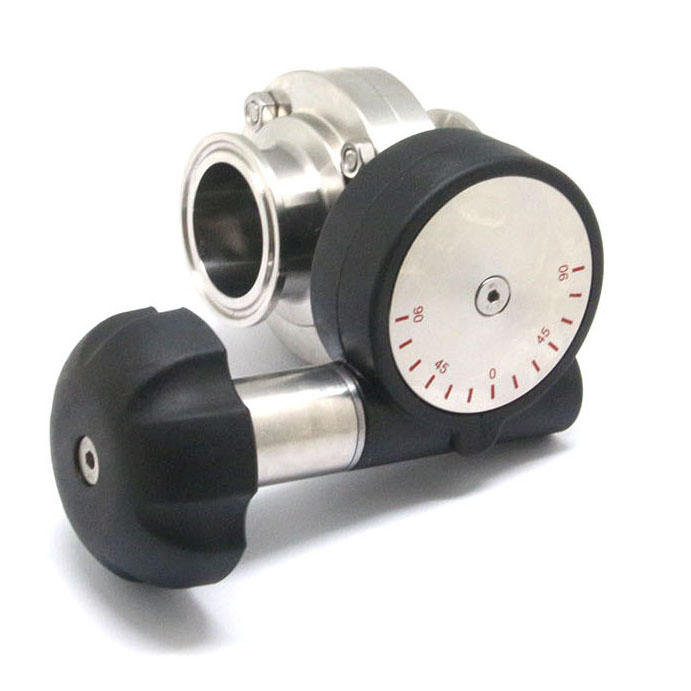

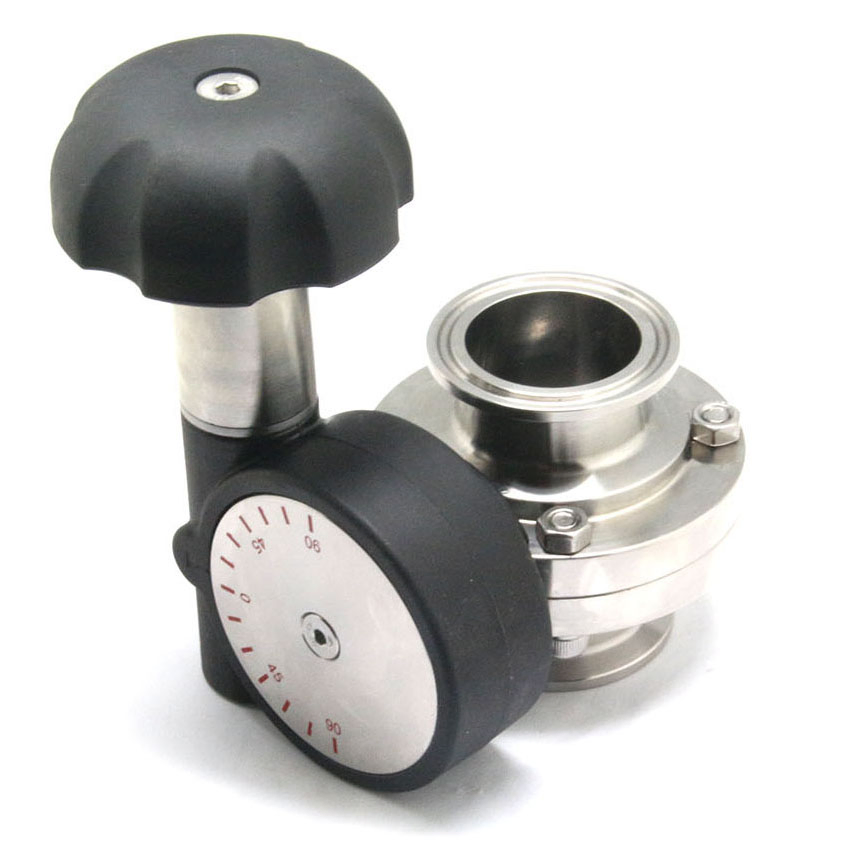

These valves feature a circular body and a rotary motion disk closure member supported by a stem. Operation can be remote-controlled via an actuator or manually using a handle. The handle mechanically locks the valve in full open, half open, or closed positions. The actuator transforms axial piston movement into 90° rotation, increasing torque as the disc contacts the seal ring.
Founded in 2015, we provide a wide range of stainless steel valves and fittings for food, dairy, beverage, cosmetic, semiconductor, solar energy, and other high-tech industries. We primarily manufacture and export SS valves including Butterfly Valves, Ball Valves, Check Valves, Vacuum Valves, and various flange types.

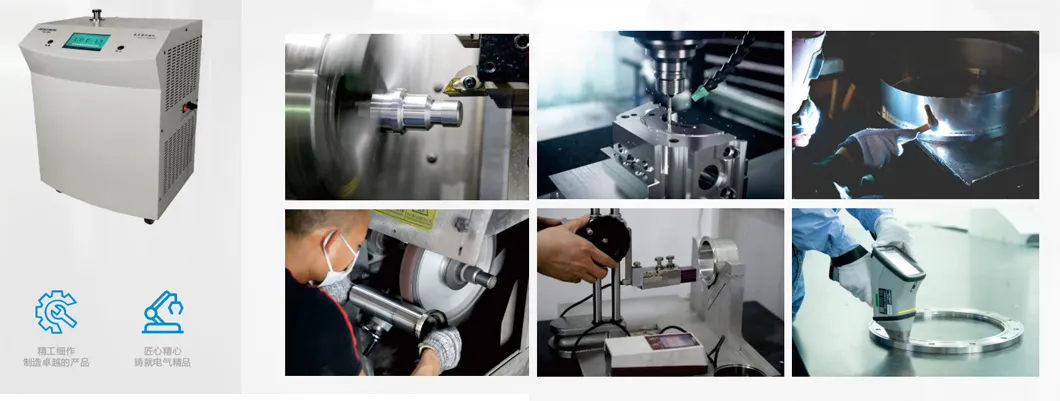

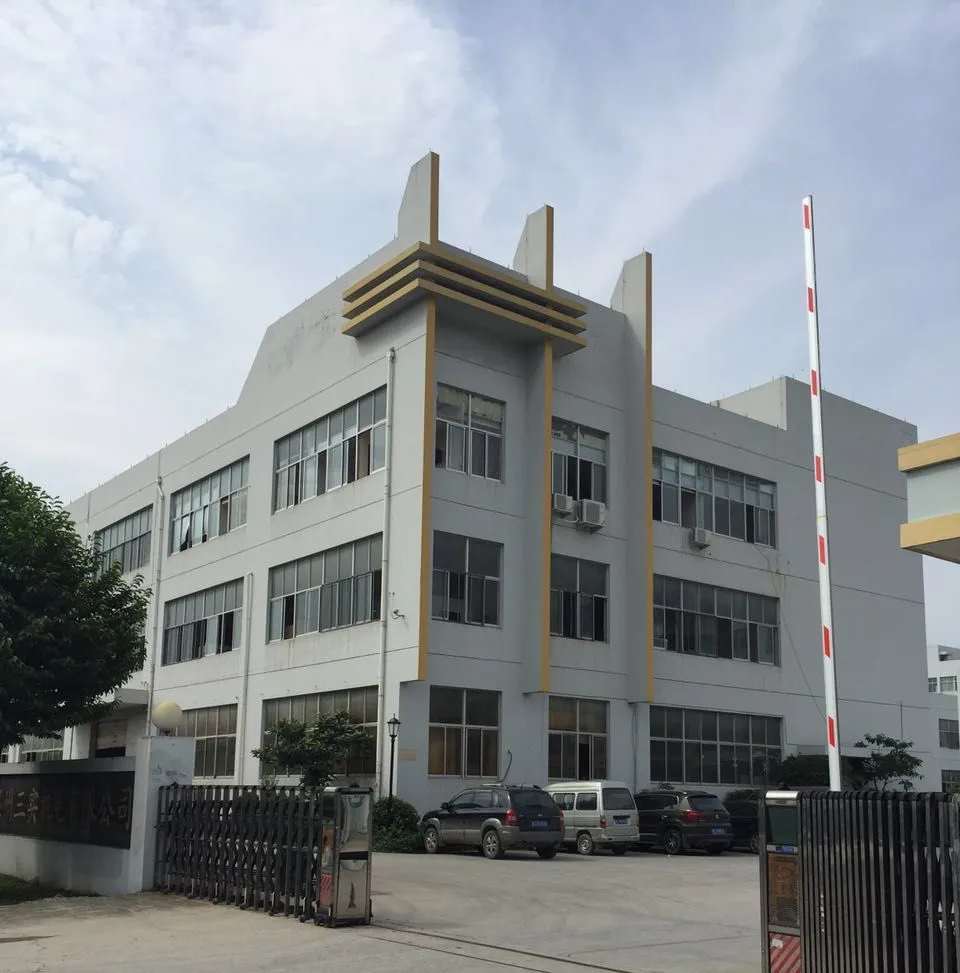

Equipped with Mazak CNC, milling centers, handheld spectrometers, and helium leak detection, our facility ensures high precision. With over 10 years of development, we hold ISO9001:2008 certification and serve markets across Europe, USA, Korea, and Japan.
Our products are exported to numerous countries, including South Korea, USA, UK, Italy, France, Netherlands, Russia, Thailand, Canada, Australia, Germany, Brazil, Japan, and more.
Our experienced engineers work closely with customers to find the best solutions. Technical innovation combined with stringent quality control enables us to deliver high performance in sanitary applications.
Utilizing advanced CNC machinery and testing equipment, we maintain ISO9000 standards. All raw materials are traceable to ensure the highest quality integrity.
Quality is our corporate culture. Our operations are audited and certified to meet ISO 9001 requirements, covering design, manufacture, inspection, and customer service.
| Quantity (Pieces) | 1-10pcs | 11-50pcs | >50pcs |
|---|---|---|---|
| Est. Time (days) | 3 | 7 | Negotiable |
