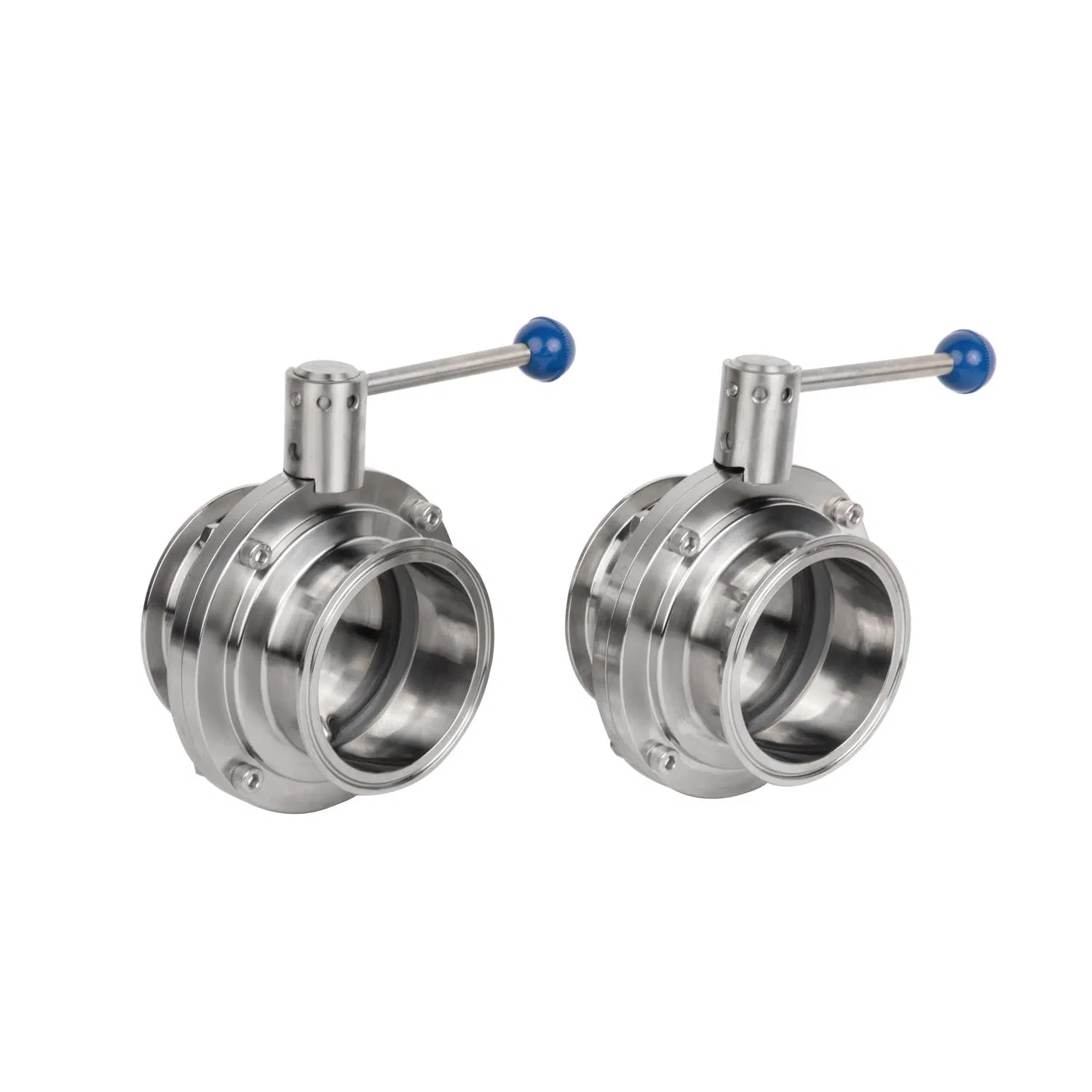

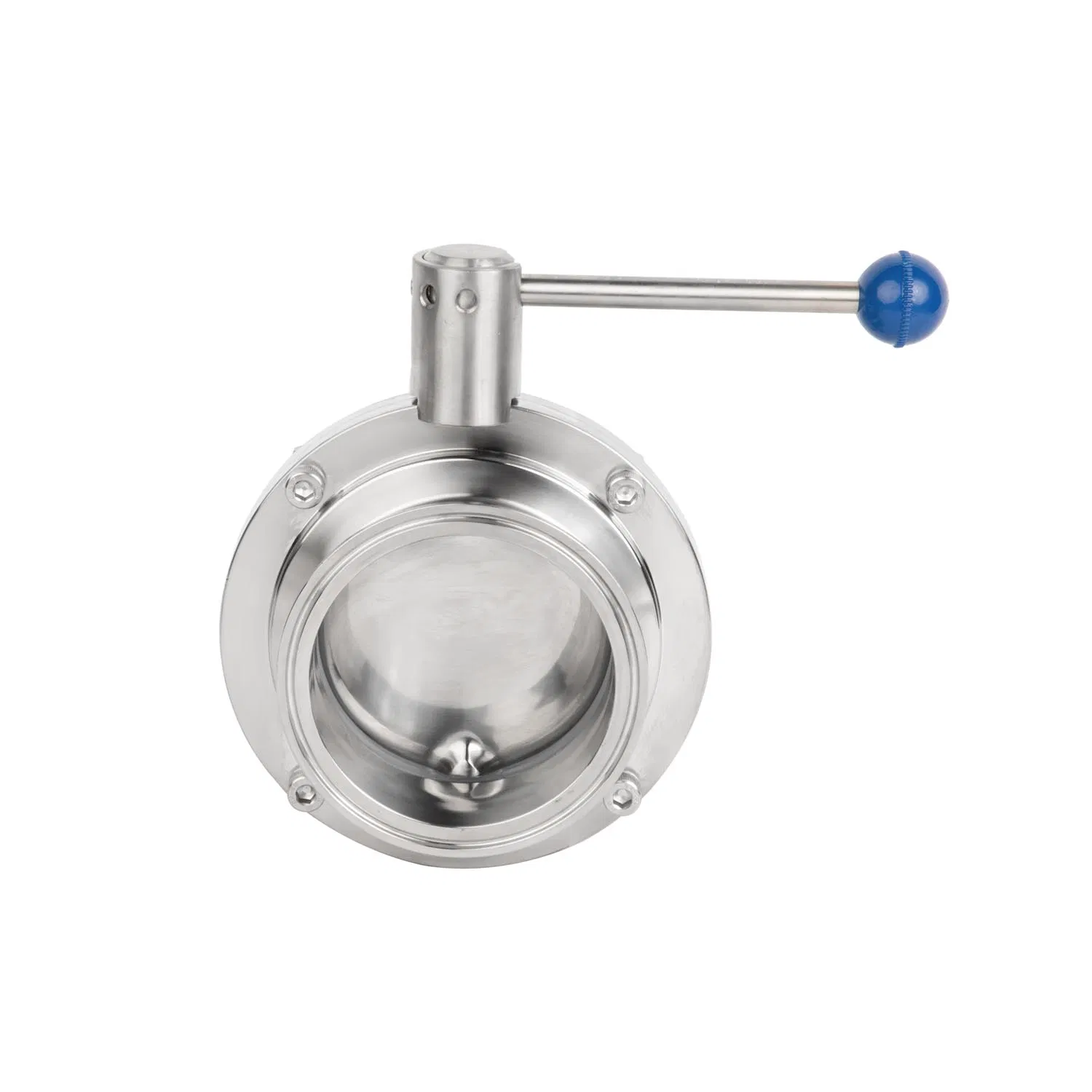

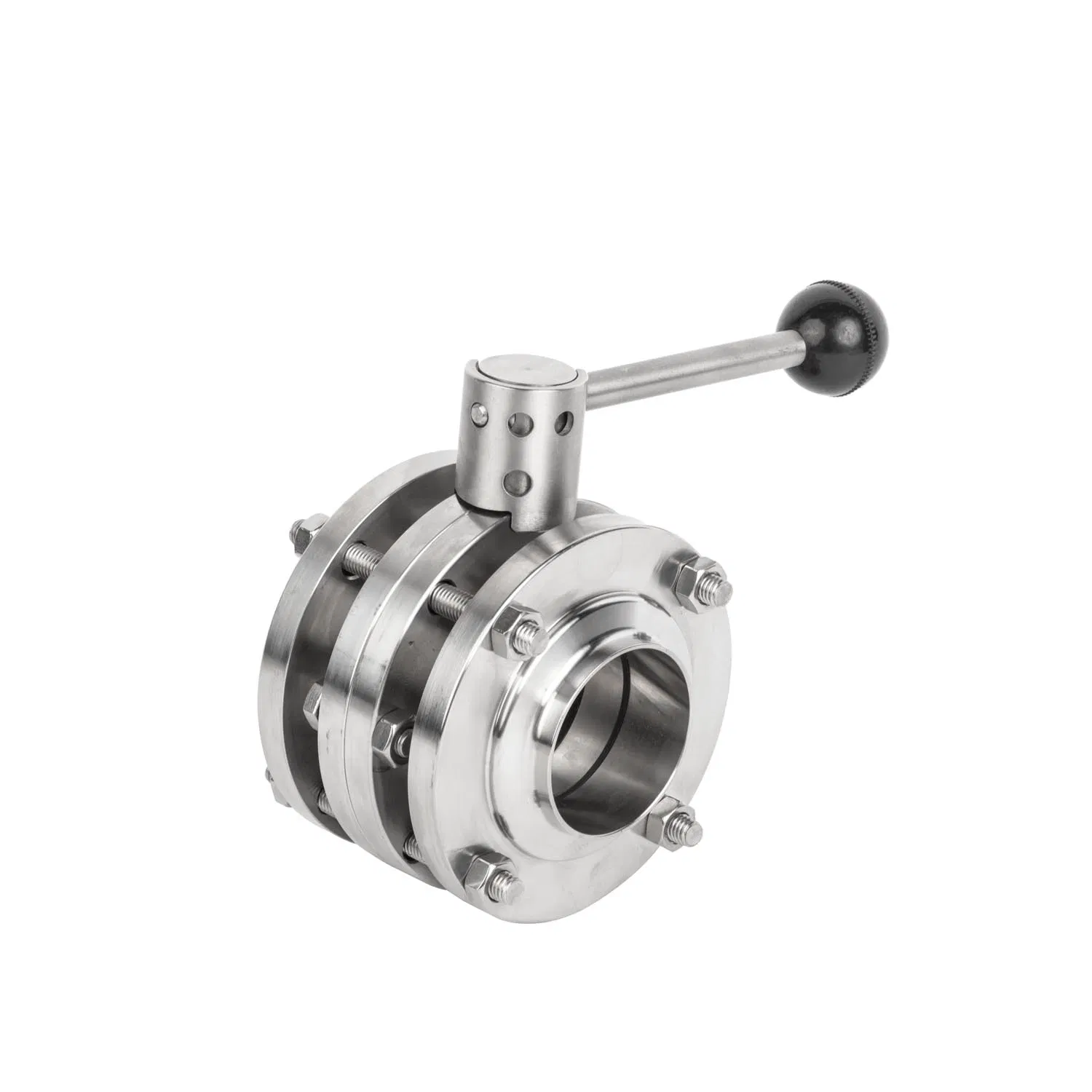

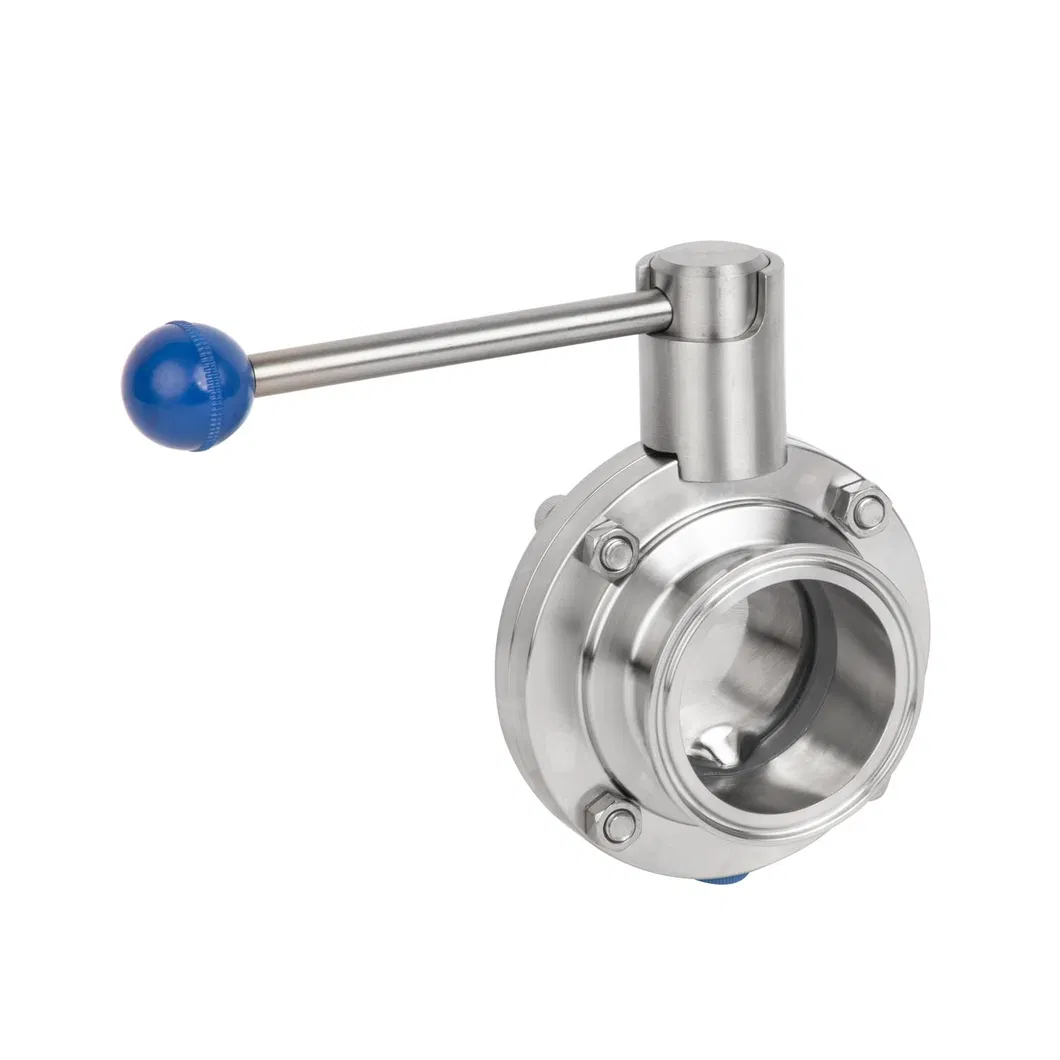

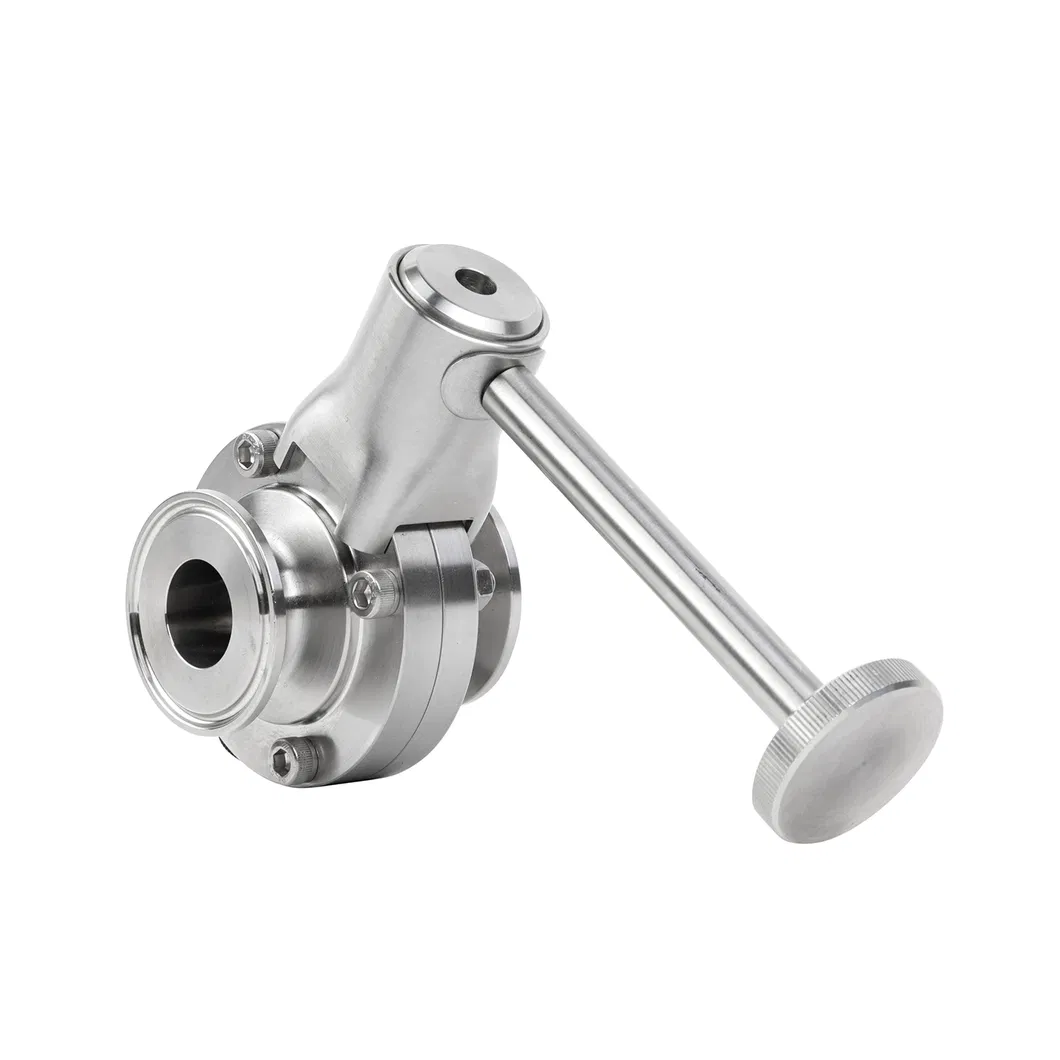

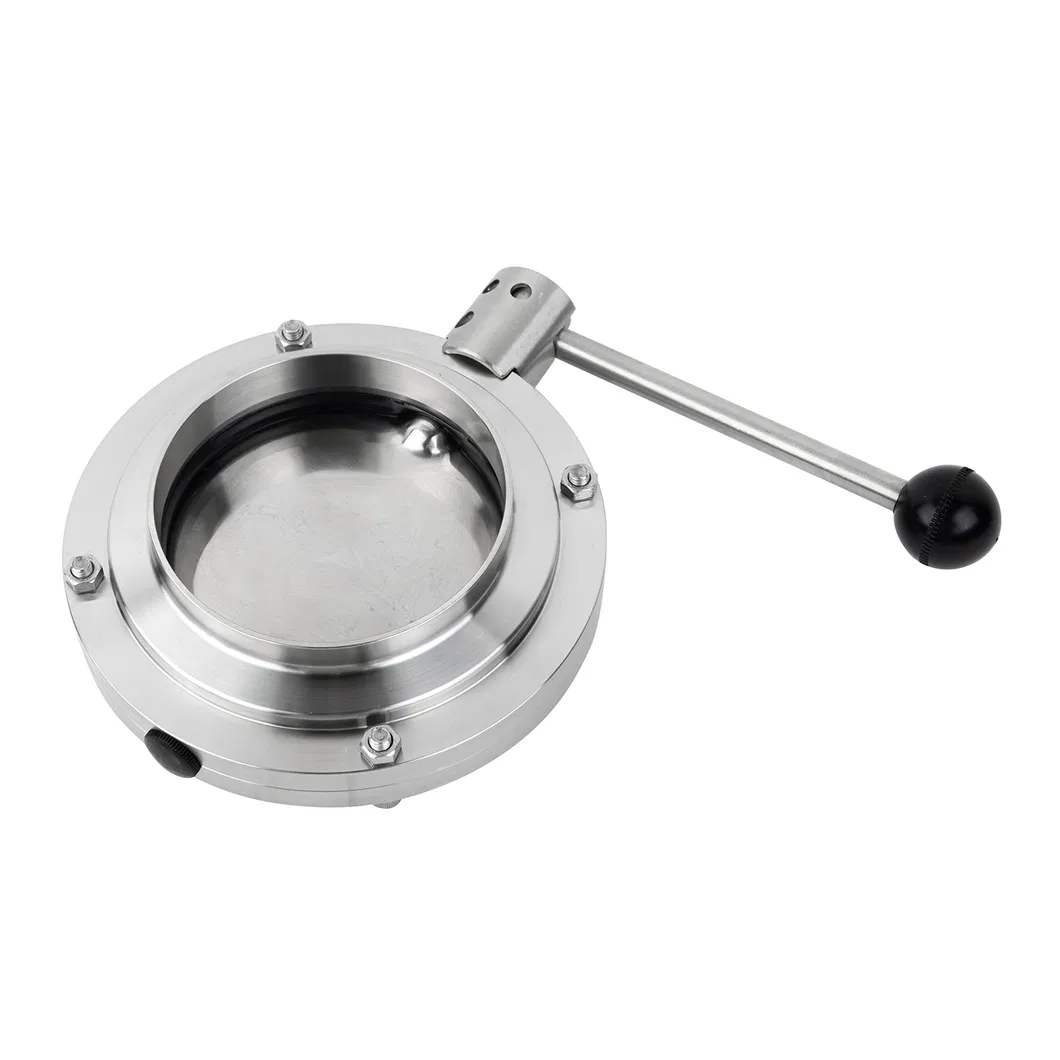

Stainless Steel SS304 Sanitary Hygienic Ball & Check & Butterfly Valve

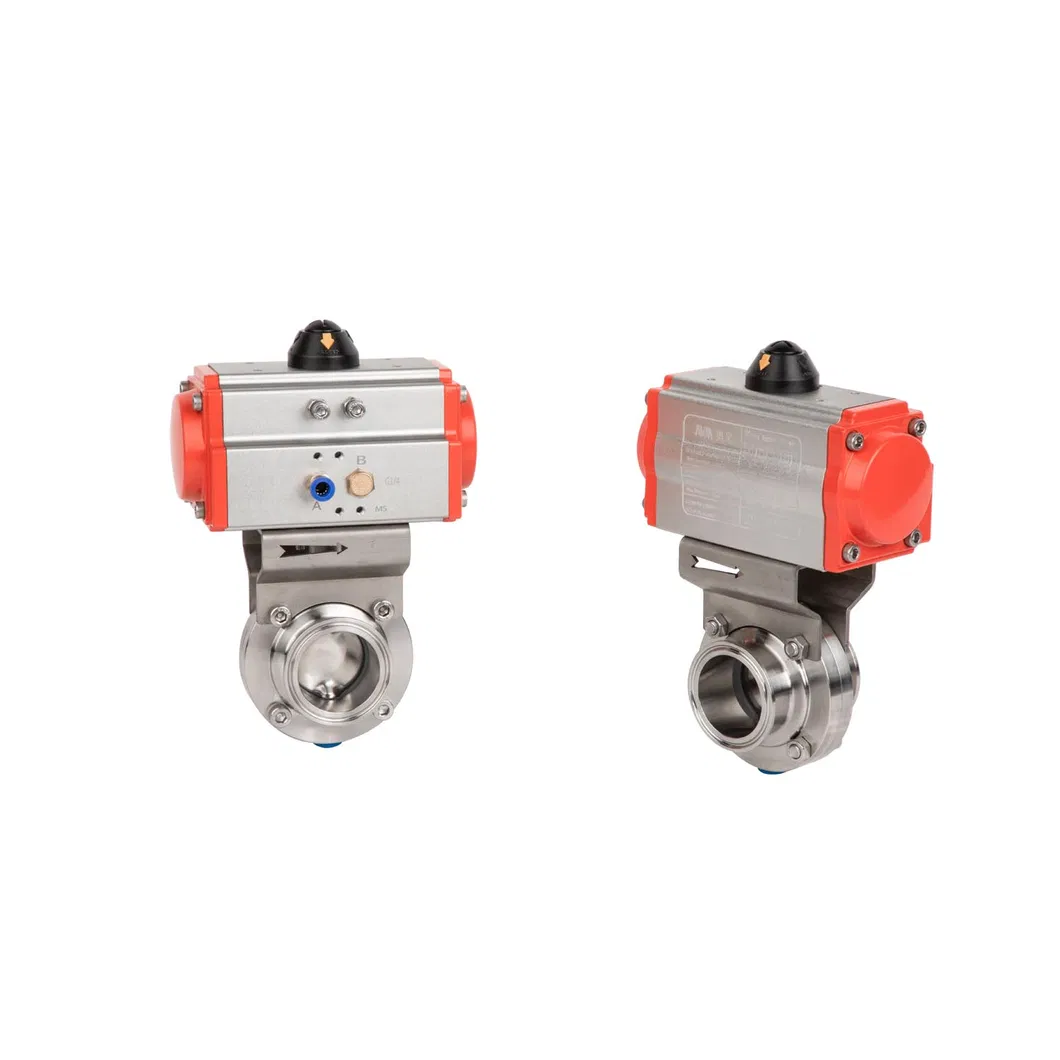

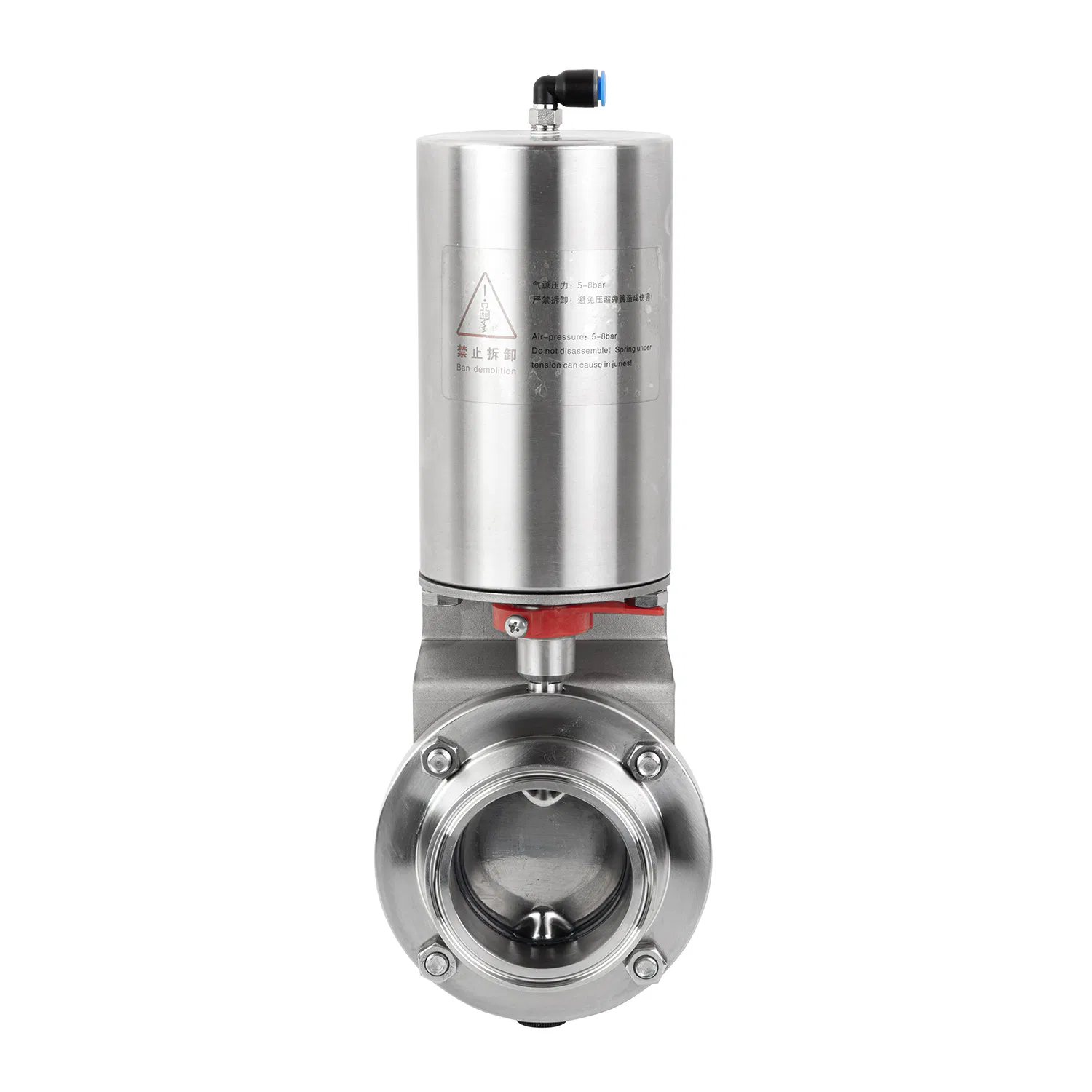

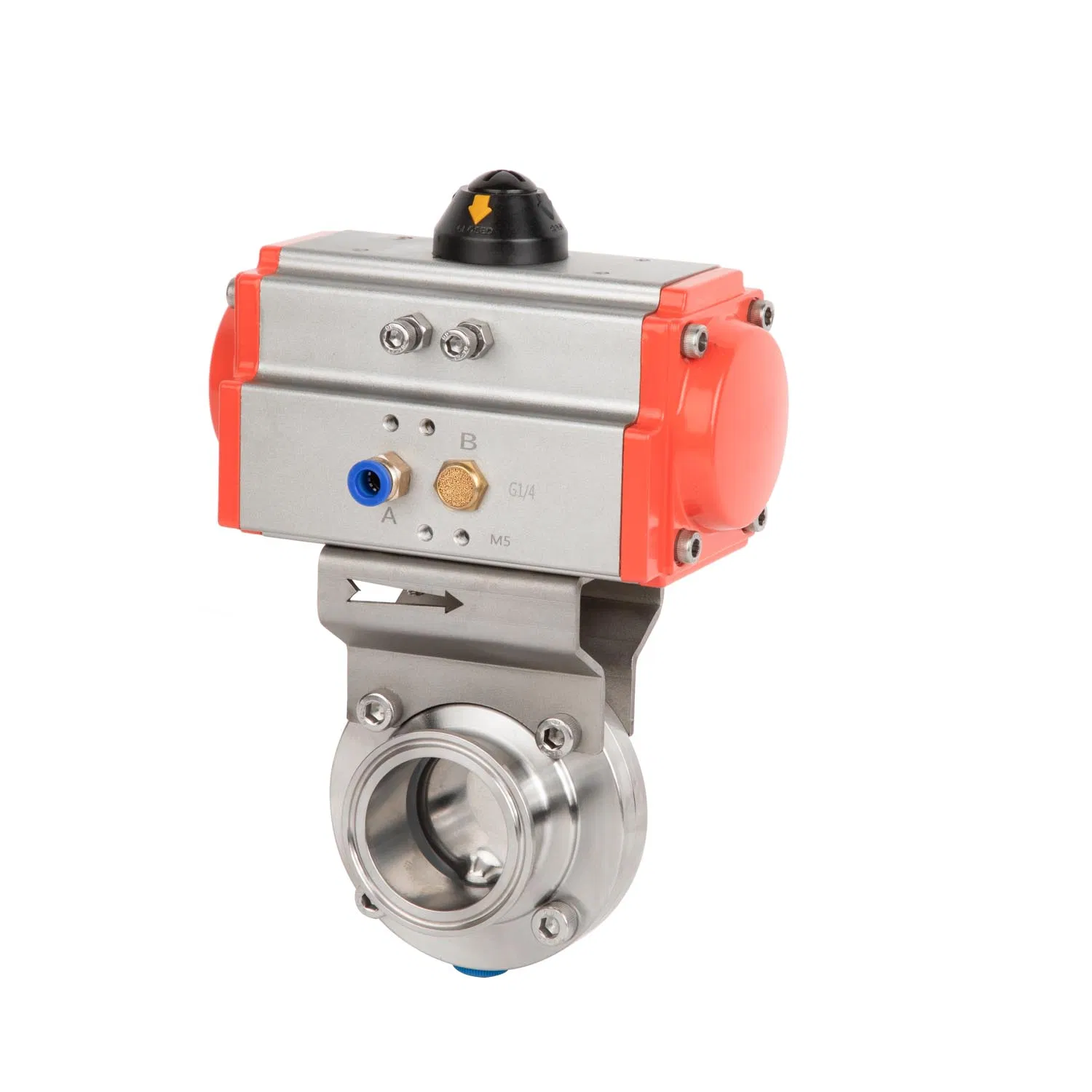

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. Widely applied to beer, beverage, dairy food, fruit juice, pharmacy, and biological fields.
| Standard | 3A, SMS, DIN, ISO, RJT, IDF | |
| Steel Parts (Wetted) | AISI304 / AISI316L | Material inspection report provided |
| Other Steel Parts | AISI304 | |
| Size Range | 3/4" - 6", DN20 - DN150, 19mm - 152.4mm | |
| Seal Material | EPDM / VMQ / FPM | FDA 21CFR117.2600 Compliant |
| Working Pressure | ≤10bar (145psi) | |
| Supply Pressure (Actuator) | 5~8 bar (0~116psi) | |
| Working Temp (EPDM) | -14 ~ 248ºF (-10 ~ 120ºC) | |
| Working Temp (VMQ) | -58 ~ 356ºF (-50 ~ 180ºC) | |
| Surface Treatment | Inside: Ra32~64uin | Outside: Ra16~32uin | |
| Connection Ends | Butt-weld, Clamped, Male, Flange | |
| Category | Commitment Details |
| On Samples | Buyer bears air fee, deductible from direct orders |
| After Sales | Free replacement for any quality issues |
| On Delivery | Strict adherence to delivery timelines |
| On Materials | Guaranteed pure material with certification |
| OEM/Custom | Full process design and manufacturing available |
| Sanitary Valves | Butterfly, Check, Ball, Reversal, Diaphragm, Sample, Safety, Relief |
| Pipe Fittings | Elbow, Tee, Reducer, Cross, Triclamp Ferrule, Cap, Hose Joint |
| Tank Accessories | Cleaning Ball, Sight Glass, Strainer, Manways (Round/Square/Oval) |
| Sanitary Pumps | Centrifugal Pump, Lobe Pump, Self-Priming Pump |
| Gaskets | Silicone/EPDM for Triclamp, Union, Manhole, and Butterfly Valves |
