Basic Information
Model NO.:D71X-16
Connection Form:Wafer
Structure:Centre Sealing
Work Pressure:Low Pressure (Pn<1.6mpa)
Working Temp:-40°C < T < 120°C
Standard:API609, En593, ISO5211
Product Introduction

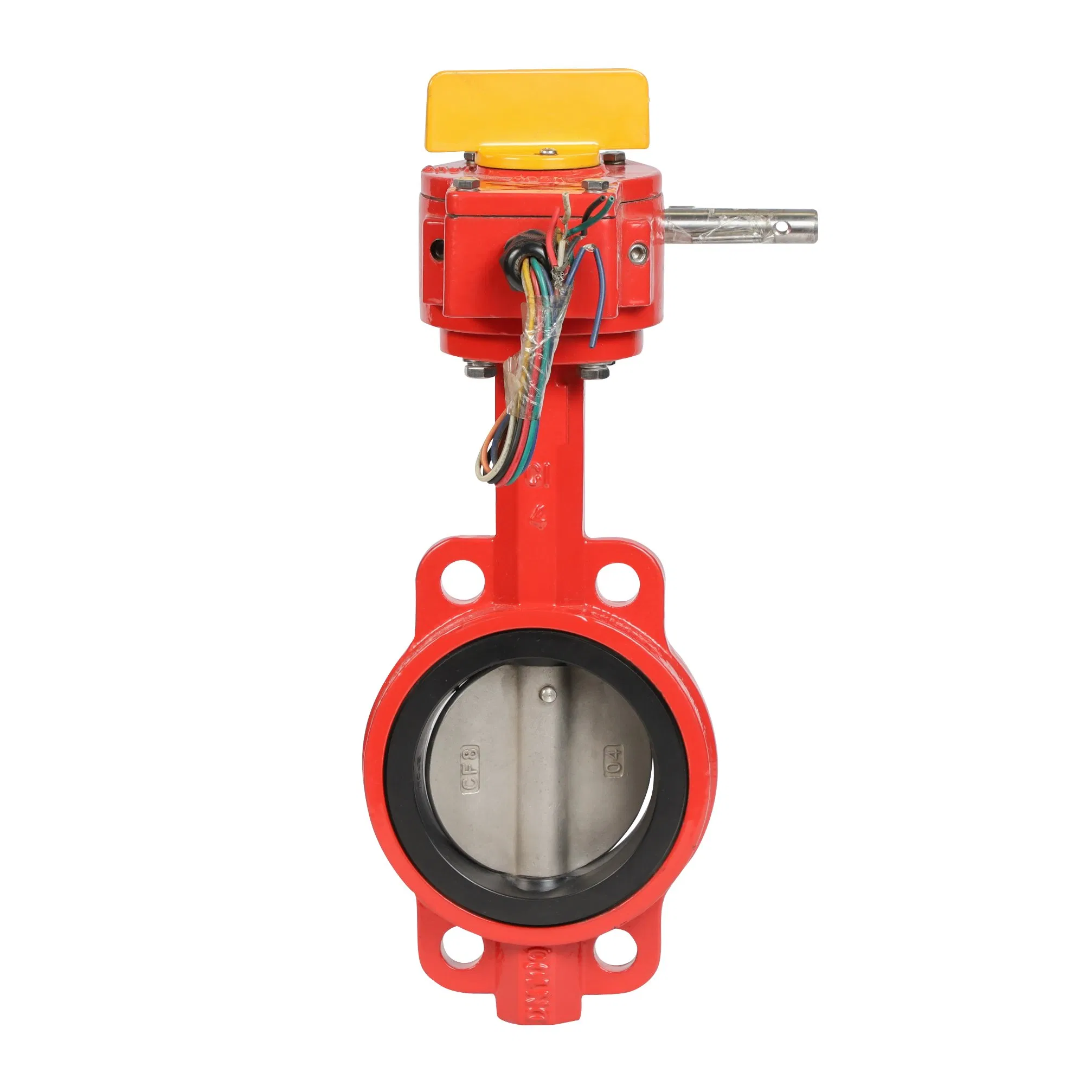

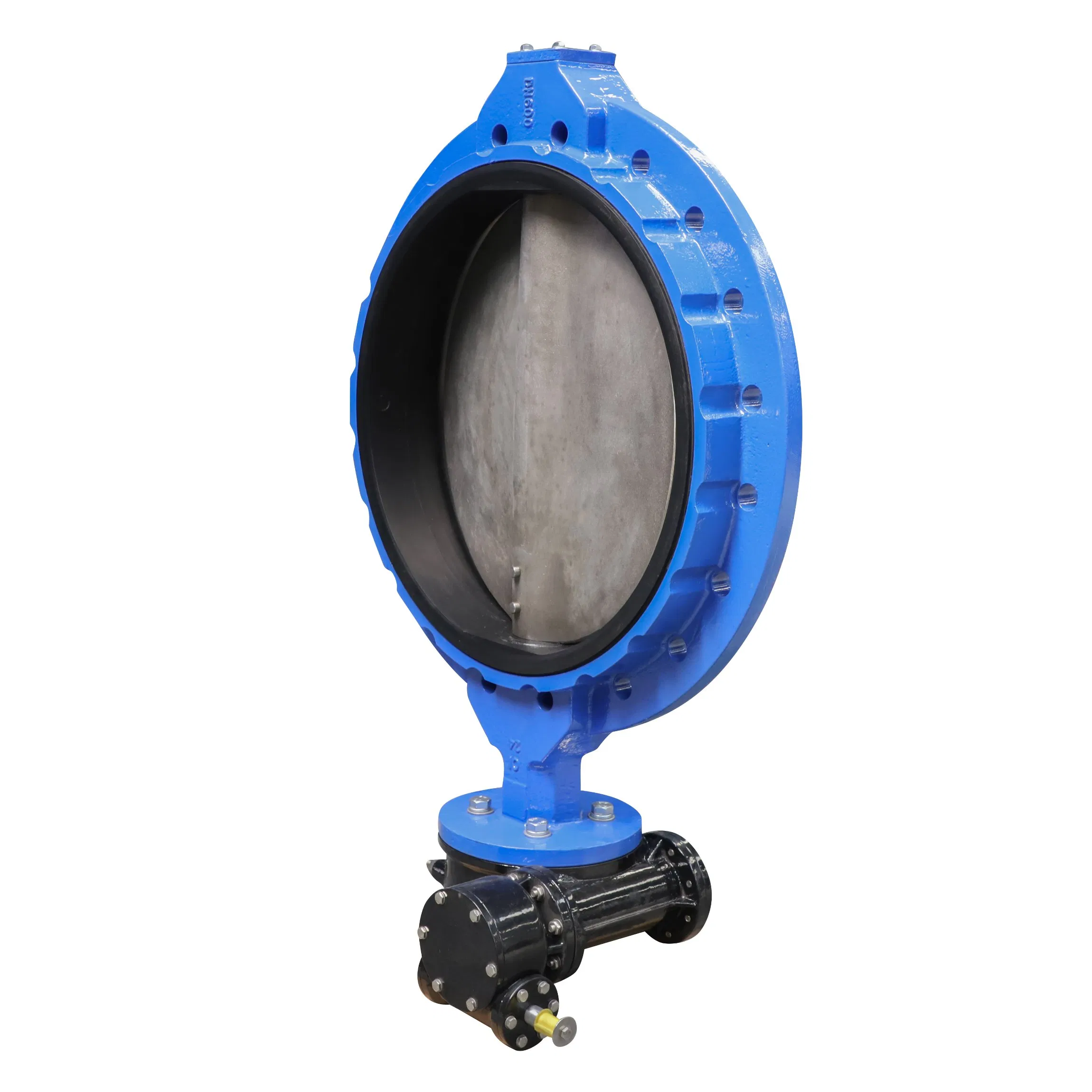

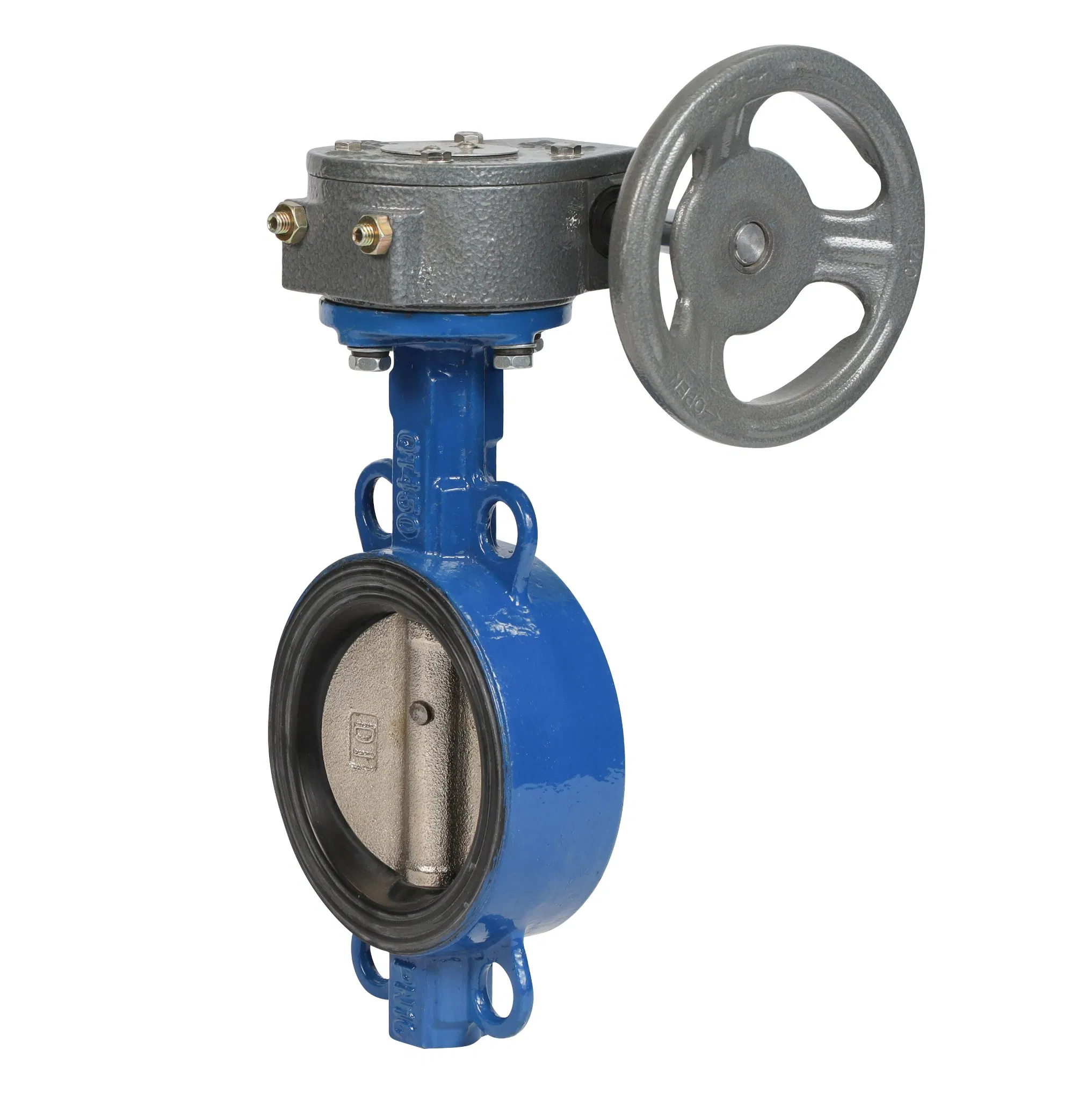

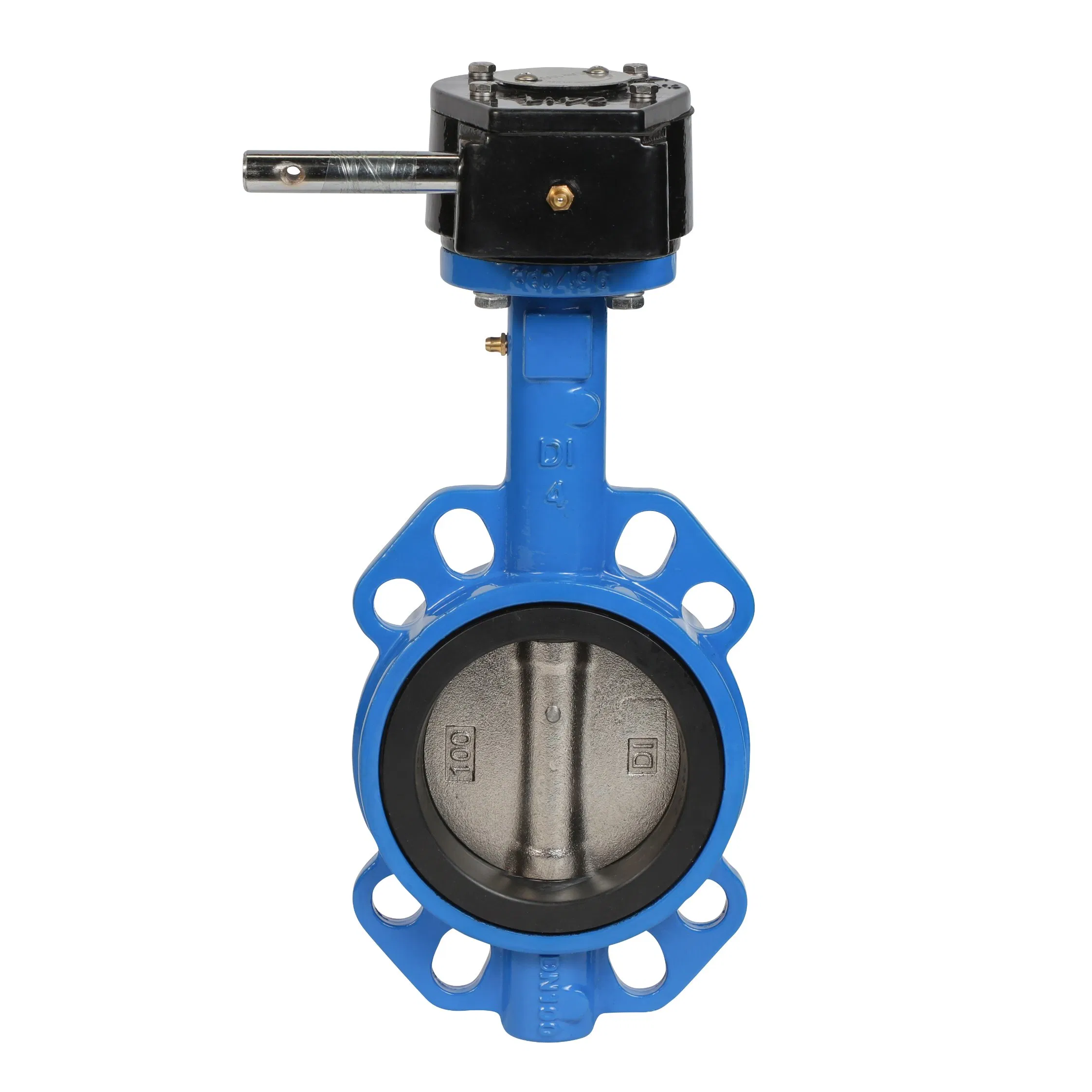

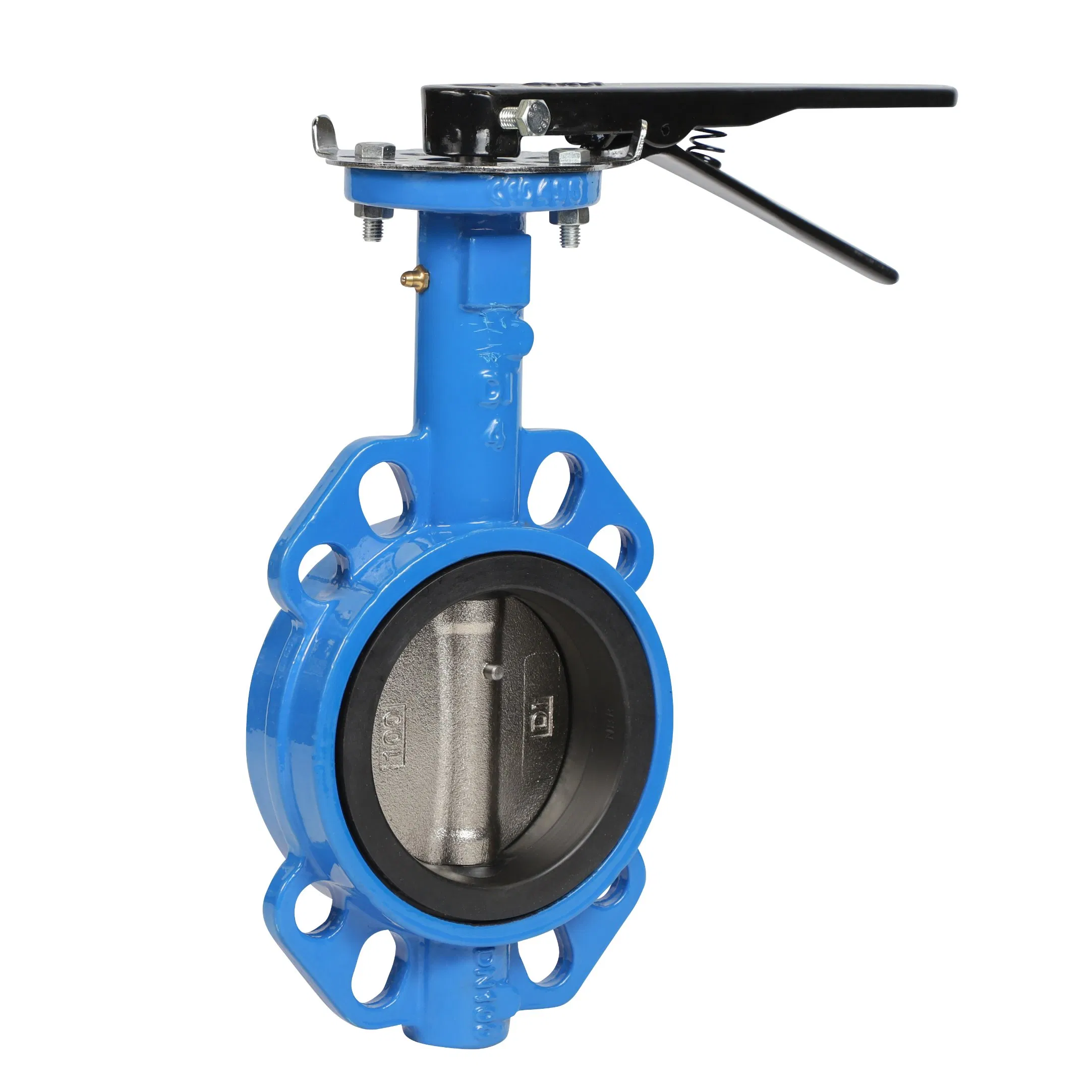

A butterfly valve, also known as a flip valve, is a control valve featuring a simple yet effective structure. Primarily utilized for switching control of low-pressure pipeline media, this valve employs a disc-shaped closing component (butterfly plate) that rotates around the valve shaft to achieve opening and closing. These valves are versatile and can control various fluids including air, water, steam, corrosive media, mud, oil, and liquid metals.
Technical Specifications
| Body Material | Cast Iron/Ductile Iron/Wcb/CF8m/CF8/Al-Bronze |
| Seat Material | NBR/EPDM/PTFE/Silicone etc |
| End Standard | Pn6/10/16/25/150lb/JIS5K/10K |
| Disc Material | Di/Nylon/1.4469/1.4529/Saf2205/2507/CF8/CF8m |
| Size Range | DN25 - DN1200 |
Manufacturing Excellence

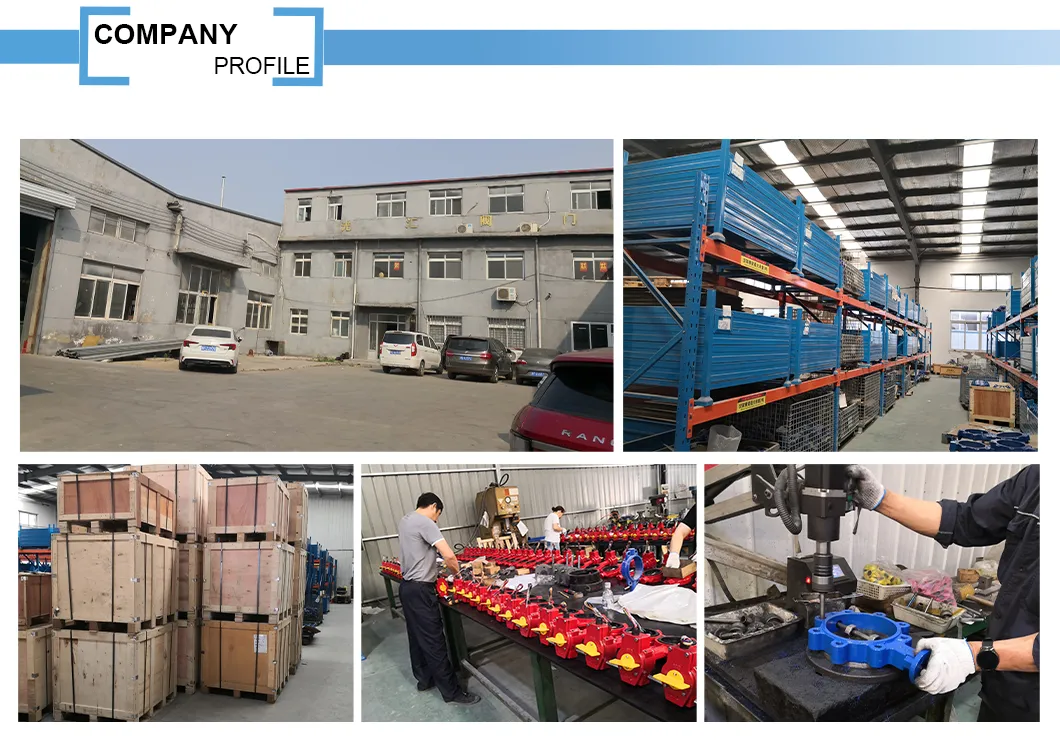

All products are processed using CNC machine tools and precision equipment to ensure the highest internal quality. Our quality management system covers the entire process—from casting and machining to coating, assembly, and rigorous testing. Modern CAD/CAM technology is utilized in design to ensure advanced structural performance that synchronizes with global standards.
Frequently Asked Questions
Can I obtain product samples?
Yes, samples are available upon request to ensure the quality meets your project requirements.
Do you offer OEM or custom design services?
Yes, we provide full OEM/ODM services. Your specific logos and custom designs can be integrated into the product manufacturing process.
Where are your production facilities located?
Our professional manufacturing facility is located in China. We welcome clients to visit our production lines to see our quality standards firsthand.
What is your monthly production capacity?
Our facility has a robust production capacity, reaching approximately 4,000 units per month for butterfly and check valves.
What is the standard delivery timeframe?
Generally, delivery takes about 30 days after order confirmation, though this may vary based on the specific order quantity and requirements.
What quality standards do your products follow?
Our products are designed and manufactured to meet international standards including ANSI, JIS, BS, and DIN, supported by ISO9001 quality management.
