High Quality Big Size 16" DN400 Plastic Butterfly Valve UPVC Wafer Type Worm Gear Butterfly Valve PVC Manual Handle Butterfly Valve DIN ANSI JIS Standard

1 / 5

High Quality Big Size 16" DN400 Plastic Butterfly Valve UPVC Wafer Type Worm Gear Butterfly Valve PVC Manual Handle Butterfly Valve DIN ANSI JIS Standard

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DIN ANSI JIS Standard DN50-DN400 ( 2"-16" )

Connection Form

Flange / Wafer

Structure

Centre Sealing

Work Pressure

Low Pressure (Pn < 1.6mpa)

Seal Material

Soft Sealed EPDM / FPM

Standard

DIN, ANSI, JIS, BS Standard

Temperature

Normal Temperature (-40°C < T < 120°C)

Application

Industrial, Water Treatment, Swimming Pool

Product Overview

Equipped with 10 sets of professional large-scale injection molding equipment and over 30 sets of processing machinery, every sealing surface is 100% machined. To ensure mechanical performance and extended service life, we strictly avoid using recycled plastics or rubber.

100% pressure tested sealing links one by one.
Comprehensive range: PVC-U, PVC-C, FR-PP, PP-R materials.
Large size capability ranging from DN15mm to DN400mm (16").
Compliant with European DIN, American ANSI, and Japanese JIS standards.

Visual Presentation

Technical Data Sheet

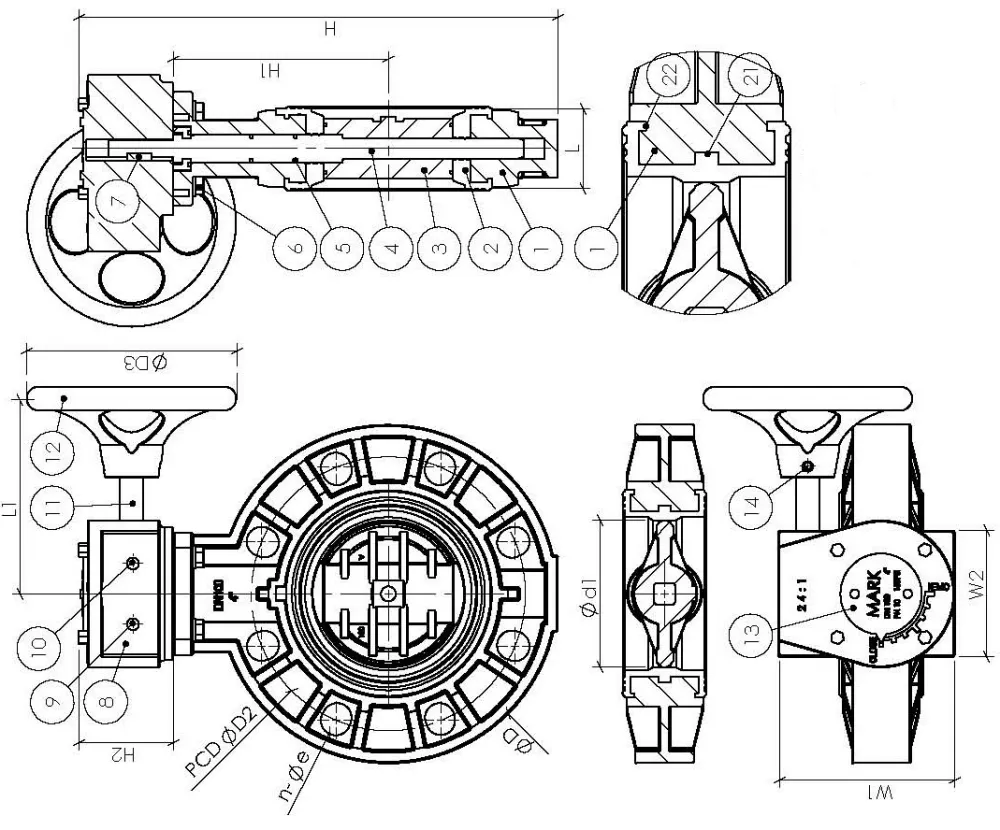

No.	Parts	Quantity	Material Options
1	Valve Body	1	PVC-U / PVC-C / FRPP
2	Valve Seat	1	EPDM / FPM
3	Valve Disc	1	PVC-U / PVC-C / FRPP
4	Valve Stem	1	C.S.45 / S.S.304 / S.S.316
5	O Ring	2	EPDM / FPM
8	Gear Box	1	Cast Iron / Plastic
12	Hand Wheel	1	Cast Iron / Plastic

Working Pressure Guide

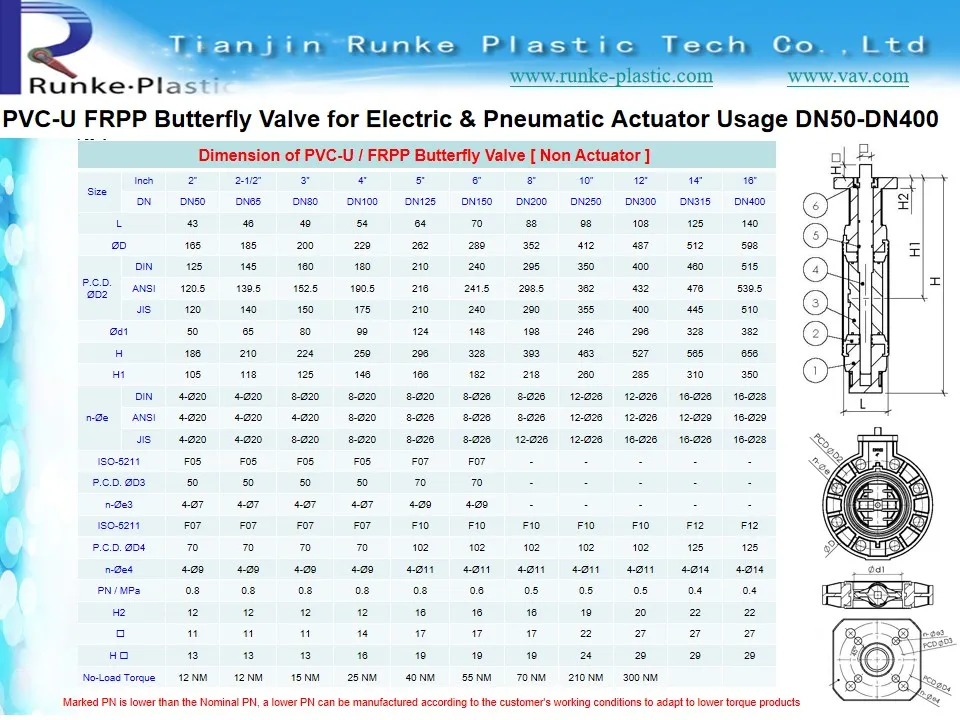

DN80-DN200 (3"- 8"): 150PSI / PN1.0MPa

DN250-DN300 (10"- 12"): 90PSI / PN0.6MPa

DN350-DN400 (14"- 16"): 60PSI / PN0.4MPa

Actuator & Handle Options

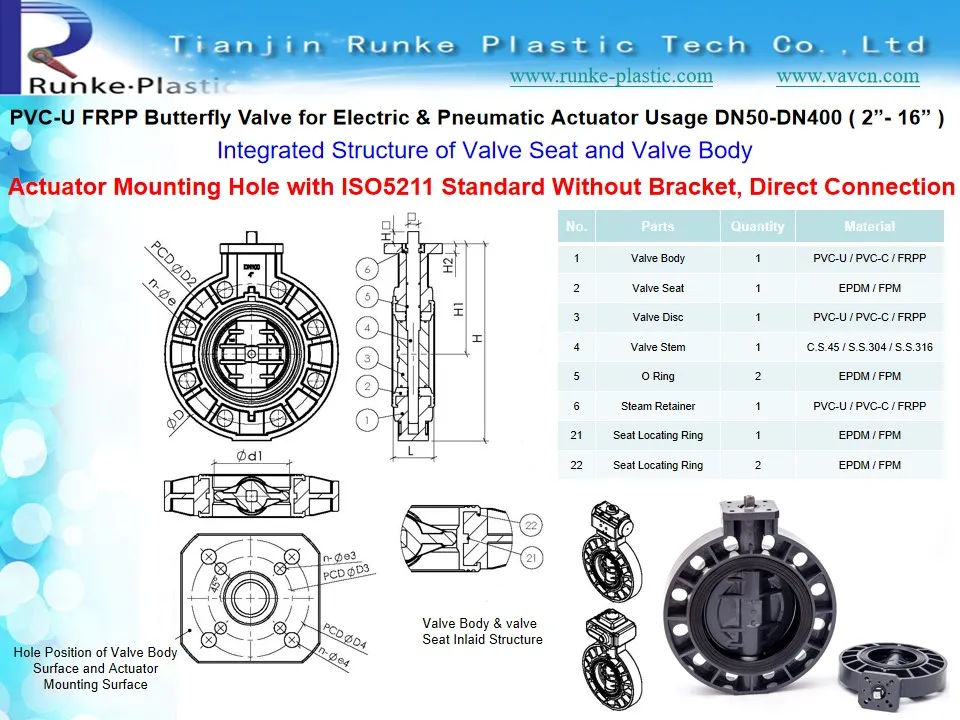

We provide PVC Non-Actuator Butterfly Valves designed for Electric & Pneumatic actuator usage, featuring ISO5211 standard mounting holes for direct connection without brackets.

Packaging Details

Package Size

40.00cm * 34.00cm * 25.00cm

Gross Weight

22.000kg

Packing Method

Standard Carton Packing

Frequently Asked Questions

Q1: What standards do your plastic butterfly valves comply with? Our valves are manufactured to meet DIN, ANSI, JIS, and BS standards, ensuring compatibility with international piping systems.

Q2: What is the maximum size available for the PVC butterfly valve? We specialize in large-size valves, with product sizes ranging from DN15mm (1/2") up to DN400mm (16").

Q3: Are these valves suitable for chemical applications? Yes, our valves are made from high-quality PVC-U, CPVC, and FRPP materials which are acid-proof and alkali-proof, making them ideal for industrial and chemical usage.

Q4: Can I install an electric or pneumatic actuator on these valves? Absolutely. We offer an "Integrated Structure" version with ISO5211 standard mounting holes, allowing for direct connection to actuators without needing an extra bracket.

Q5: Do you use recycled materials in production? No, we use 100% hygienic level PVC raw materials and virgin rubber (EPDM/FPM) to ensure mechanical performance and a long service life.

Q6: How do you ensure the sealing performance of each valve? Every single valve undergoes a 100% pressure test on each sealing link before packaging to ensure zero leakage.
