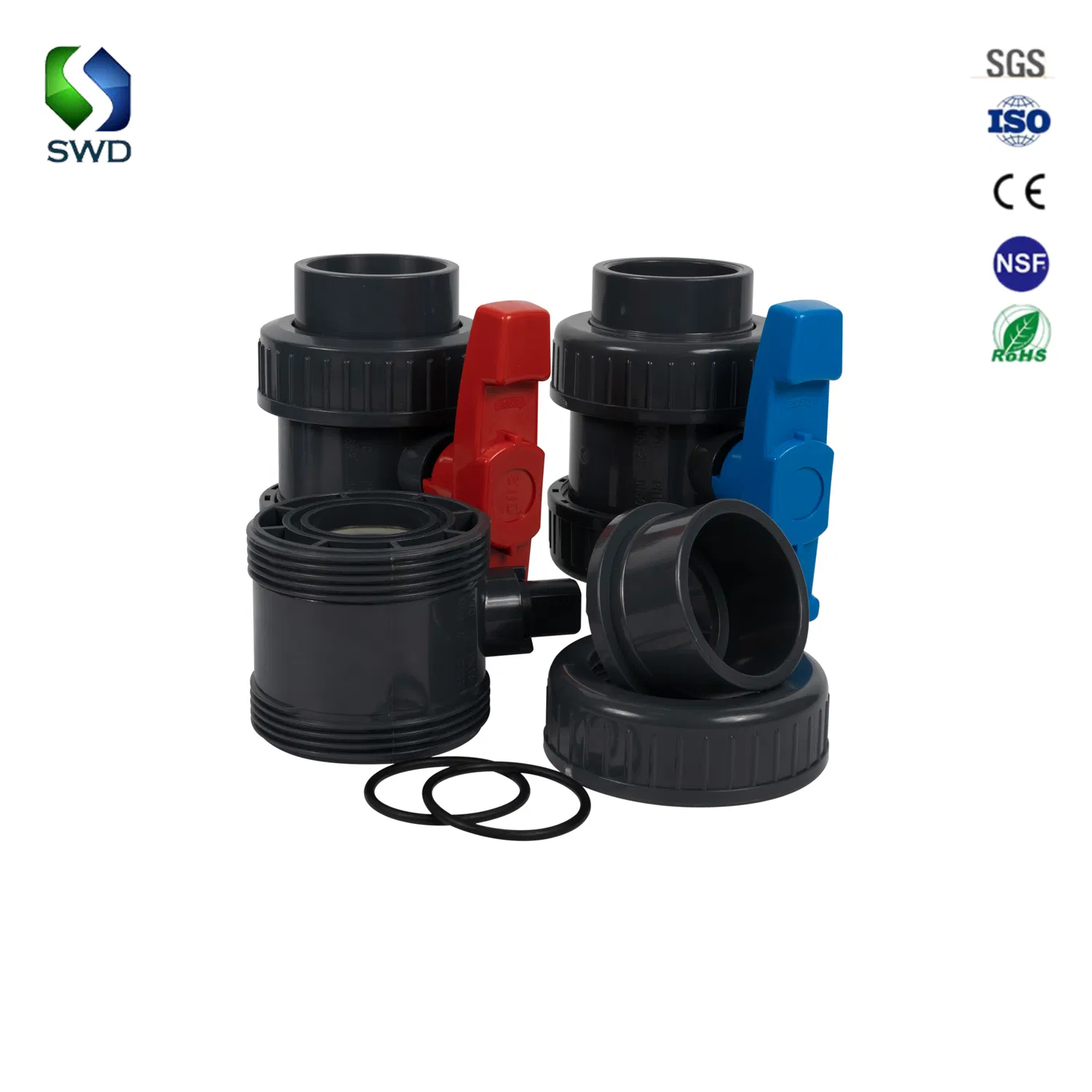

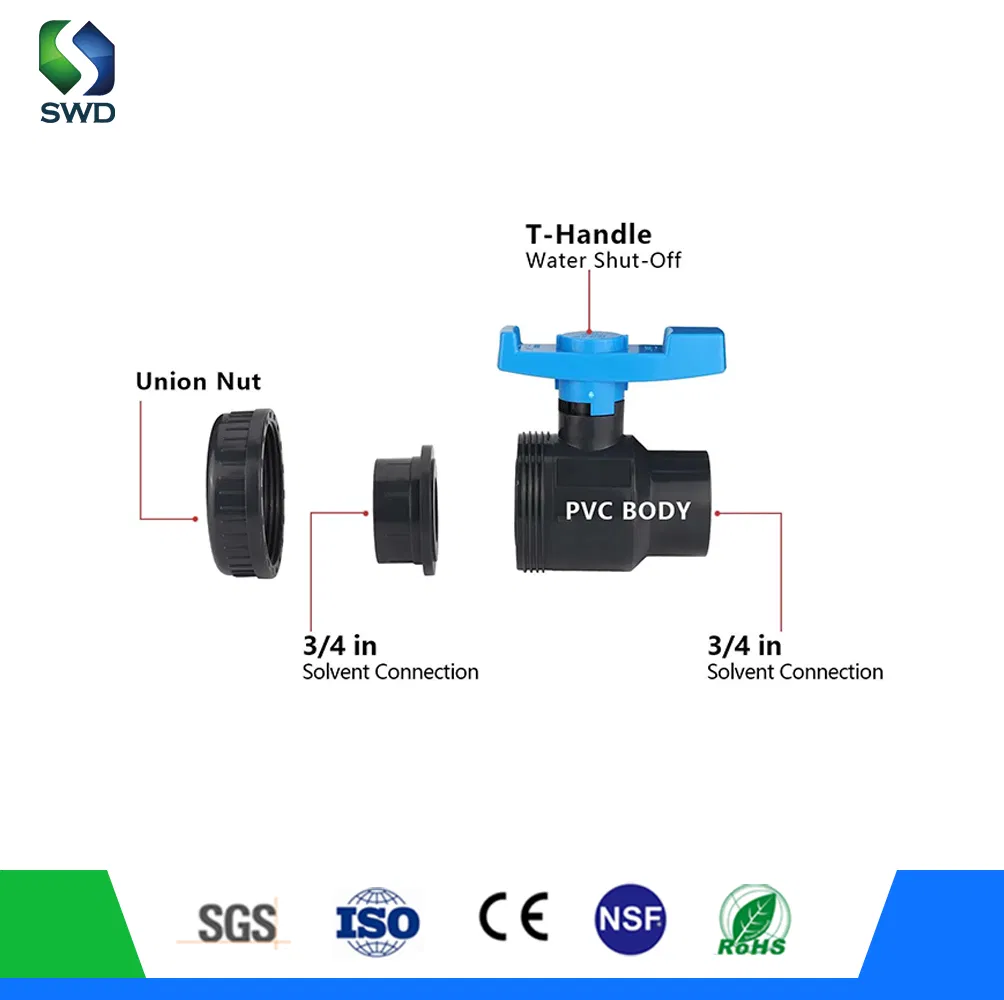

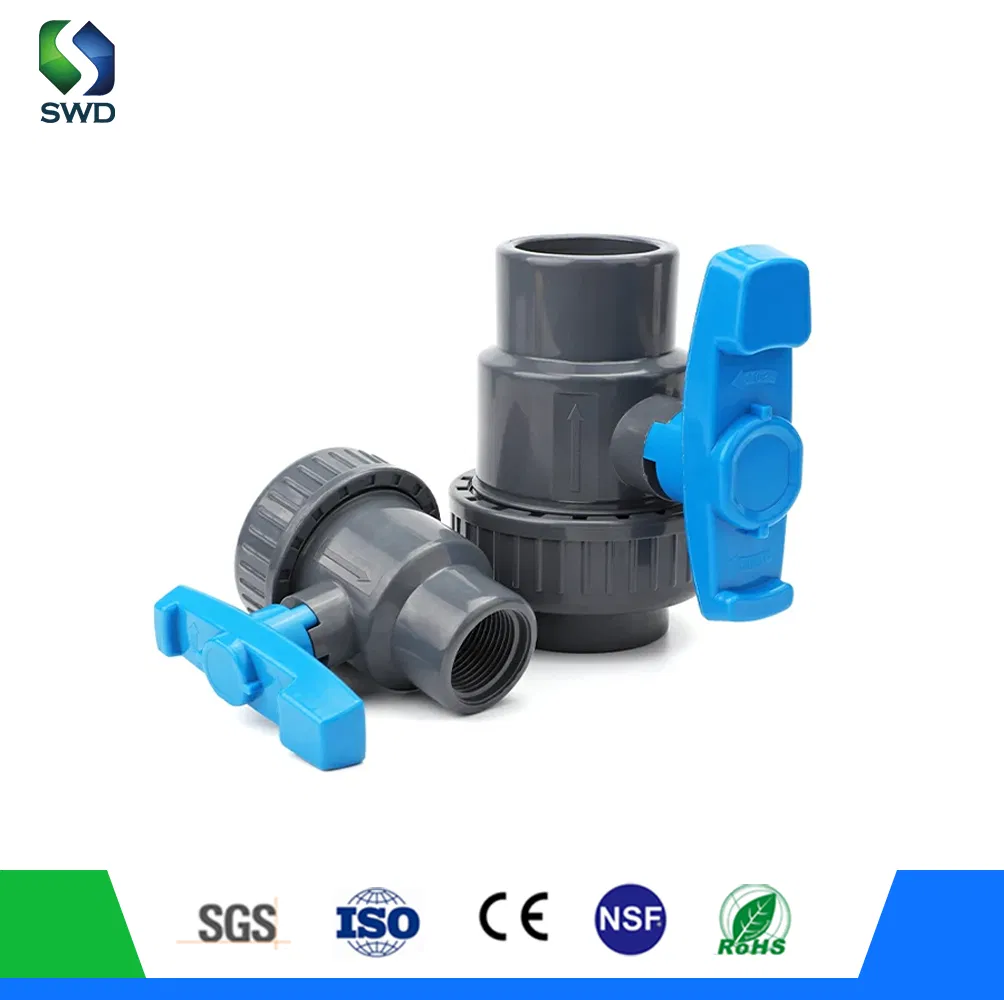

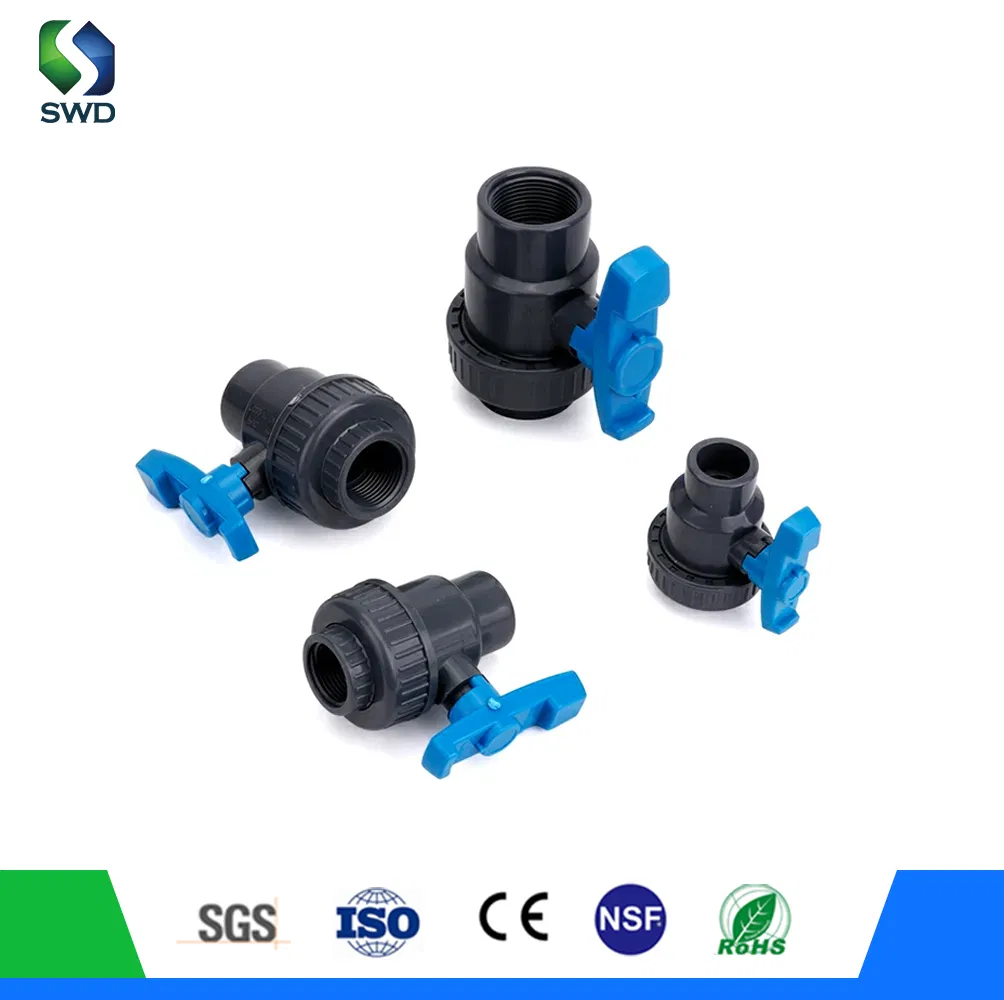

Available in different sizes, colors, and different handle styles to meet your market needs. Ball valves are available in two different connection styles (socket and threaded), which gives them more options for use in piping systems. Mainly used in agricultural irrigation and water supply systems.

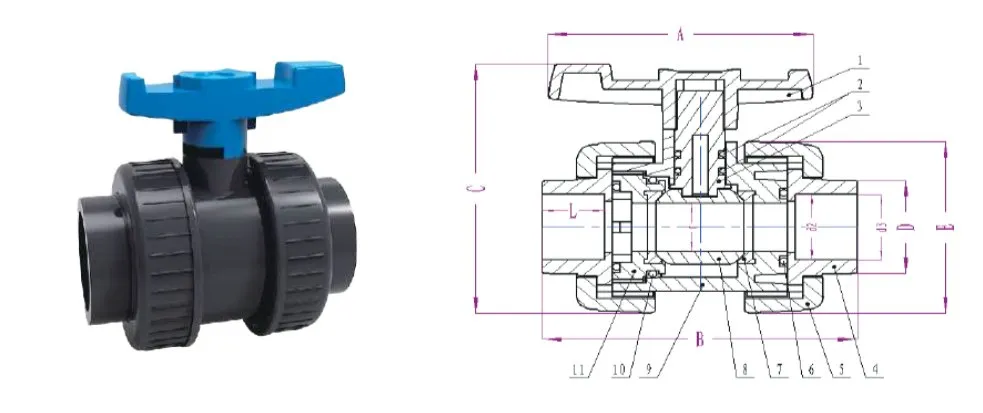

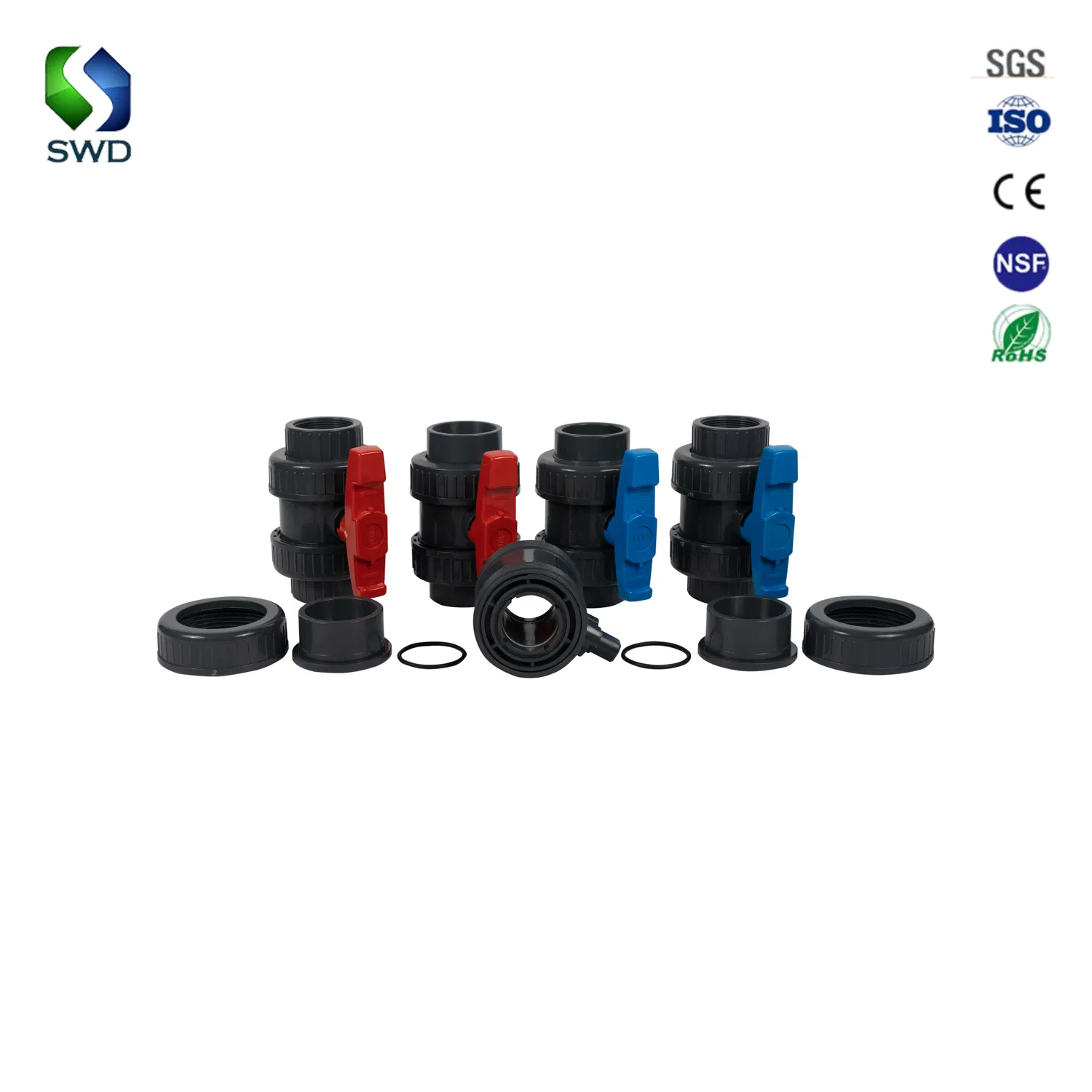

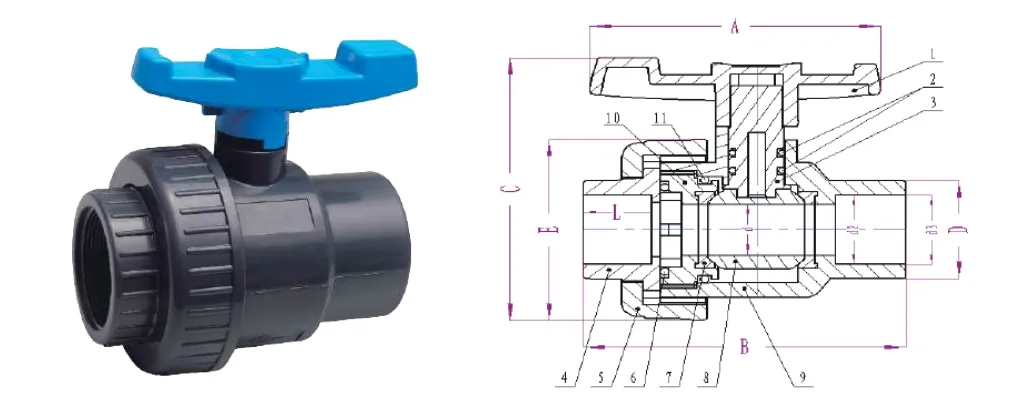

| Part | Material |
|---|---|
| Stem O-Ring | NBR/EPDM |
| Stem / End Connector / Union Nut | uPVC |
| Seat Seal | TPV |
| Ball / Body / Seat Carrier | uPVC |
| O-Ring | NBR/EPDM |
| Size | DIN (d2/d3) | ANSI (d3) | JIS (d3) | BS (d3) |
|---|---|---|---|---|
| DN15 (1/2") | 19.8 / 20.3 | 21.23 / 21.54 | 21.70 / 22.3 | 21.3 / 21.5 |
| DN25 (1") | 31.7 / 32.3 | 33.27 / 33.65 | 31.67 / 32.33 | 33.5 / 33.7 |
| DN50 (2") | 62.7 / 63.4 | 60.17 / 60.63 | 59.44 / 60.56 | 60.3 / 60.5 |
| DN80 (3") | 89.6 / 90.5 | 88.7 / 89.31 | 88.83 / 89.6 | 88.8 / 89.1 |
| DN100 (4") | 109.5 / 110.6 | 114.07 / 114.76 | 113.98 / 114.7 | 114.2 / 114.5 |

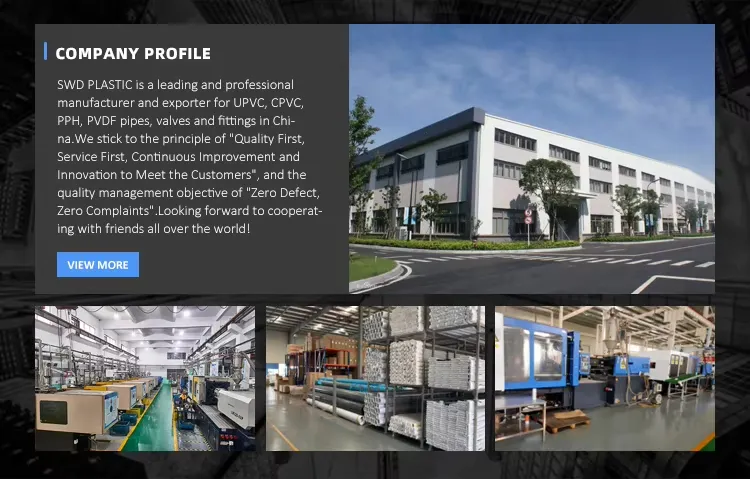

We are a leading professional manufacturer and exporter for UPVC, CPVC, PPH, and PVDF pipes, valves, and fittings in China. We adhere to the principle of "Quality First, Service First, Continuous Improvement and Innovation" with a quality management objective of "Zero Defect, Zero Complaints."
Most products conform to ANSI, DIN, BS, JIS & TIS standards and are exported to the United States, Canada, Mexico, Chile, Russia, UAE, Thailand, Philippines, Indonesia, and more, maintaining a very good reputation.
