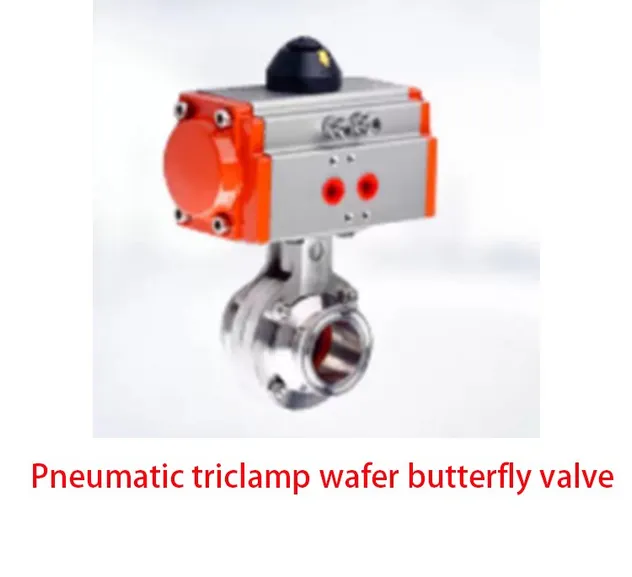

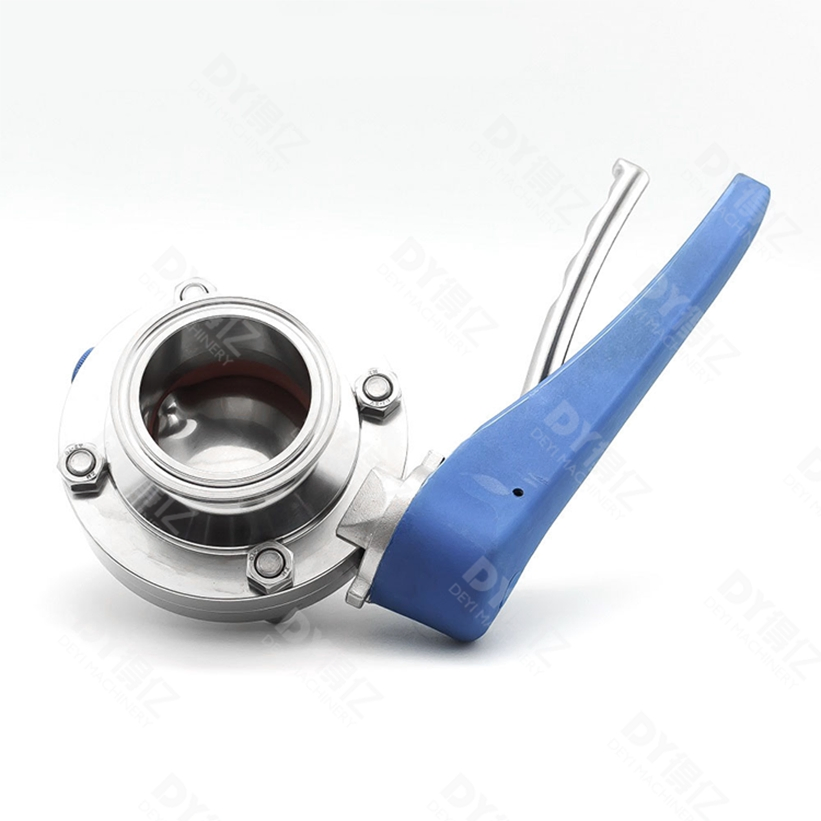

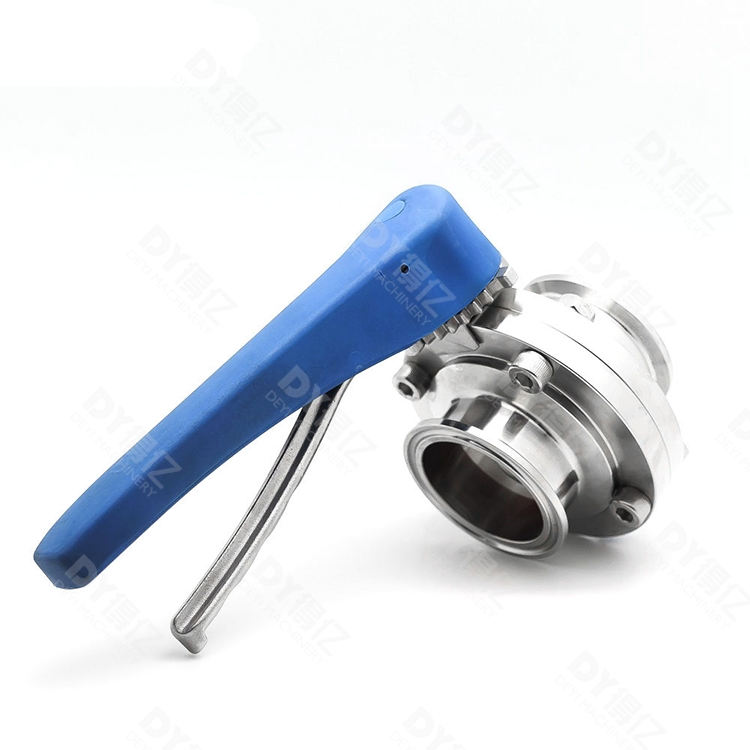

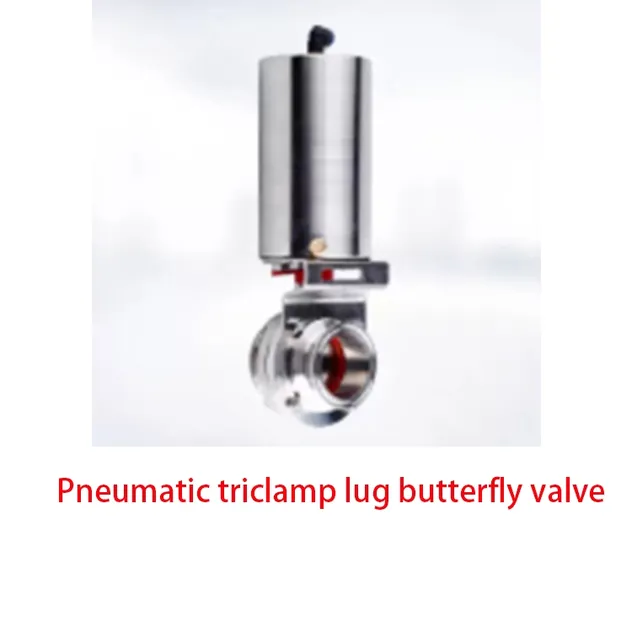

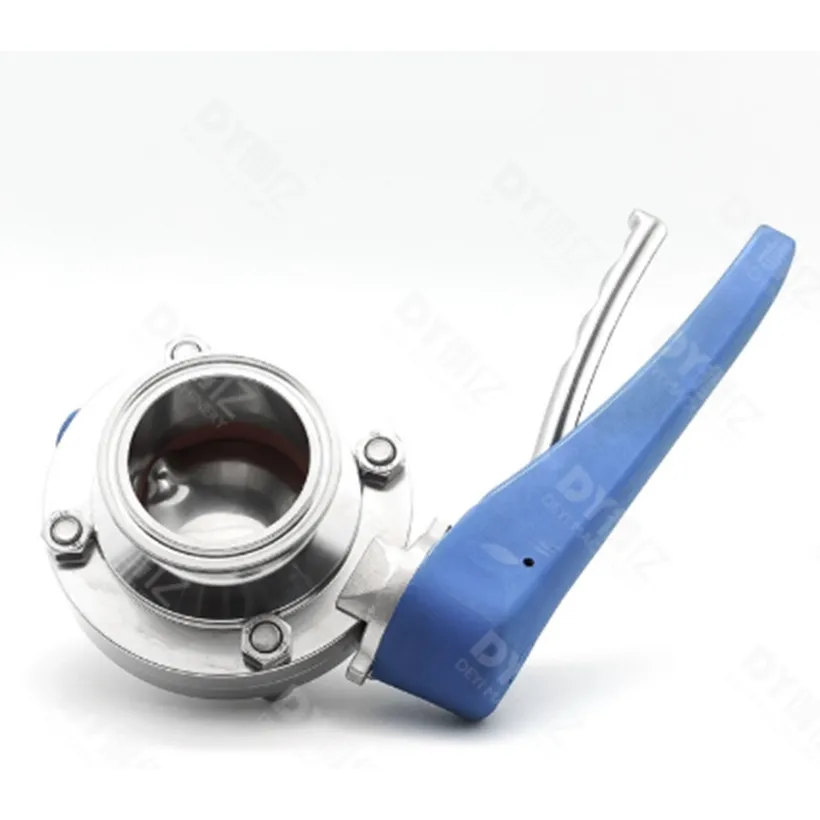

BUTTERFLY VALVE
Our butterfly valve stands out for its outstanding performance and user-friendly design, making it ideal for diverse industrial applications.
Features include a compact structure with lightweight materials for easy installation. The streamlined disc ensures low-pressure drop, minimizing energy consumption. The robust sealing system guarantees zero leakage across wide temperature ranges, and it requires minimal maintenance.

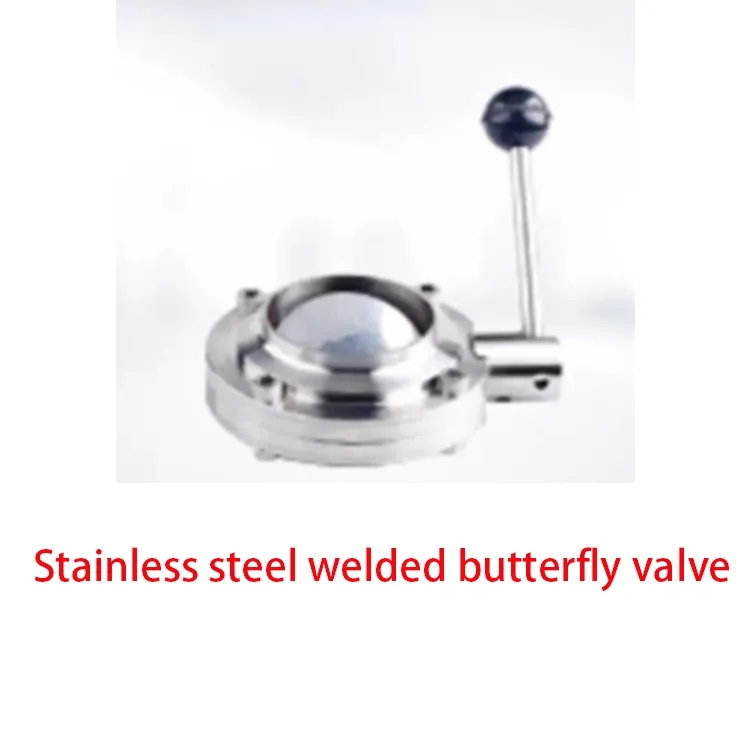

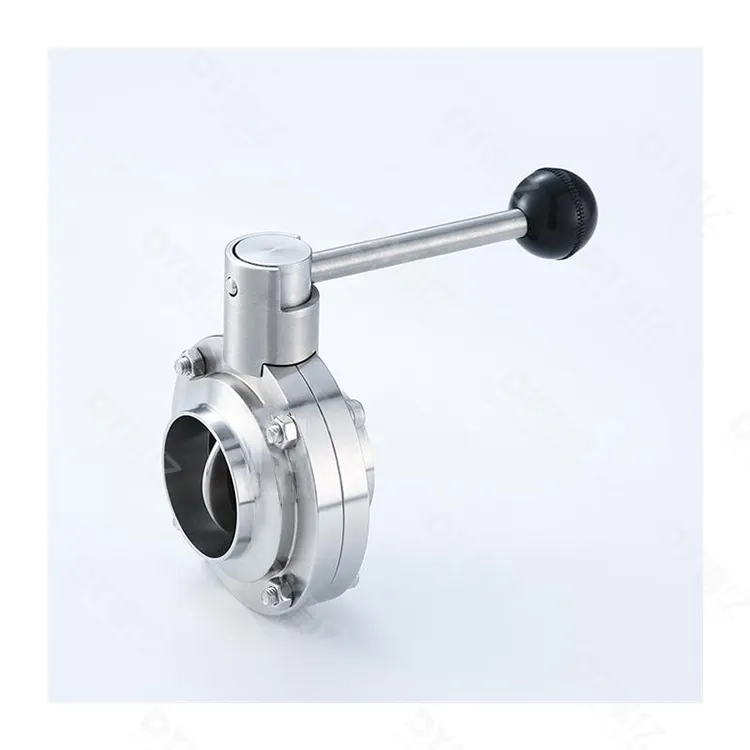

WELDED BUTTERFLY VALVE SIZES: Φ19, Φ25, Φ32, Φ38, Φ45, Φ48, Φ51, Φ57, Φ60, Φ63, Φ76, Φ89, Φ102, Φ108, Φ114, Φ133, Φ159, Φ168, Φ219.

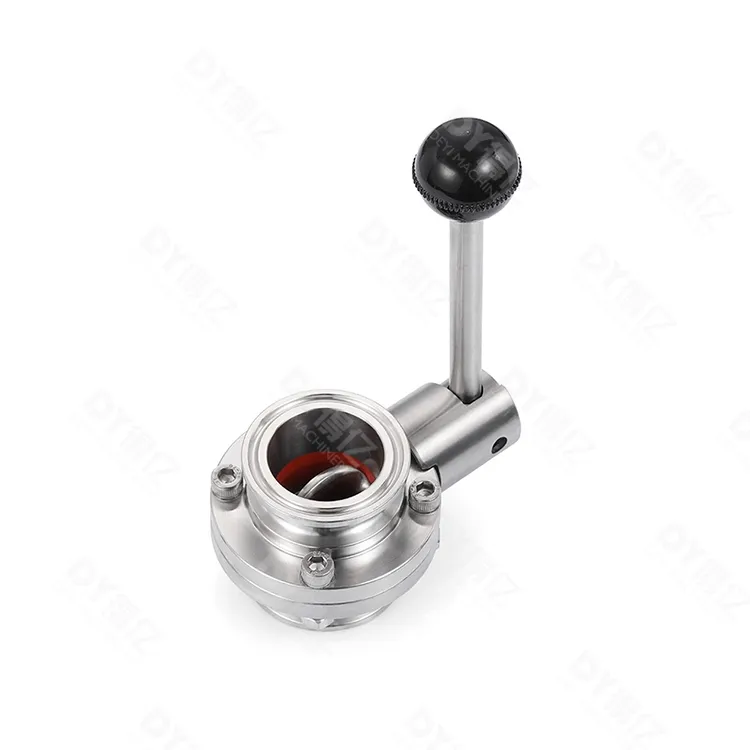

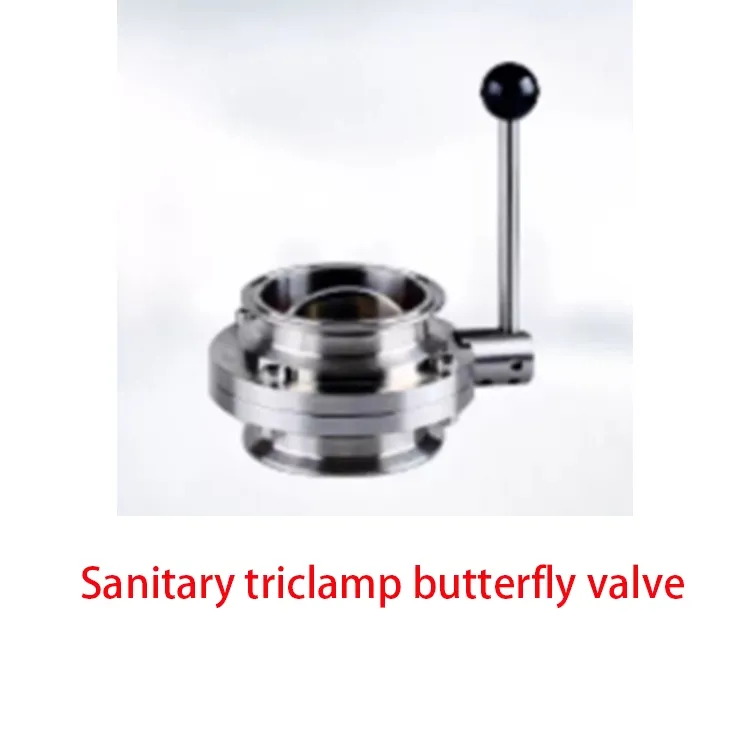

SANITARY TRICLAMP SIZES: Available from Φ19 to Φ273 with various K-values (K=25.4 to K=286).
| Parameter | Details |
|---|---|
| Structure | Centre Sealing / Butterfly |
| Seal Form | Force Sealed / Soft Sealed |
| Work Pressure | Low Pressure (Pn<1.6mpa) / 8bar-10bar |
| Temperature Range | -20 Degree Celsius to 120 Degree |
| Material | 304, 304L, 316, 316L |
| Connection Standard | DIN, 3A, SMS, RJT, ISO |
| Gasket | Silicone, EPDM, NBR, PTFE |

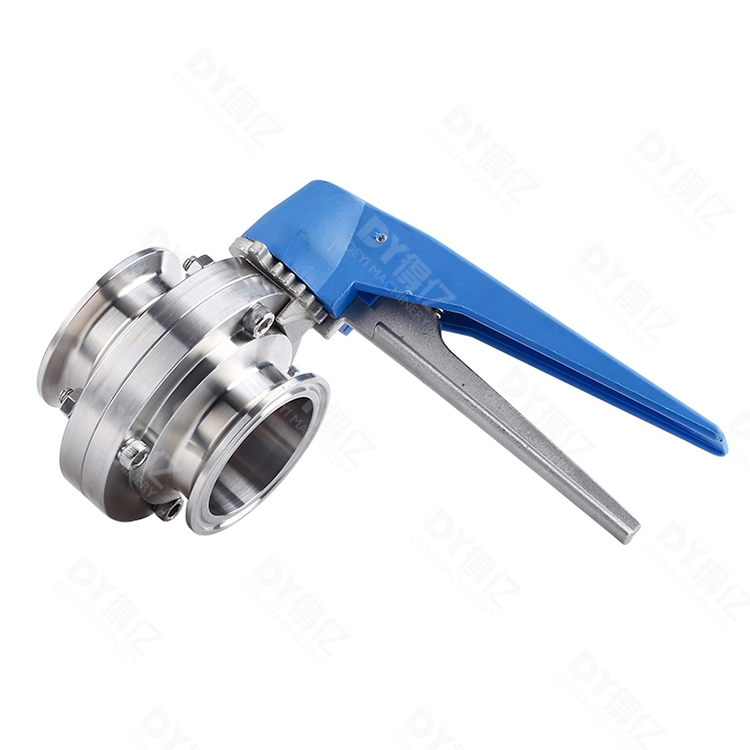

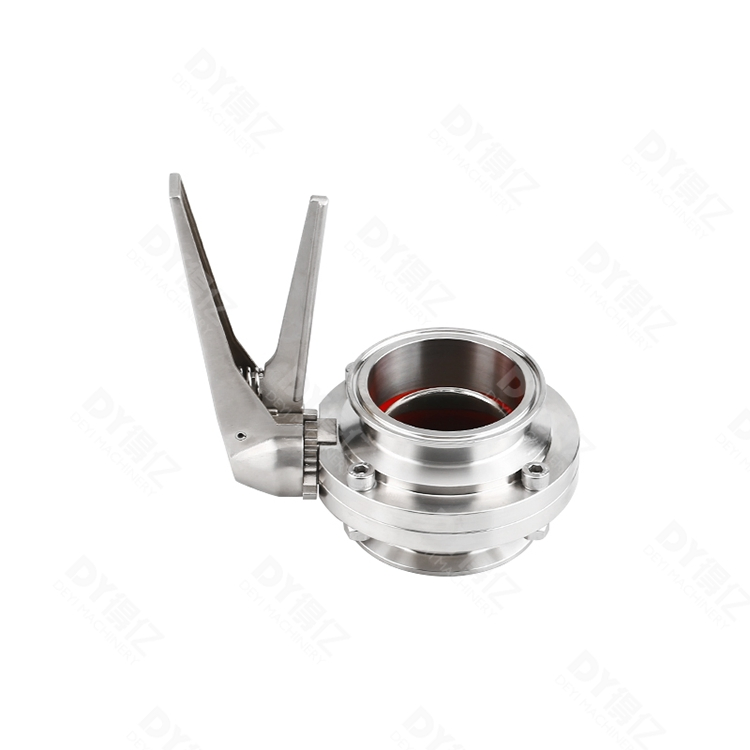

| Handle Type | Pull Handle, Gripper Handle/Fiber |
| Processing | Forge Processing, Advance CNC |
