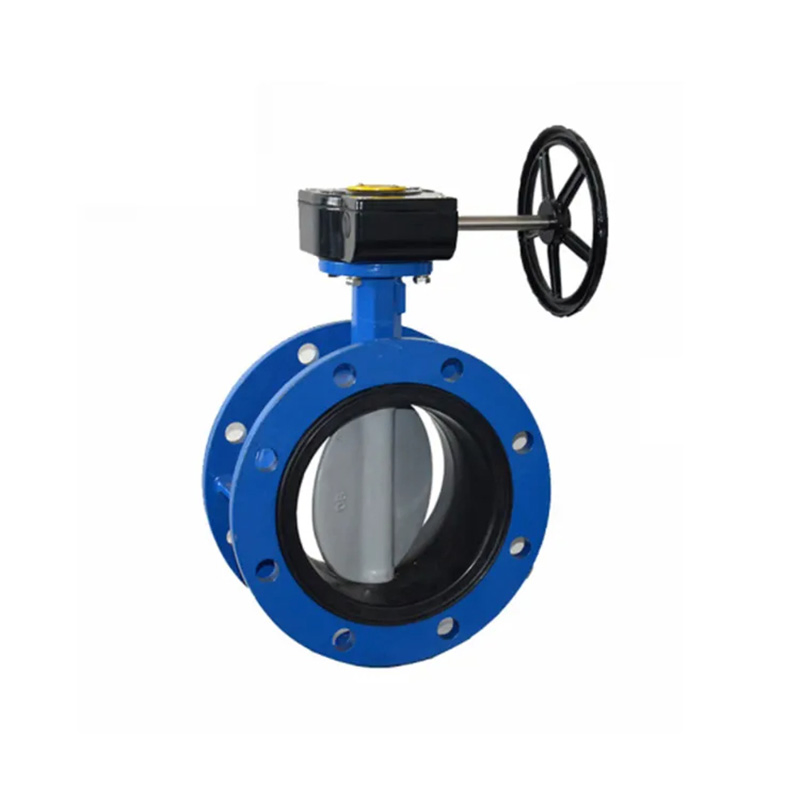

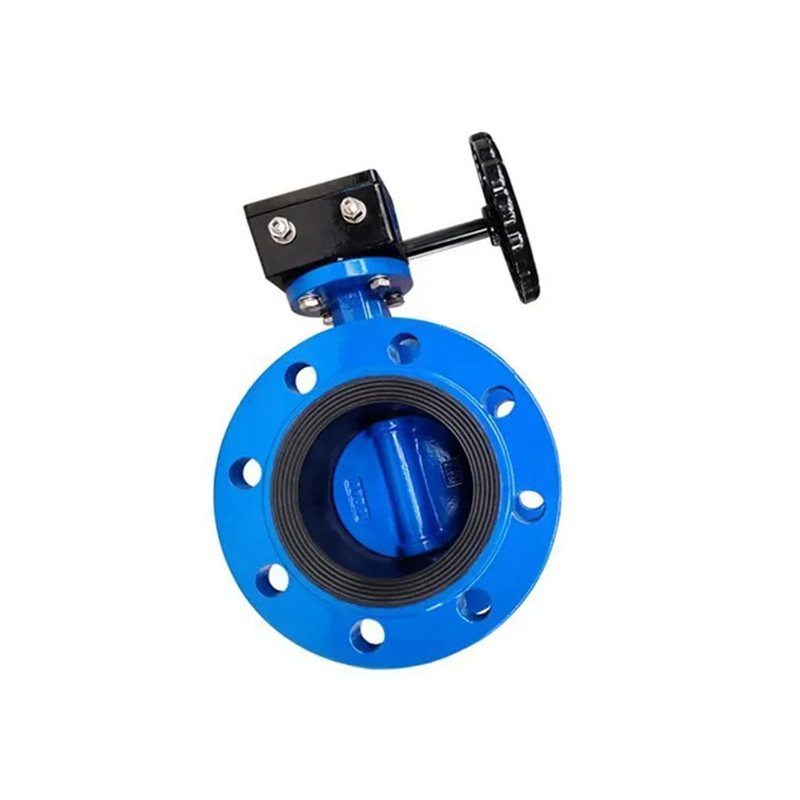

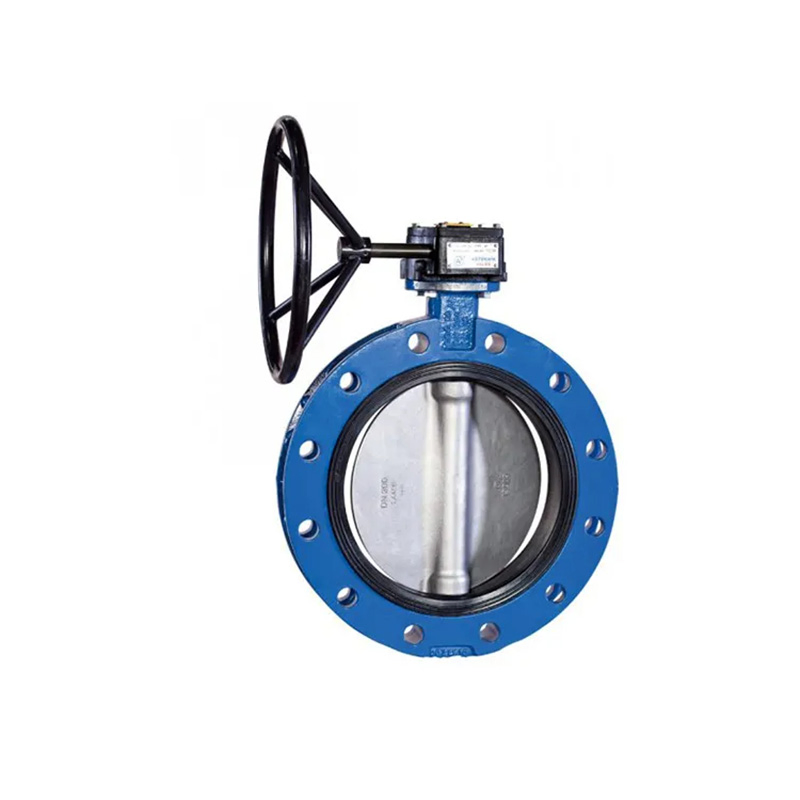

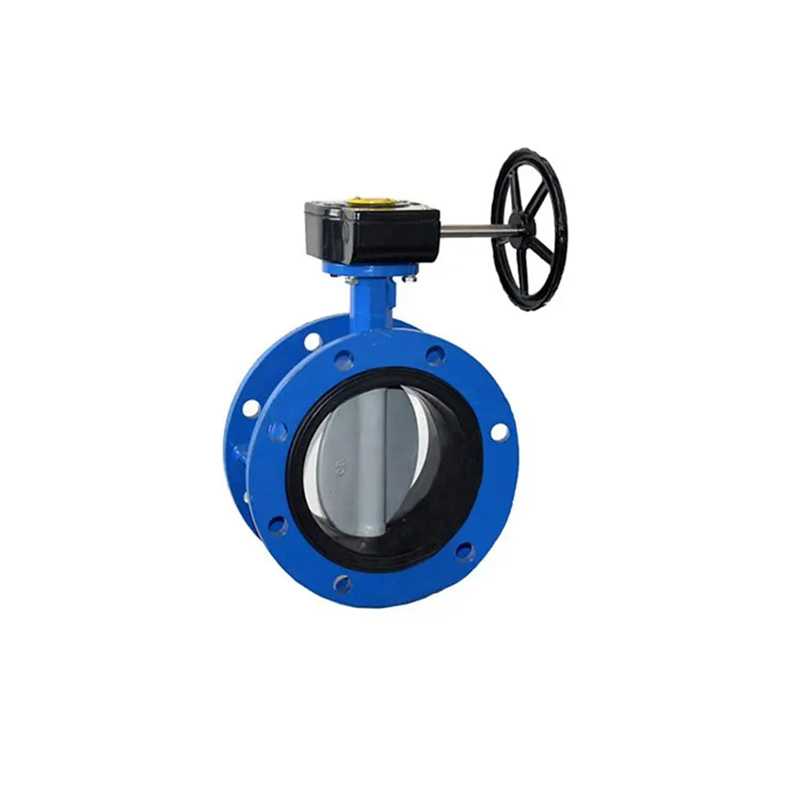

Dx Energy Industry Use Stainless Steel Disc Flange Butterfly Valve

Still deciding? Get samples of $ !
Order Sample

Product Description

📑 Basic Information
Model NO.
BFV-Series
Connection Form
Wafer
Structure
Centre Sealing
Seal Form
Force Sealed
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temp.
-40°C < T < 120°C
Standard
ANSI/DIN/JIS/ASME
Body Material
DI, SS304, SS316, WCB
Size Range
DN25-DN1000
Operation
Manual, Electric, Pneumatic
🔍 Product Description
Stainless Steel Disc Flange Butterfly Valve
Stainless Steel Disc Flange Butterfly Valves are designed for high-performance industrial water usage and household systems, featuring center sealing and soft-sealed surfaces for reliable operation.
📸 Detailed Photos

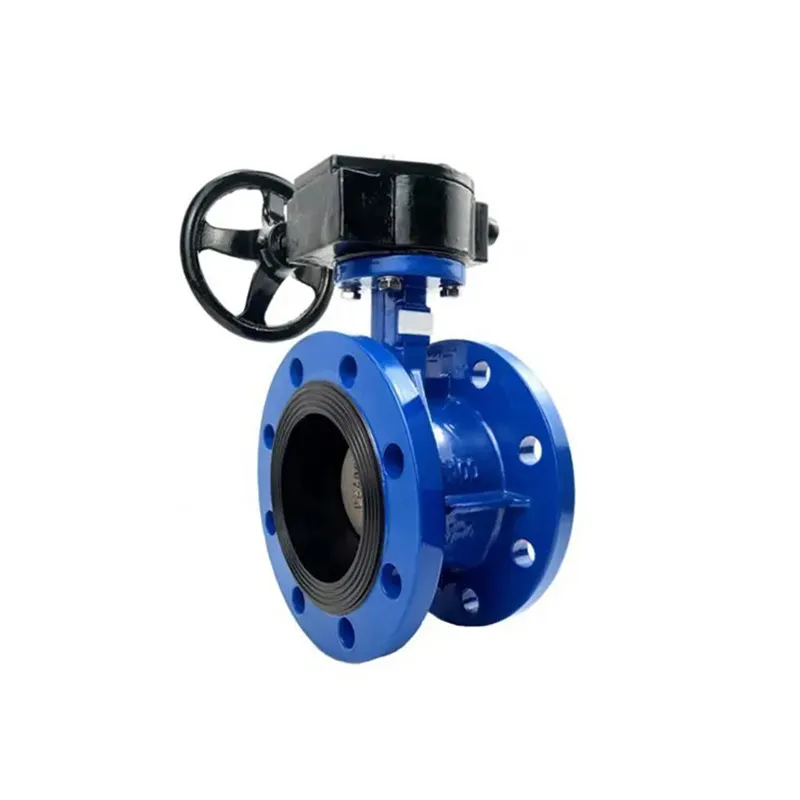

Valve Detail 1 Valve Detail 2 Valve Detail 3

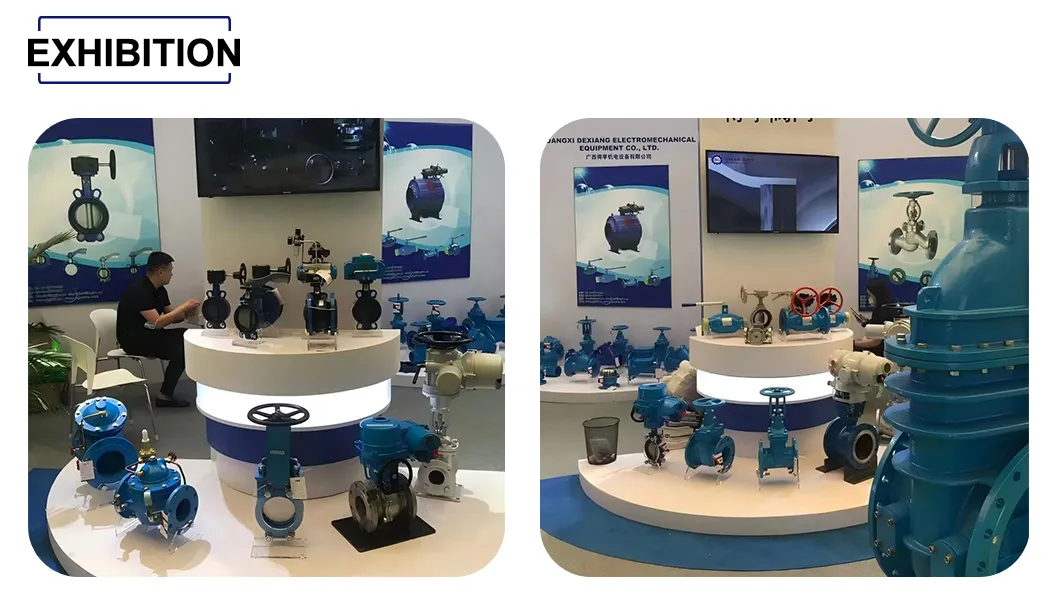

Valve Detail 4 Valve Detail 5 Valve Detail 6
📊 Technical Parameters
Component Material Options
Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
Disc Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
Shaft Stainless Steel, Monel K500
Seat BUNA, NBR, EPDM, PTFE, VITON

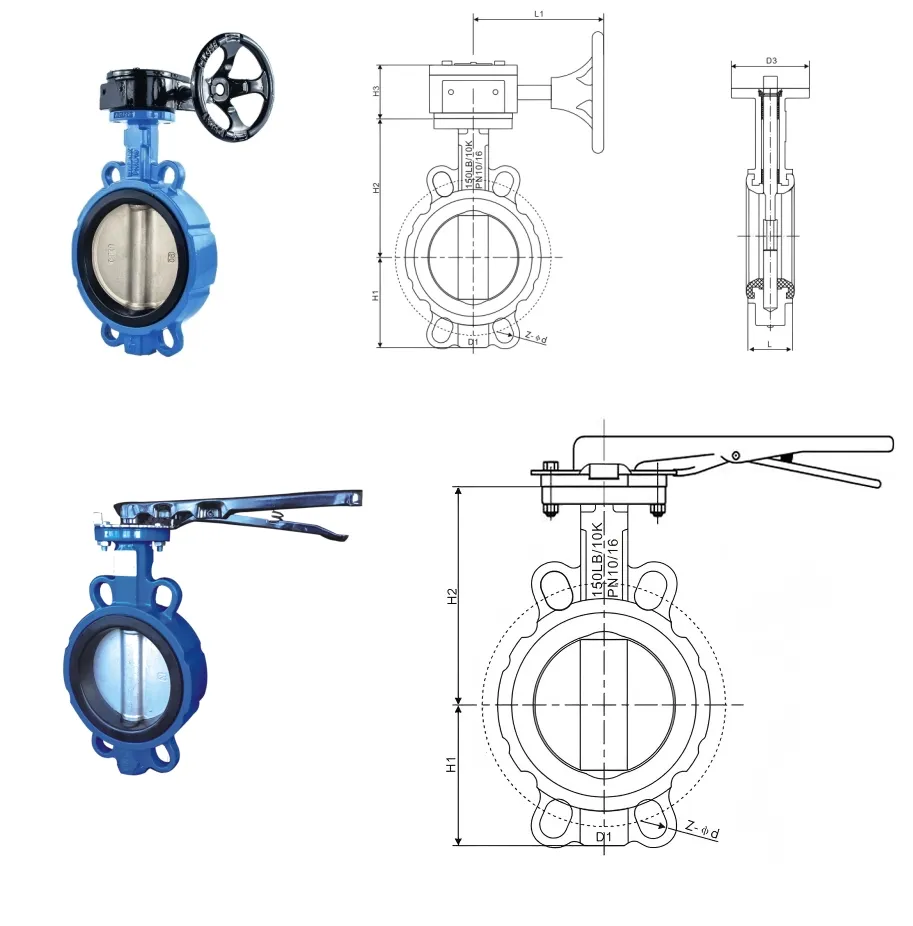

Main Dimensions PN10/PN16
DN (mm) L D D1 Z-φd Flange No. H1 H2
504152.91254-19F0573125
654464.51454-19F0582136
804478.81608-19F0591142
100511041808-19F07104163
15054155.62408-23F07138197
20059202.52958-23F10170230
🏗️ Application Scenarios
Valve Application
📦 Packaging & Shipping
Shipping Info
Transport Package
Carton Box, Wooden Box, Pallet
Package Size
18.00cm * 18.00cm * 18.00cm
Frequently Asked Questions
Are you a factory or trade company?
We are a butterfly valve manufacturer, specializing in the production and export of valves for more than ten years.
Can you customize the products?
Yes, we have a professional R&D team to supply customized products according to customer requirements.
What is the standard delivery time?
Generally about 10-25 days. If the items are in stock, we can arrange shipment within 3 days.
How is the after-sales service and warranty?
We provide professional technical and installation guidance. The standard warranty period is 1 year.
How do you control product quality?
We implement a strict quality management system with advanced testing equipment including CNC lathes, spectrometers, and pressure test benches. All products are inspected before leaving the factory.
What payment methods do you accept?
We accept wire transfer, Western Union, and Letters of Credit. Priority is given to wire transfers.
