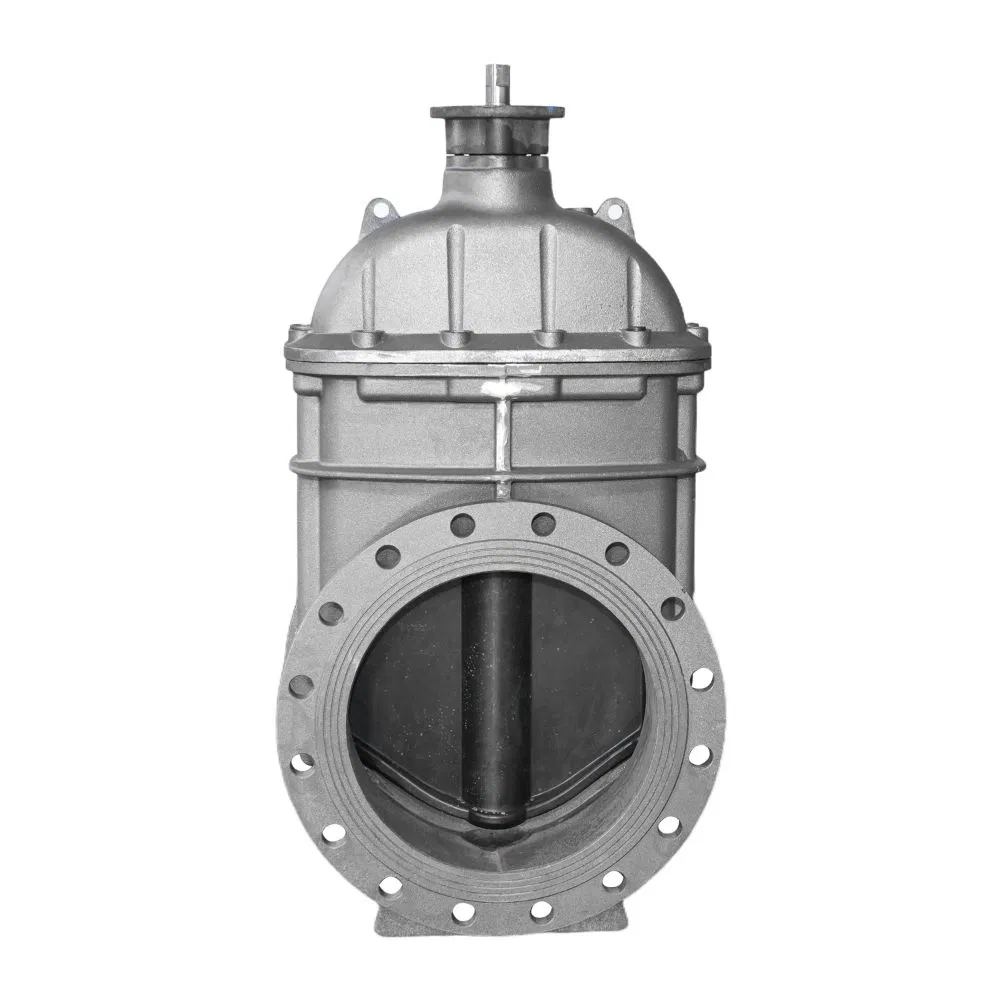

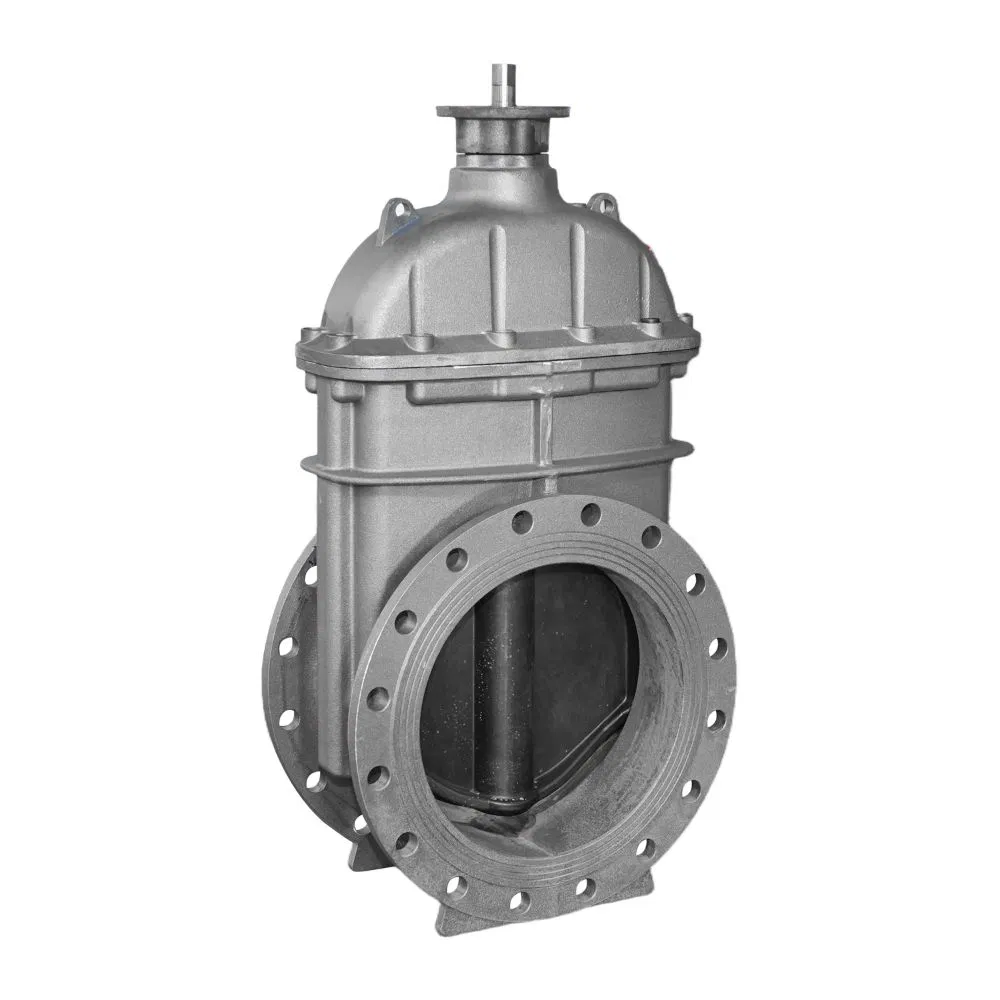

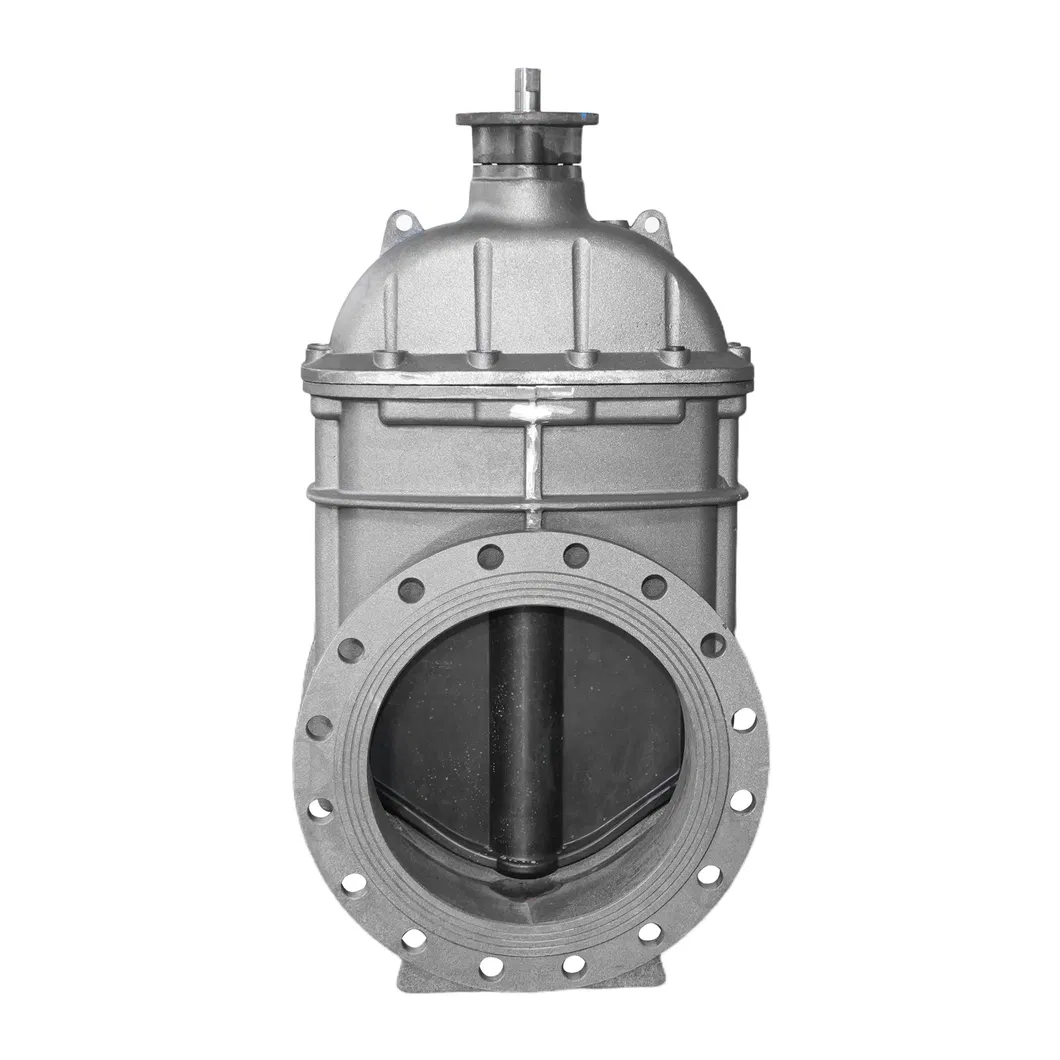

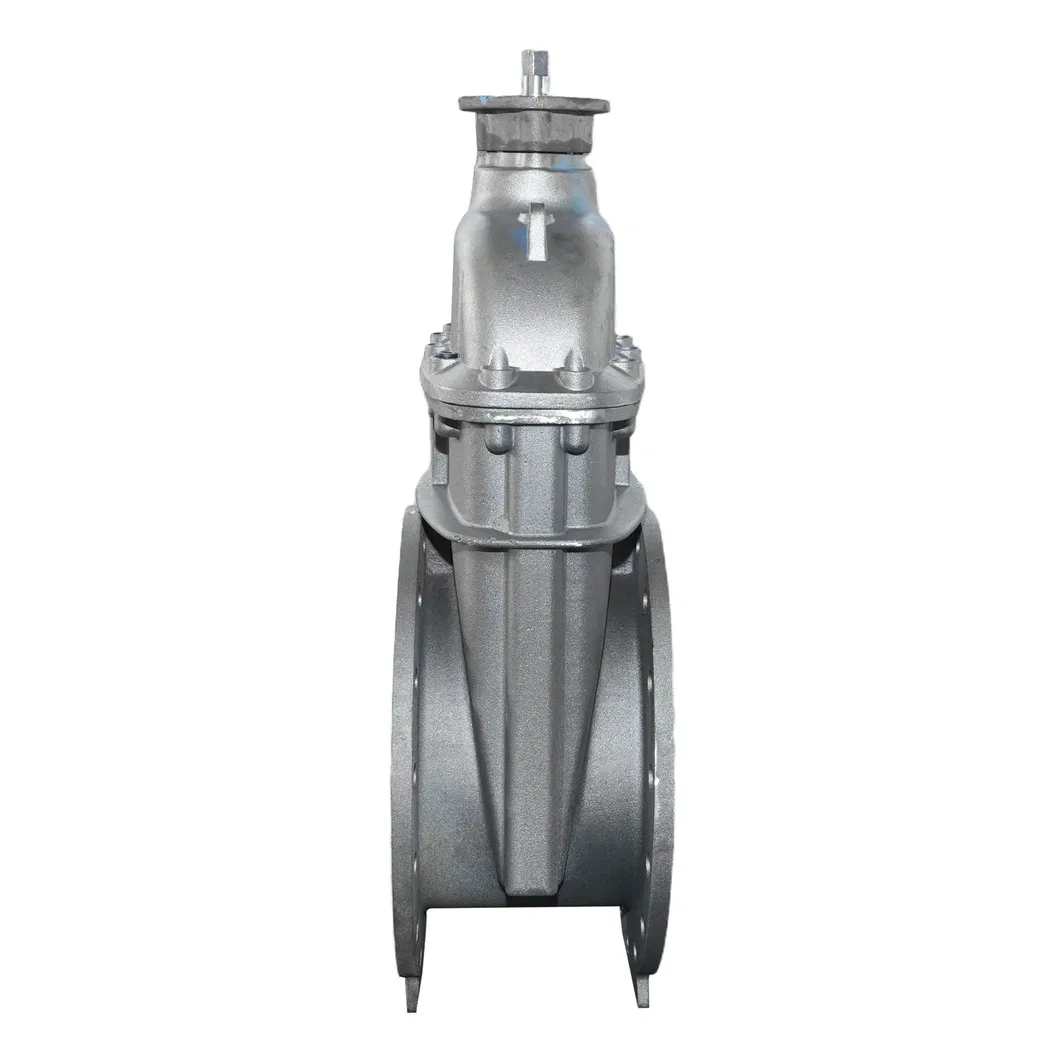

BS or DIN EN 1074-2 Non-Rising Stem Sluice Valve Control Gate Valve DN400 PN16
Material Grades: GGG50, GGG40, EN-GJS-500-7, QT450.
Advantages: Higher strength & toughness, superior corrosion resistance, and enhanced vibration damping for smoother operation.

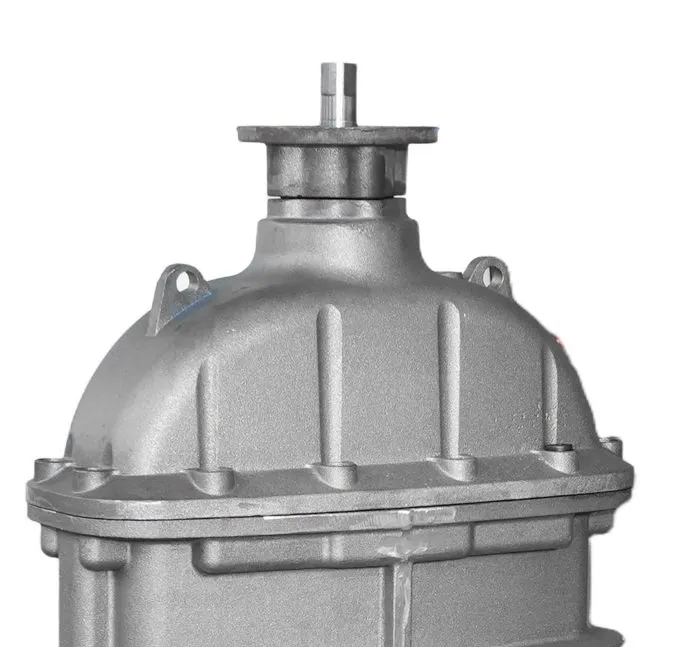

Standard for DN250 and above. High-strength carbon steel lifting rings simplify safe handling and positioning during installation, reducing the risk of structural damage.

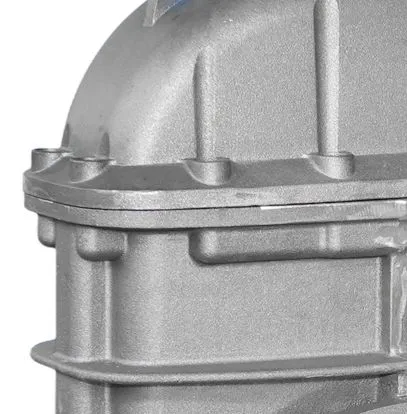

Ensures leak-free sealing under pressure and thermal cycling. Resists mechanical stress and vibrations without deformation while simplifying inspection and maintenance.

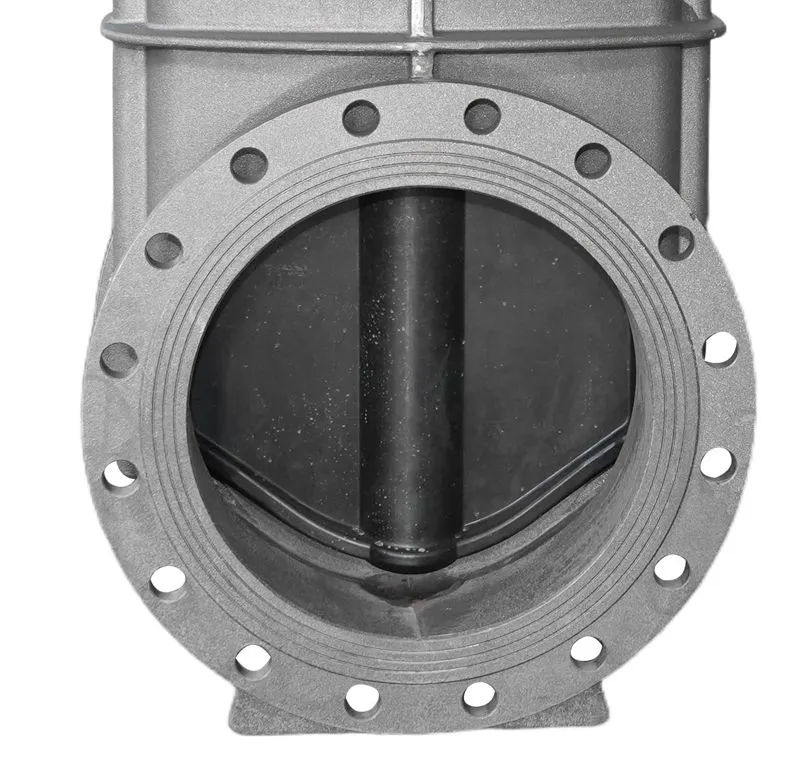

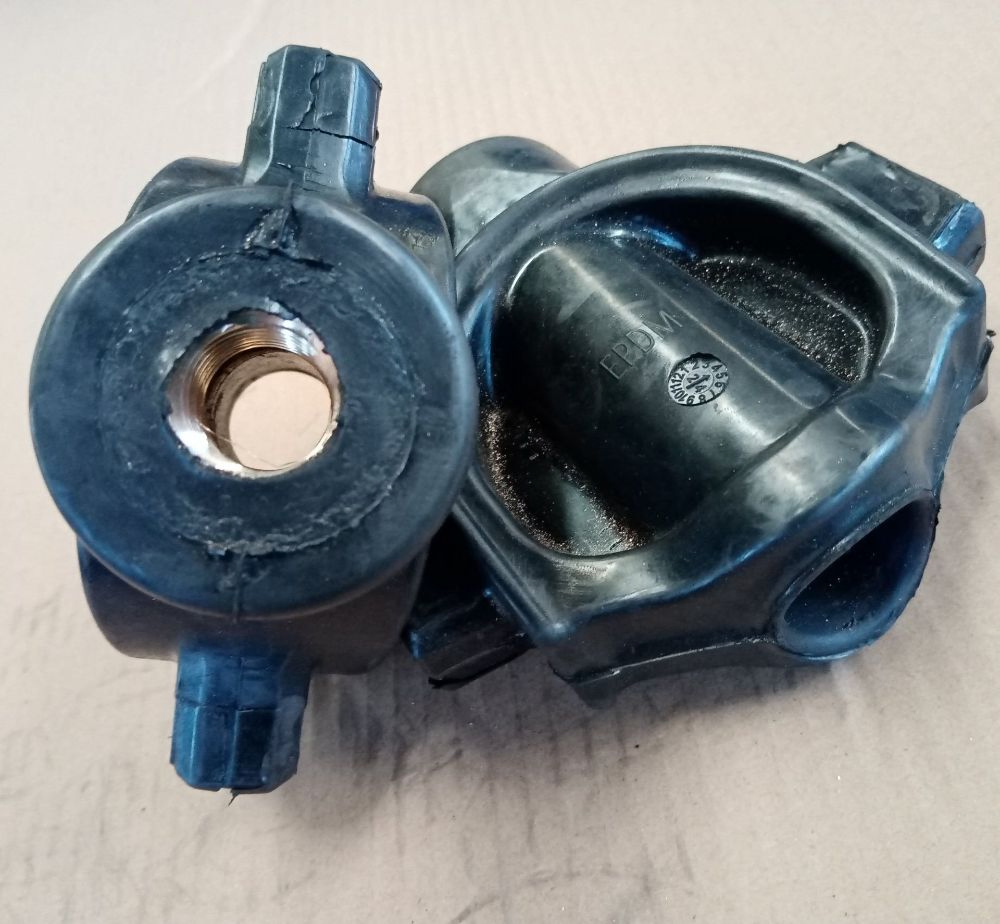

Zero Leakage: Elastic seals (EPDM/NBR) ensure tight shutoff for potable water and wastewater.
Versatility: Low torque design ideal for frequent on-off cycles in municipal drainage and industrial systems.
| Bolts | SS201/SS304/Carbon Steel |
| Gasket | EPDM/NBR |
| HandWheel | GGG50/GGG40/EN-GJS-500-7/QT500 |
| O-Ring | Silica gel/EPDM/NBR |
| Torque | Real: 200N*M | Quoted: 300N*M |
| Body | Ductile Iron GGG50/GGG40 |
| Working Temperature | NBR ≤ 80 ºC, EPDM ≤ 120 ºC |
| Medium | Water |
| Close Direction | Clockwise |
| Open Direction | Counterclockwise |

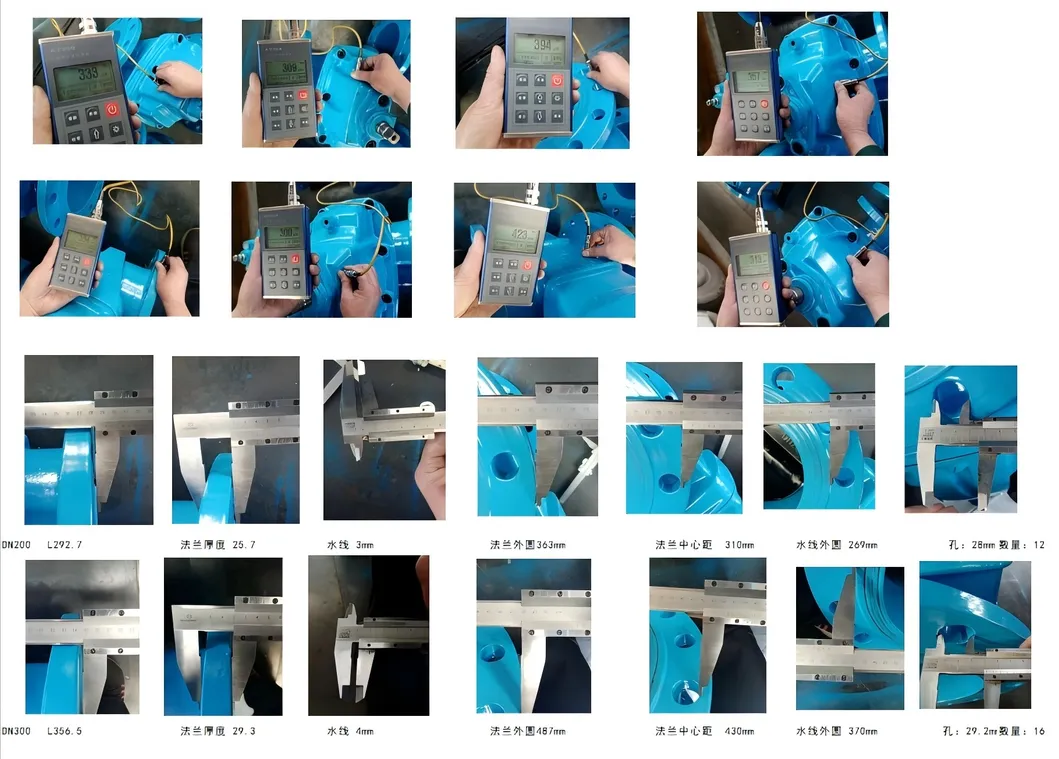

Material, Size, and Color Inspection

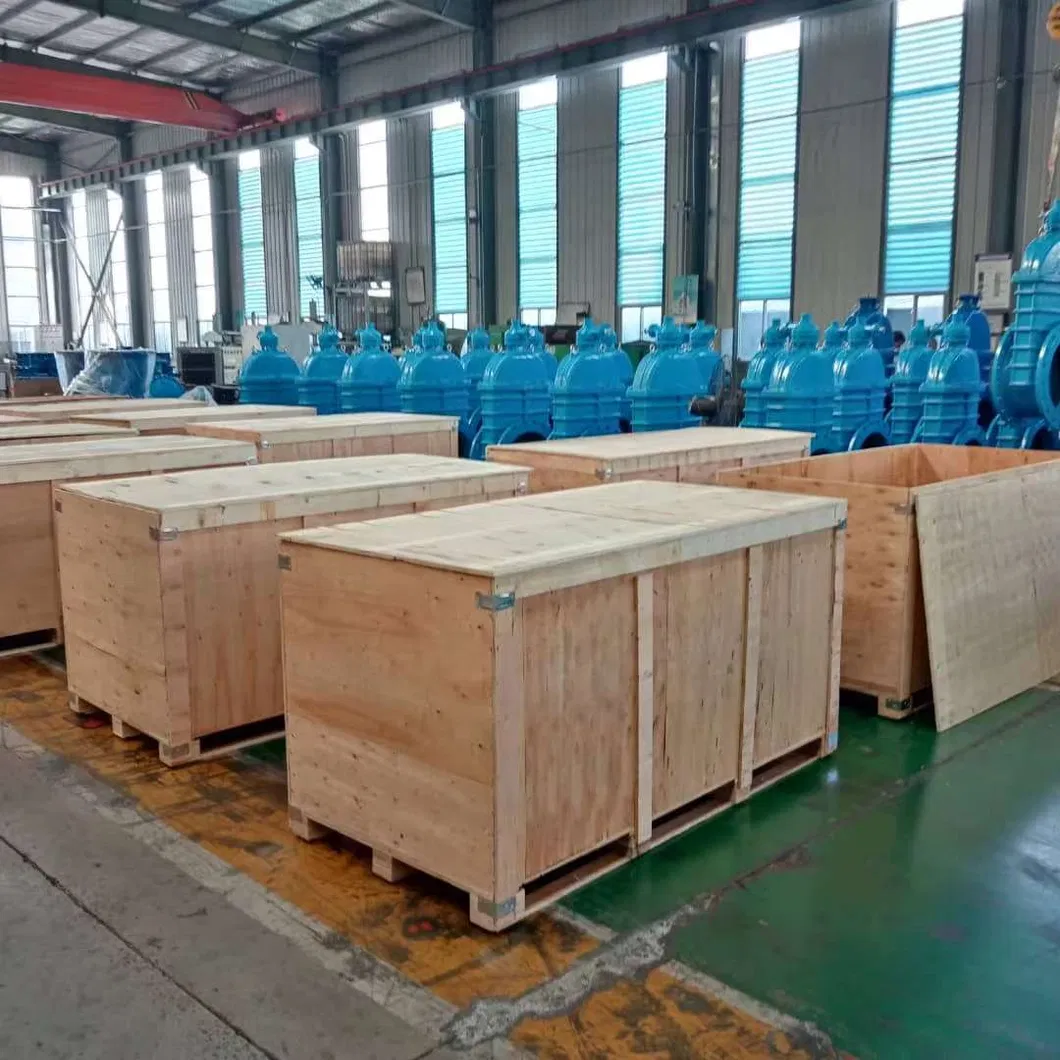

Polywood Case: 1350*800*780mm
