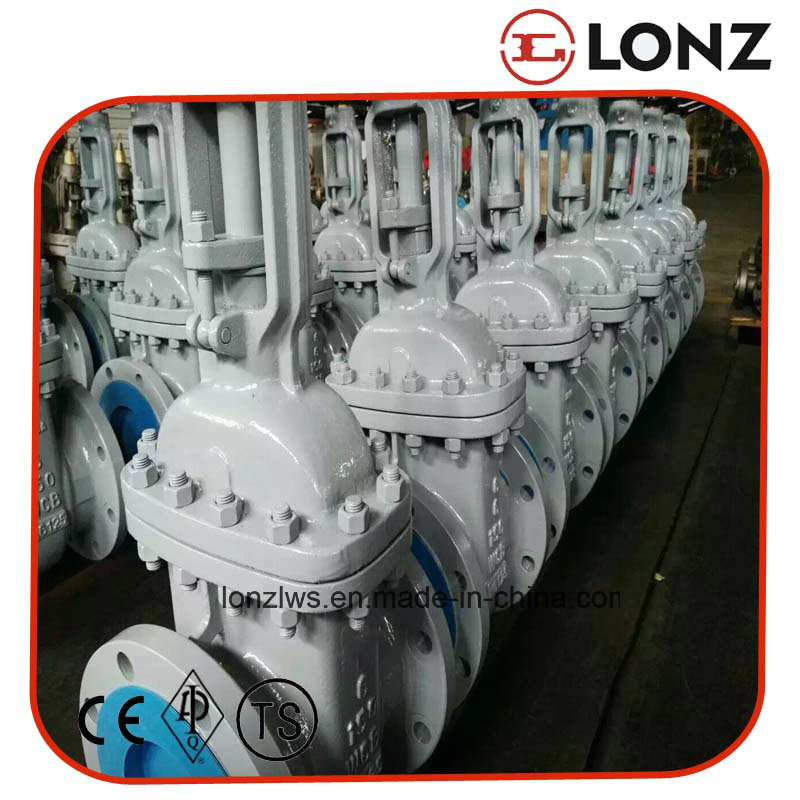

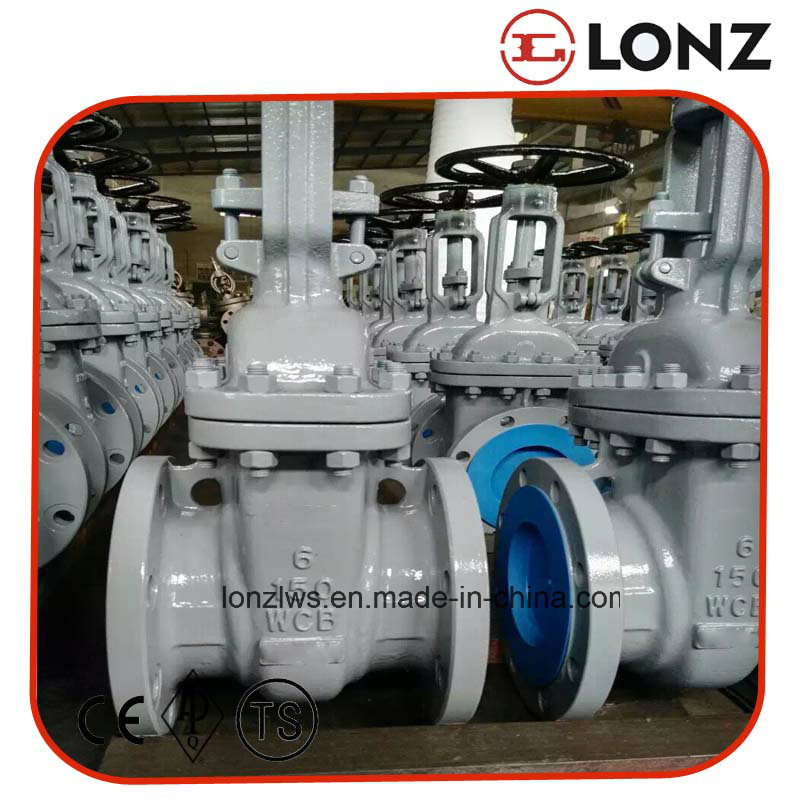

API Carbon Steel Wcb Flanged Rising Stem Gate Valve

Customization:	Available
Media:	Wog
Temperature:	Normal Temperature

i

Basic Specifications

Model NO.

Z40H

Type

Straight-through

Material

Carbon Steel

Connection Form

Flange

Pressure

Ordinary Pressure

Actuator

Manual

Seal Surface

Wedge Gate Valve

Standard

ANSI / API

Application

Industrial Usage, Water Industrial Usage

Class

150lb~2500lb

Specification

2"~48"

Certificate

API

⚙

Product Description

Available Materials: WCB, WC6, LCB, CF8M, CF8, CF3, CF3M
Size Range: 2" ~ 48"
Pressure Class: 150LB ~ 2500LB
Connection Types: RF, RTJ, BW
Design Standards: API600, API 603
Construction: BB, OS&Y, Rising Stem, Flexible Wedge
Face to Face: ≤ 36" to ASME B16.10, ≥ 40" to manufacturer's standard
End Connections: BW End to ASME B16.25; Flanged End ≤24" to ASME B16.5, ≥26" to ASME B16.47 Series A

★

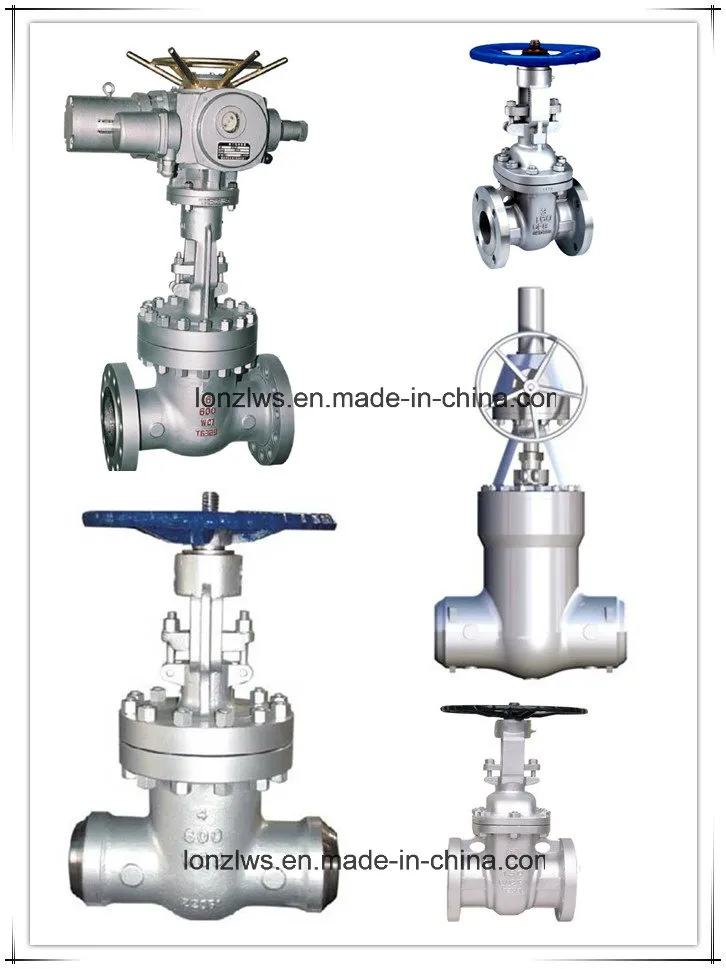

Products Show

📦

Packing & Delivery

Packing Details	Inner Package: bubble bags + plastic cover Outer Package: plywood case with dryer inside
Delivery Details	30~45 days after receiving the payment

?

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?

A: We are a professional factory specializing in industrial valve production.

Q: How long is the typical delivery time?

A: Generally it is 5-10 days if the goods are in stock. For non-stock items, it ranges from 35-48 days depending on the order quantity.

Q: Do you provide product samples?

A: Yes, we can offer samples for free; however, the cost of freight is to be covered by the customer.

Q: What are your standard terms of payment?

A: For payments ≤2500USD, 100% T/T in advance. For payments >2500USD, 30% T/T in advance, with the balance due before shipment.

Q: What standards do your gate valves comply with?

A: Our valves are designed and manufactured according to API600, API 603, and ASME B16.34 standards.

Q: Which materials are available for the valve body?

A: We offer a wide range of materials including Carbon Steel (WCB, LCB) and Stainless Steel (CF8, CF8M, CF3, CF3M) to suit different industrial requirements.
