Product Description

Basic Information

Model NO.
Z41H
Connection Form
Flange
Pressure
150lb~2500lb
Seal Surface
Wedge Gate Valve
Valve Rod Thread
Outside Gate Valve
Usage
Regulation
Standard
ANSI
Application
Industrial, Water Industrial, Household
Characteristic
Gate Valve
Design & Manufacture
API 600, ASME B16.34
Face to Face
ASME B16.10
Ends Connection
ASME B16.25, B16.5/16.47
Inspect & Test
API 598
Origin
China
HS Code
84818040
Production Capacity
6000ton Per year

Product Description

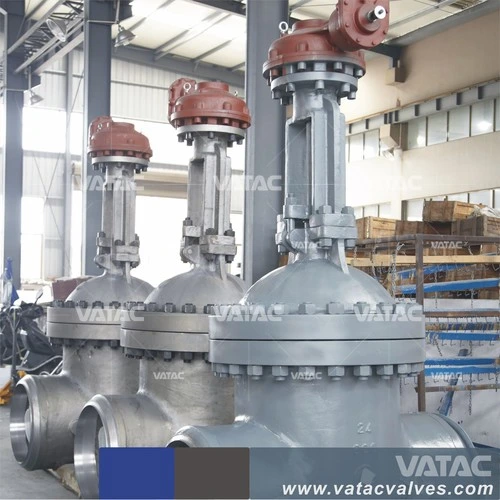

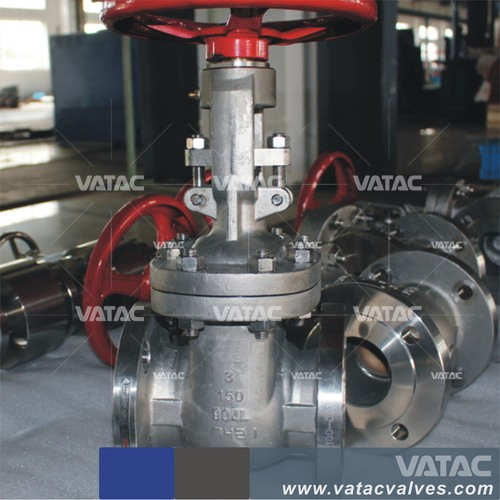

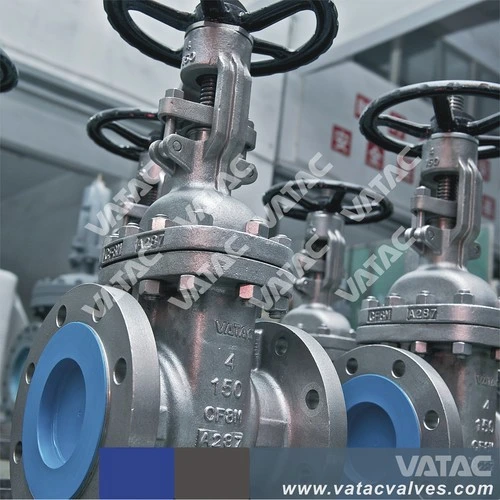

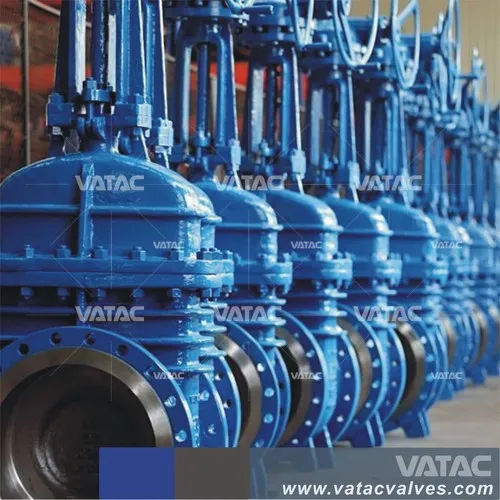

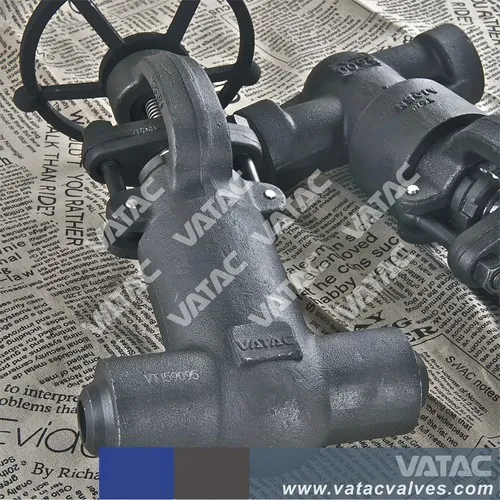

Cast and Forged Gate Valve

Cast and Forged Gate Valves Features and Specifications:

  • Design & Manufacture: ANSI B16.5, B16.34, API 600
  • OS&Y, Bolted Bonnet
  • Solid, Flexible or Split Wedge Design
  • Back-seating, Renewable Seat Ring
  • Full Port Or Reduced Bore
  • Optional Upset forged T-head Stem Design
  • Size Range: 2" to 48" N.B.
  • Pressure Ratings: ANSI 150, 300, 600, 900
  • End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange
  • Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent
  • Actuations: Manual, Electric, Hydrau-Pneumatic Actuator
  • Compliance: To MR 0175 and MR 103 on request
DESIGN & MFT. API 600 ENDS CONNECTION FLG. RF
PRE-TEMP. RATING ASME B16.34 INSPECT & TEST API 598
F-F DIMENSION ANSI B16.10 END CONNECTION ANSI B16.5
MARKING MSS SP-25 FIRE SAFE DESIGN --

Product Visuals & Inspection

Final Inspection

Final Inspection

Shipment Packing

Shipment Packing

Frequently Asked Questions

What standards are these gate valves manufactured to?
The valves are designed and manufactured according to API 600, ANSI B16.5, and ASME B16.34 standards.
What is the available size range for these valves?
We offer a wide size range from 2" up to 48" N.B. to accommodate various industrial requirements.
Which materials are used in the construction?
Materials include WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, and other low alloy or stainless steels suitable for different temperature services.
What types of end connections can be provided?
Common connections include Flanged (RF), Buttweld (BW), Socket Weld, and Hub Connectors or Compact Flanges.
Are there different actuation options available?
Yes, the valves can be operated via Manual handwheels, Electric actuators, or Hydrau-Pneumatic systems.
How is the quality of the valves verified?
Every valve undergoes rigorous inspection and testing according to API 598 standards before shipment.
