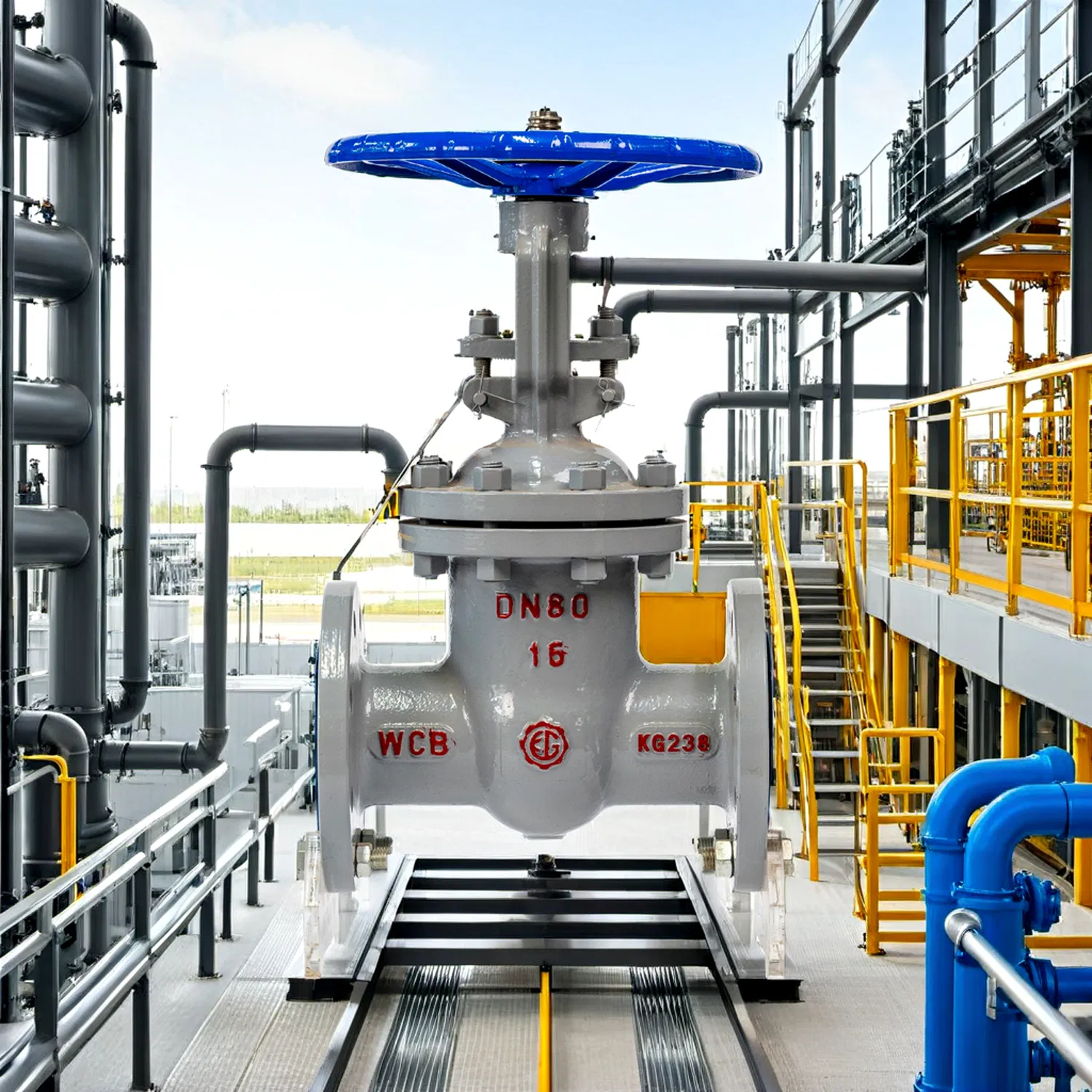

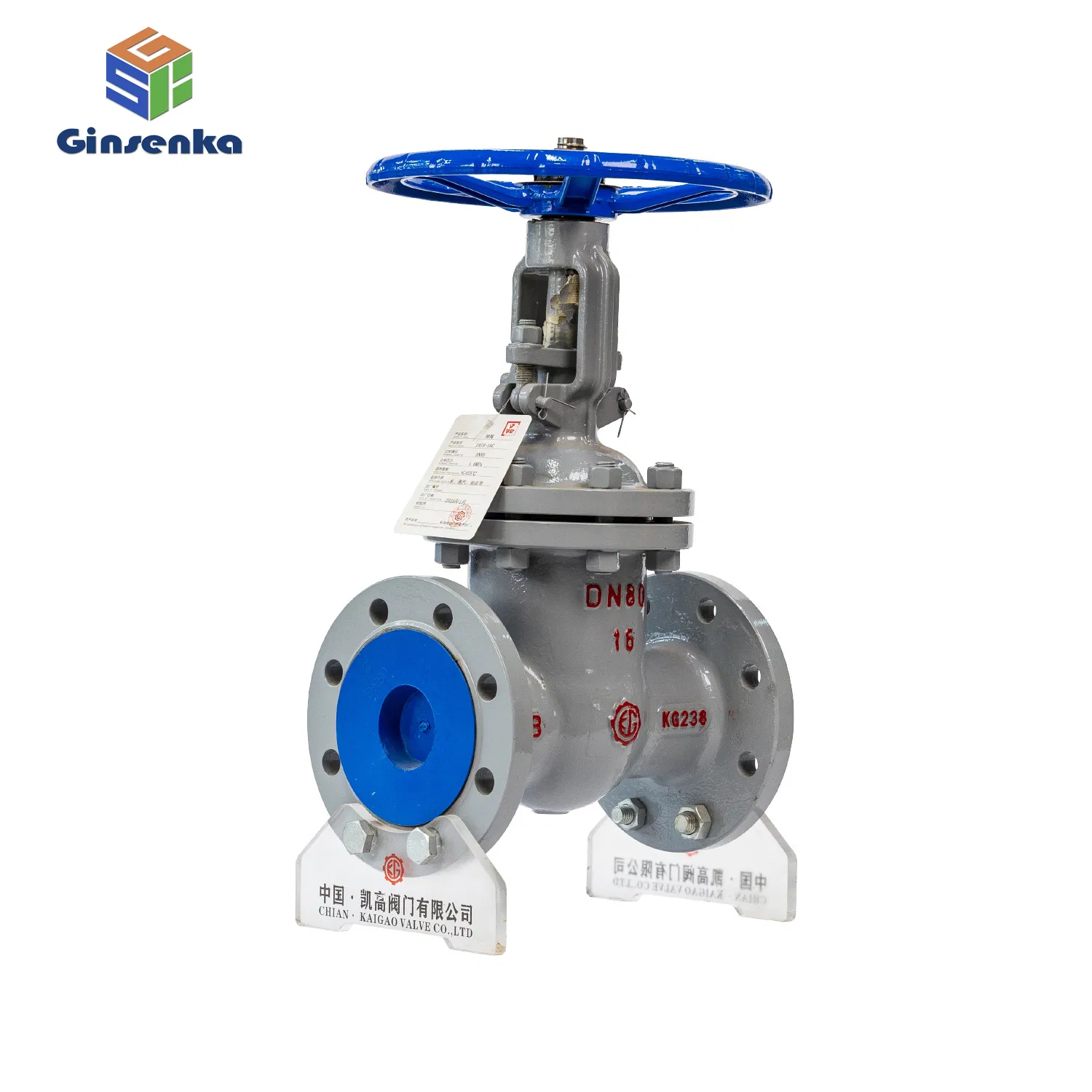

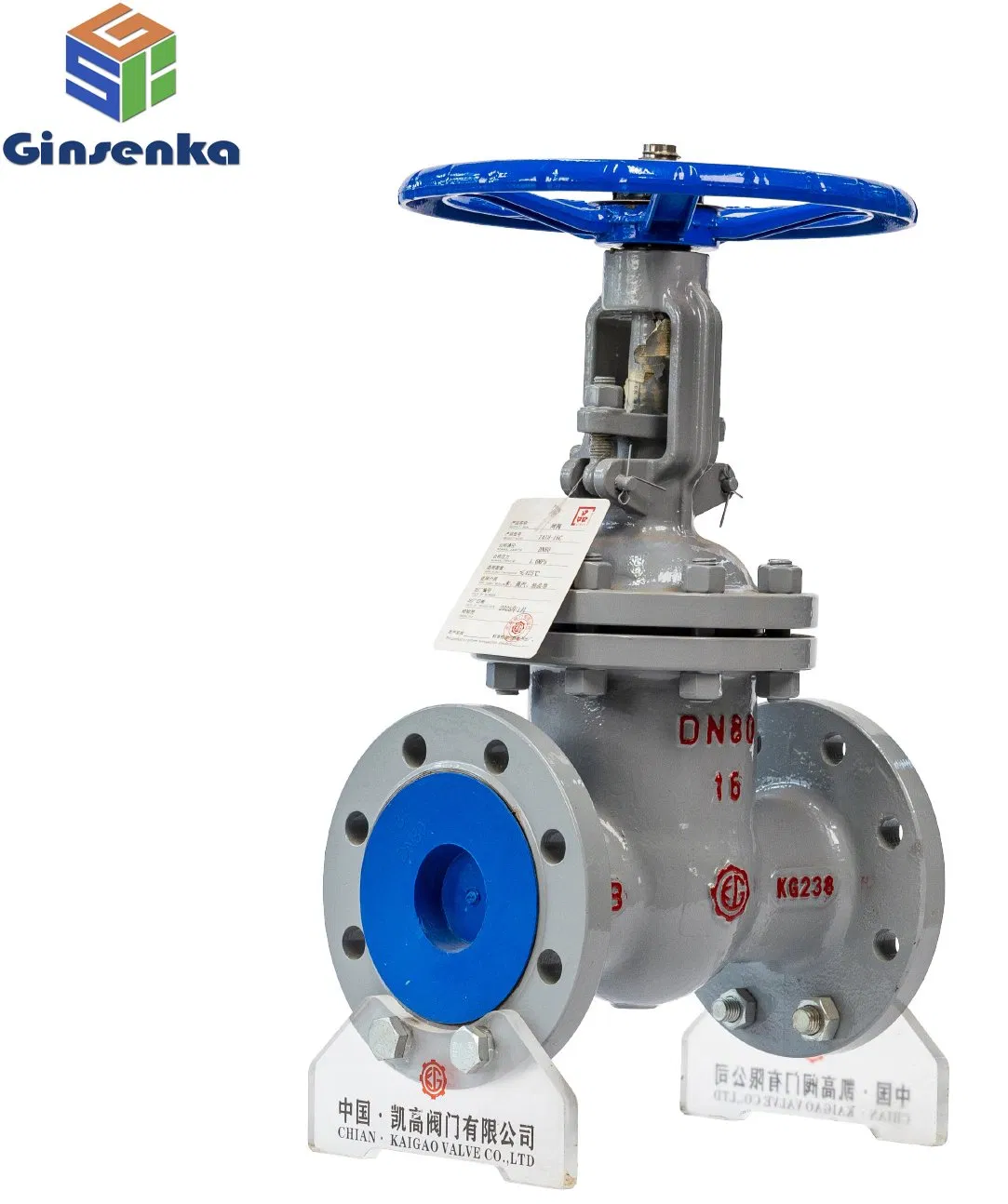

Origin Carbon Steel Flange Gate Valve for Water, Oil, Gas

Media:	Water
Temperature:	Ordinary Temperature
Type:	Straight-through

ℹ

Basic Information

Model NO.

Z41H-16C

Material

Carbon Steel

Connection

Flange

Pressure

Ordinary Pressure

Actuator

Manual

Seal Surface

Wedge Gate Valve

Rod Position

Outside Gate Valve

Standard

GB

Package

Export Wooden Case

Specification

DN50-DN1200

📋

Product Description

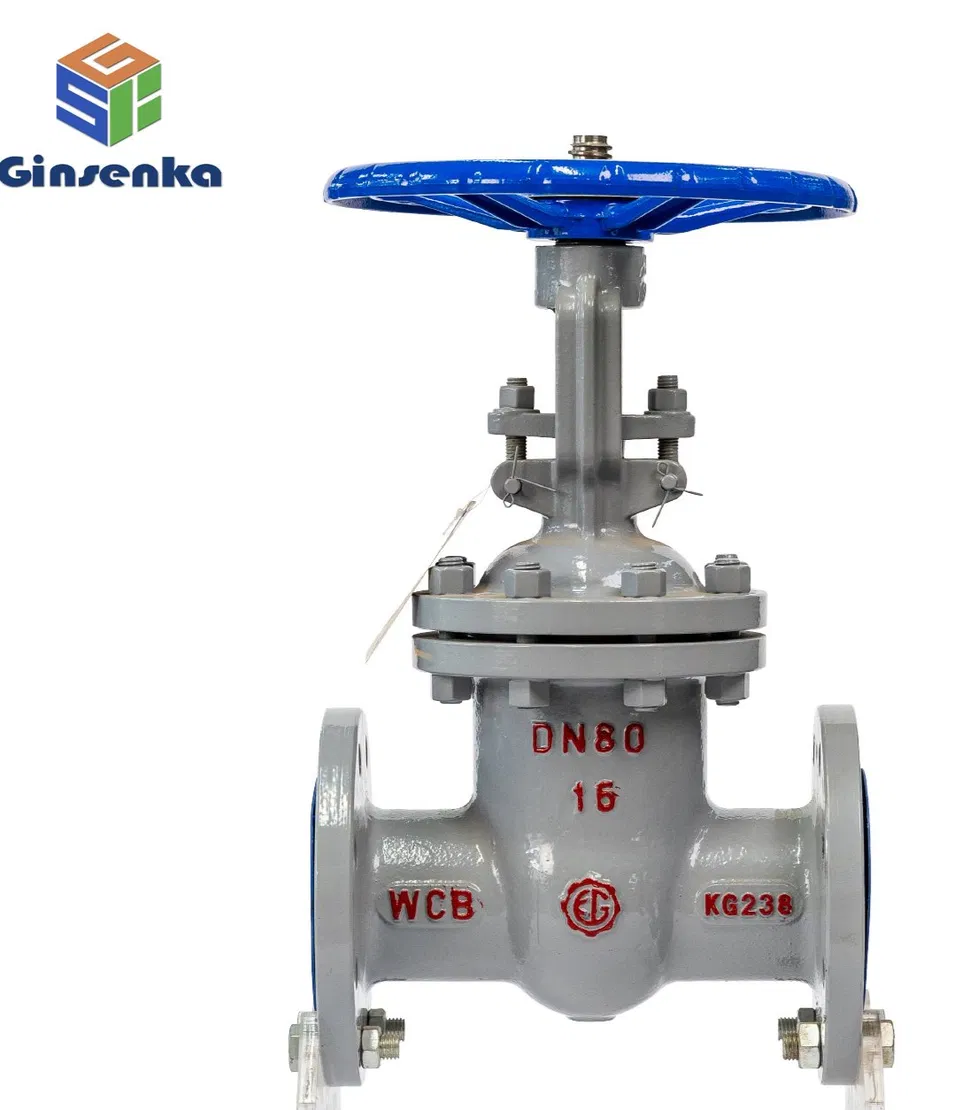

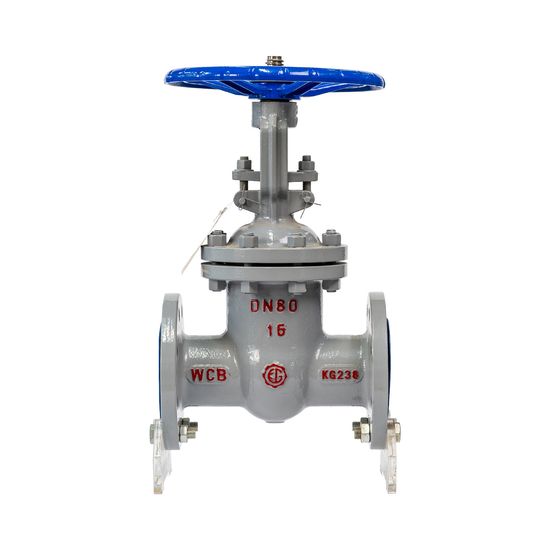

National standard carbon steel flange gate valve

The product is widely applicable to various working conditions in fields such as power, chemical engineering, metallurgy, chemical fiber, pharmaceuticals, environmental protection, etc. It is one of the most widely used and common valves in pipeline systems.

Product Features

Stable Sealing: The sealing principle of a gate valve is to achieve a seal through the tight fit of the two sealing surfaces on the wedge-shaped gate. The sealing performance is stable and reliable.
Low Resistance: The fluid resistance is small, the opening and closing moment of force is low, and it is relatively effortless to operate.
Unrestricted Flow: The medium flow direction is unrestricted, without disturbing the flow or reducing the pressure.
Customizable: Materials of the main body, inner components, packing, gaskets, and fasteners can be tailored to user requirements or specific working conditions.

⚙

Technical Specifications

Applicable Parameters	Range Table
Nominal Pressure (Mpa)	PN1.0-PN16
Nominal Diameter (mm)	DN15-DN1000
Valve Body Material	WCB, A105
Applicable Temperature	-29℃ - 425℃
Applicable Medium	Water, Oil, Steam
Execution Institution	Manual, Bevel Gear, Electric, Pneumatic, etc.

Design Specs	Structural Length	Flange Connection	Testing	Pressure/Temp	Labeling	Supply Req.
GB/T12234	GB/T12221	JB/T79, GB/T9113, HG/T20592	GB/T26480, JB/T 9092, GB/T13927	GB/T12224	GB/T12220	JB/T7928

🛠

After-Sales Service

1. File Management: Detailed records for each product including installation, maintenance, and parts replacement for full life cycle tracking.

2. Warranty: 12 months from acceptance. Free repair or replacement for quality-related faults.

3. Lifetime Support: Spare parts provided at cost and continuous technical support offered outside the warranty period.

🏢

Company Profile

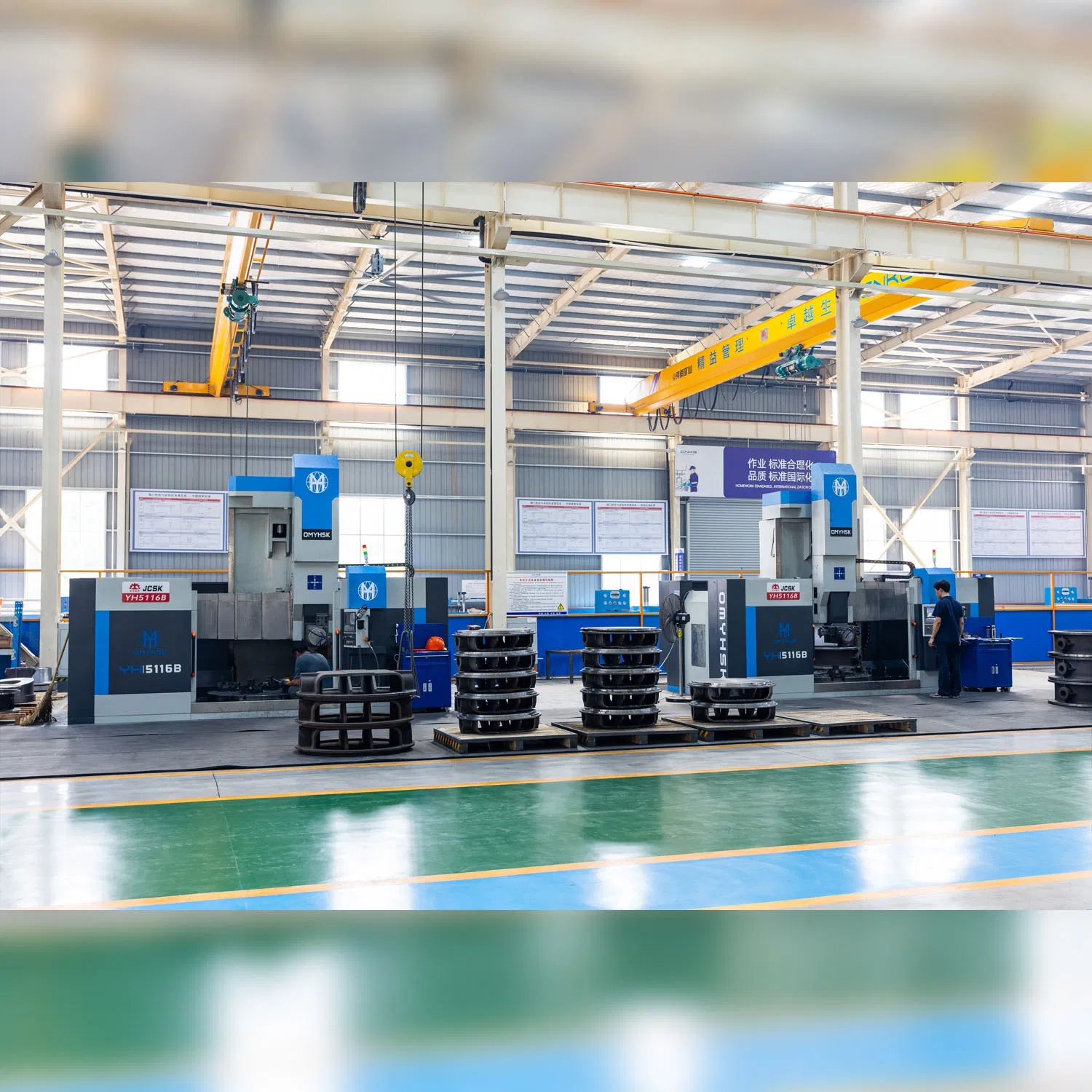

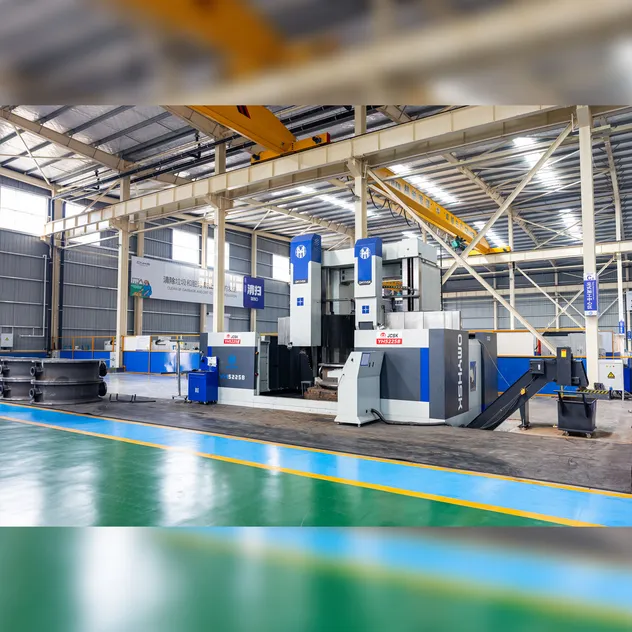

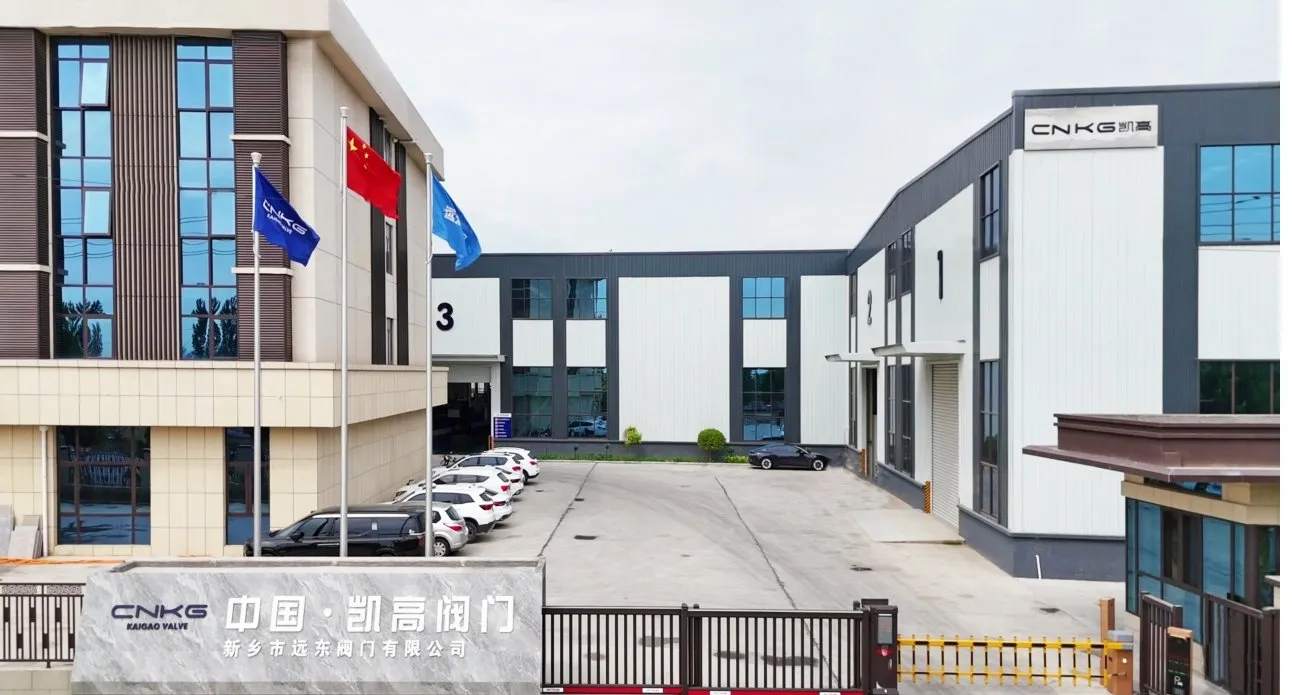

The company is a professional valve manufacturer that has been dedicated to the production and research and development of valves. Our goal is to solve the usage problems of users in various industries and provide comprehensive system solutions for all types of end users. The facility covers an area of 95 mu, with a factory building area of 35,000 square meters. The company has been established for more than 30 years.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Other Products

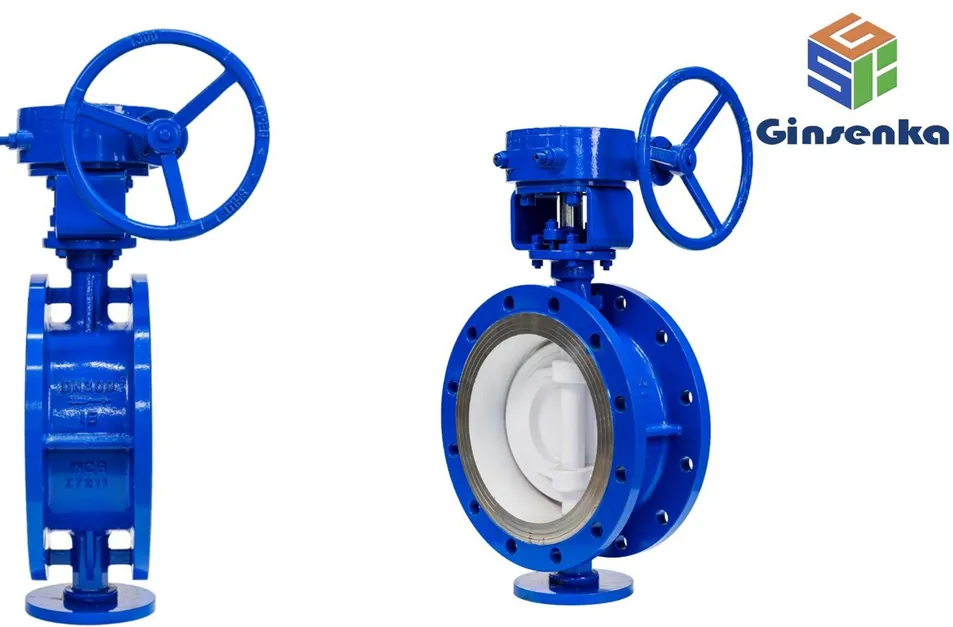

Flanged three-offset fluorine-sealed butterfly valve

❓

Frequently Asked Questions

What’s the lead time for valve orders?

Standard models typically ship within 15–30 days. For customized units or large bulk orders, the lead time is generally 30–45 days depending on the specifications.

Can you provide customized materials for specific working conditions?

Yes. We offer tailored material combinations for the valve body, inner components, packing, and gaskets to meet your specific pressure, temperature, and medium requirements.

What standards do your valves comply with?

Our gate valves are designed according to GB/T12234, with structural lengths meeting GB/T12221 and testing performed under GB/T26480 or JB/T 9092 standards.

What kind of after-sales support do you offer?

We provide a 12-month warranty period. Additionally, we establish a life-cycle file for each product and offer lifetime technical support and spare parts at cost price.

What documents are provided for international shipping?

We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC) to ensure smooth customs clearance.

How can I request a quote or place an order?

You can contact us via our official communication channels with your required specifications (Material, DN, PN). Once the quote is confirmed, you can proceed with a Purchase Order (PO).
