Our Industrial Valves include ball valves, gate valves, globe valves, check valves, triple offset butterfly valves, plug valves, strainers and other types of customized valves used for pipeline and equipment connections.
Products are available in both casting and forging types to meet various industrial applications. All products meet international standards including ISO9001, ISO45001, ISO14001, CE, ISO15848, and API607.

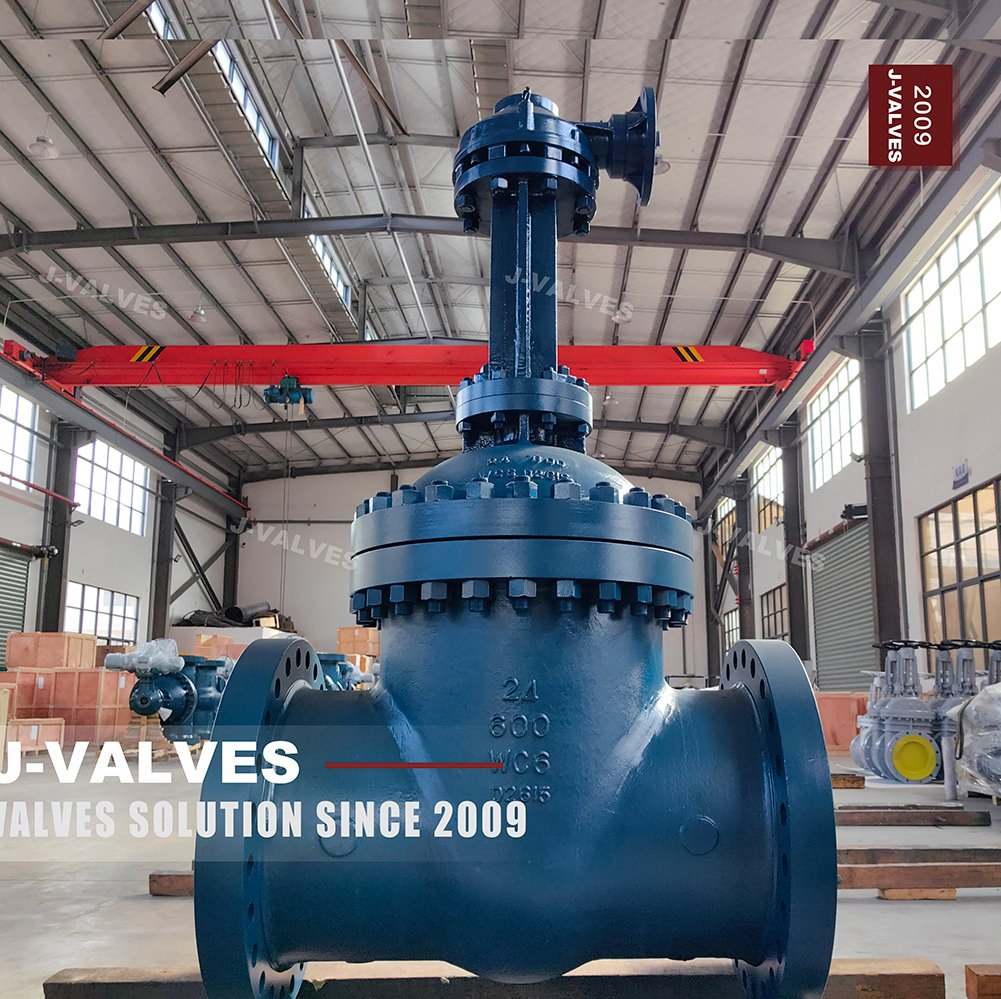

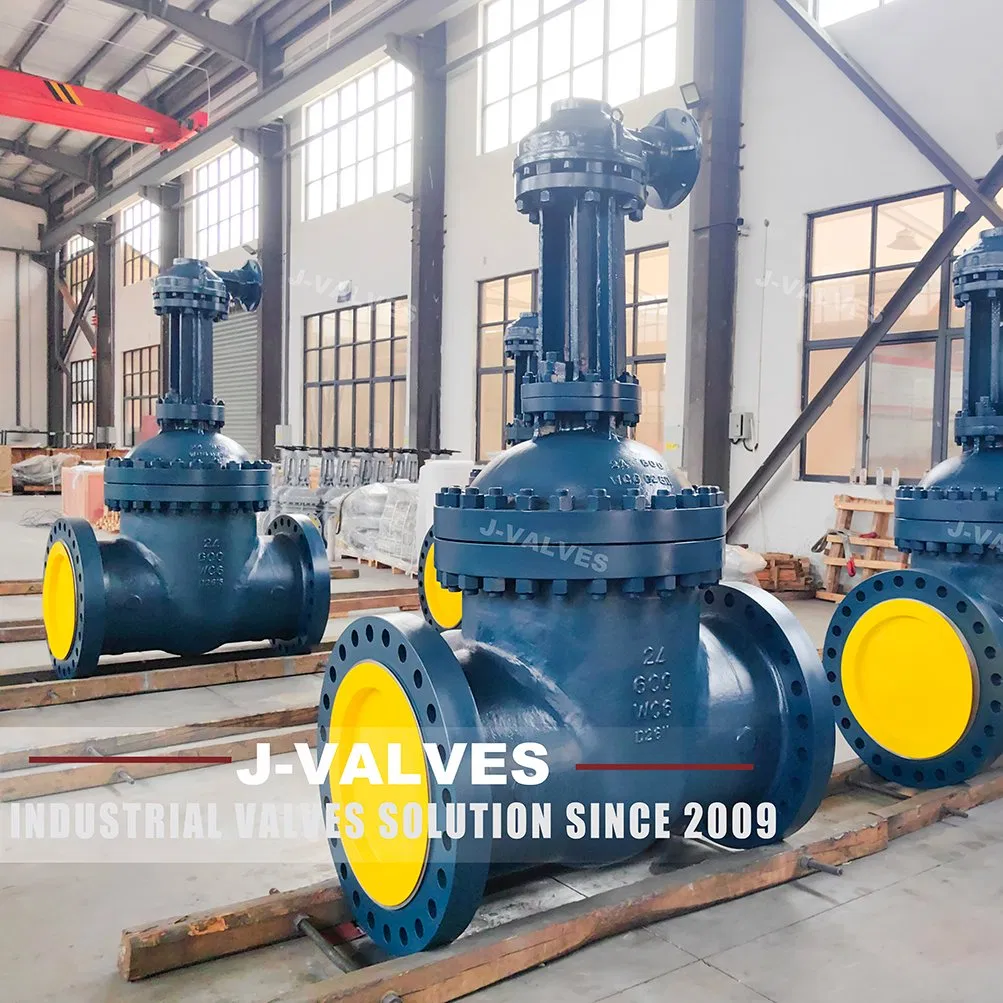

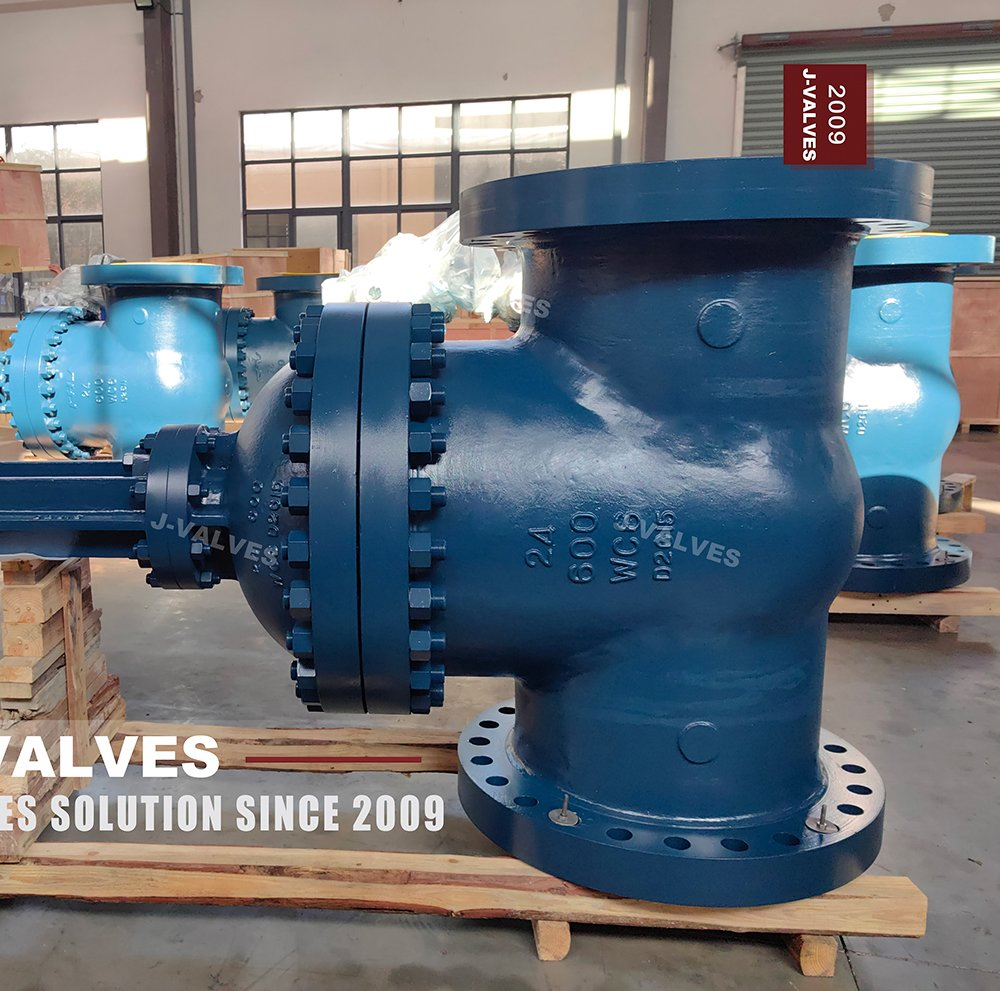

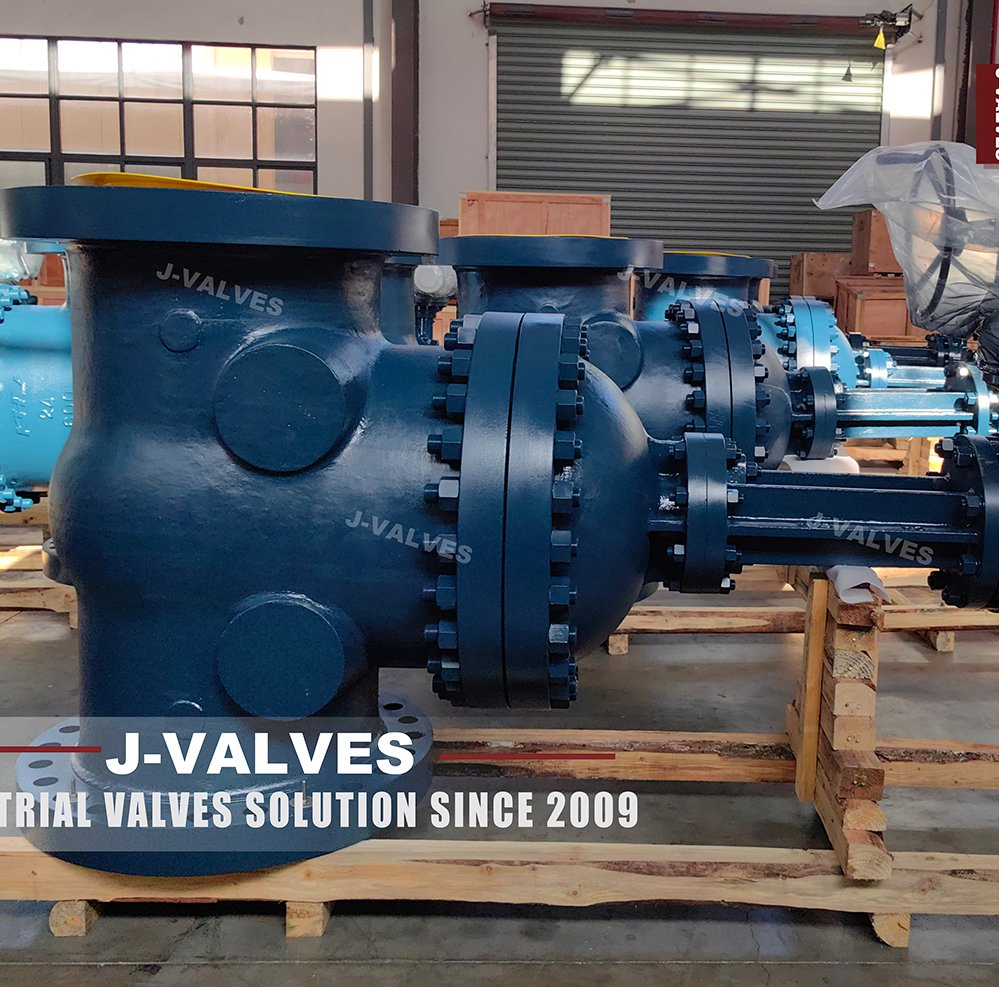

Designed for high-pressure, large-diameter pipeline systems. It offers outstanding durability, excellent sealing performance, and easy operation under extreme working conditions. Made from ASTM A216 WCB carbon steel, it features a solid or flexible wedge, rising stem design, metal-to-metal sealing, and heavy-duty gear operator.
| Specification Item | Description |
|---|---|
| Product Type | Wedge Type Gate Valve |
| Design Standard | API 600 / ASME B16.34 |
| Nominal Diameter (DN) | DN50 - DN1200 (2" - 48") |
| Pressure Rating | Class 150 / 300 / 600, PN16 - PN40 |
| Connection Type | Flanged (RF/RTJ), Butt Weld (BW) |
| Body Material | Carbon Steel (WCB), Stainless Steel (CF8, CF8M), Alloy Steel, Duplex Steel, Bronze |
| Bonnet Type | Bolted Bonnet / Pressure Seal Bonnet |
| Stem Type | Rising Stem / Non-Rising Stem |
| Sealing Surface | Metal to Metal |
| Working Temperature | -29°C to +425°C |
| Suitable Media | Water, Steam, Oil, Natural Gas, Acid/Alkali Solutions |
Back elevation
Overall elevation

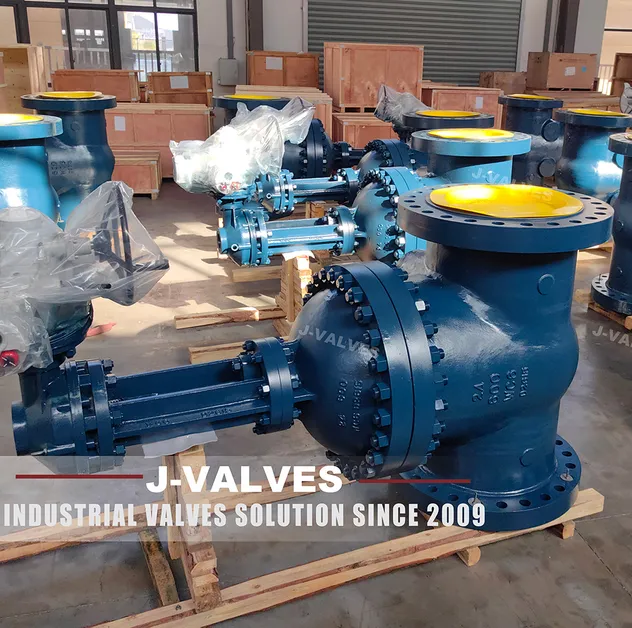

Front elevation
| Pressure Test | 150LB | 300LB | 600LB | 900LB | 1500LB | Unit |
|---|---|---|---|---|---|---|
| Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | Mpa |
| Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | Mpa |
| Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | Mpa |
Our company is an integrated manufacturing and trading entity specializing in industrial valves and pipeline fittings. We hold certifications including ISO 9001, ISO 14001, ISO 45001, ISO15848, CE Marking, and API 607 Fire Safe Certification.
We deliver customized products and services in materials such as Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Bronze, Titanium, and Monel Alloy. Every product undergoes 100% pre-shipment testing to ensure excellence.
| Delivery Time | 10-30 Days |
|---|---|

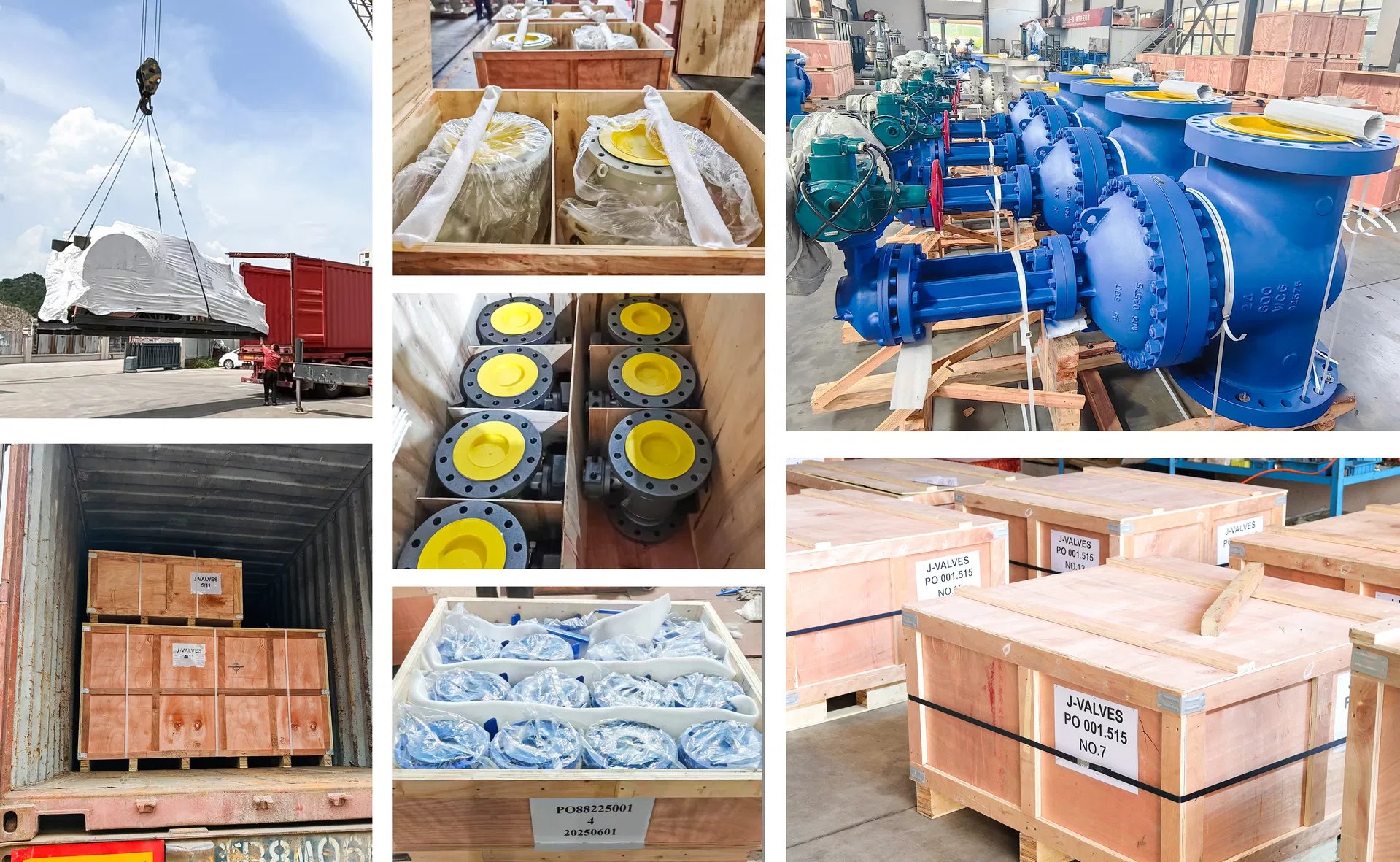

| Package | Standard Exporting Plywood Case |
| Shipping Terms | EXW, FCA, CPT, CIP, DAP, DDP, FOB, CIF |
| Payment Terms | T/T, DP, LC at sight |
| Production Capacity | 8000 Ton/year |
