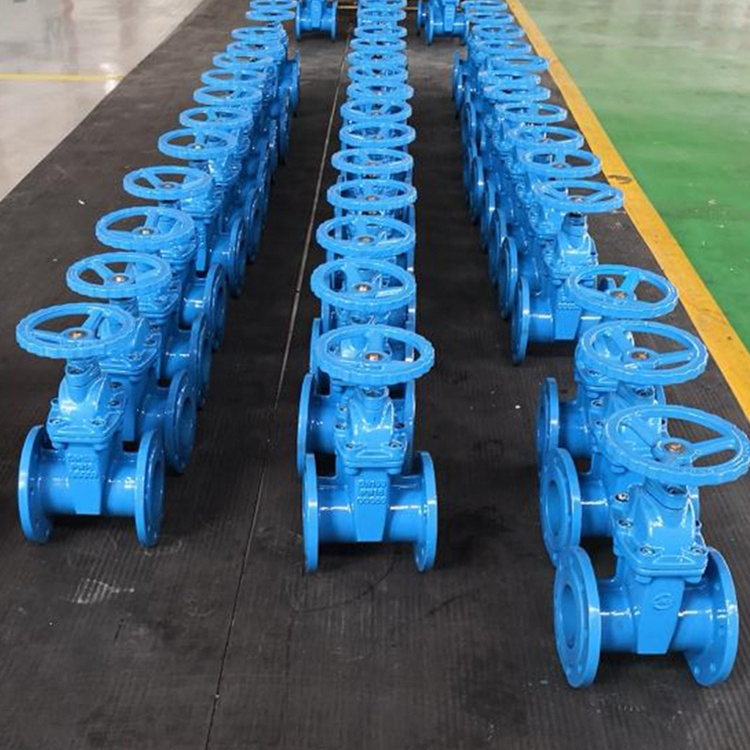

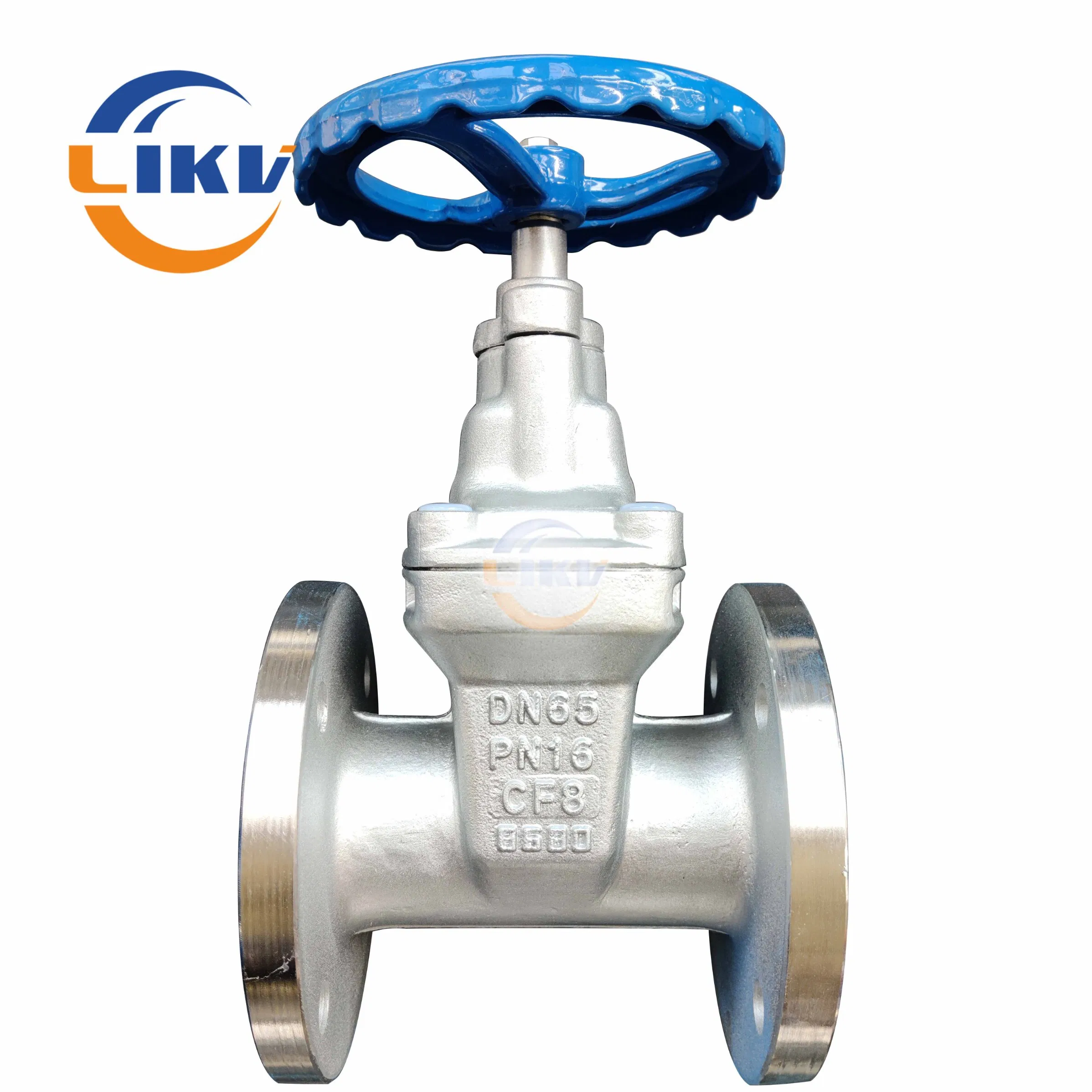

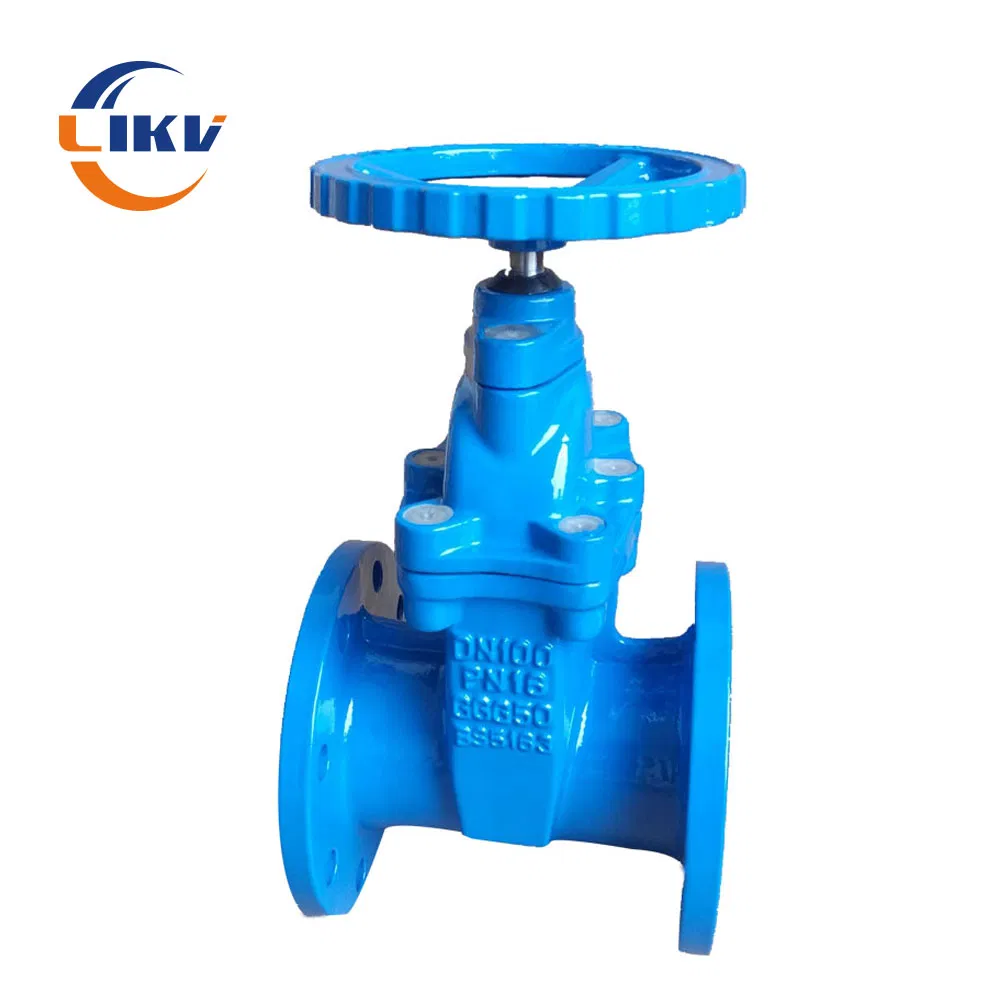

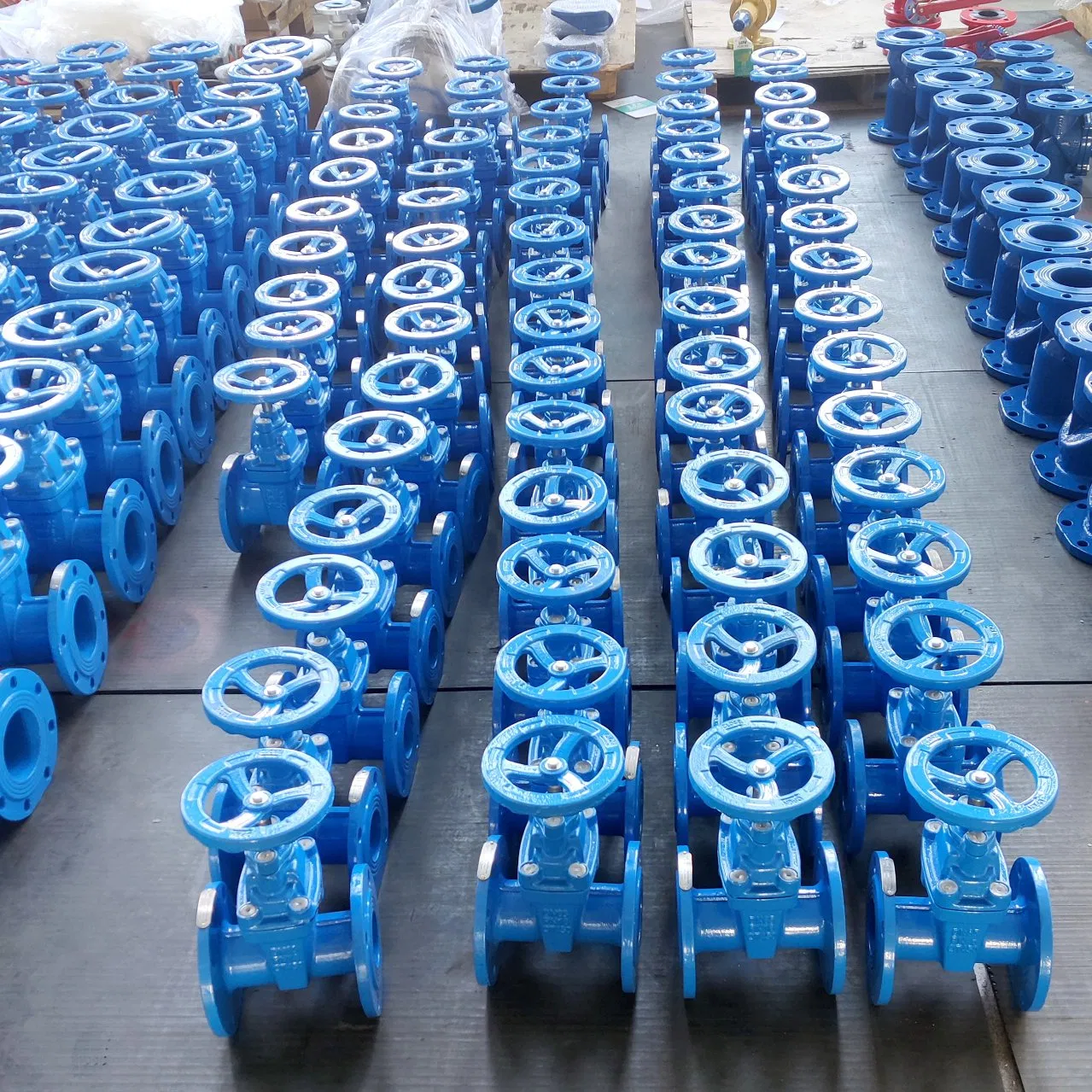

BS 5150 / DIN 3352 / AWWA C515 Double Flanged Non Rising Stem Gate Valve
Basic Information
Seal Surface
Wedge Gate Valve
Thread Position
Inside Gate Valve
Application
Industrial & Water Usage
Body Material
Ductile Iron
Gate
Ductile Iron + EPDM/NBR
Packaging & Delivery
Package Size
50.00cm * 40.00cm * 30.00cm
Product Description & Materials
| Part Name |
Material Options |
| Body / Bonnet | Gray iron, ductile iron, cast steel |
| Gate | Ductile iron + EPDM or NBR |
| Stem | Stainless steel |
| Allen Bolts | Carbonization process |
| Seals / O-ring | NBR, EPDM |
| Thrust Bearings | Tin bronze |
| Hand Wheel | Malleable iron |
| Dust Cover | NBR |
Custom Production Available
We can produce various types of butterfly valves and gate valves according to your specific requirements and drawings.

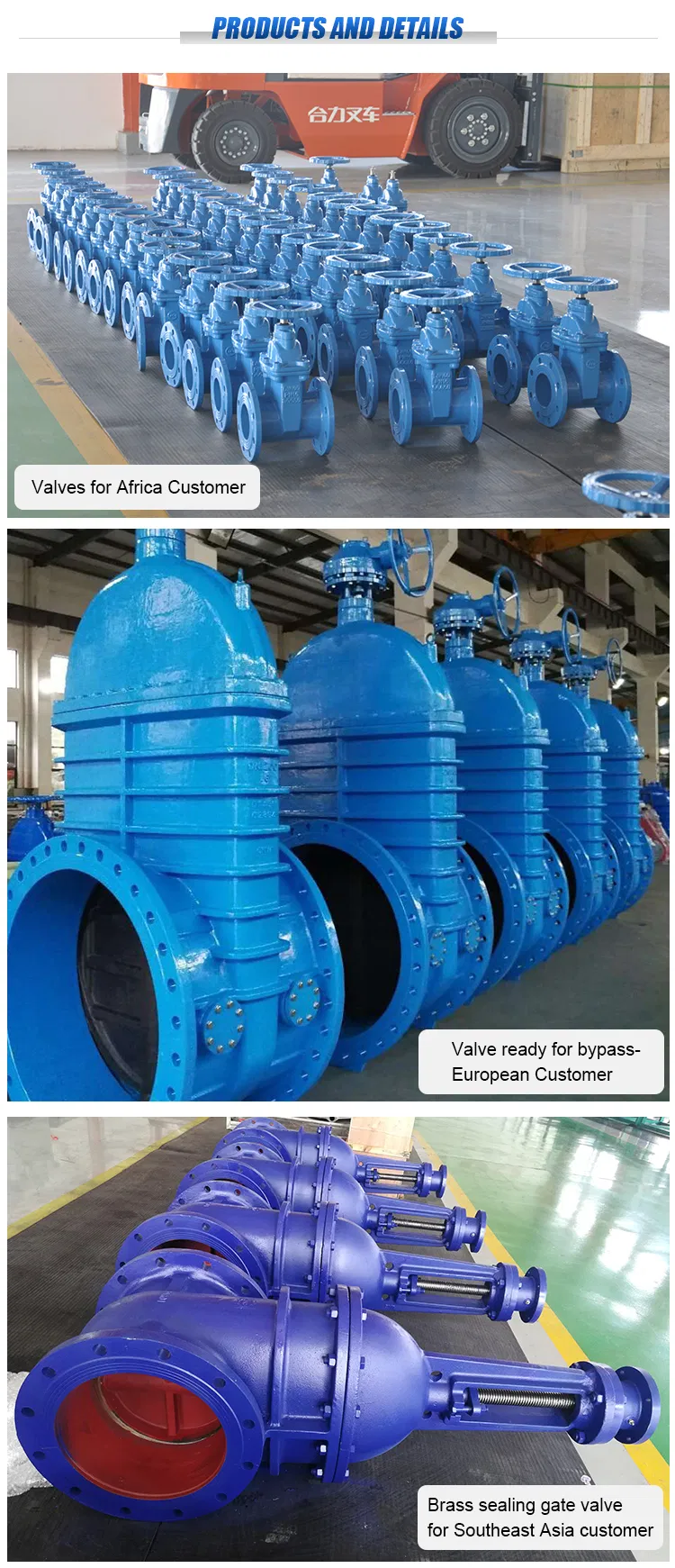

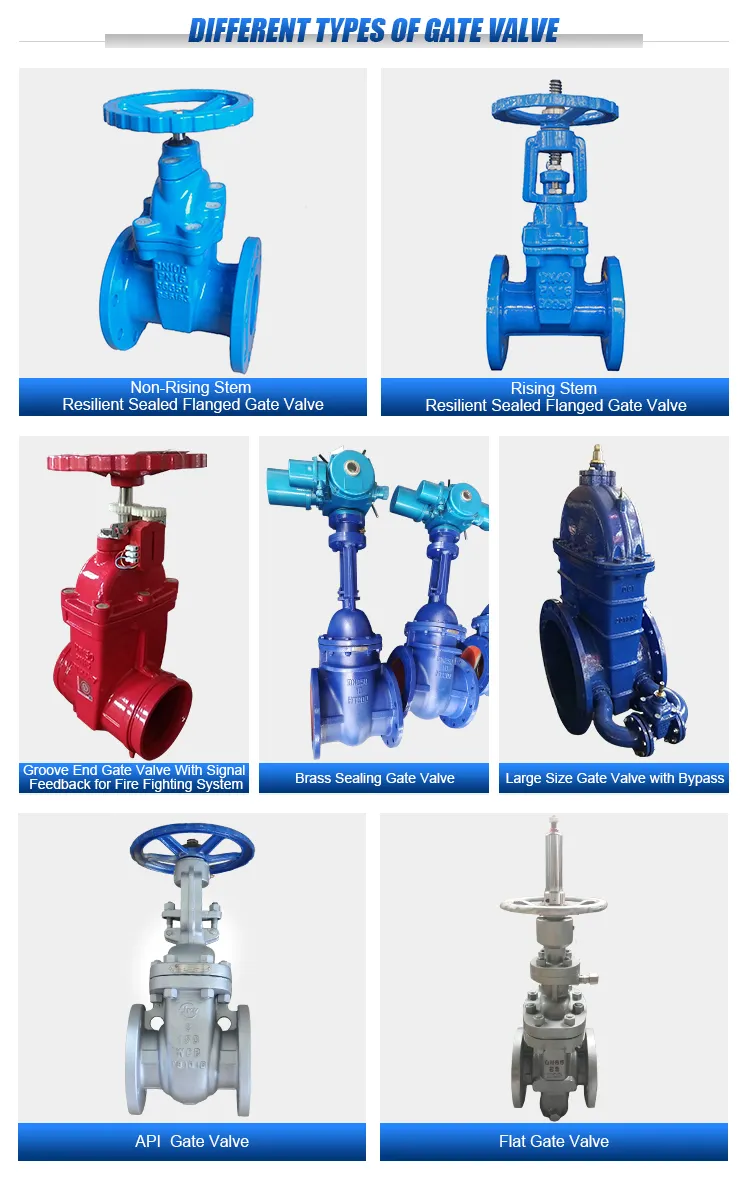

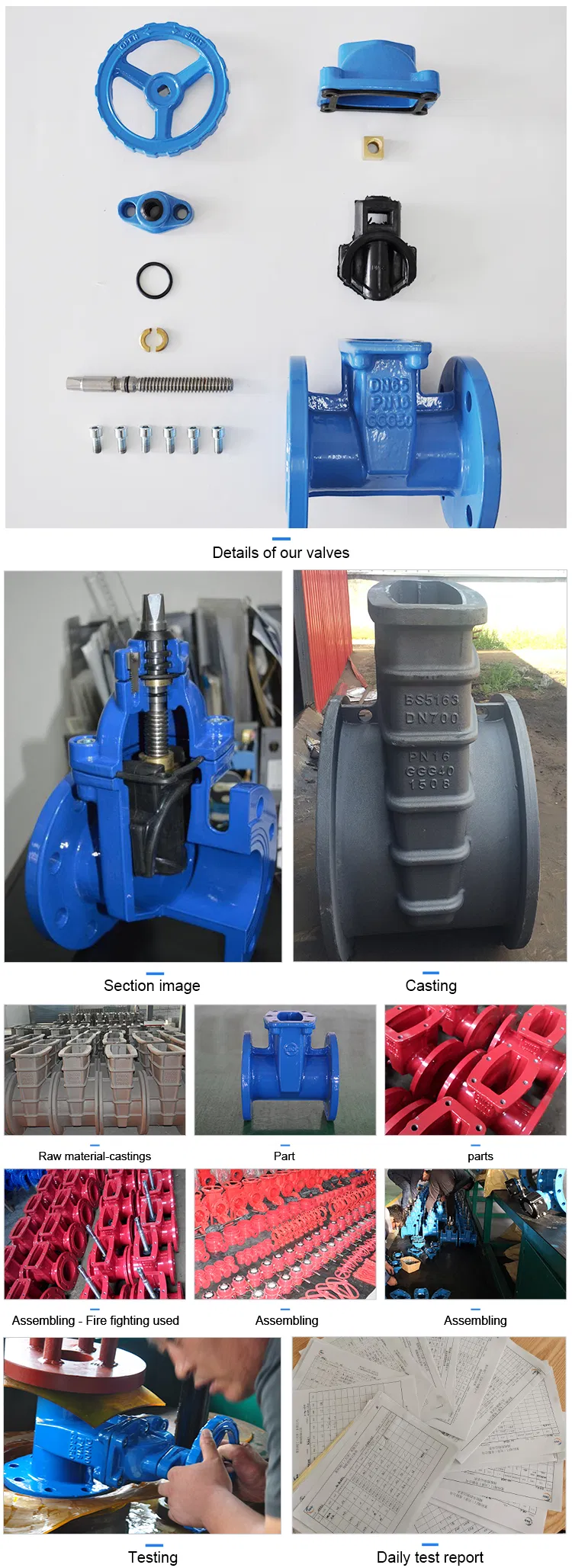

Product Detail Gallery

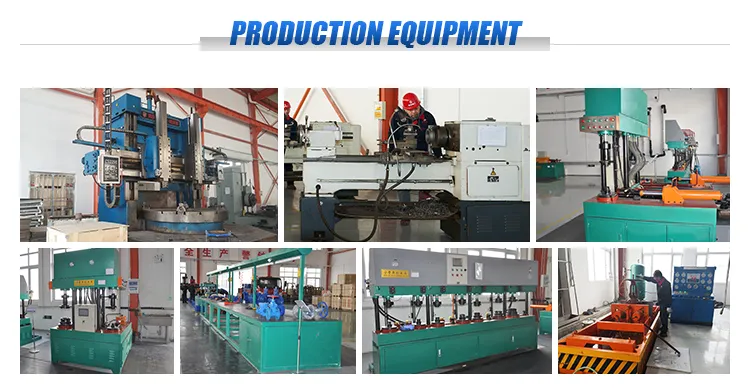

Qualification Certificates
Frequently Asked Questions
1 What are the advantages of a Non-Rising Stem (NRS) Gate Valve?
NRS gate valves take up less space compared to rising stem valves, making them ideal for underground installations or areas with limited overhead clearance. The stem thread is protected from the medium, ensuring consistent operation.
2 What standards do these valves comply with?
Our gate valves are manufactured to meet international standards including BS 5150, DIN 3352 F4/F5, and AWWA C515, ensuring compatibility with global piping systems.
3 Which materials are used for the valve body and gate?
The body is typically made of high-quality Ductile Iron or Cast Steel. The gate is made of Ductile Iron encapsulated with EPDM or NBR rubber to ensure a resilient and leak-proof seal.
4 What are the typical applications for the Z45X model?
The Z45X series is widely used in water supply and drainage, sewage treatment, industrial water systems, and fire protection systems due to its reliable flow control and safety features.
5 Are the valves suitable for low-pressure environments?
Yes, these valves are specifically designed for low-pressure regulation and safety applications, providing excellent sealing performance even in standard industrial water usage.
6 Can I get a customized valve based on my drawings?
Absolutely. We offer customization services for various types of gate and butterfly valves to meet your specific technical requirements and engineering drawings.
